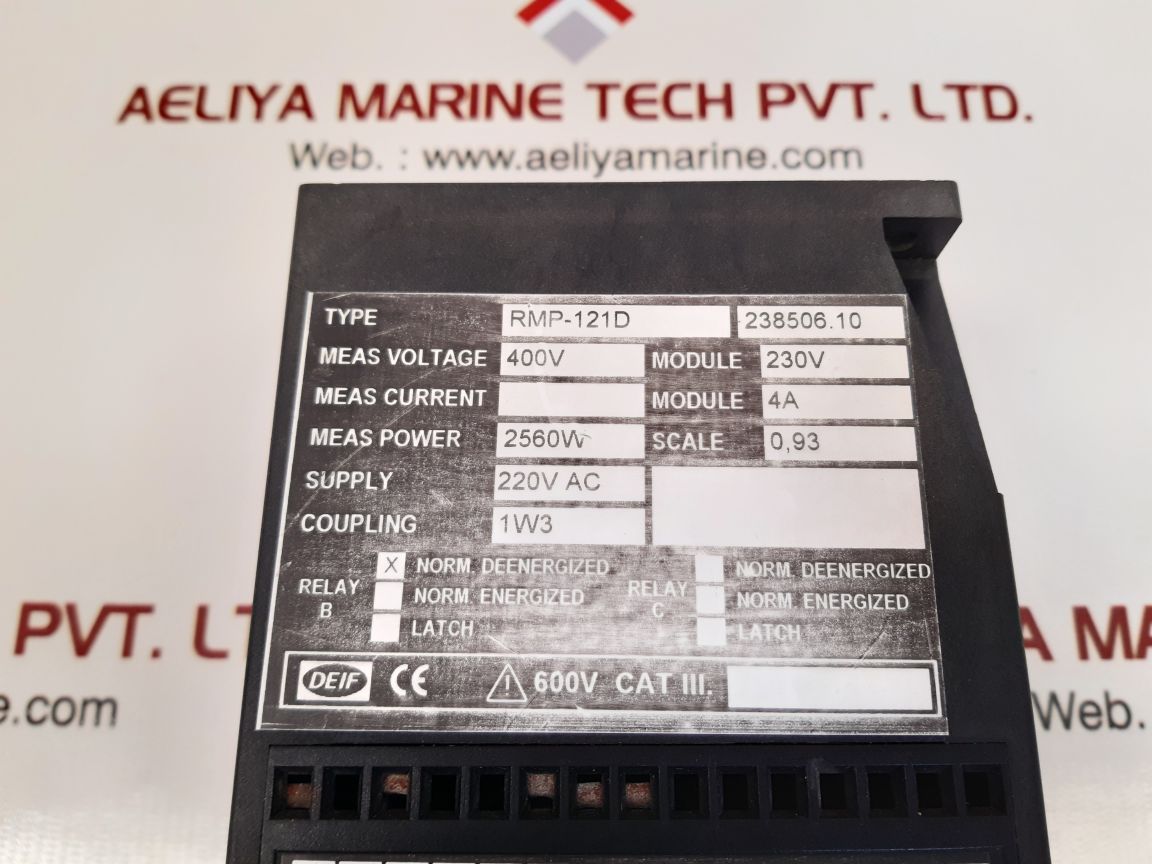

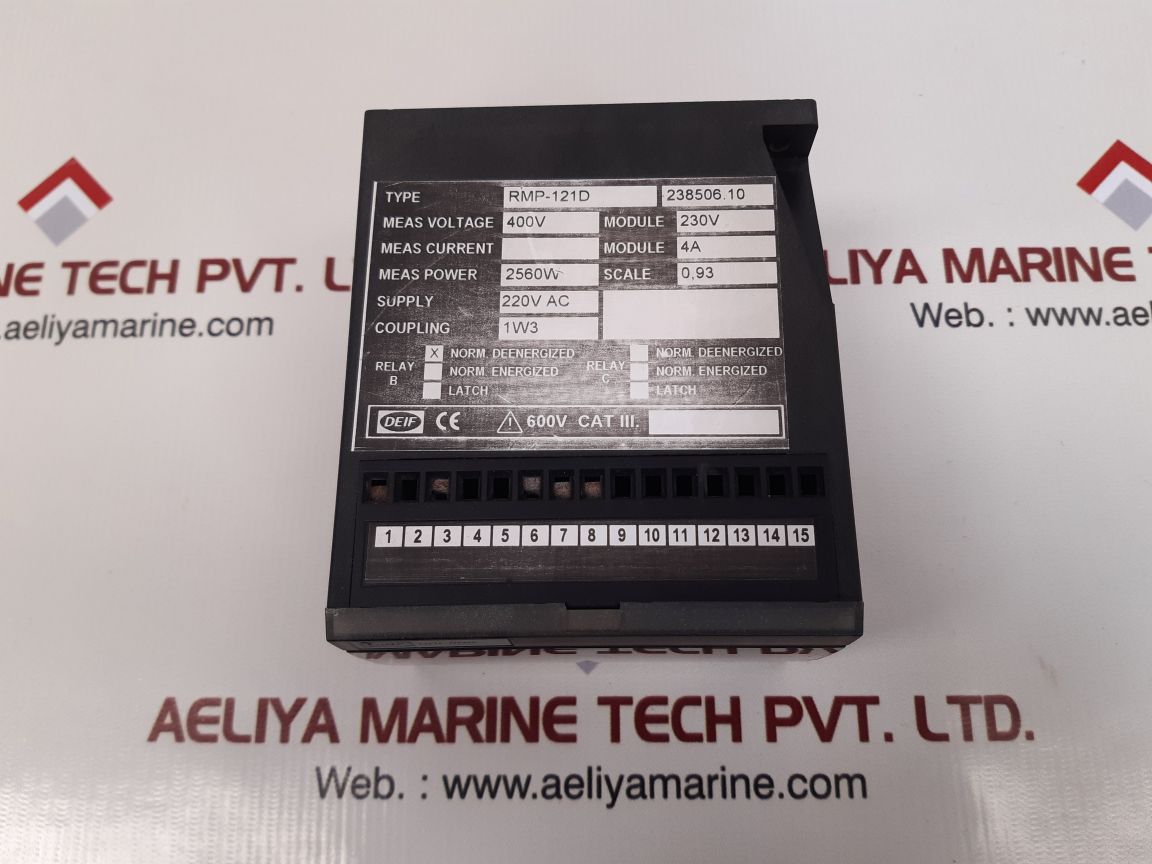

| Attribute | Value |
|---|---|
| Manufacturer | DEIF |
| Type | RMP-121D |
| Model Number | 238506.10 |
| Measurement Voltage | 400V |
| Module Voltage | 230V |
| Module Current | 4A |
| Measurement Power | 2560W |
| Scale | 0.93 |
| Supply Voltage | 220V AC |
| Coupling | 1W3 |
| Relay B | Normally De-energized |
| Category | 600V CAT III |
| Series | Uni-Line |
| Weight | 560 gm |
What is the DEIF RMP-121D Reverse Power Relay?
The DEIF RMP-121D is a reverse power relay used for detecting and inhibiting the flow of power in the reverse direction. In a power system, reverse power results when a generator begins drawing power rather than generating power. This can cause a variety of serious problems, ranging from damage to generators to higher operating expenses.
The 238506.10 model guarantees the generator is disconnected in case of reverse power, safeguarding both the generator and the whole power distribution system.
How Does the DEIF RMP-121D Function?
The RMP-121D works by constantly monitoring the direction of power flow within a generator system. Upon sensing reverse power, the relay sends a trip signal to disconnect the generator from the power system.
Here’s a step-by-step simple explanation of how it works:
Power Monitoring: The relay continuously monitors power flow direction.
Reverse Power Detection: When power begins flowing in the incorrect direction, it detects the fault.
Trip Activation: The relay activates an alarm or automatically disconnects the generator.
Protection Guaranteed: The generator is securely isolated to avoid further damage.
Key Features and Specifications
The DEIF RMP-121D Reverse Power Relay is supplied with innovative features that make it a trusted option for power protection:
Accurate Reverse Power Detection – Provides fast response to reverse power situations.
Adjustable Trip Level – Adjustable settings for various operational requirements.
High Accuracy – Offers stable and accurate performance in changing conditions.
LED Indicators – Provides visual indication of relay status and alarms.
Compact and Durable Design – Designed for industrial and marine use.
Voltage and Frequency Compatibility – Compatible with various system configurations.
Why is the DEIF RMP-121D Significant?
It is necessary to use a reverse power relay such as the DEIF RMP-121D for a number of reasons:
Protects Generators – It prevents generators from taking power, which can cause overheating and damage.
Ensures System Stability – Prevents sudden power outages and system failures.
Reduces Maintenance Costs – It extends the life of generator parts.
Improves Safety – Prevents dangerous situations in industrial and marine environments.
