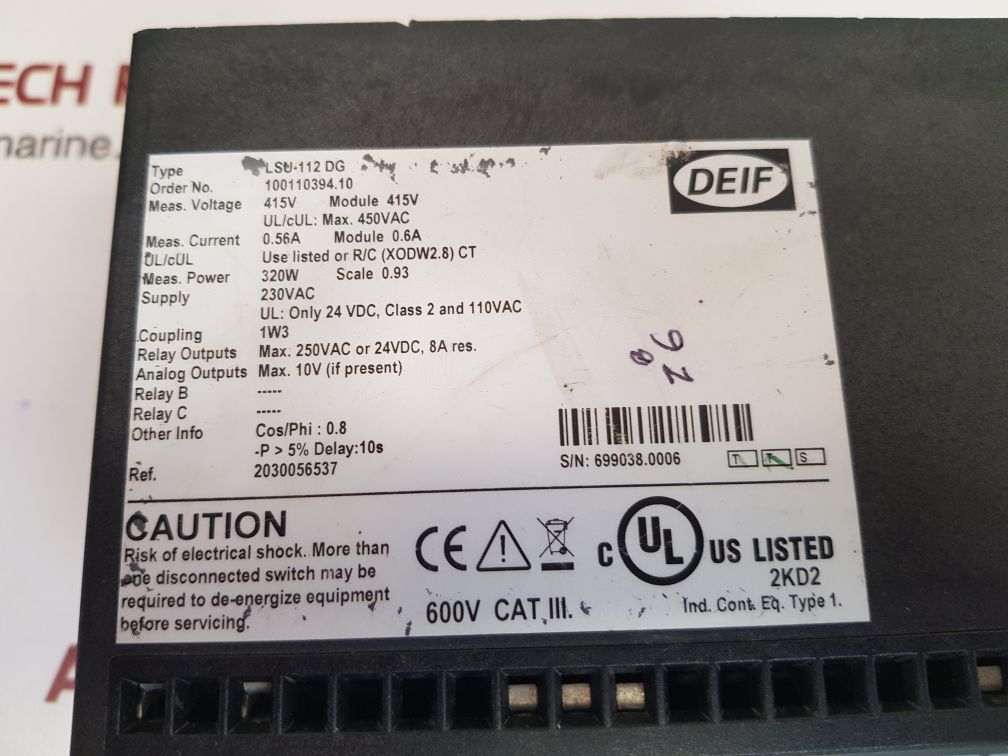

| Attribute | Value |
|---|---|
| Type | LSU-112 DG |
| Meas. Voltage | 415V Module 415V |
| UL/CUL | Max. 450VAC |
| Meas. Current | 0.56A Module 0.6A |
| UL/CUL Use | Listed or R/C (XODW2.8)CT |
| Meas. Power | 320W Scale 0.93 |
| Supply | 230VAC |
| UL | Only 24 VDC, Class 2 and 110VAC |
| Coupling | 1W3 |
| Relay Outputs | Max. 250VAC or 24VDC, 8A Res. |
| Analog Outputs | Max. 10V (if present) |
| Other Info | Cos/Phi: 0.8 |
| -P Greater than 5% | Delay: 10s |
| Cat. Rating | 600V Cat III |
| Type | 1 |
| Weight | 790 gm |
What is the DEIF LSU-112DG?
The LSU-112DG is a smart controller that conducts load sharing, synchronization, and island/parallel control functions for generator sets. Manufactured by DEIF, a world leader in control solutions, this product is specifically designed for marine diesel generators, offshore platforms, and industrial backup power systems.
With computerized interfaces and strong sensor feedback, the DEIF LSU-112DG makes certain that generators start, run, and shut down in synchronization—automatically compensating load sharing to the system needs.
Features
Accurate Load Sharing – Makes sure the generators bear proportional load, reducing uneven wear and increasing efficiency.
Paralleling Capability – Facilitates effortless paralleling of gensets, critical in mission-critical power applications.
Auto/Manual Operation Modes – Provides flexibility for operators in both automatic and manually operated environments.
Built-in Protections – Equipped with in-built alarms and fault detection functions for overloads, imbalance, and synchronization faults.
Compact & Durable – Designed for space-saving installations with high vibration and temperature resistance.
Applications
Marine Vessels – Generators in ships and boats usually run more than one generator at a time; the LSU-112DG assists in synchronizing and controlling these systems efficiently.
Power Plants & Generator Yards – Provides optimal fuel usage and stable output when operating genset clusters.
Offshore Rigs & Platforms – Essential where uninterruptible power and redundancy are needed.
Industrial Backup Systems – Installed in factories and data centers for auto start/stop and load sharing between standby generators.
