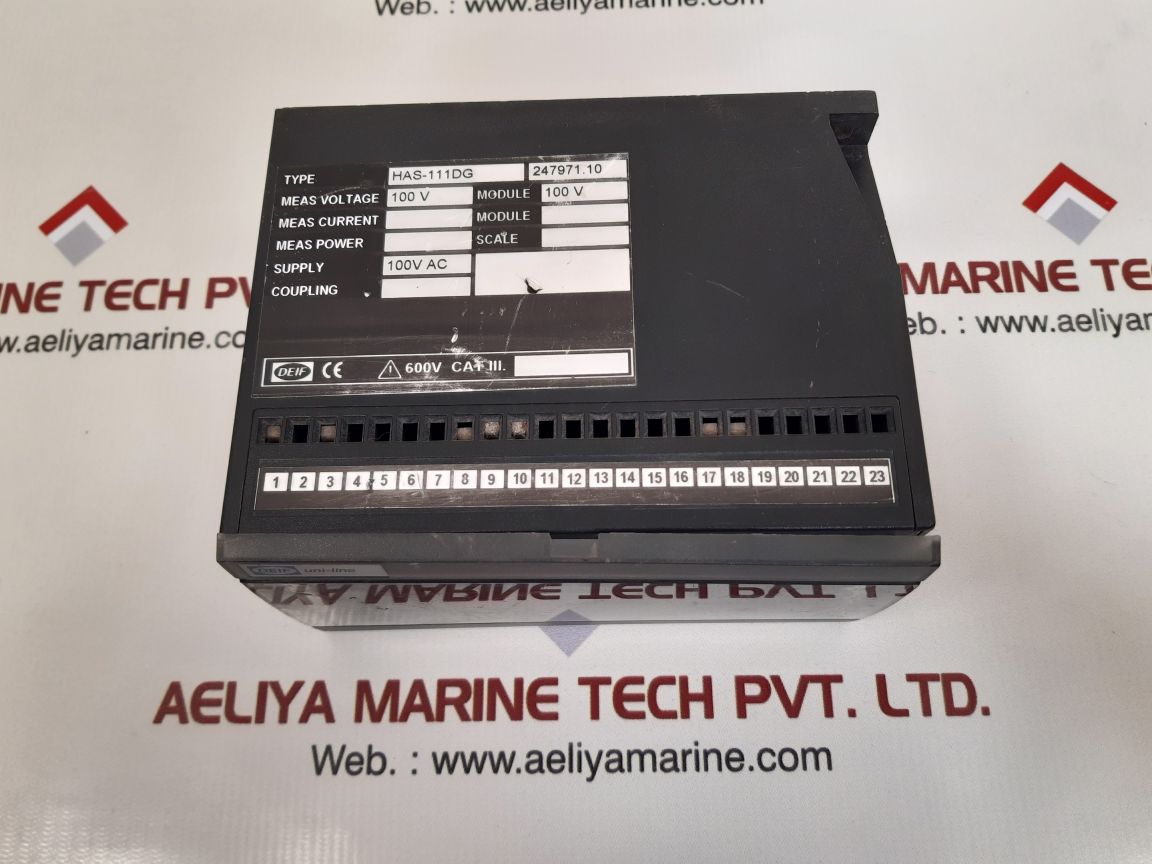

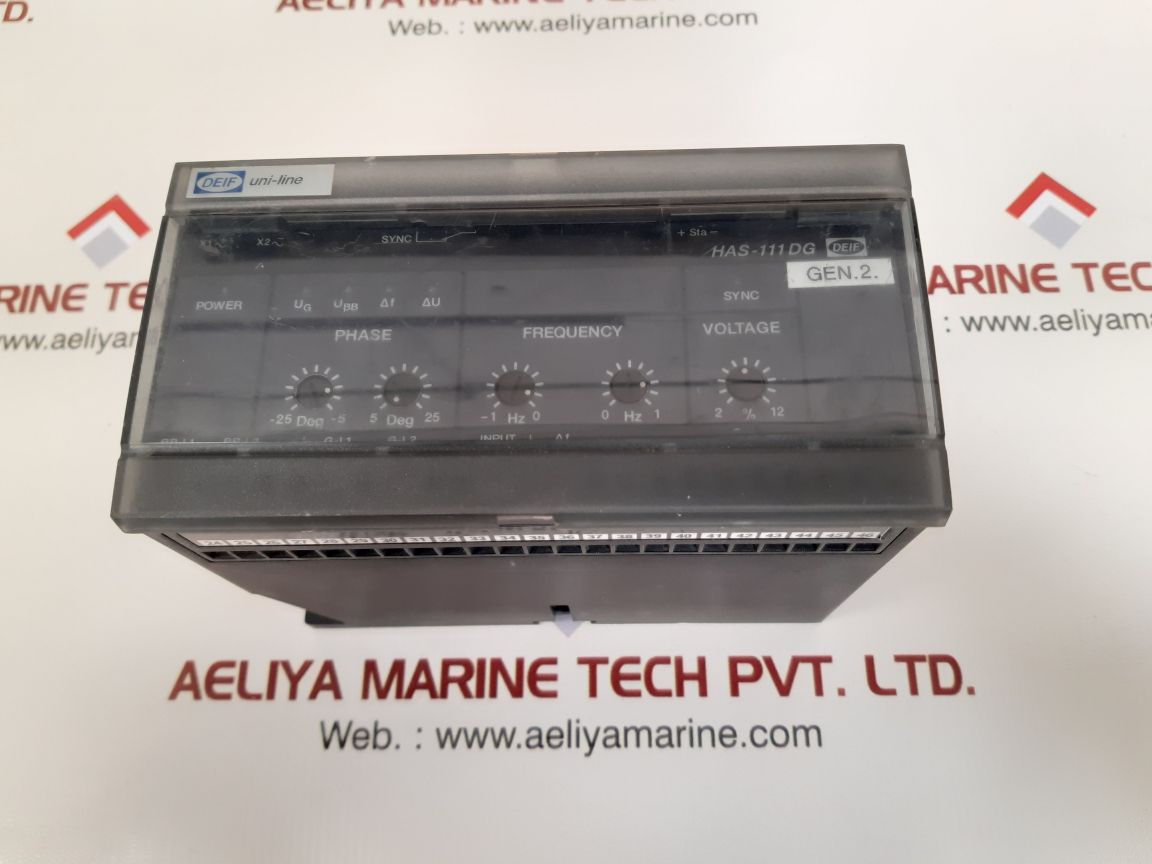

| Attribute | Value |
|---|---|
| Model | HAS-111DG |
| Part Number | 247971.10 |
| Manufacturer | Deif |
| System Type | Uni-line |
| Generator | Gen.2 |
| Measurement Voltage | 100V |
| Module | 100V |
| Supply Voltage | 100V AC |
| Category | 600V CAT III |
| Weight | 780 gm |
Understanding Synchronization in Power Systems
Synchronization is the process of aligning the voltage, frequency, and phase angle of a generator with the electrical grid prior to connection. Synchronization ensures that no electrical surges, system instability, or equipment damage occurs.
A synchronization relay such as the Deif HAS-111DG guarantees:
Voltage Matching – The voltage of the generator is matched to the grid voltage.
Frequency Matching – The generator frequency is synchronized with the grid frequency.
Phase Angle Matching – Guarantees the phase angle is accurate prior to closing the breaker.
Safe Circuit Breaker Closing – Regulates breaker timing to prevent power outages.
The 100V AC breaker closing system in the HAS-111DG enables controlled and safe connection of power sources, eliminating electrical faults.
Main Features of Deif HAS-111DG
The Deif HAS-111DG is recognized for its accuracy, reliability, and simplicity of integration. The following are its main features:
1. Automatic Synchronization
The HAS-111DG detects voltage, frequency, and phase angle differences automatically and makes adjustments in real-time to maintain correct synchronization prior to circuit breaker closing.
2. 100V AC Circuit Breaker Closing
The relay enables 100V AC circuit breaker closing, providing controlled and safe connection with power sources. This minimizes transient voltage spikes and improves system stability.
3. Advanced Multi-Function Relay
It has:
- Adjustable synchronization parameters
- Monitoring of frequency and voltage
- Dead bus detection for improved safety
4. LED Indicators and Display
The relay includes LED indicators to present real-time status information on synchronization and breaker status.
5. Compact & Robust Design
HAS-111DG is designed for use in industrial environments, providing durability and consistent performance even in tough conditions.
Applications of Deif HAS-111DG
Deif HAS-111DG is extensively applied across many industries for power management and synchronization, such as:
Power Plants – Synchronizing generators correctly before they can be connected to the main grid.
Industrial Facilities – Monitoring backup power generators during blackouts.
Marine & Offshore Systems – Synchronizing shipboard generators for smooth changeovers.
Renewable Energy Systems – Integrating solar and wind power into grids safely.
How Deif HAS-111DG Increases Power System Reliability
By synchronizing automatically and providing secure circuit breaker closing, the Deif HAS-111DG:
✔ Eliminates downtime – Eliminates threats of power loss and unplanned shutdowns.
✔ Avoids damage – Prevents voltage spikes and phase mismatches that can damage equipment.
✔ Boosts efficiency – Keeps generators and power supplies in synchronization.
✔ Boosts safety – Facilitates controlled breaker close to avoid electrical accidents.
