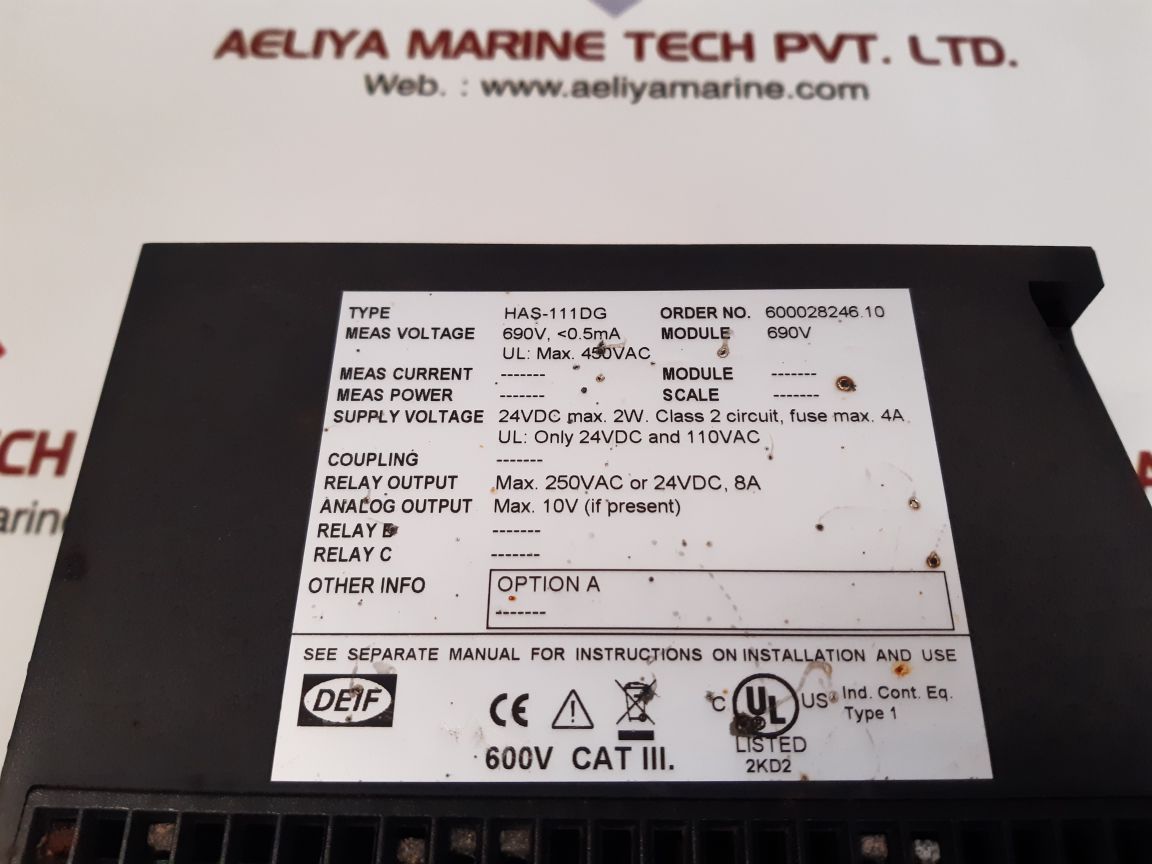

| Attribute | Value |
|---|---|
| Brand | DEIF |
| Model | DEIF UNI-LINE |
| Type | HAS-111 DG |
| Measuring Voltage | 690V, Less than 0.5mA |
| UL Voltage | Max. 450VAC |
| Module Voltage | 690V |
| Supply Voltage | 24VDC Max. 2W, Class 2 Circuit, Fuse Max. 4A |
| UL Supply Voltage | Only 24VDC and 110VAC |
| Relay Output | Max. 250VAC or 24VDC, 8A |
| Analog Output | Max. 10V (if present) |
| Category | 600V CAT III |
| Part Number | 600028246.10 |
| Additional Part Number | 499015.0001 |
| Weight | 610 gm |
What is DG Synchronization?
DG synchronization refers to the act of synchronizing voltage, frequency, and phase angle of a generator with another generator or grid prior to connection. This is done to allow for a smooth power transfer and avoid electrical disturbance or system damage.
The DEIF HAS-111 is instrumental in automatic synchronization through:
- Synchronizing generator voltage and frequency with the grid
- Phase alignment prior to circuit breaker closing
- Prevention of reverse power flow and electrical instability
Understanding Circuit Breaker Closing in Synchronization
A circuit breaker makes or breaks electrical circuits to safeguard equipment against faults. In synchronization, a circuit breaker should close only when voltage, frequency, and phase are synchronized. The DEIF HAS-111 automates this process to ensure:
- Safe & accurate closing of the breaker
- Prevention of transient currents or electrical surges
- Smooth load transfer without power disruption
Features of DEIF HAS-111 for DG Synchronization
1. Automatic Synchronization
The DEIF HAS-111 constantly checks generator parameters and synchronizes exactly with the grid or other generators.
2. Adaptive Load Sharing Control
Adjusts automatically to load sharing to optimize power distribution across multiple DGs.
3. High-Speed Circuit Breaker Closing
Facilitates rapid and reliable breaker closing to reduce downtime and power instability.
4. Enhanced Protection Mechanisms
Guards generators and electrical systems against faults such as:
- Overvoltage & undervoltage
- Overfrequency & underfrequency
- Reverse power flow
5. User-Friendly Interface & Configuration
It is simple to configure synchronization settings through the easy-to-use interface, with real-time monitoring and control.
Advantages of Using DEIF HAS-111
1. Enhanced Power System Stability
Correct synchronization avoids power swings and grid instability, minimizing equipment wear and tear.
2. Enhanced Generator Efficiency
Optimized load sharing and synchronization minimize fuel consumption and improve generator life.
3. Reduced Human Intervention
The automatic synchronizing function minimizes manual corrections, lowering the occurrence of human mistakes and the cost of operation.
4. Quick & Reliable Generator Switching
The solution facilitates safe closure of circuit breakers, thereby lessening risks of power surge and short circuit.
5. Multi-Generator System Scalability
Perfect for multi-DG configurations, promoting seamless integration and performance of numerous power sources.
Applications of DEIF HAS-111
Industrial Power Plants: Synchronizing several generators to provide uninterrupted power supply.
Hospitals & Critical Infrastructure: Providing continuous power in the event of grid failure.
Data Centers: Offering backup power synchronization for server operation.
Marine & Offshore Applications: Stable generator control in ships and offshore platforms.
