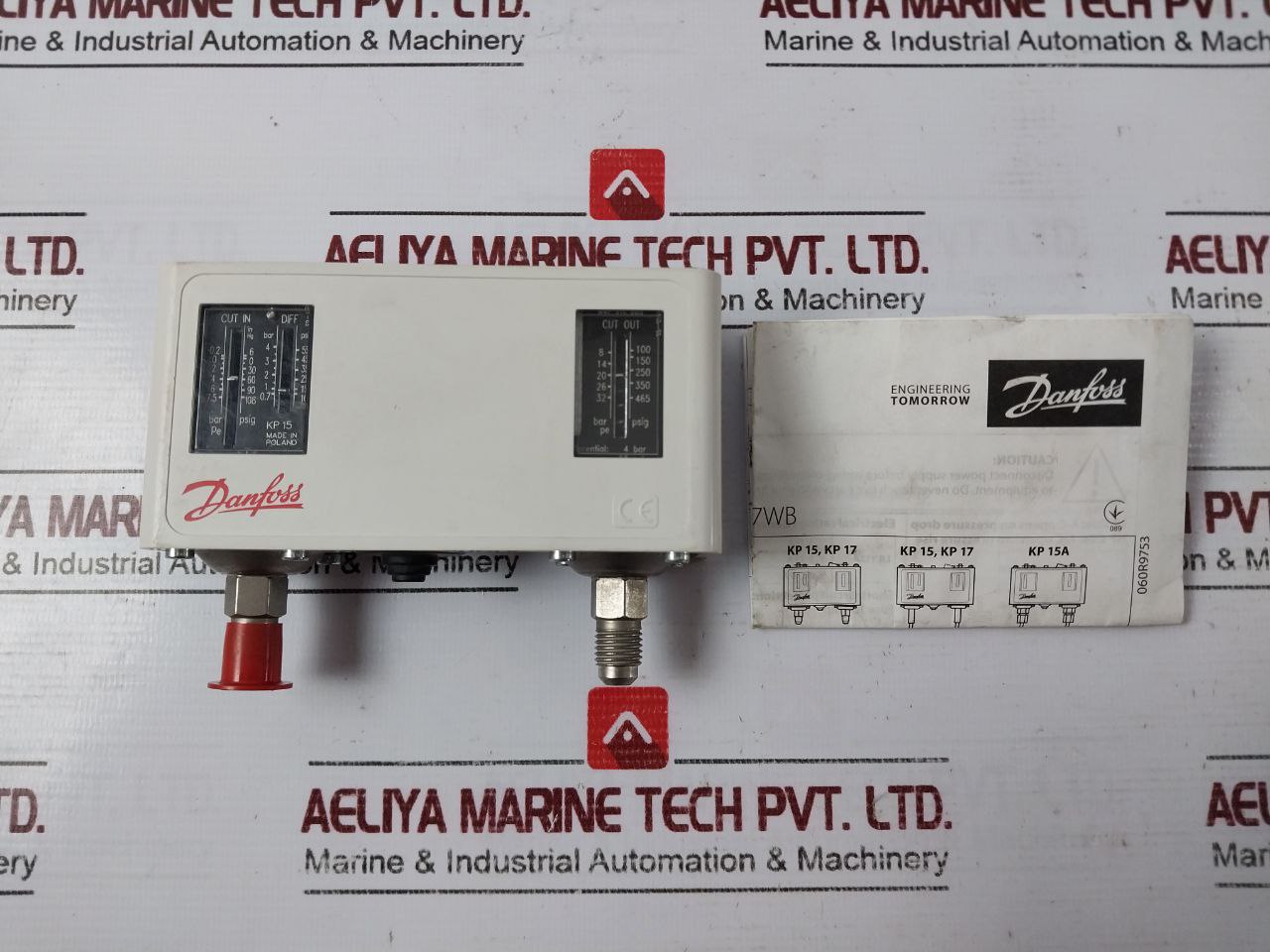

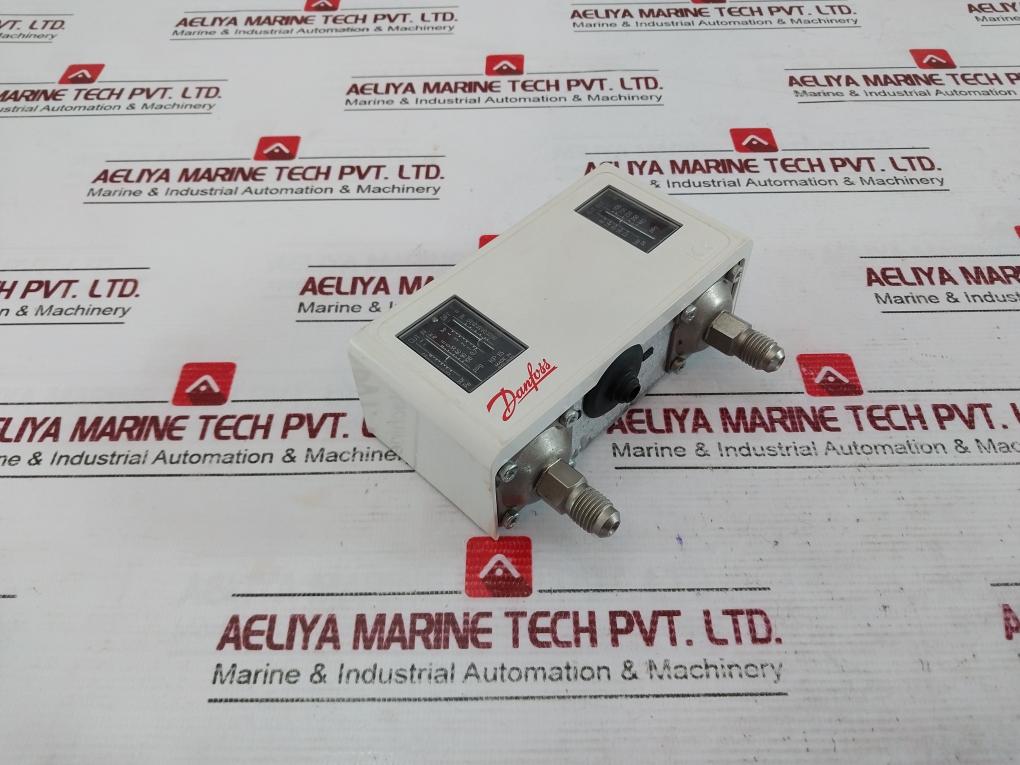

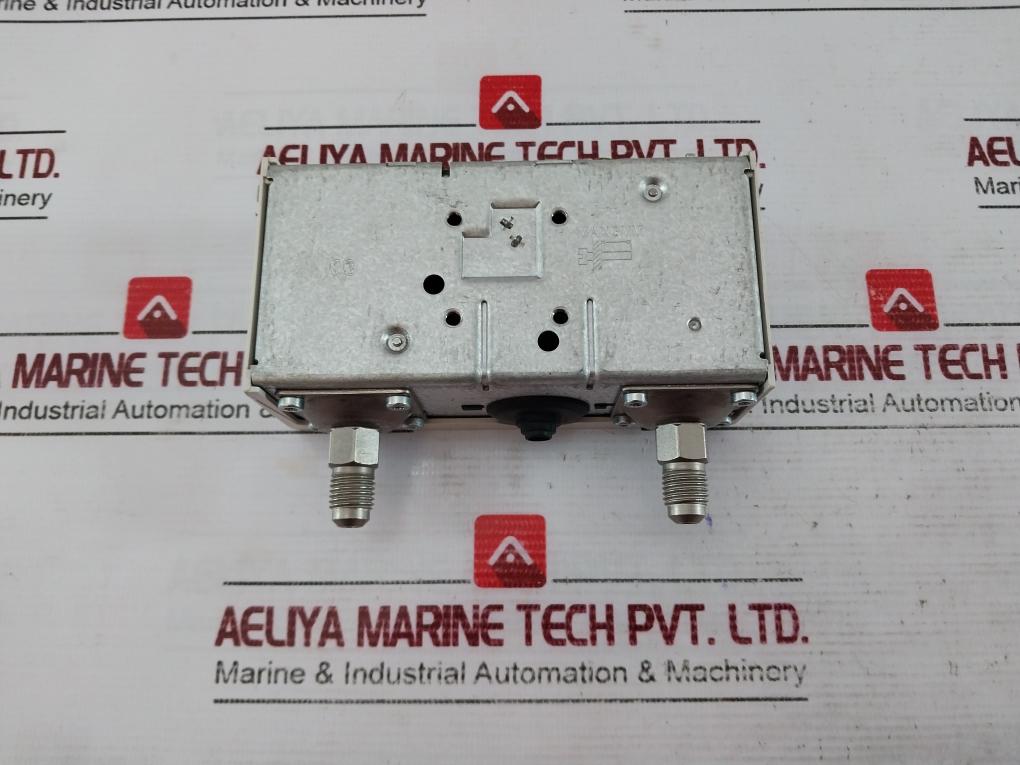

Danfoss Kp 15 Pressure Switch 400v

Danfoss Kp 15 Pressure Switch 400v
Danfoss A/S
Pressure Switch
Type: Kp 15
060-1243
5021
Pb 17 Bar/Mwp 245 Psig
A0003-03
Cut In: -0.2 To 7.5 Bar Pe
In Hg 6 To 108 Psig
Diff: 0.7 To 4 Bar
10 To 55 Psi
Pb 35 Bar
Mwp 510 Psig
A0858-02
Cut Out: 8 To 32 Bar Pe
100 To 465 Psig
Differential: 4 Bar
58 Psi
Ac1=16a, 400v
Ac15=10a, 400v
Ac3=16a, 400v
Dc13=12w, 220v
Lr=112a, 400v
Max 3mm
Ambient Temperatures/Mounting Requirements:
T1/Min: Kp15: -40°C (-40°F)
Relative Humidity Rh: 30-98%
Vibrations Resistance: 4g (10-1000 Hz)
Regulating Range:
Lp: -0.2-7.5 Bar
Hp: 8-32 Bar
Max.Working Pressure Ps/Mwp:
17 Bar/245 Psig
35 Bar/510 Psig
Denmark
Weight : 450 Gm
Con: New 1 Pcs
Ref No : 162643
