Crydom Gnr 20Dhz Cooltech Solid State Relay 20 Amp 48-600 Vac

Crydom Gnr 20Dhz Cooltech Solid State Relay 20 Amp 48-600 Vac
crydom
gnr20dhz

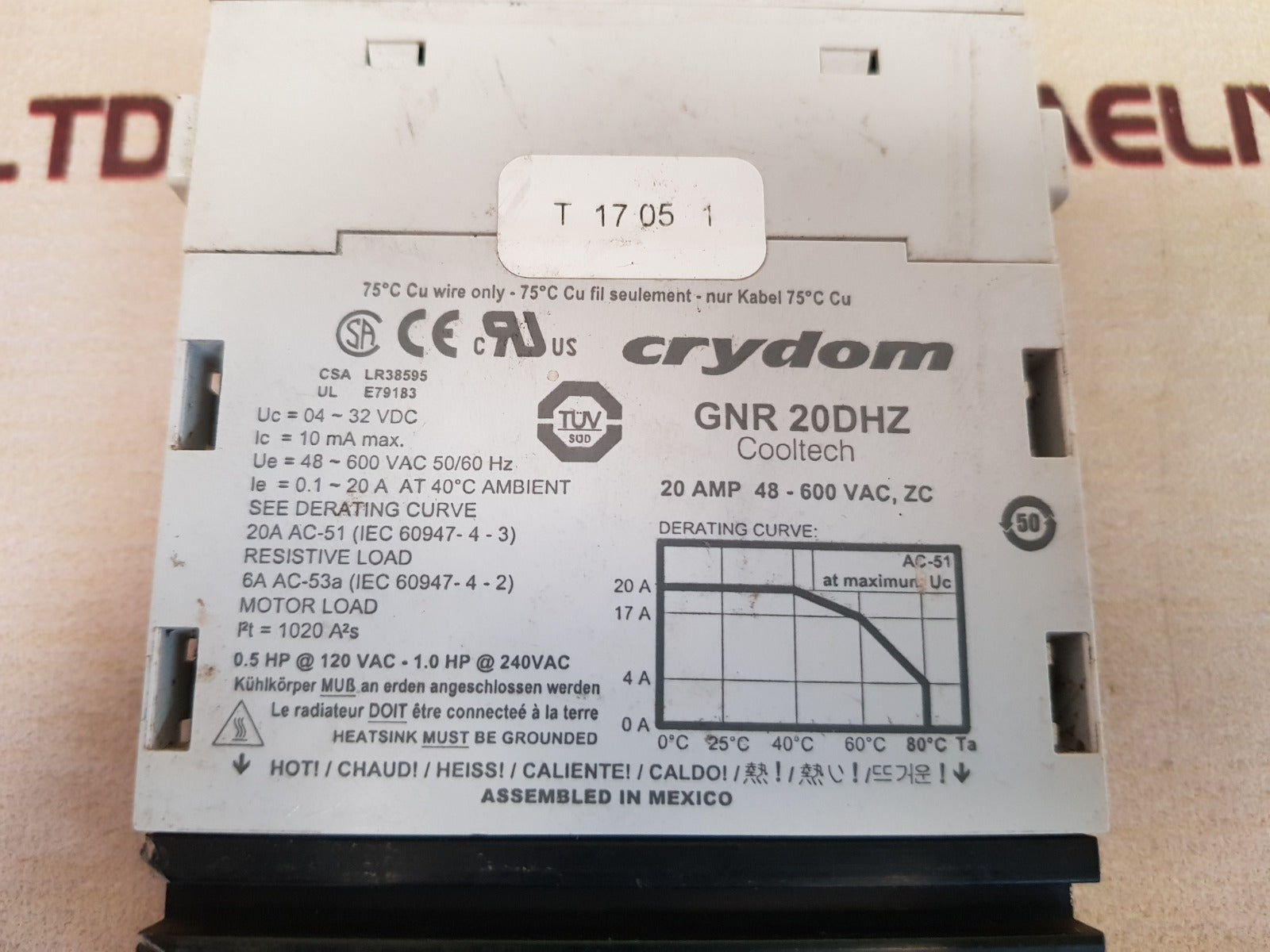

ac – 51 (iec 60947-4-3)
04 – 32vdc in
cooltech
20 amp 48 – 600vac, zc
uc= 04~32vdc
ic= 10 ma max.
ue= 48~600vac 50/60hz
ie= 0.1~20 a at 40°c ambient
20a ac-51 (iec 60947-4-3)
resistive load
6a ac-53a (iec 60947-4-2)
motor load
i²t = 1020 a²s
0.5 hp@ 120vac – 1.0 hp @ 240vac
t 17 05 1
75°c cu wire only
assembled in mexico
weight: 255 gm
