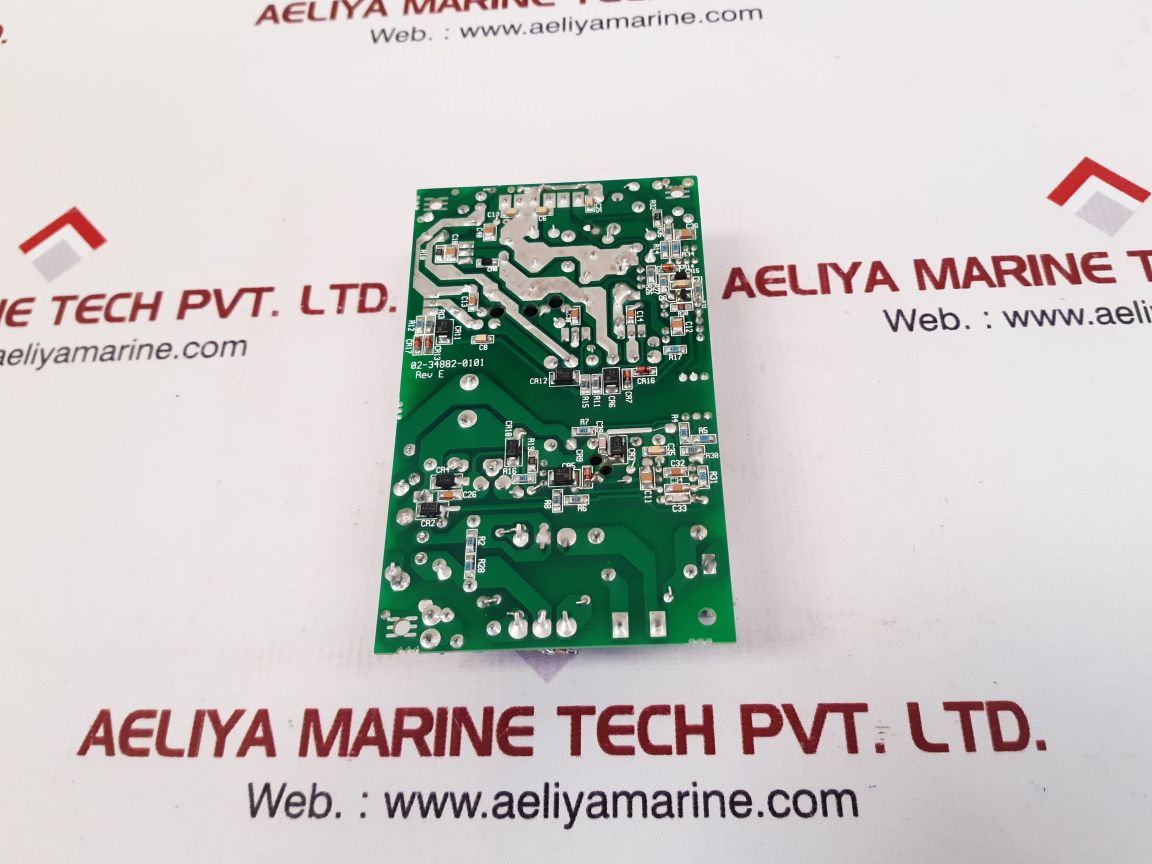

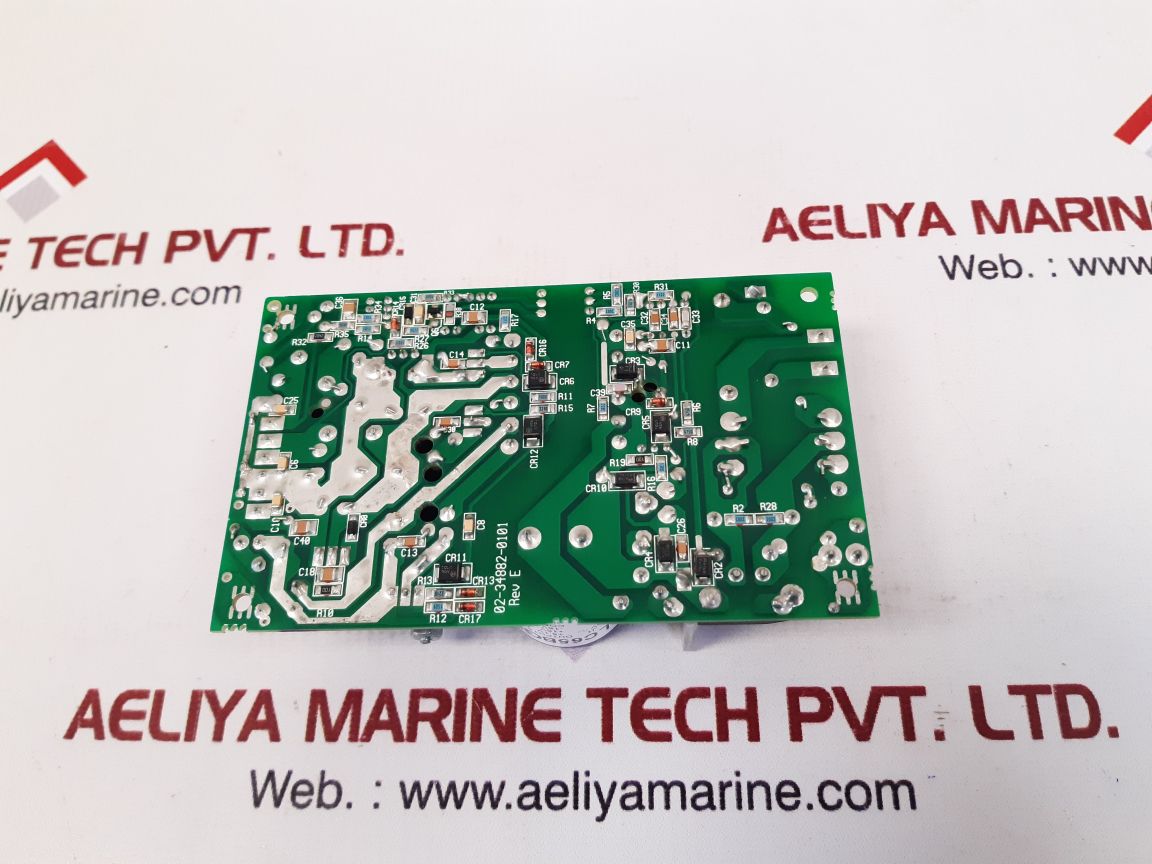

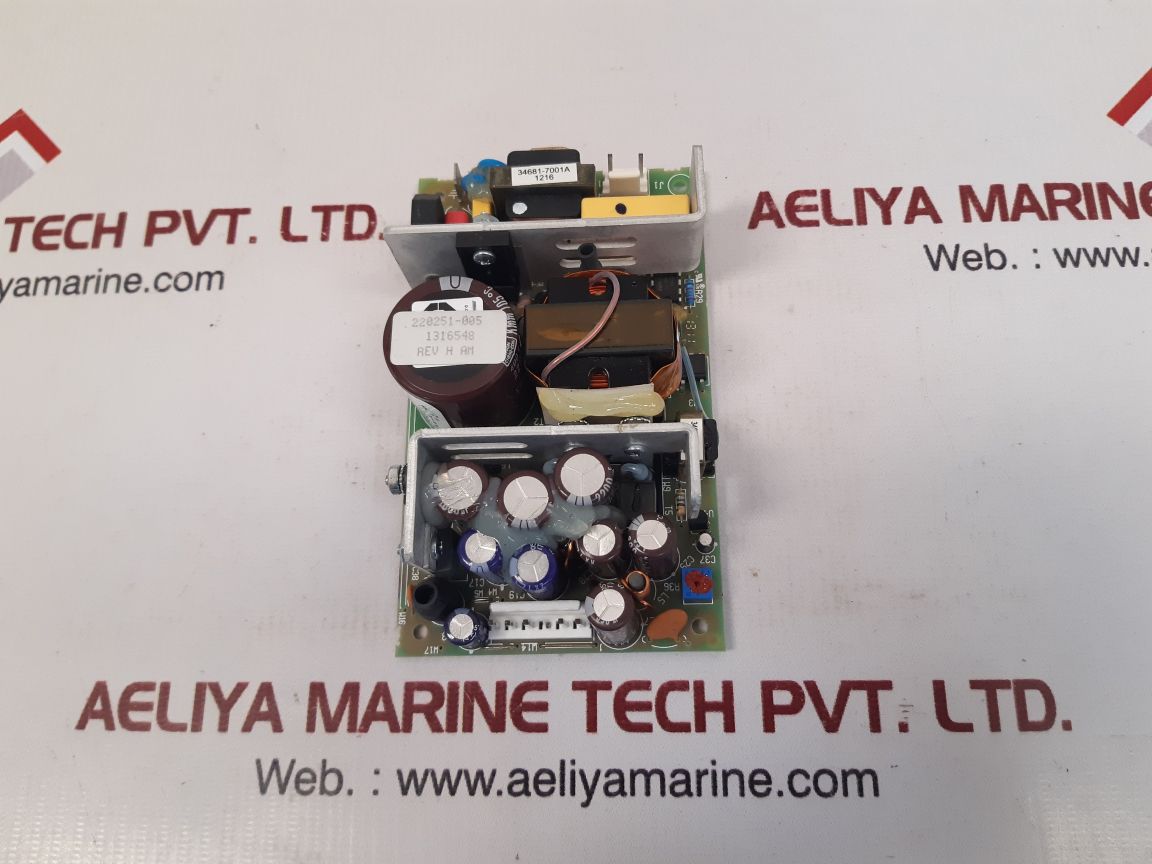

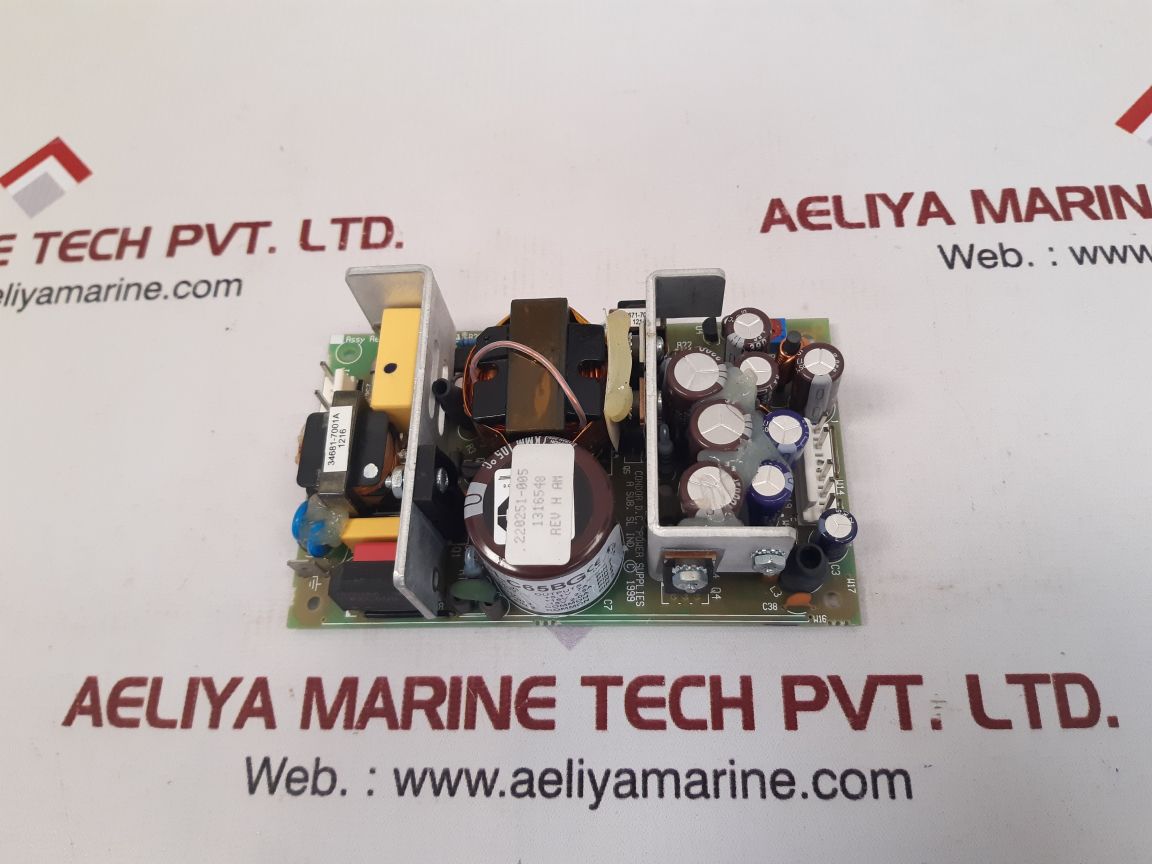

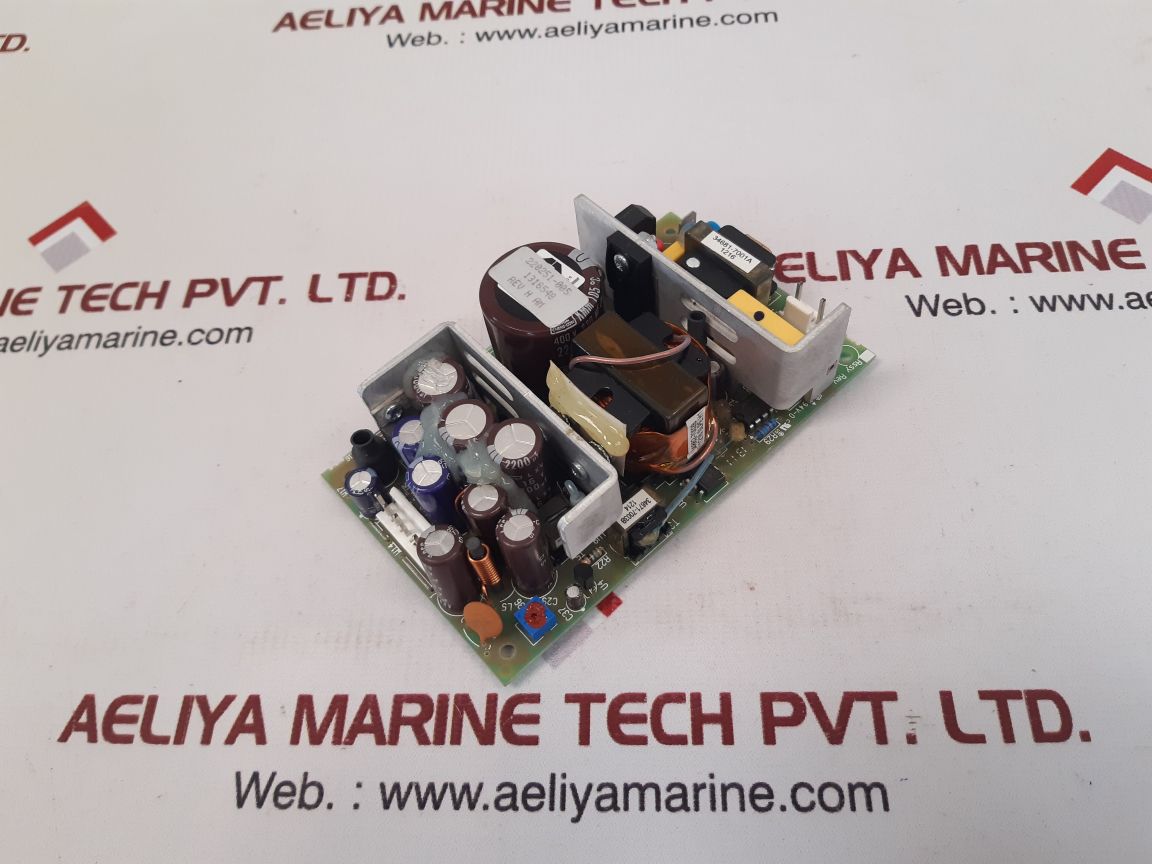

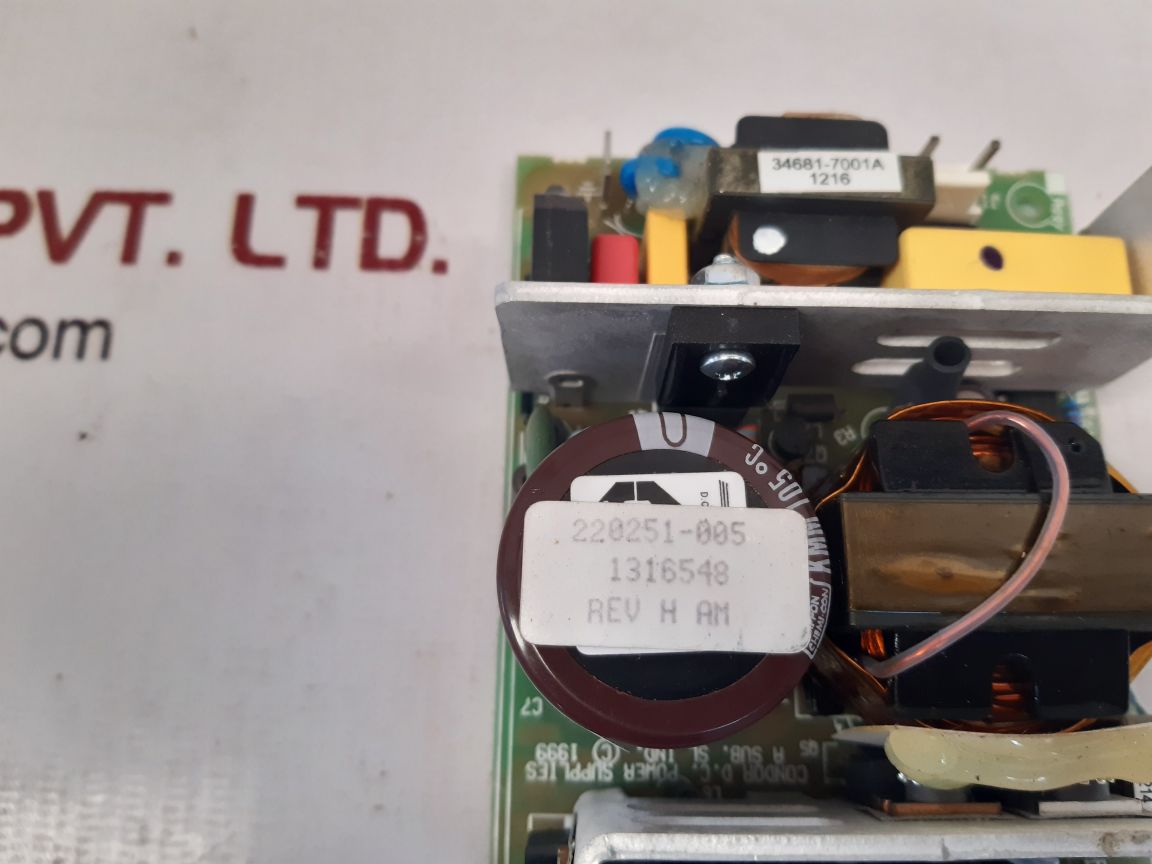

Condor 02-34882-0101 power supply board rev e

Condor 02-34882-0101 power supply board rev e
condor d.c. power supplies
a sub. sl ind

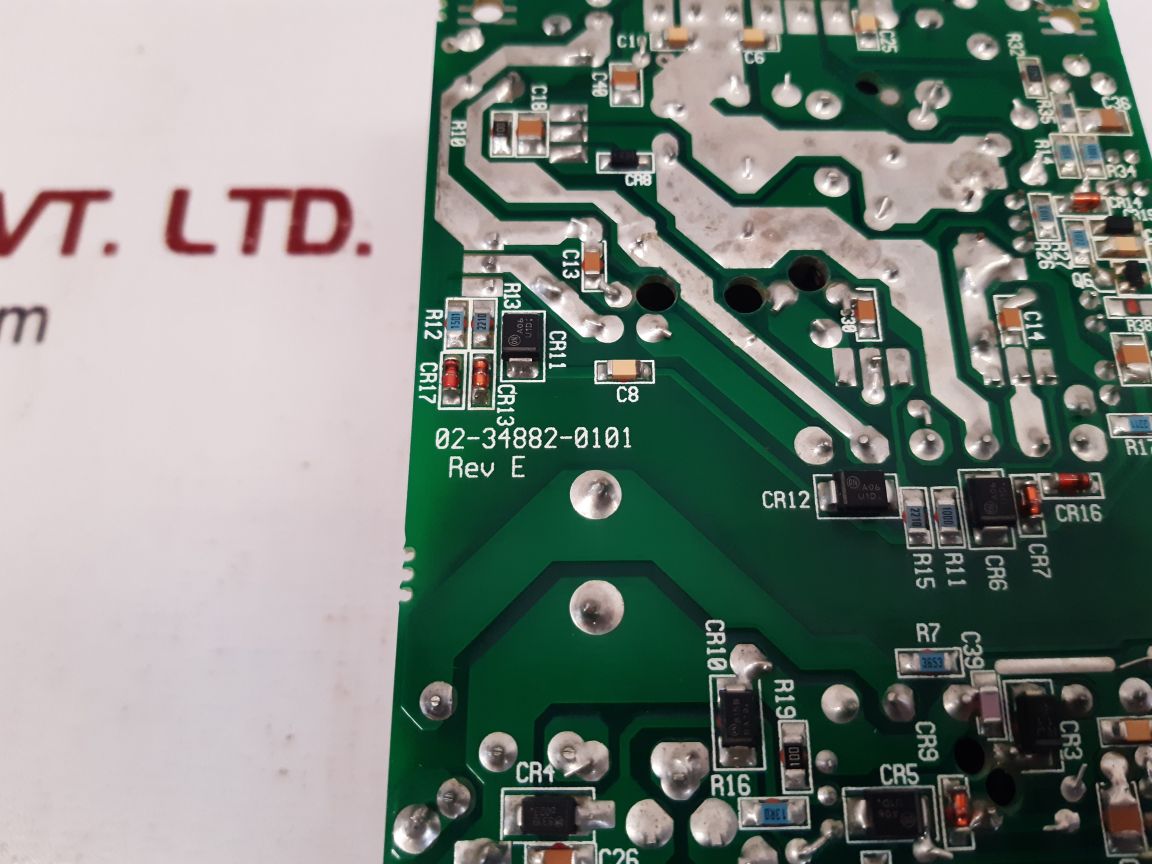

02-34882-0101
rev: e
34681-7001a
1216
220251-005
1316548
rev h am
94v-0
34671-7003b 1214

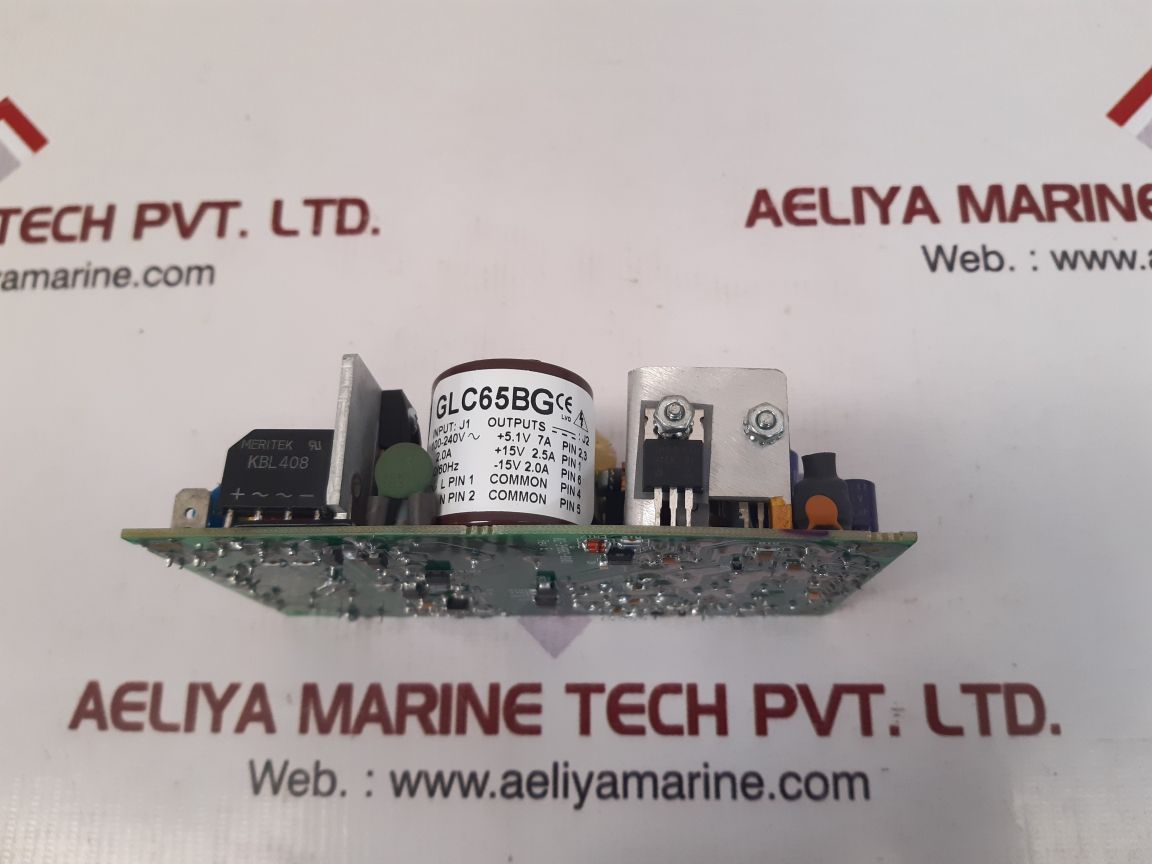

glc65bg
input: j1 outputs—: j2
100-240v~ +5.1v 7a pin 2,3
2.0a +15v 2.5a pin1
50/60hz -15v 2.0a pin 6
~ l pin 1 common pin 4
n pin 2 common pin 5

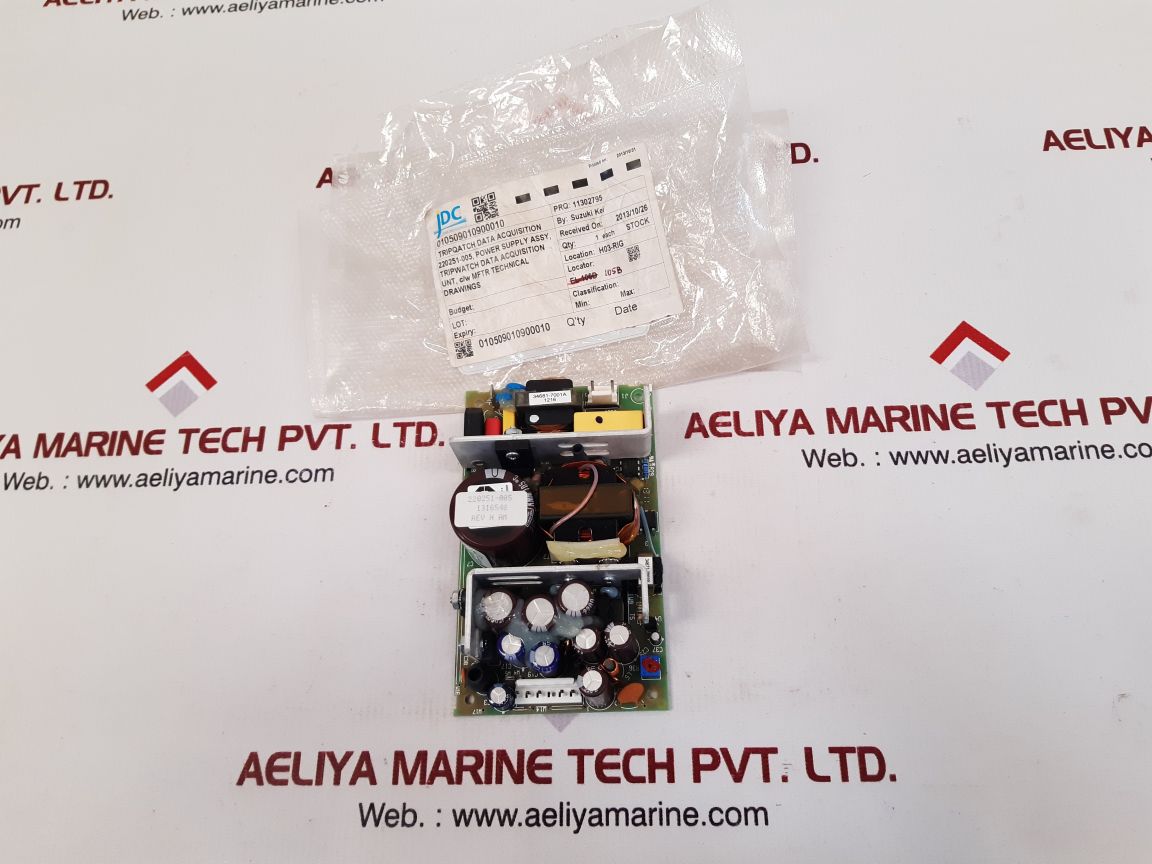

jdc-japan drilling company
010509010900010
tripqatch data acquisition
220251-005, power supply assy,
tripwatch data acquisition
unt, c/w mftr technical
drawings
weight: 300 gm
