| Attribute | Value |
|---|---|

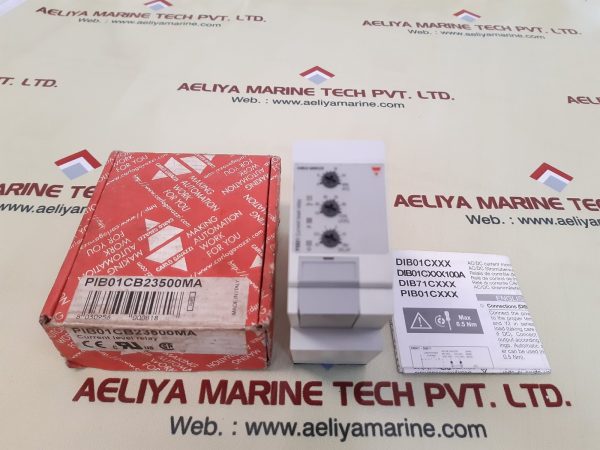

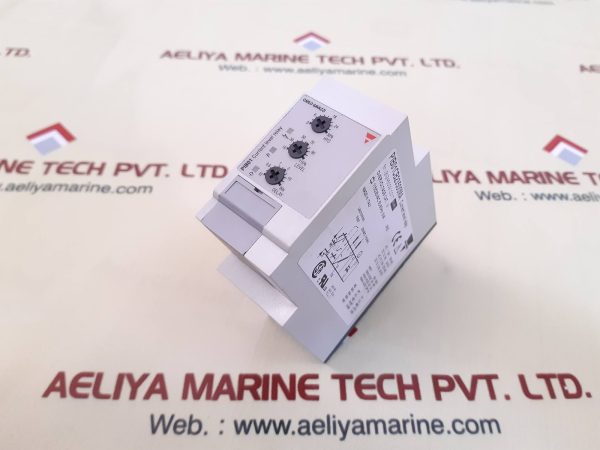

| Product Name | Carlo Gavazzi PIB01CB23500MA Current Level Relay |
| Brand | Carlo Gavazzi |
| Series | PIB01 |
| Model | PIB01CB23500MA |
| Function | Current Level Relay |
| Hysteresis | 0–30% |
| Level Range | 10–110% |
| Delay | 0.1–30s |
| EAN Code | 8 030956 000818 |
| Overvoltage Category | III |
| Power Supply | 115/230VAC 50–60Hz, 3VA |
| Ingress Protection | IP20 |
| Input Voltage | 230VAC / 115VAC |
| Output Rating | 240V 8A |
| Motor Rating | 240V 1/2 HP |
| Poll | 2 |
| AC 1 | 8A, 250VAC |
| DC 12 | 5A, 24VDC |
| AC 15 | 2.5A, 250VAC |
| DC 13 | 2.5A, 24VDC |
| Country of Origin | Made in Italy |
| Weight | 180 gm |
What Is a Current Level Relay?
In order to delve deeper into the PIB01CB23500MA model details, let’s first learn what a current level relay is. A current level relay checks the level of current flowing through an electrical circuit and turns devices on or off according to pre-set current levels. The relays protect motors, generators, and other equipment from overloads, undercurrents, or phase loss damage.
Key Features of the Carlo Gavazzi PIB01CB23500MA
The PIB01CB23500MA is a single-function current monitoring relay with multiple features that make it ideal for industrial environments:
Voltage Compatibility: Is compatible with both 115VAC and 230VAC at 50/60Hz, hence flexible across various power systems.
Compact Design: The compact DIN-rail mount design provides easy integration in control panels and enclosures.
Adjustable Thresholds: Provides adjustable current level settings for proper monitoring suited to your system’s needs.
LED Indicators: LED indicators for simple visual diagnosis of relay status and current flow.
Reliable Performance: Built to operate continuously in tough industrial environments, with a low downtime and reliable operation.
Low Power Consumption: With power consumption of only 3VA, it guarantees low energy consumption while providing best performance.
Technical Specifications
Model: PIB01CB23500MA
Supply Voltage: 115/230VAC
Frequency: 50-60Hz
Power Consumption: 3VA
Mounting Type: DIN-rail
Function: Current level monitoring
Indicators: LED status indicators
Advantages of Applying the PIB01CB23500MA
Enhanced Equipment Protection: Accurate current monitoring prevents damage from overloads or faults.
Lower Downtime: Early detection of problems through proactive current monitoring minimizes the risk of equipment failure and unplanned maintenance.
Energy Efficiency: Low power consumption and high sensitivity ensure that it is an economical choice for industrial control panels.
Simple Integration: Formulated to integrate easily into current control systems, particularly where there is little space.
Applications
Carlo Gavazzi PIB01CB23500MA is applied across a broad variety of industries and applications, including:
Industrial Automation: To monitor current in motor control centers and automation panels.
HVAC Systems: To confirm compressors and fans are running within safe currents.
Pumps and Compressors: To prevent dry-run and overload states.
Renewable Energy Systems: Assists in monitoring levels of current in solar and wind power systems.
Manufacturing Plants: Guarantees machines running within safe electrical parameters.
Why Choose Carlo Gavazzi?
Carlo Gavazzi is a world-famous brand famous for producing quality electronic control components. Their emphasis on innovation, reliability, and user-friendly designs makes them an ideal choice among engineers and system integrators.
