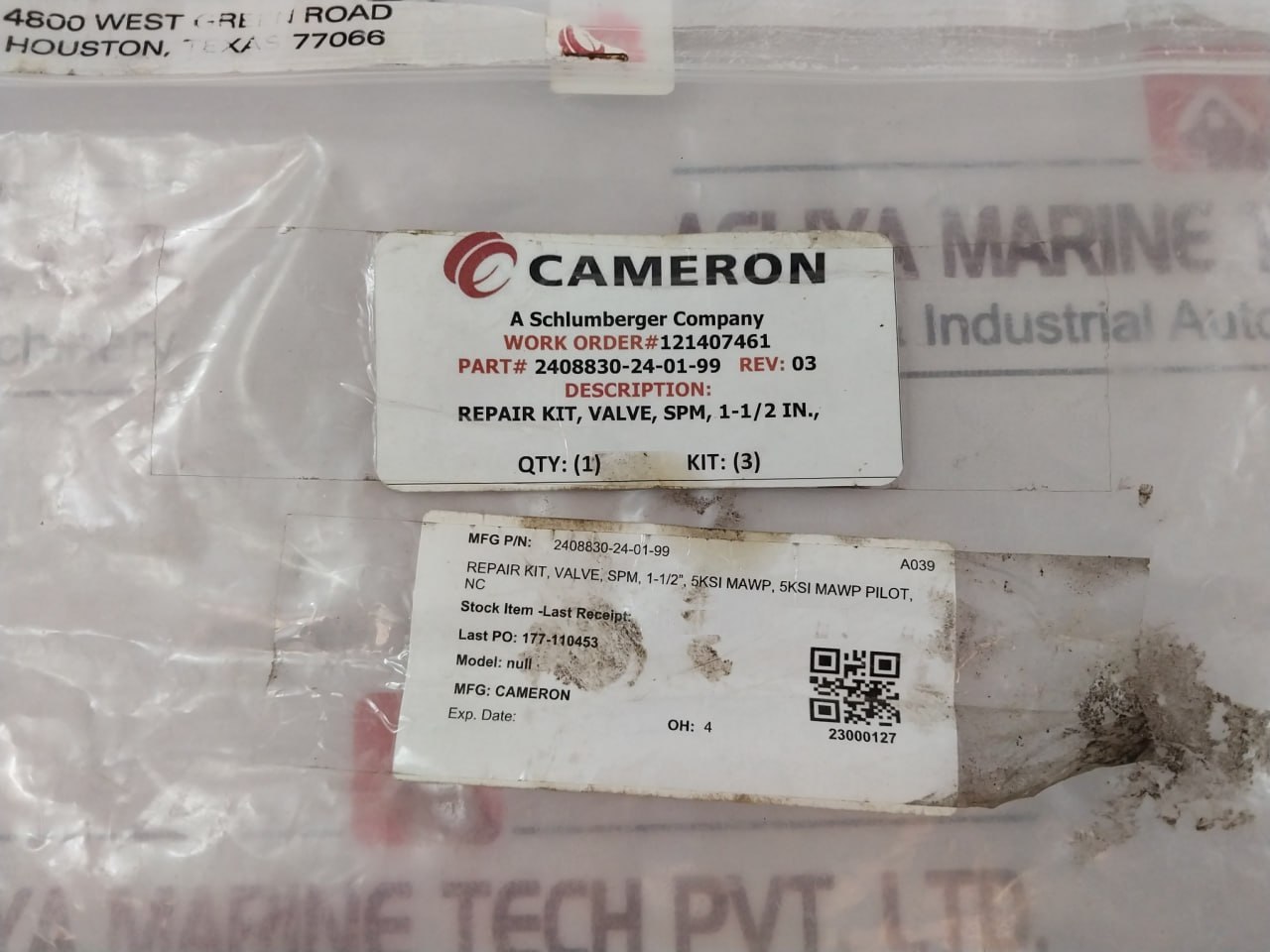

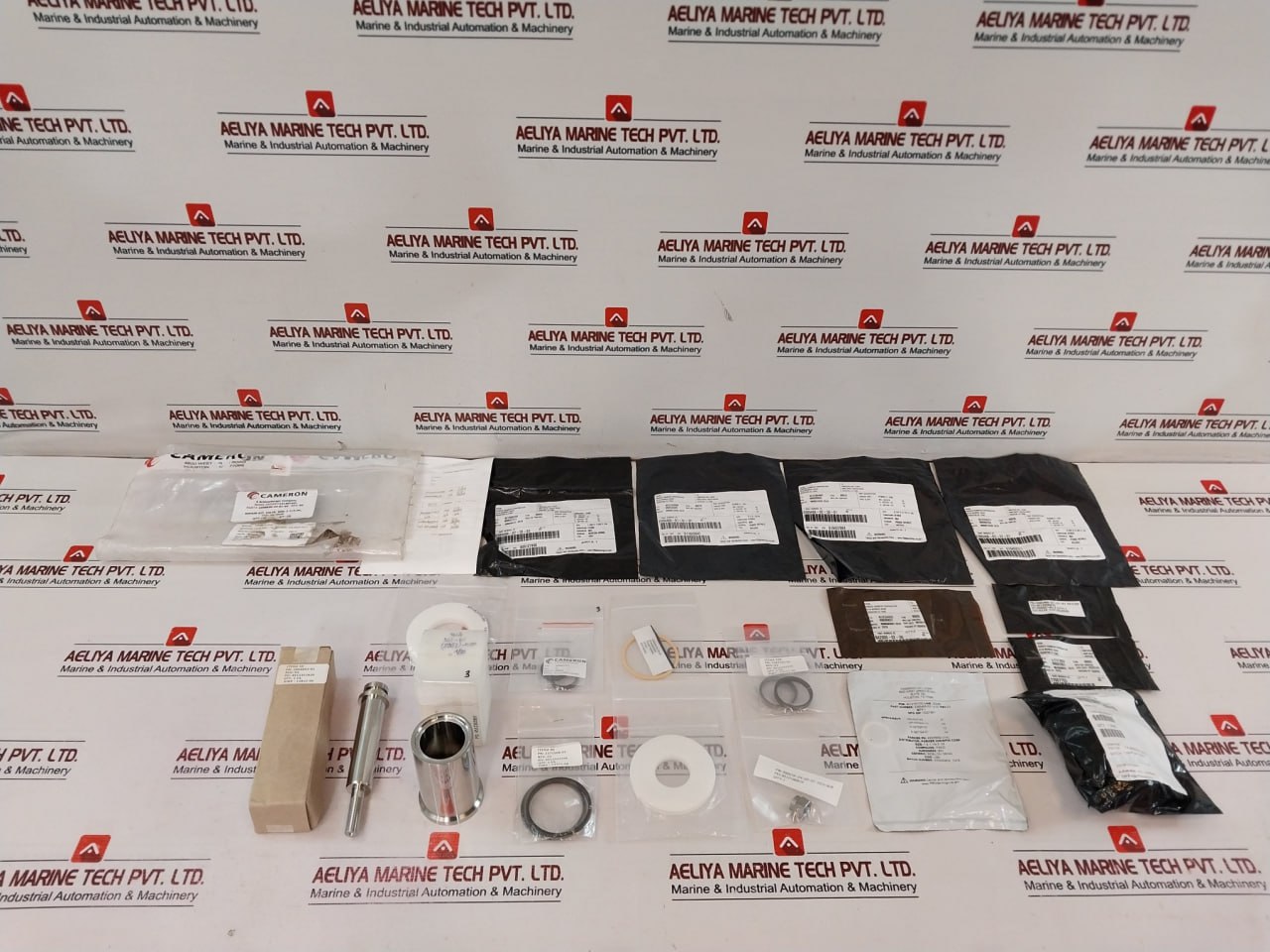

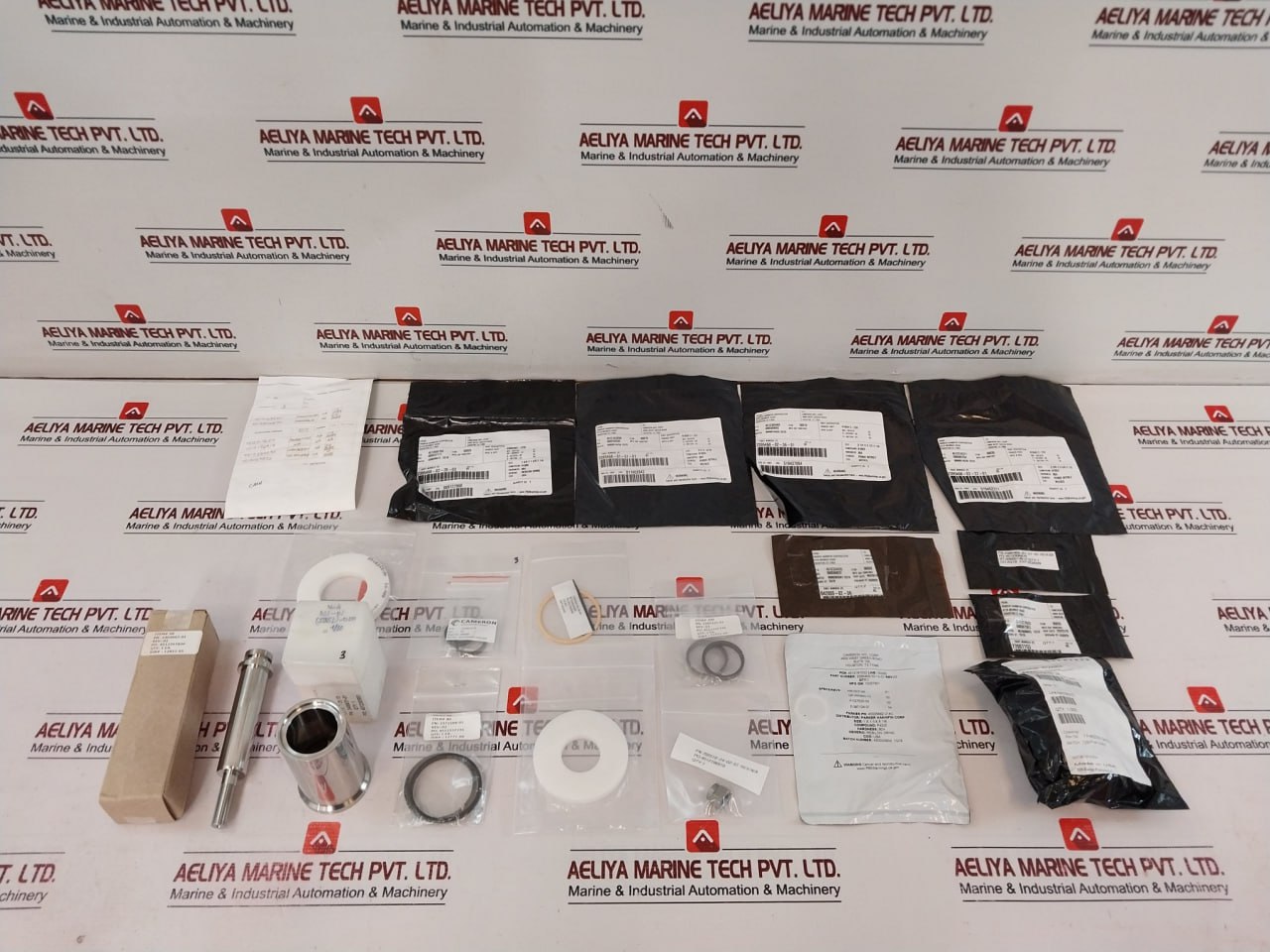

Cameron 2408830-24-01-99 Valve Repair Kit

Cameron 2408830-24-01-99 Valve Repair Kit
Mfg: Cameron Intl Corp
Parker Hannifin Corporation
A Schlumberger Company

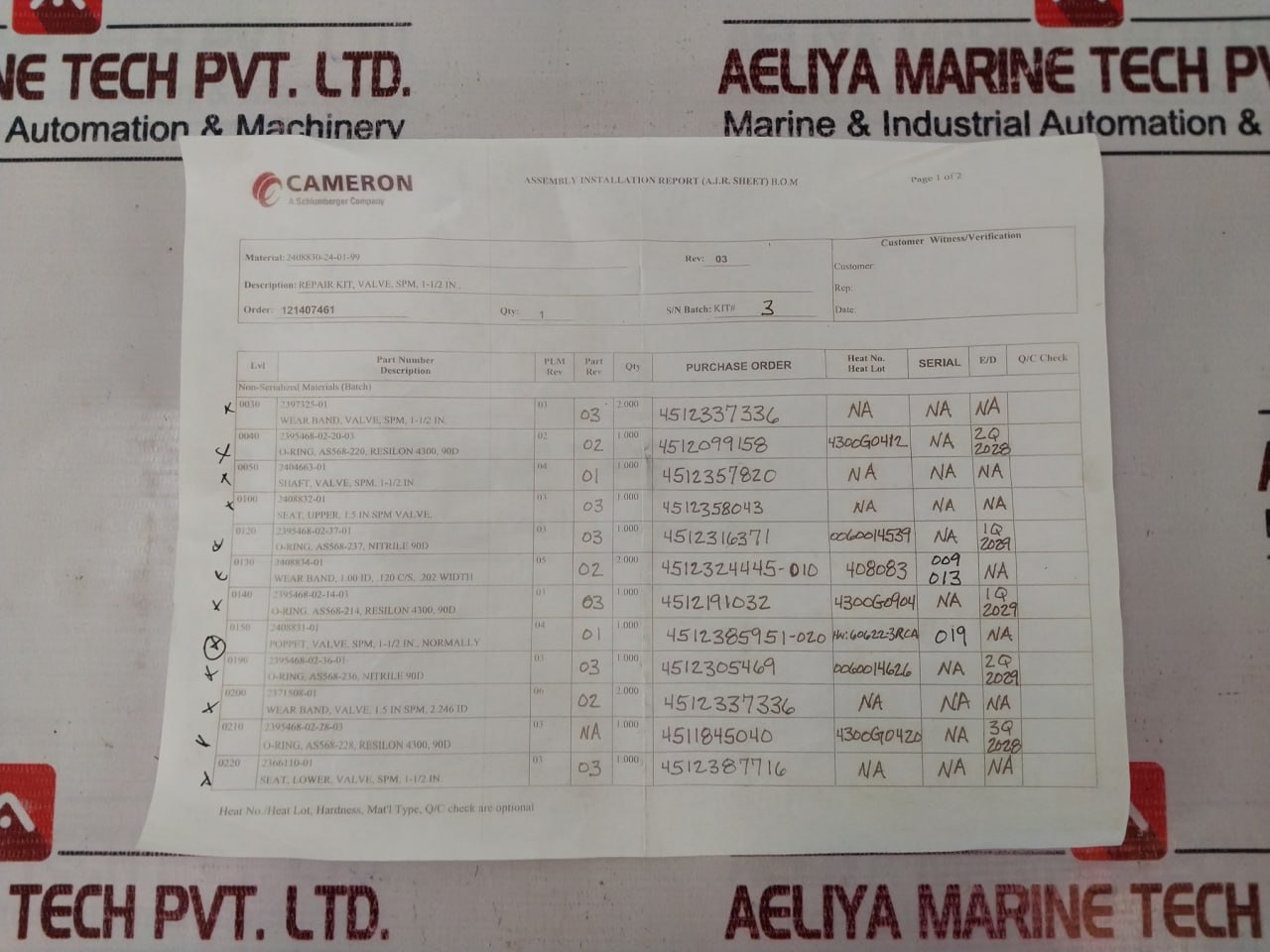

Material: 2408830-24-01-99
Description: Repair Kit, Valve, Spm, 1-1/2 In., 5ksi Mawp, Pilot Nc
Order: 121407461
Rev: 03

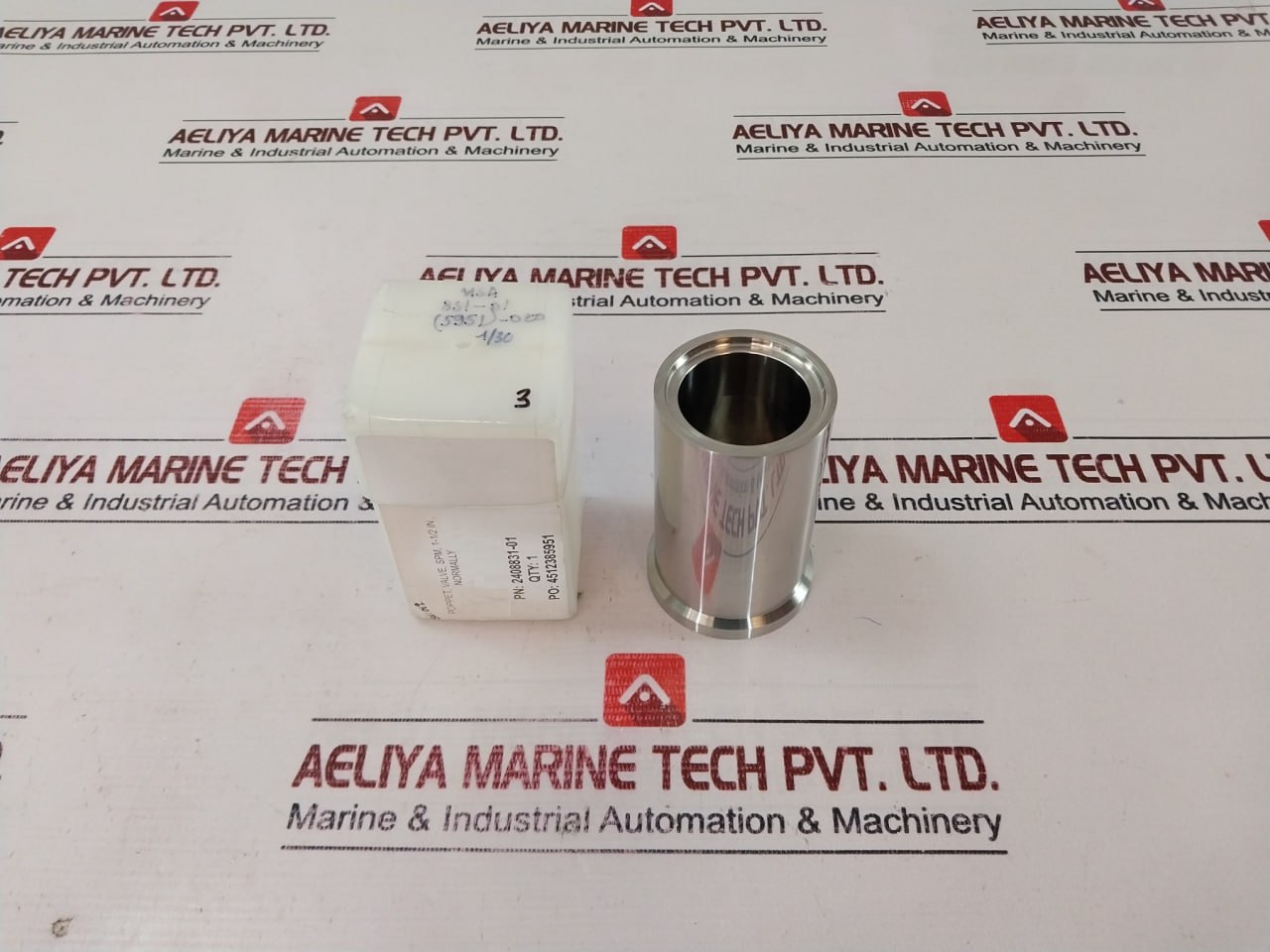

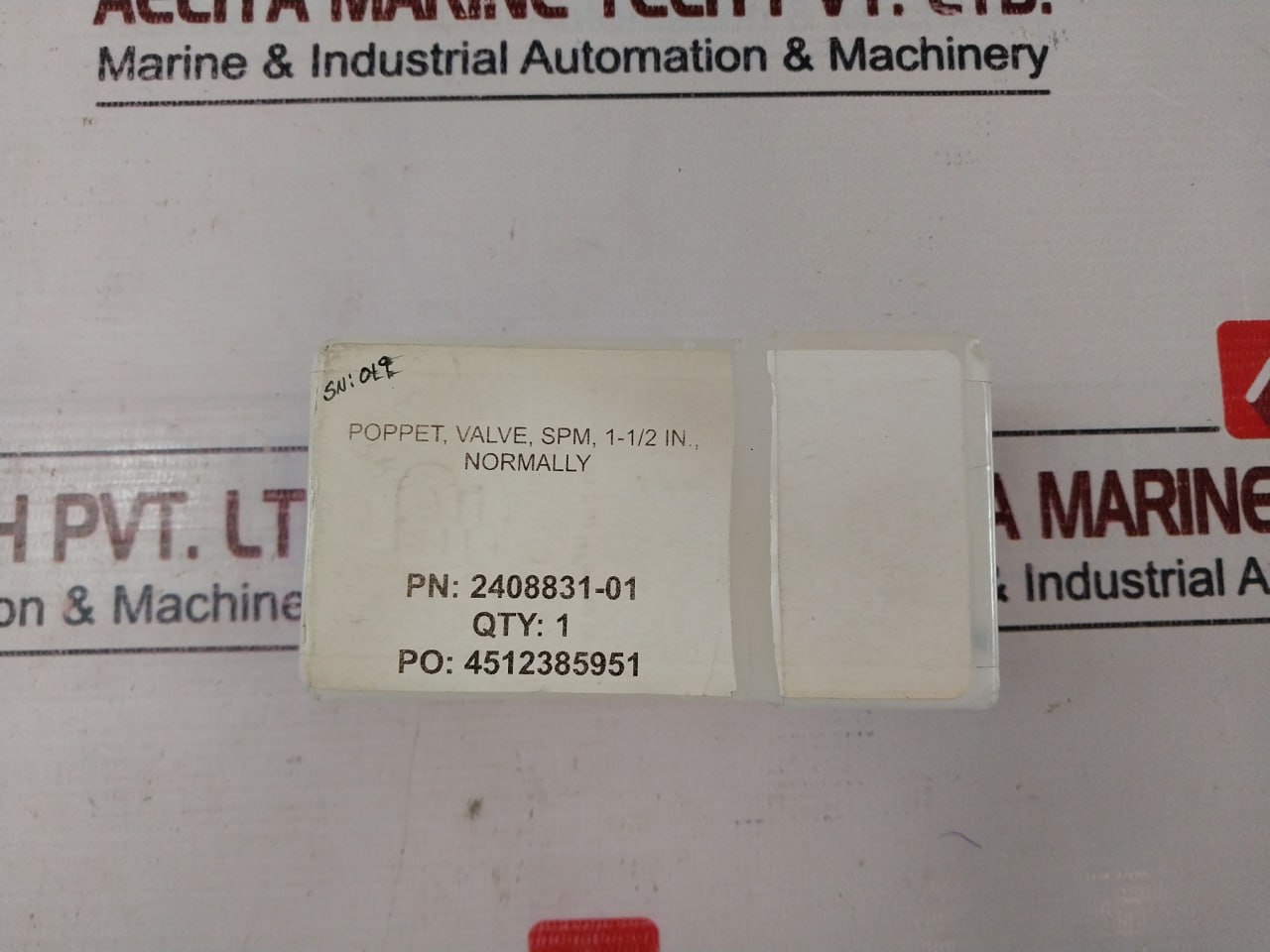

Pn: 2408831-01 Rev: 01
Hn: 60622-3rca
Poppet, Valve, Spm, 1-1/2 In., Normally
Heat No.: Hn:606223rca
Pn: 2404663-01 Rev: 01
Ht: 584036
Shaft, Valve, Spm, 1-1/2 In.
2366110-01 Rev: 03
Seat, Lower, Valve, Spm, 1-1/2 In
2408832-01 Rev: 03
Seat, Upper, 1.5 In Spm Valve.,
Pn: 2371508-01 Rev: 02
Wear Band, Valve 1.5 In Spm, 2.246 Id
Pn: 2397325-01 Rev: 03
Wear Band, Valve, Spm, 1-1/2 In.
Pn: 702519-24-02-01
Locknut, Hex Full Ht .500-20 Sst
P/N: 2408834-01 Rev: 02
Wear Band, 1.00 Id, .120 C/S, .202 Width
Heat No.: 408083

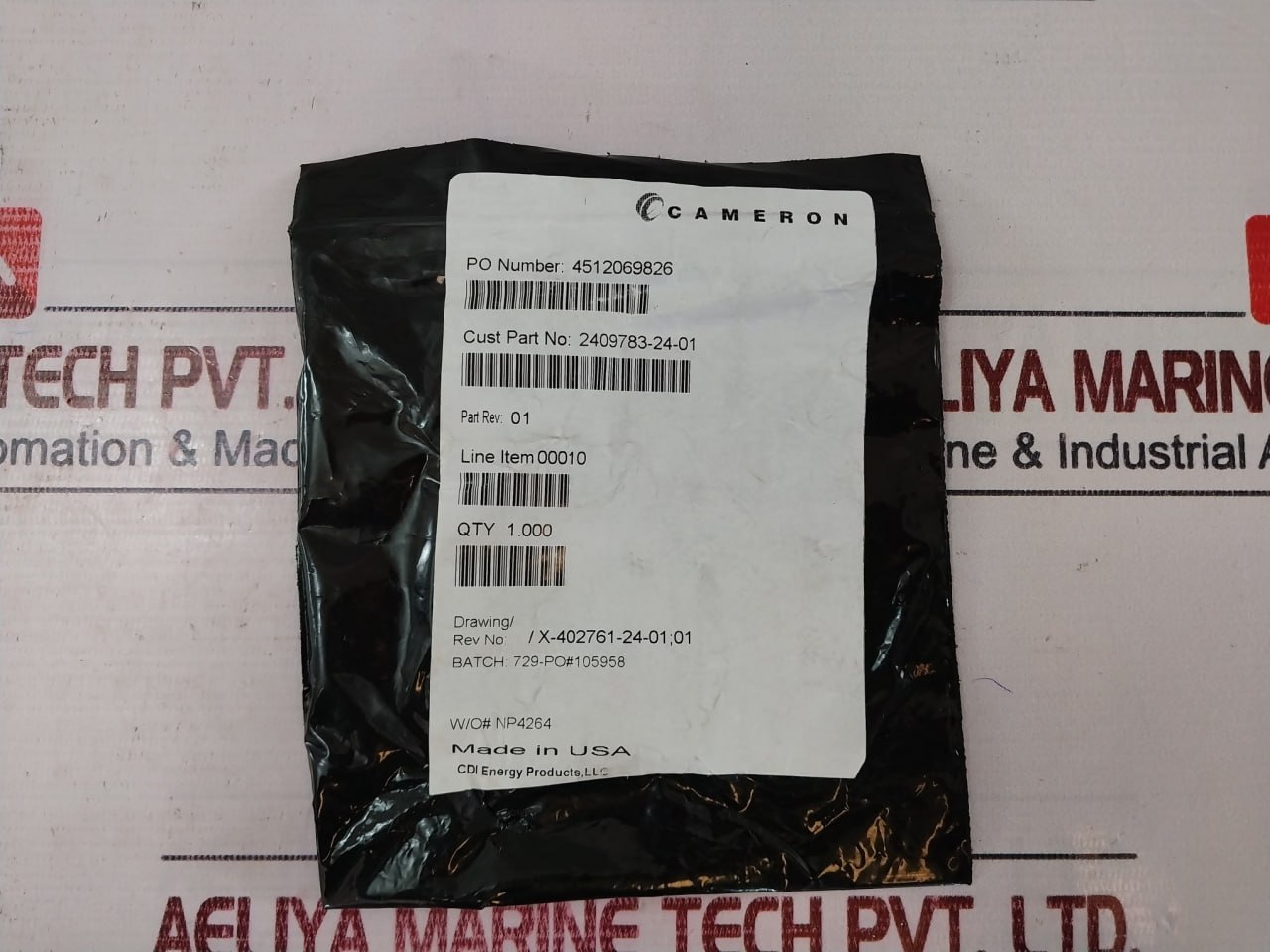

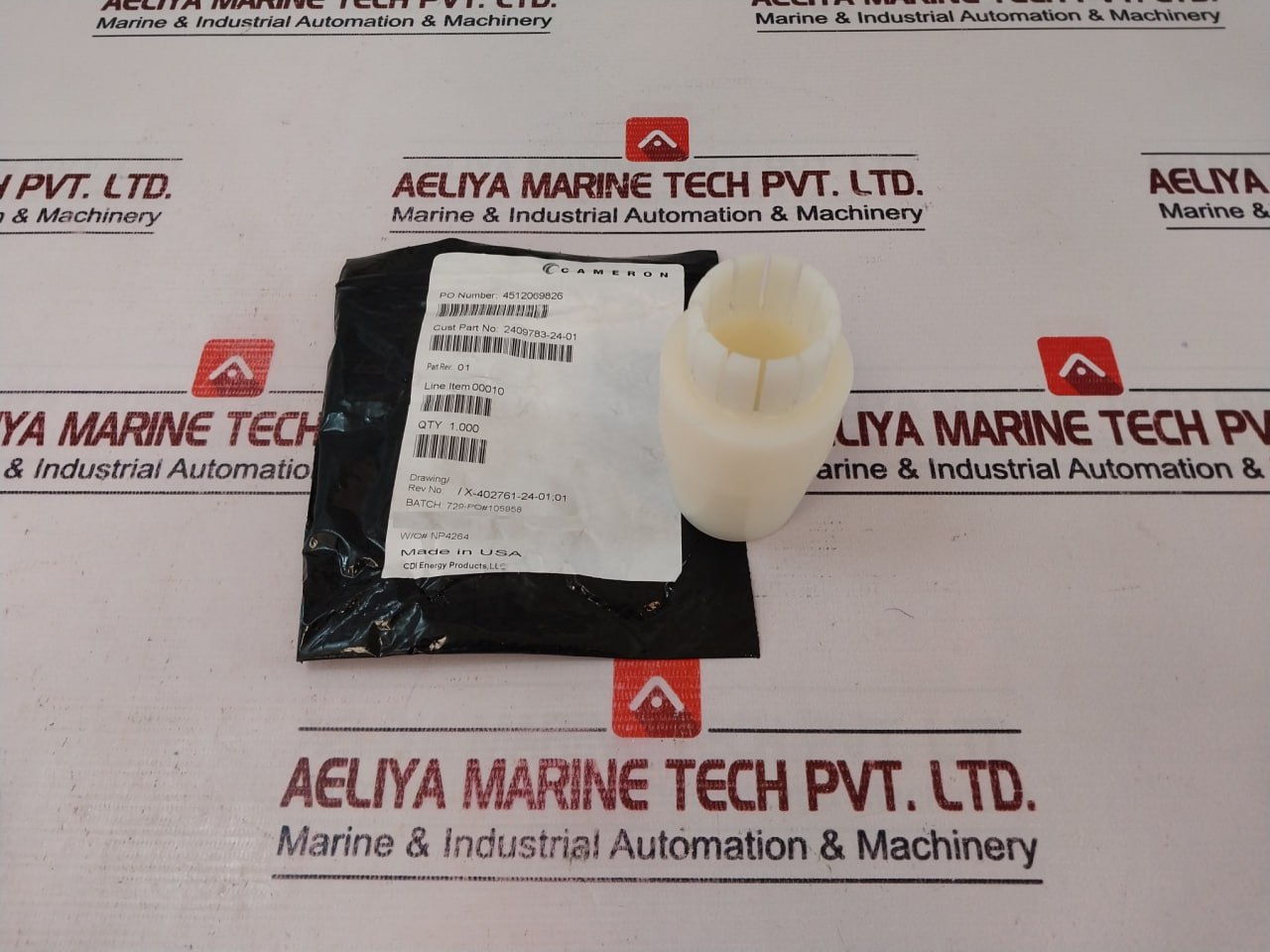

Drawing: X-402761-24-01
Rev No: 01

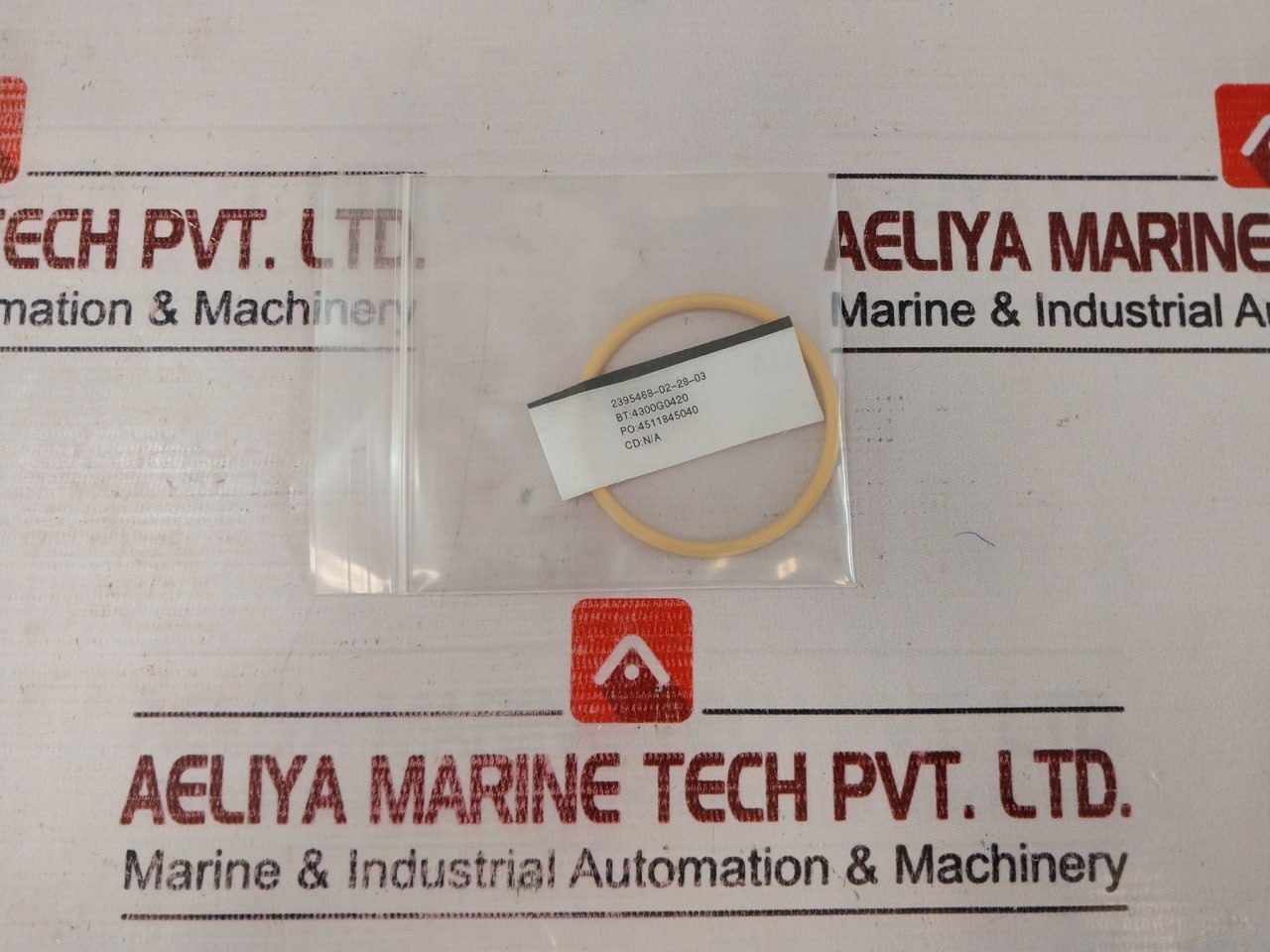

2395468-02-28-03
O-Ring, As568-228, Resilon 4300, 90d
Heat No.: 4300g0420
Mfg Id# 10007801

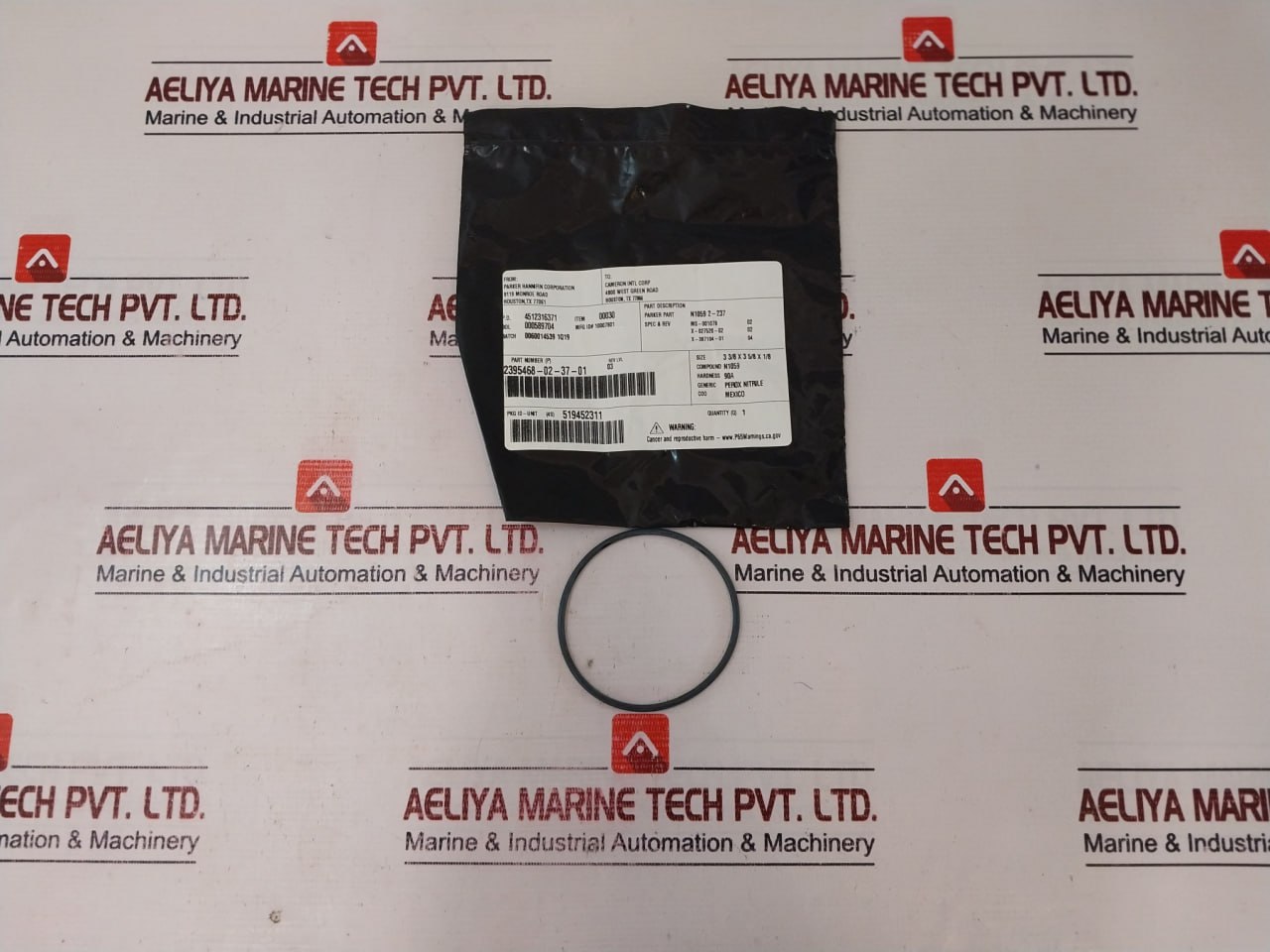

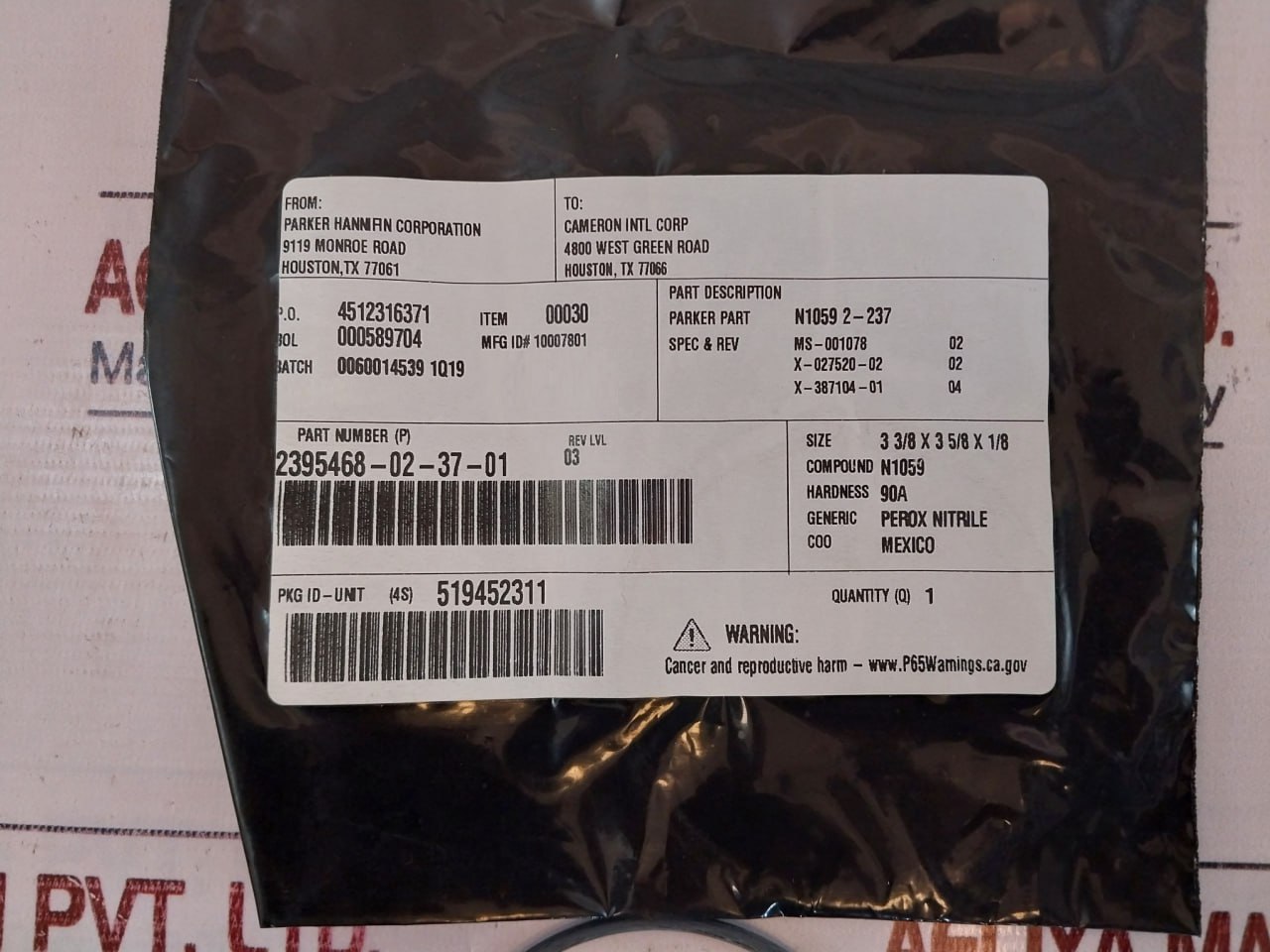

Part Number: 2395468-02-37-01
Rev Lvl: 03
Part Description:
Part: N1059 2-237
Spec & Rev:
Ms-001078 02
X-027520-02 02
X-387104-01 04
Size: 3 3/8 X 3 5/8 X 1/8
Compound: N1059
Hardness: 90a
Generic: Perox Nitrile
O-Ring, As568-237, Nitrile 90d
Heat No.: 0060014539

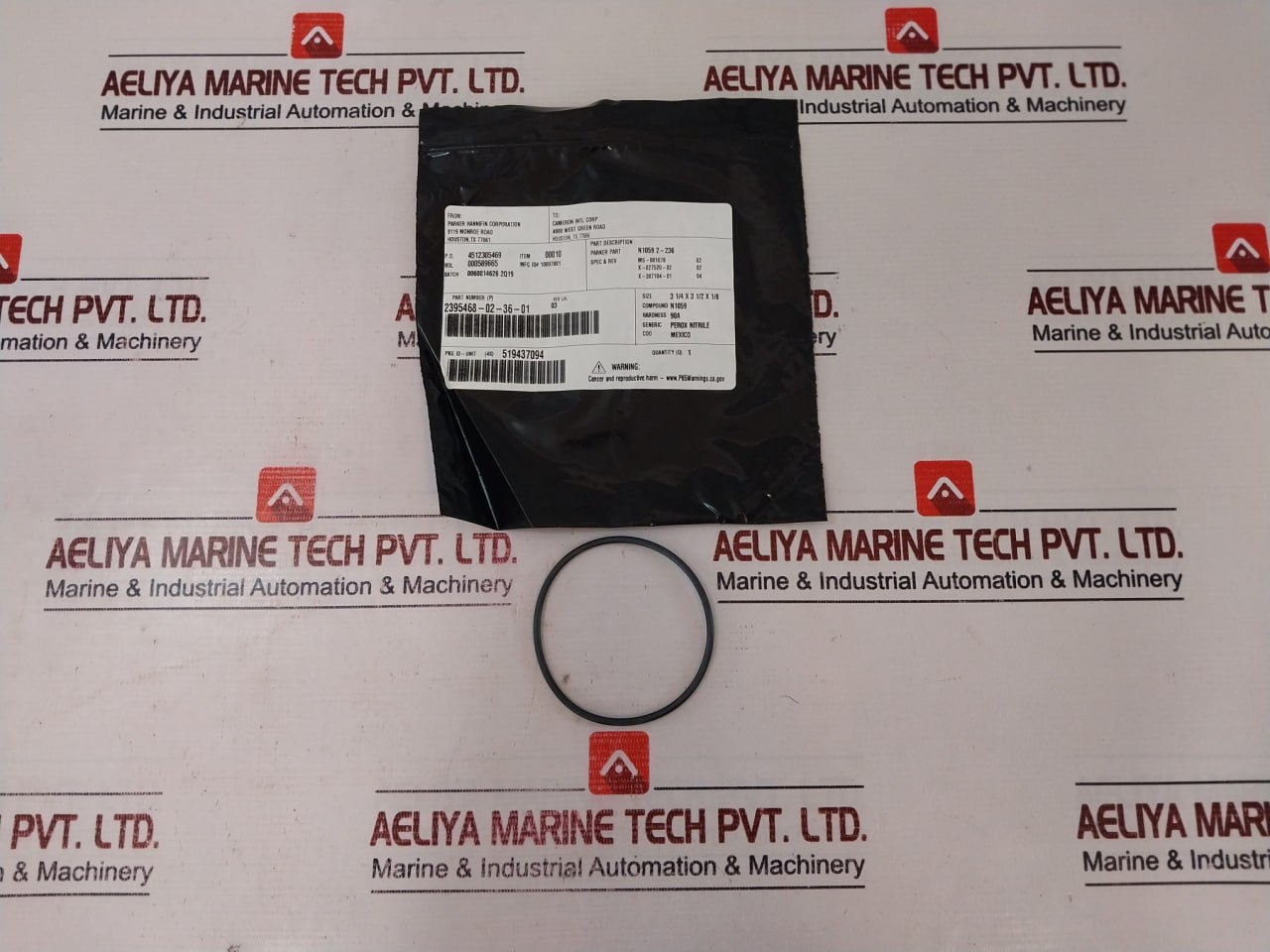

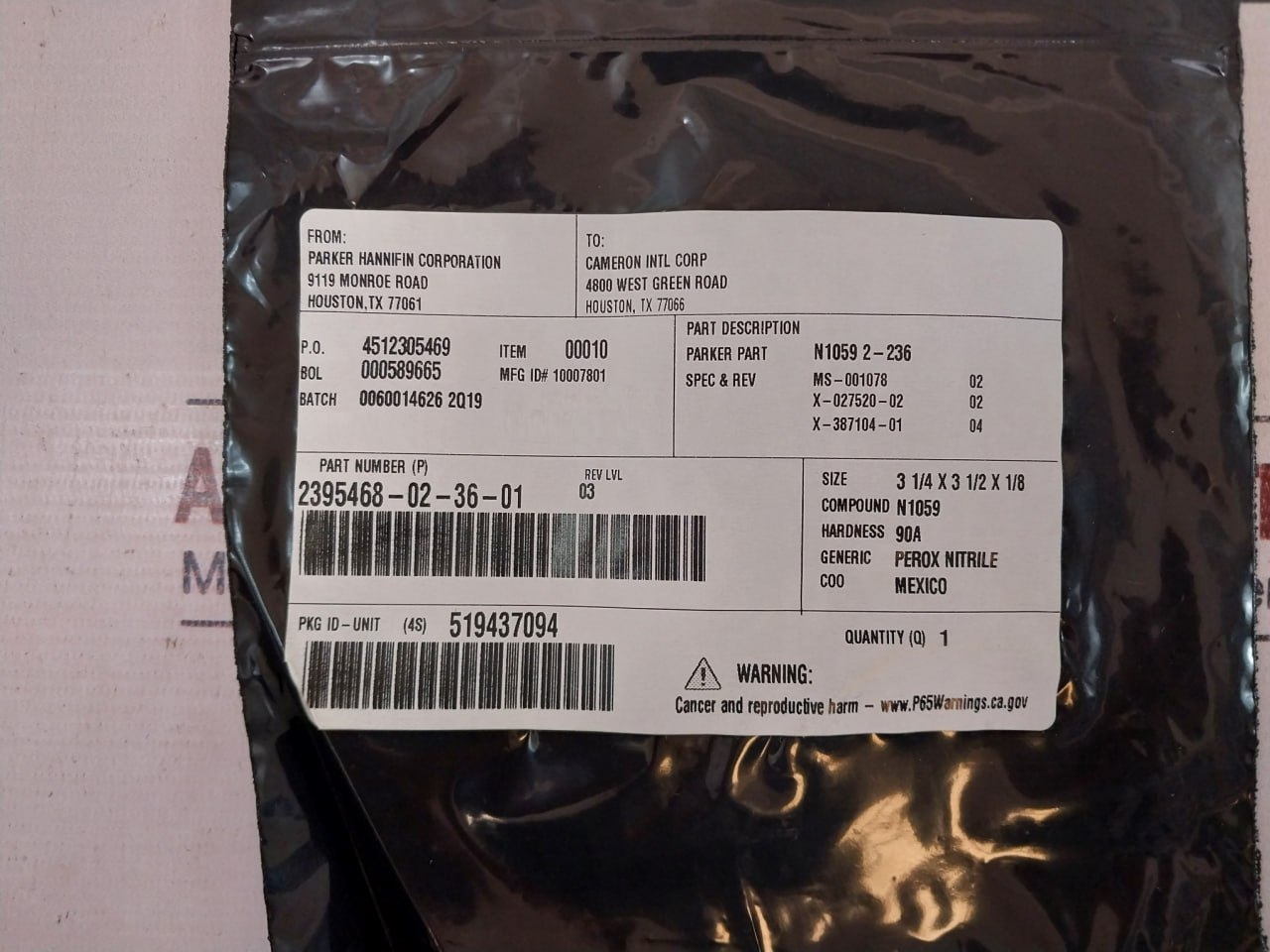

Part Number: 2395468-02-36-01
Part Description:
Part: N1059 2-236
Size: 3 1/4 X 3 1/2 X 1/8
O-Ring, As568-236, Nitrile 90d
Heat No.: 0060014626

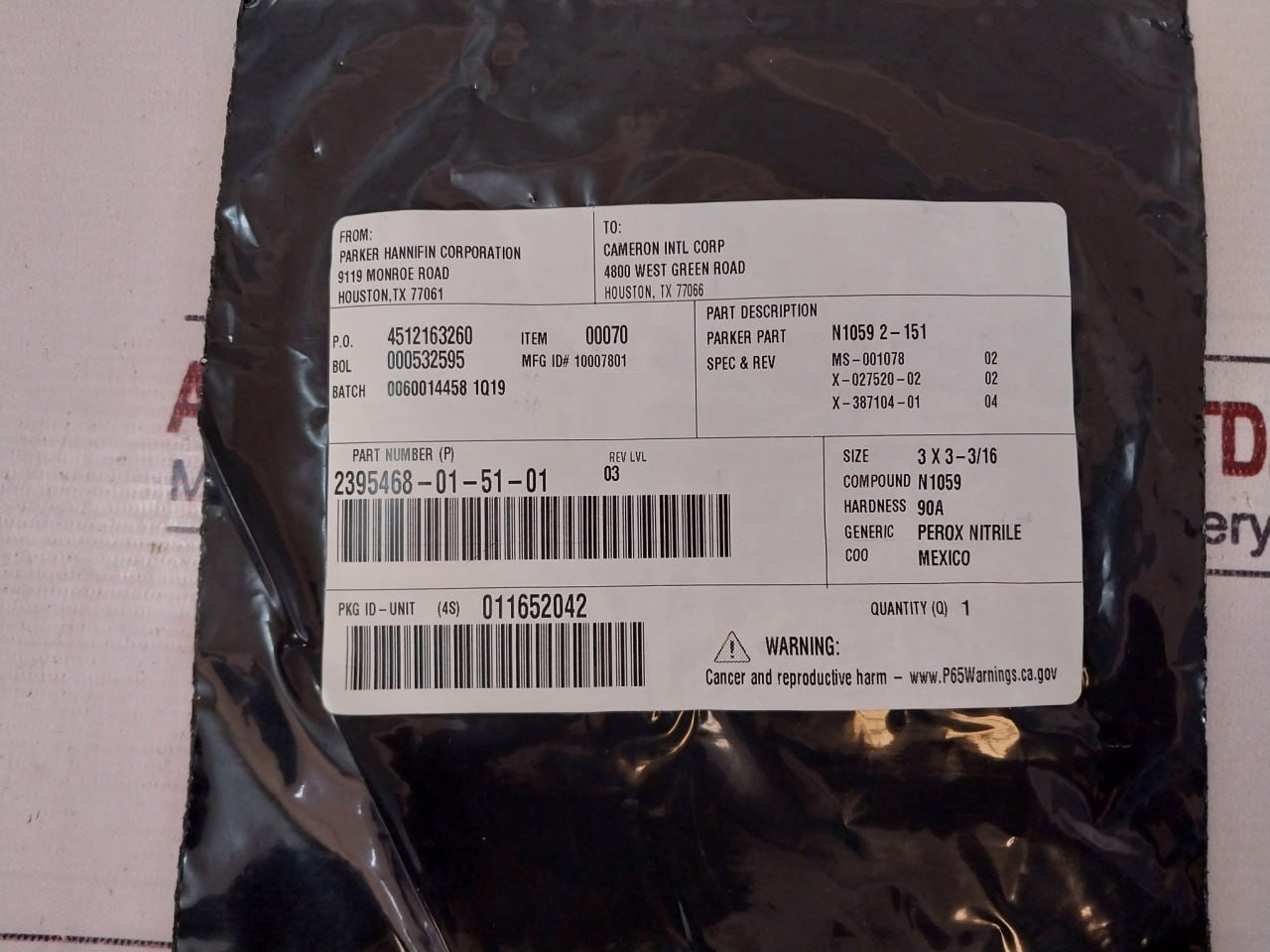

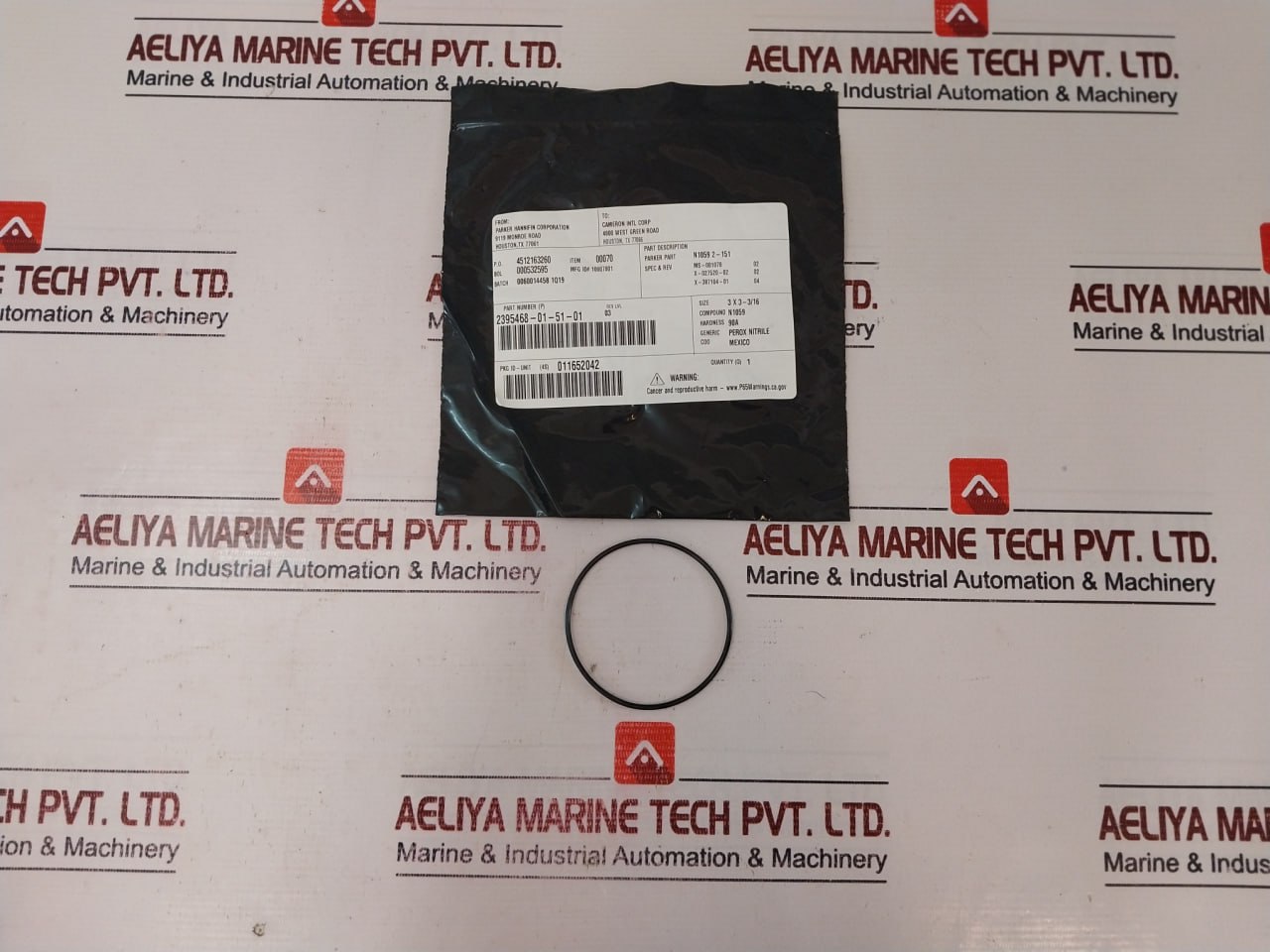

Part Number: 2395468-01-51-01
Part Description:
Part: N1059 2-151
Size: 3 X 3 – 3/16
O-Ring, As568-151, Nitrile 90d
Heat No.: 0060014458

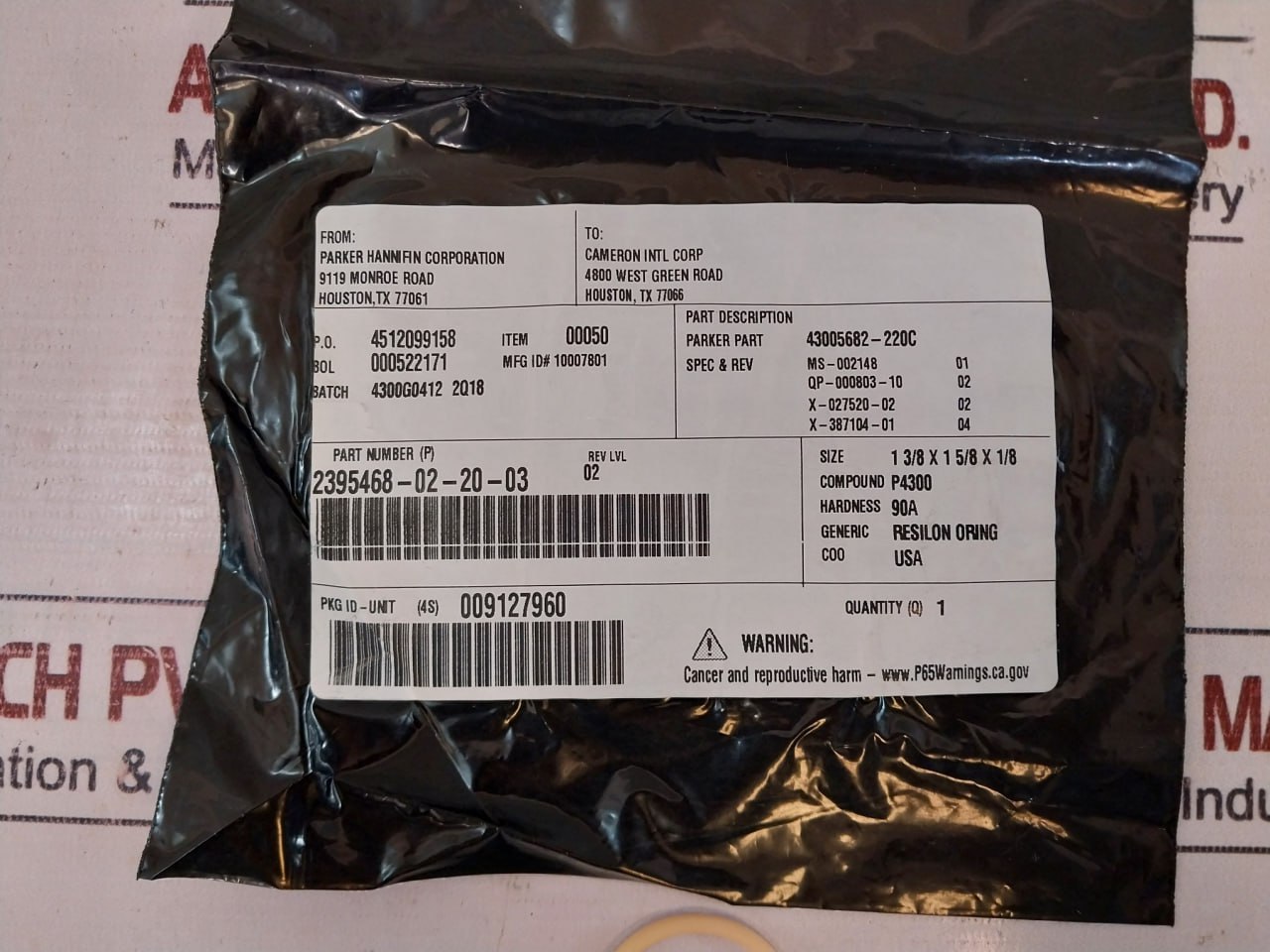

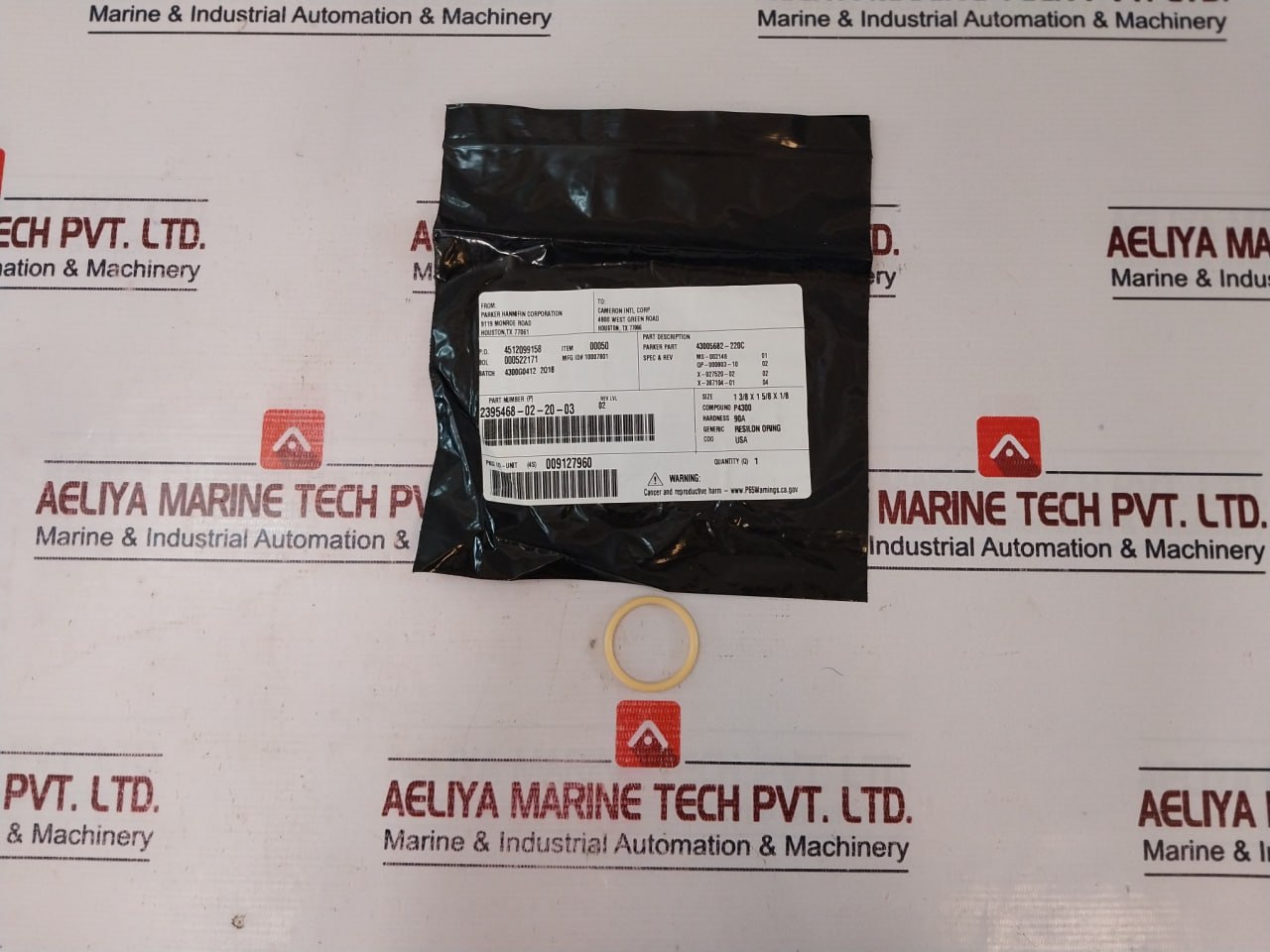

Part Number: 2395468-02-20-03
Rev Lvl: 02
Part Description:
Part: 43005682-220c
Spec & Rev:
Ms-002148 01
Qp-000803-10 02
X-027520-02 02
X-387104-01 04
Size: 1 3/8 X 1 5/8 X 1/8
Compound: P4300
Hardness: 90a
Generic: Resilon Oring
Heat No.: 4300g0412
O-Ring, As568-220, Resilon 4300, 90d

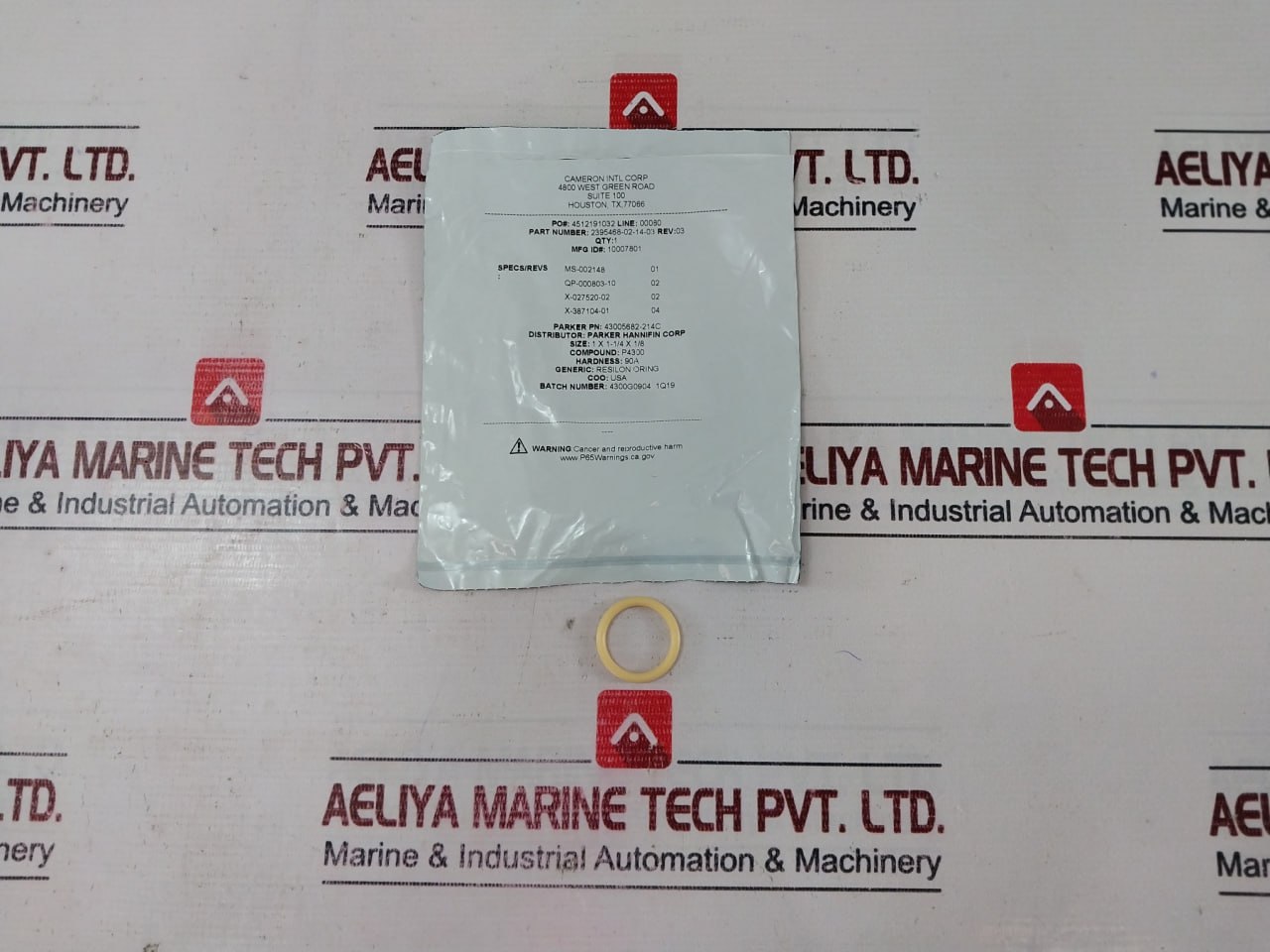

Part Number: 2395468-02-14-03 Rev: 03
Pn: 43005682-214c
Size: 1 X 1-1/4 X 1/8
O-Ring, As568-214, Relison 4300, 90d
Heat No.: 4300g0904

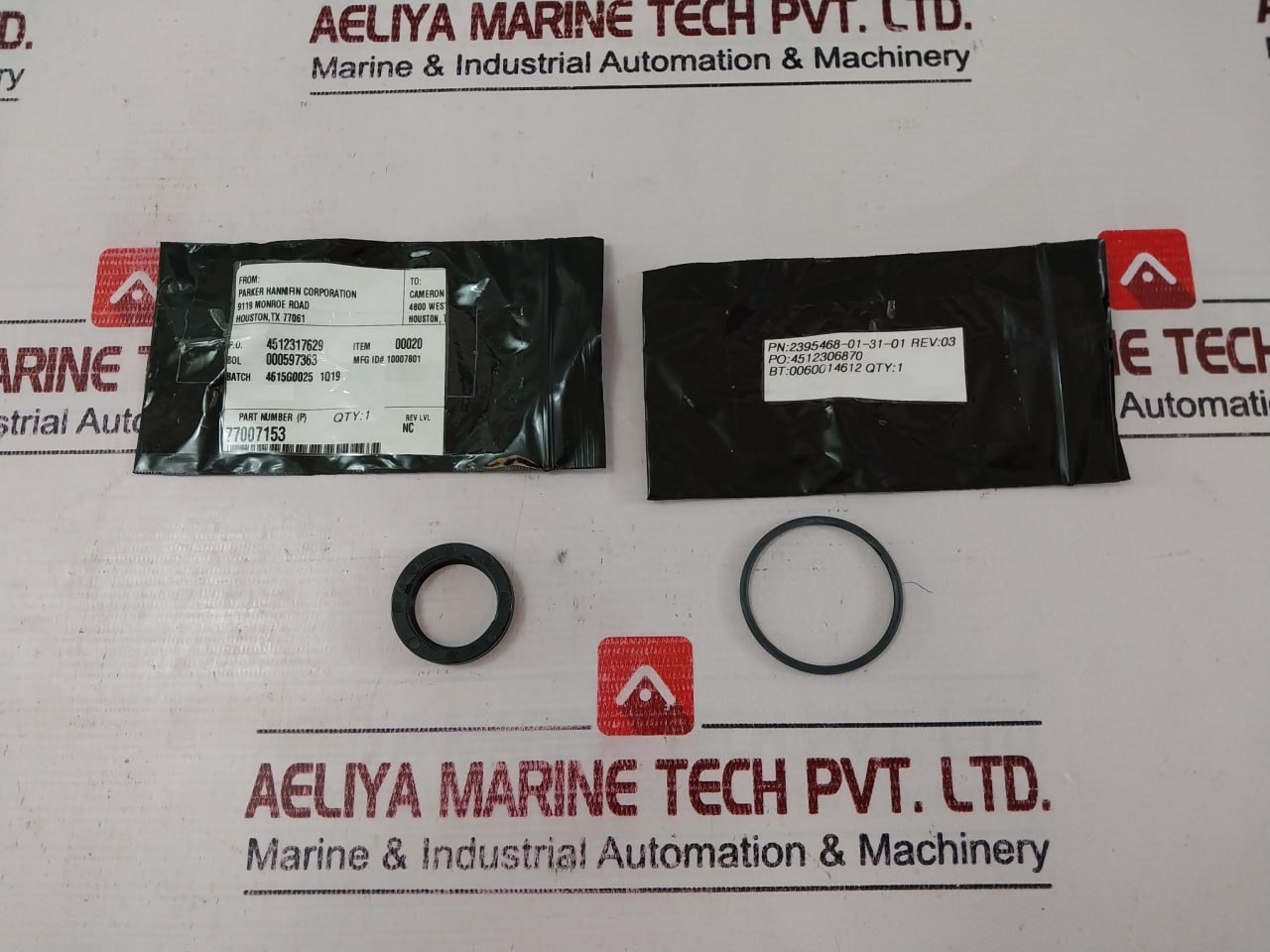

Part Number: 77007153
Wiper Ring, Type D 1.000 Rod
Heat No.: 4615g0025
Pn: 2395468-01-31-01 Rev: 03
O-Ring, As568-131, Nitrile 90d
Heat No.: 0060014612

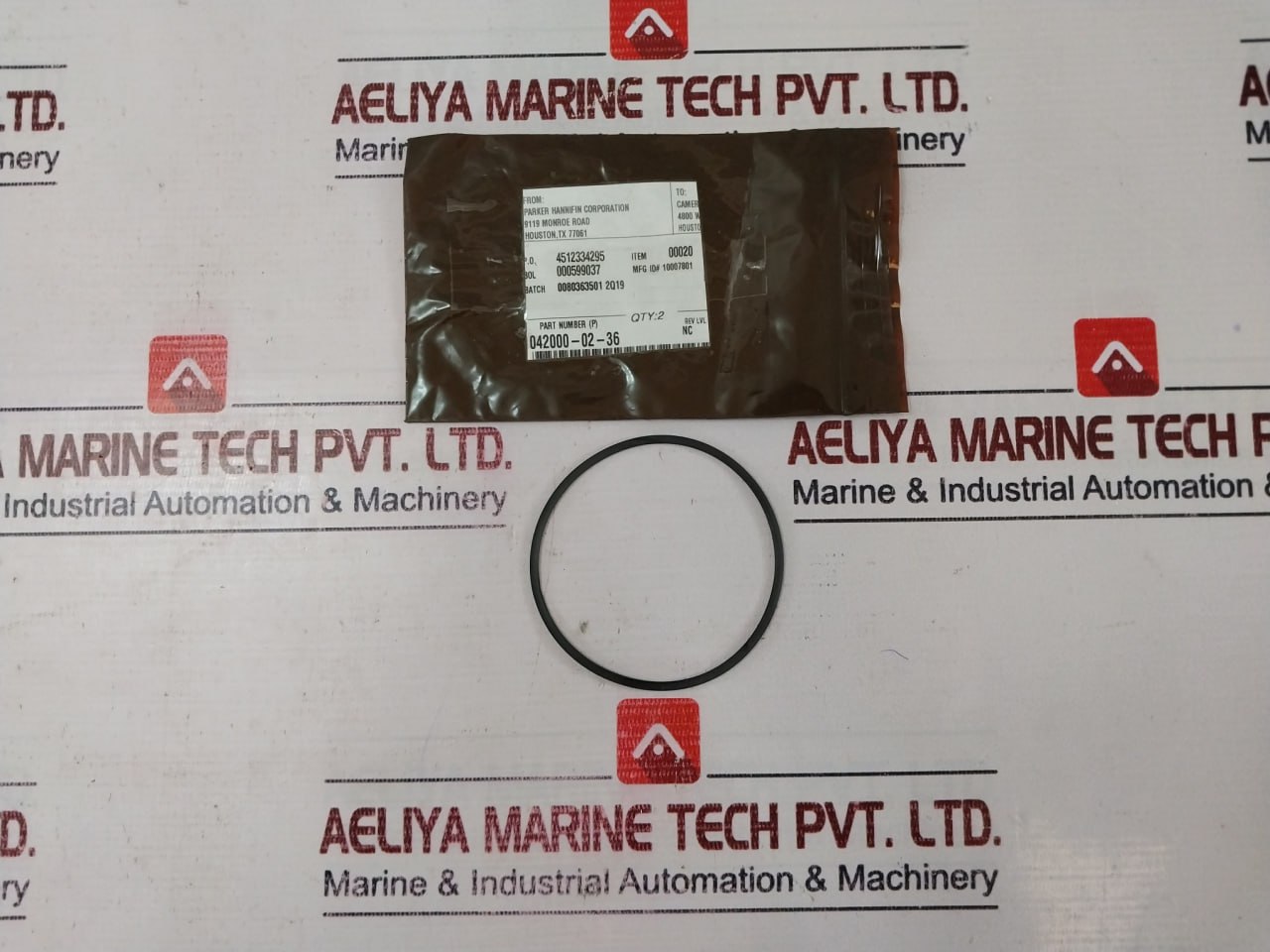

Part Number: 042000-02-36
Back-Up Ring, Size 236 3.256 Id X
Heat No.: 0080363501
Coo: Mexico
Coo: Usa
Made In Usa
Weight : 1.860 Kg
Ref No : 96539
