Cameron 2406436-31-99 Drg Valve Repair Kit

Cameron 2406436-31-99 Drg Valve Repair Kit
Cameron Drilling
A Schlumberger Company
Parker Hannifin Corporation

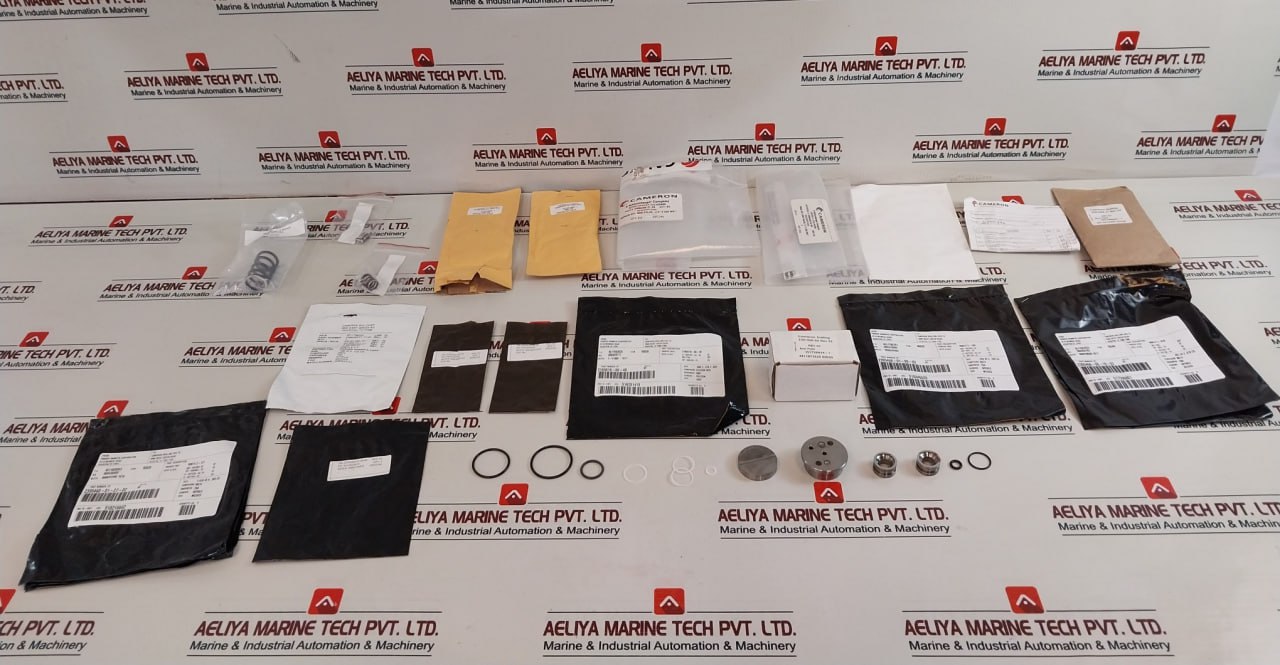

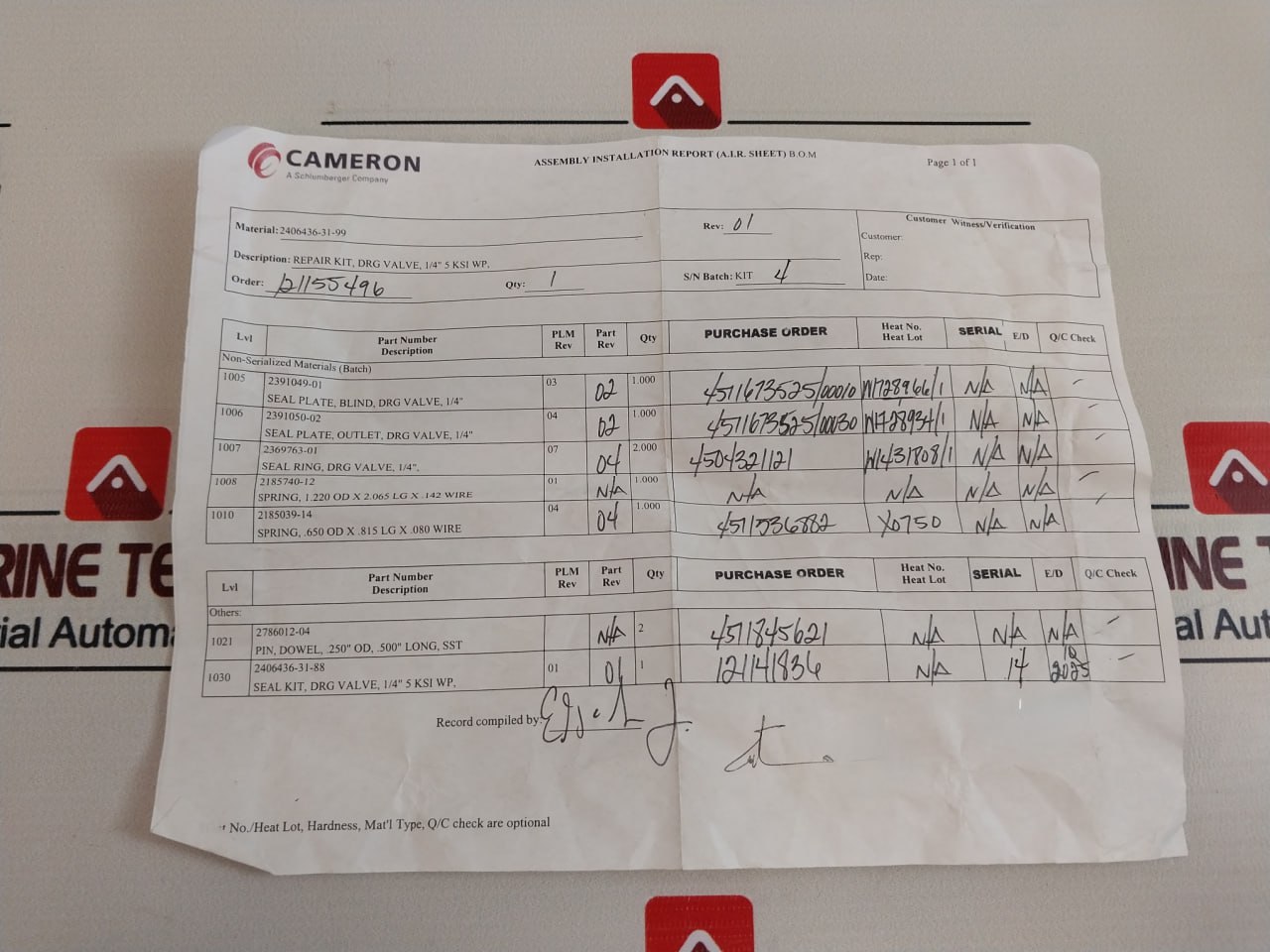

Part Number: 2406436-31-99 Rev 01
Description: “Repair Kit, Drg Valve, 1/4” 5 Ksi Wp,”
Order#: 121155496

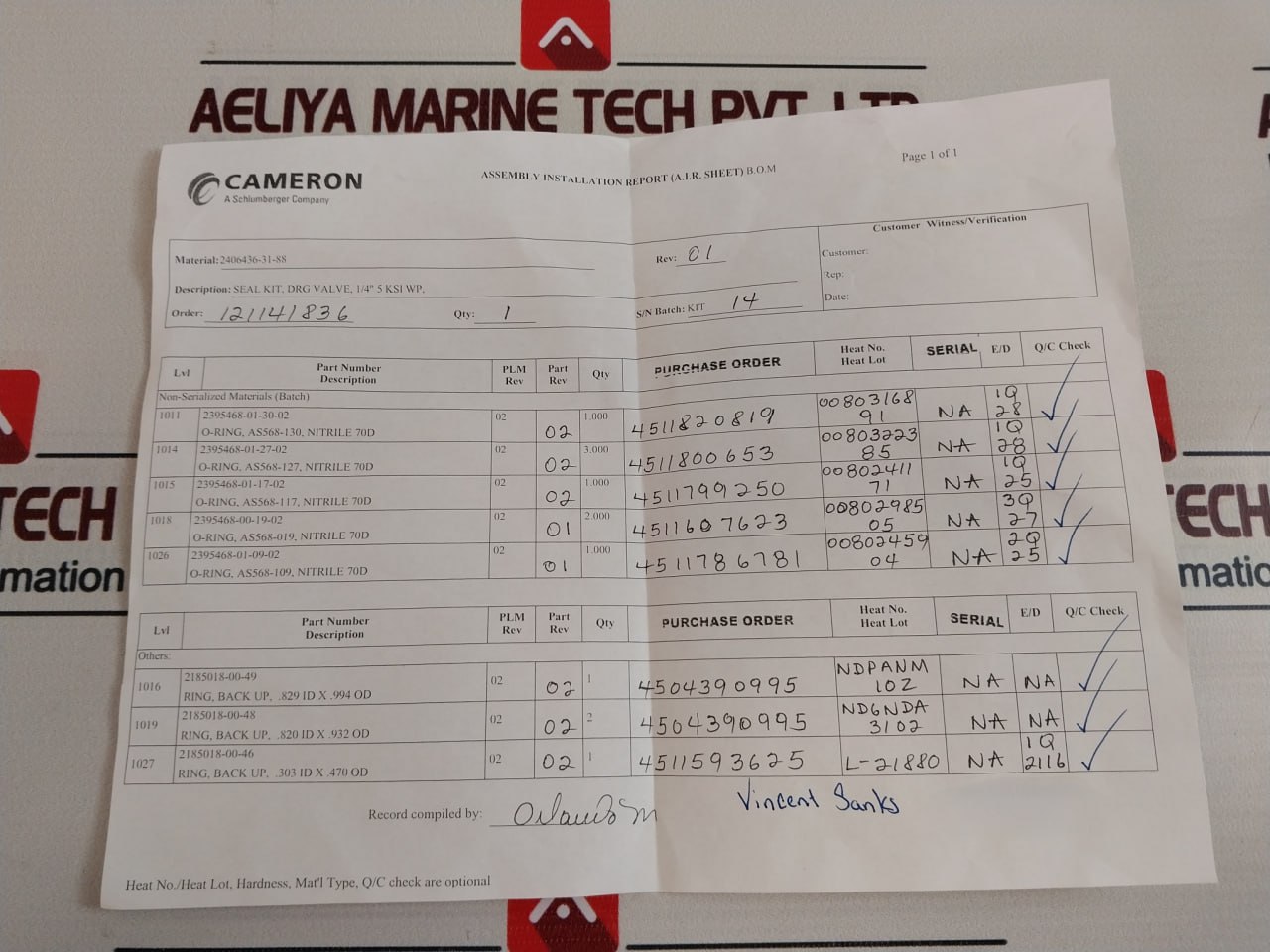

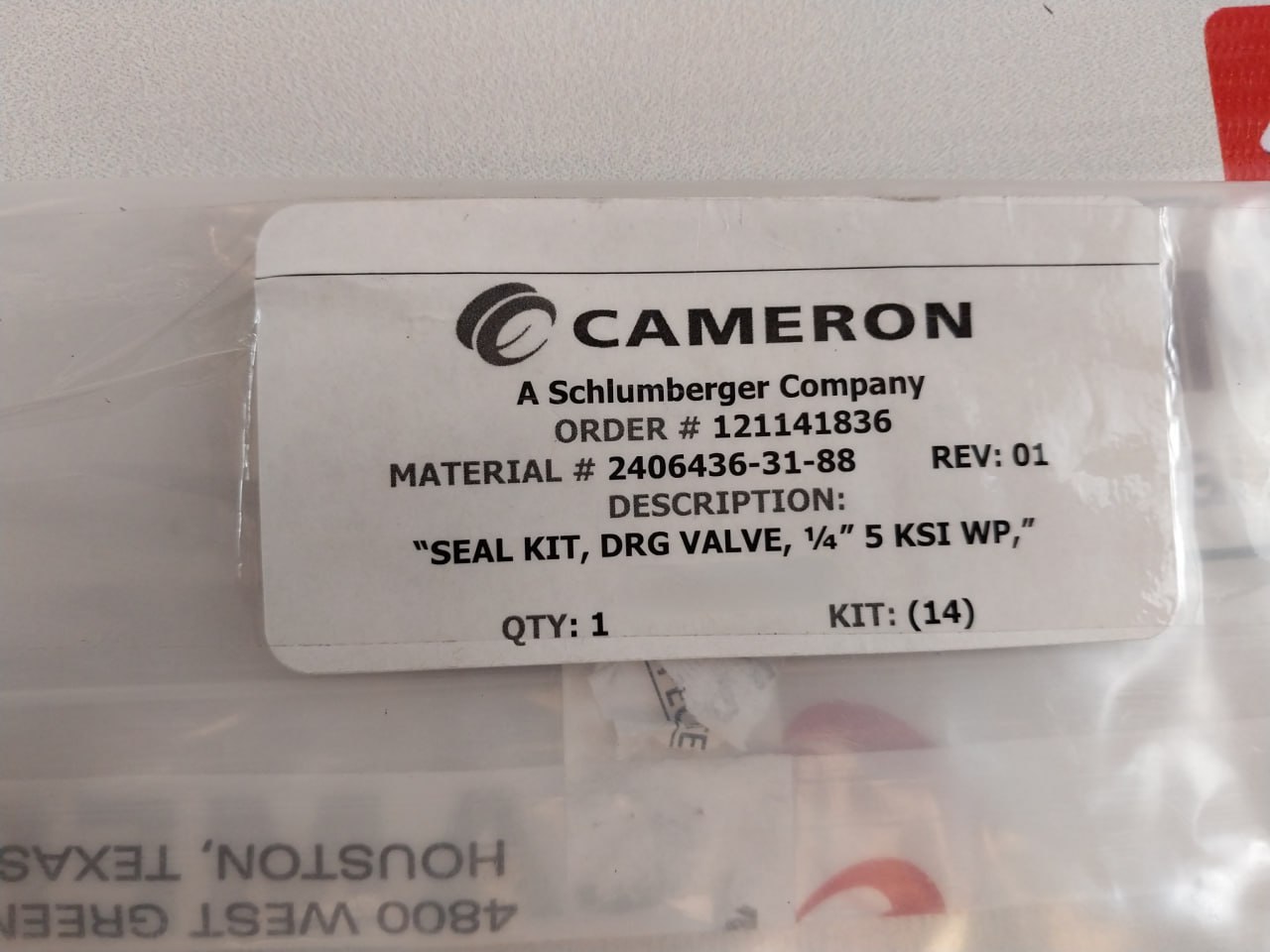

Part Number: 2406436-31-88 Rev 01
Description: “Seal Kit, Drg Valve, 1/4″ 5 Ksi Wp,”
Order#: 121141836
Part Number: 2391050-02 Rev 02
Description: Seal Plate, Outlet, Drg Valve, 1/4″
Heat No.: W1728934/1
Part Number: 2391049-01 Rev 02
Description: Seal Plate, Blind, Drg Valve, 1/4″
Rev 01
Heat No.: W1728966/1
Part Number: 2369763-01 Rev 04
Description: Seal Ring, Drg Valve, 1/4″
Rev 03
Heat No.: W1431808/1

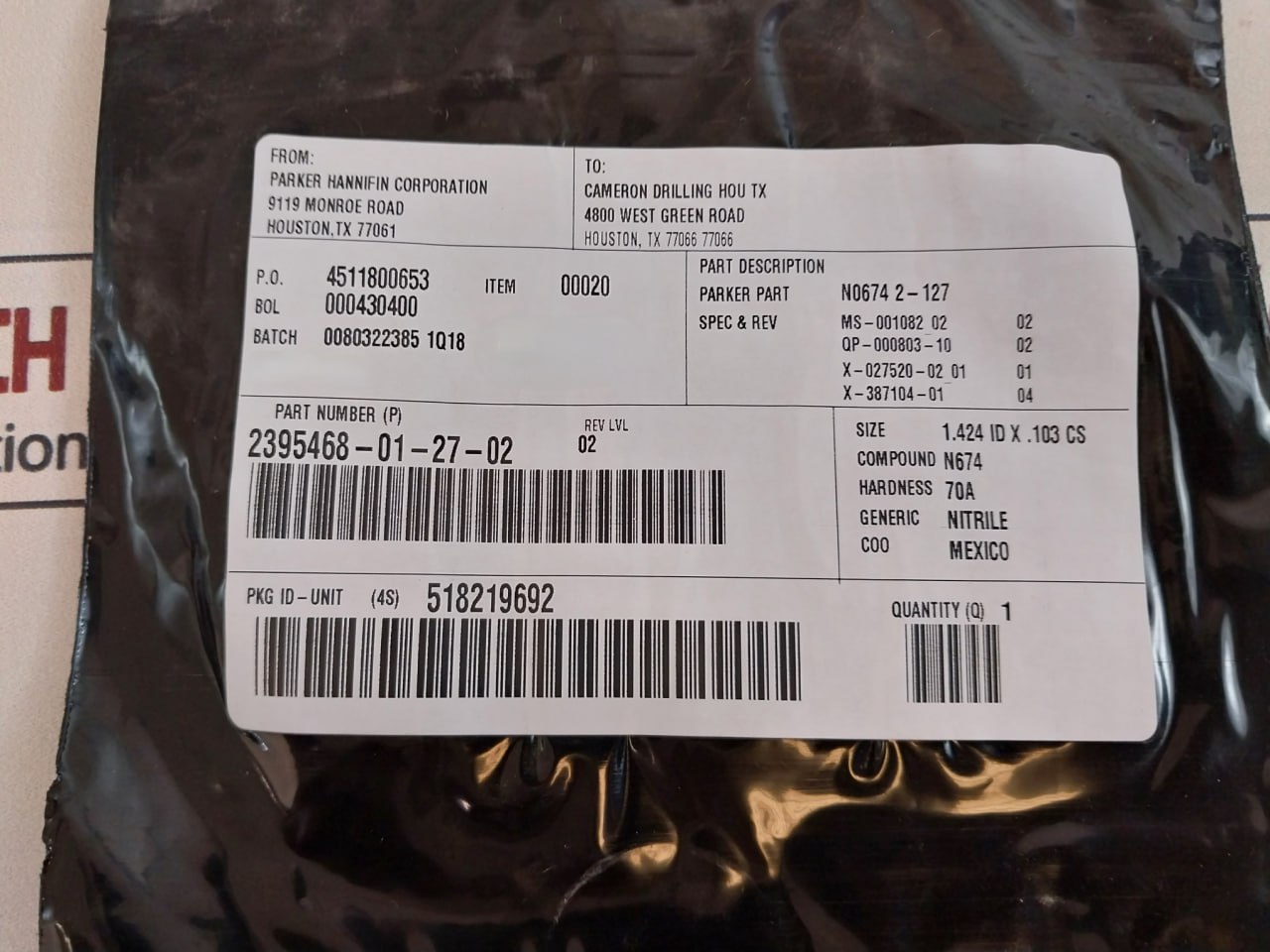

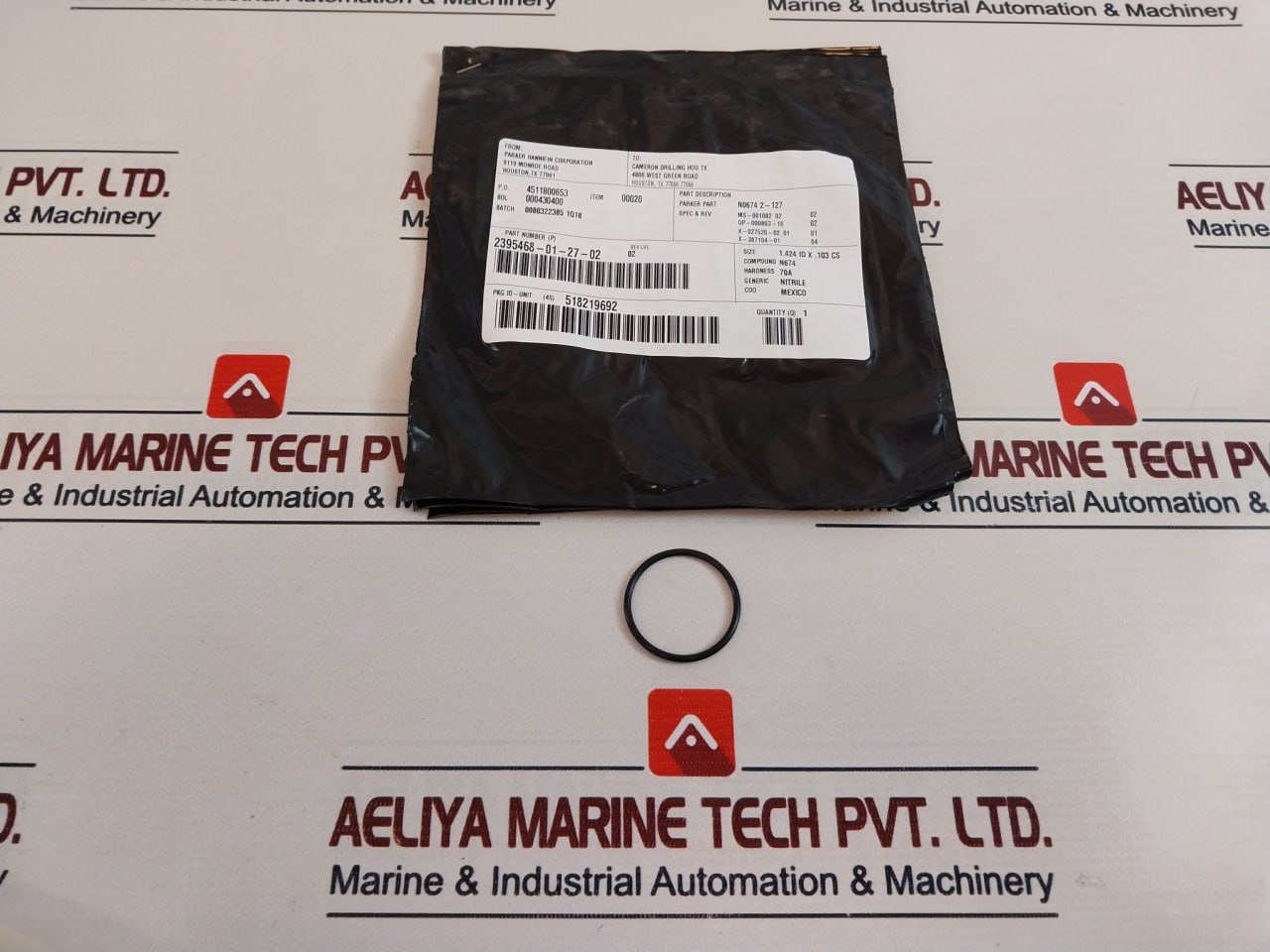

Part Number: 2395468-01-27-02 Rev 02
Description: O-Ring, As568-127, Nitrile 70d
Part: N0674 2-127
Spec & Rev:
Ms-001082 02 02
Qp-000803-10 02
X-027520-02-01 01
X-387104-01 04
Size: 1.424 Id X .103 Cs
Compound: N674
Hardness: 70a
Generic: Nitrile
Heat No.: 0080322385
Pn: 2395468-01-30-02 Rev 02
Description: O-Ring, As568-130, Nitrile 70d
Heat No.: 0080316891
Part Number: 2185018-00-49 Rev 02
Description: Ring, Back Up, .829 Id X .994 Od
Heat No.: Ndpanm10z

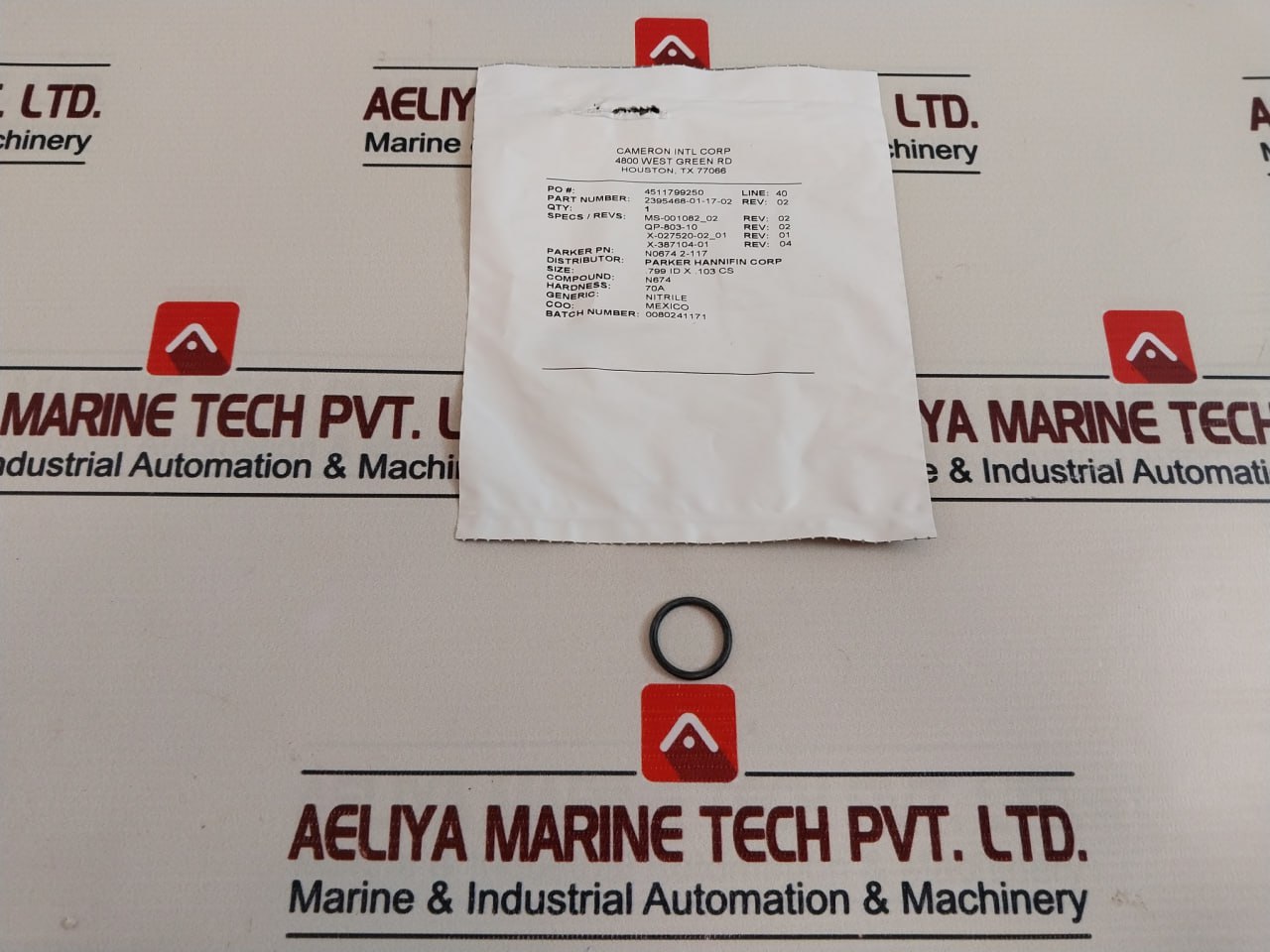

Part Number: 2395468-01-17-02 Rev 02
Description: O-Ring, As568-117, Nitrile 70d
Pn: N0674 2-117
Size: .799 Id X .103 Cs
Heat No.: 0080241171
Part Number: 2185018-00-48 Rev 02
Description: Ring, Back Up, .820 Id X .932 Od
Heat No.: Nd6nda3102

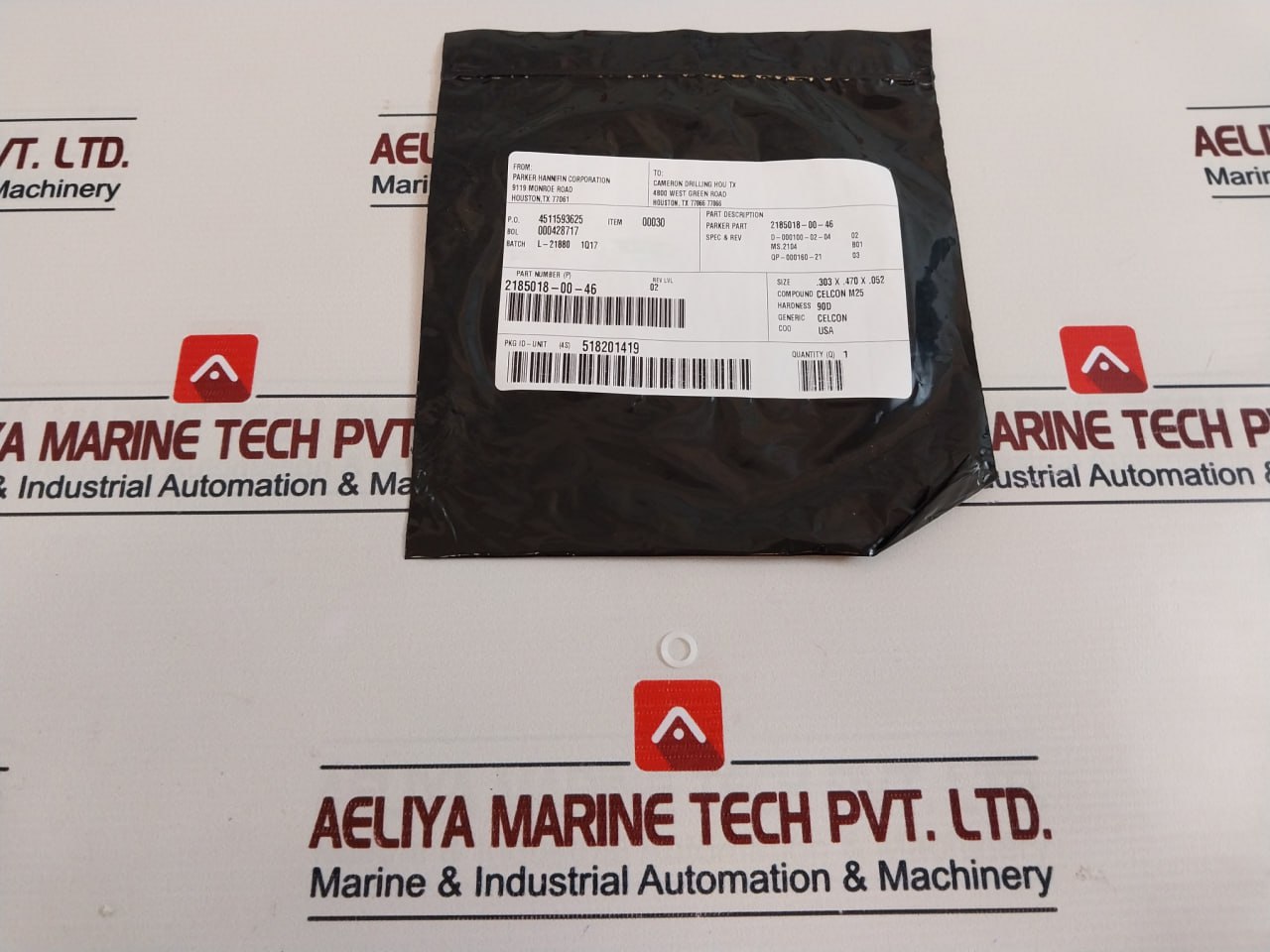

Part Number: 2185018-00-46 Rev 02
Description: Ring, Back Up .303 X .470 Od
Spec & Rev:
D-000100-02-04 02
Ms.2104 B01
Qp-000160-21 03
Size: .303 X .470 X .052
Compound: Celcon M25
Hardness: 90d
Generic: Celcon
Heat No.: L-21880

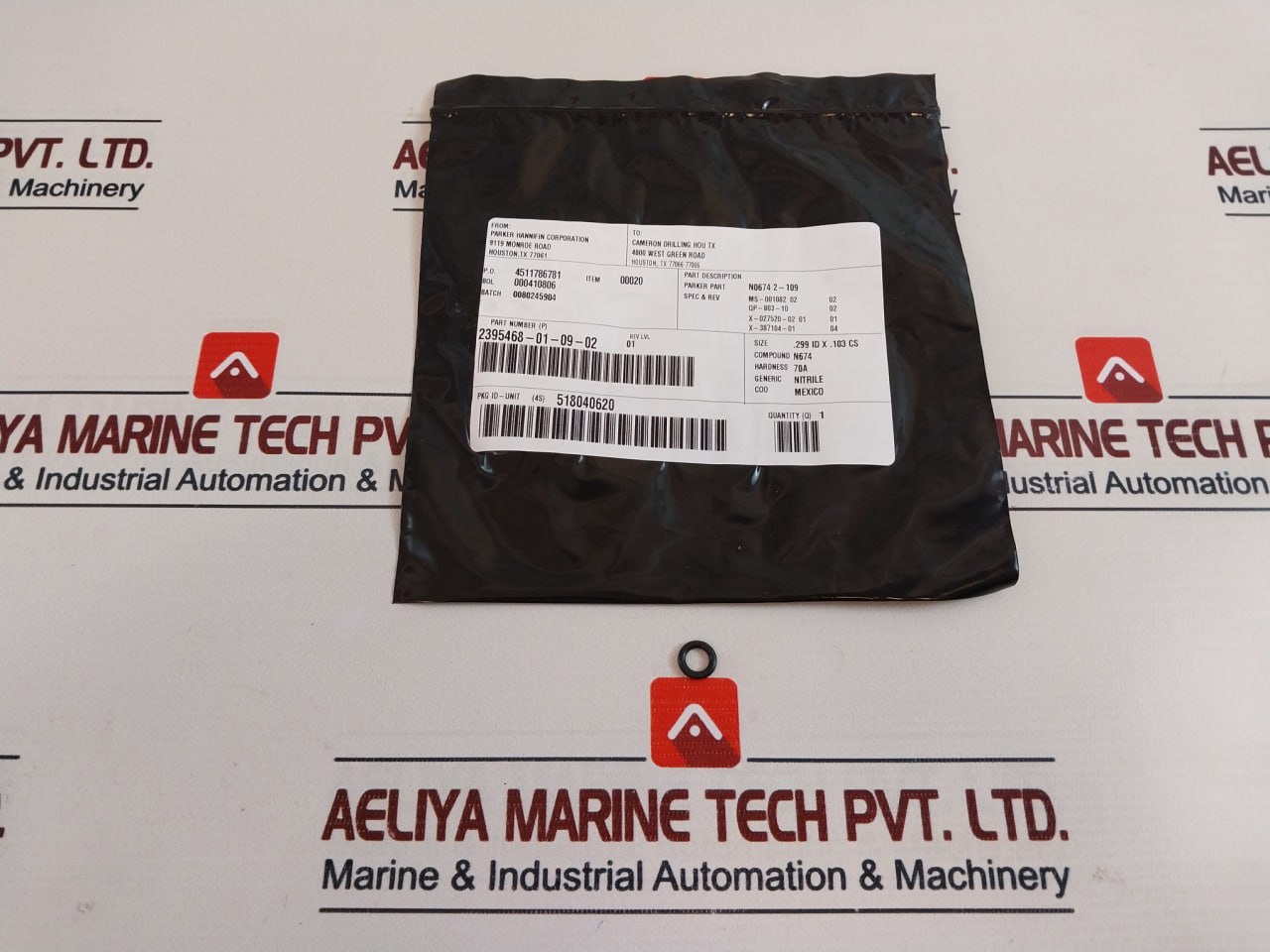

Part Number: 2395468-01-09-02 Rev 01
Description: O-Ring, As568-109, Nitrile 70d
Part: N0674 2-109
Spec & Rev:
Qp-803-10 02
Size: .299 Id X .103 Cs
Heat No.: 0080245904

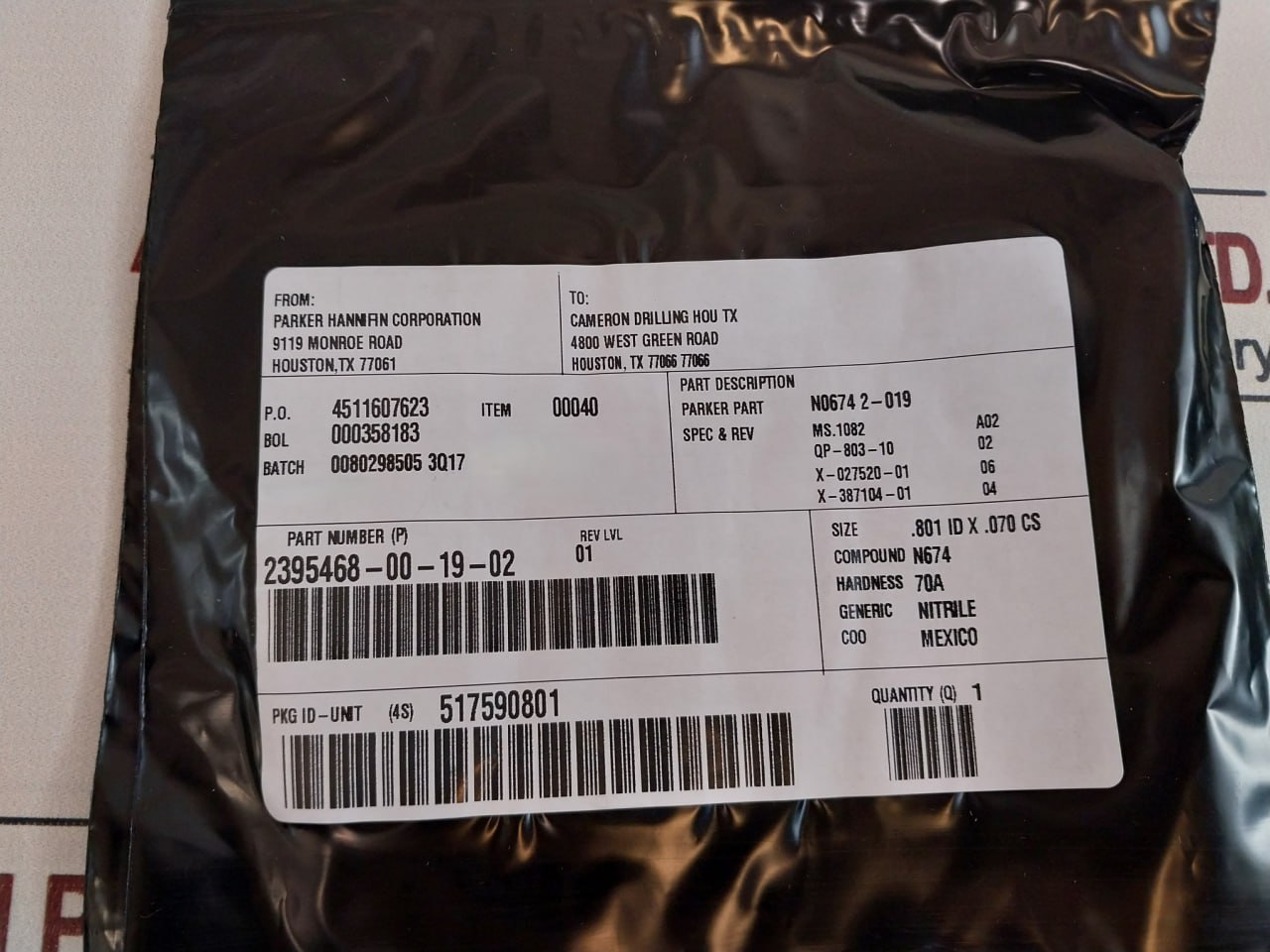

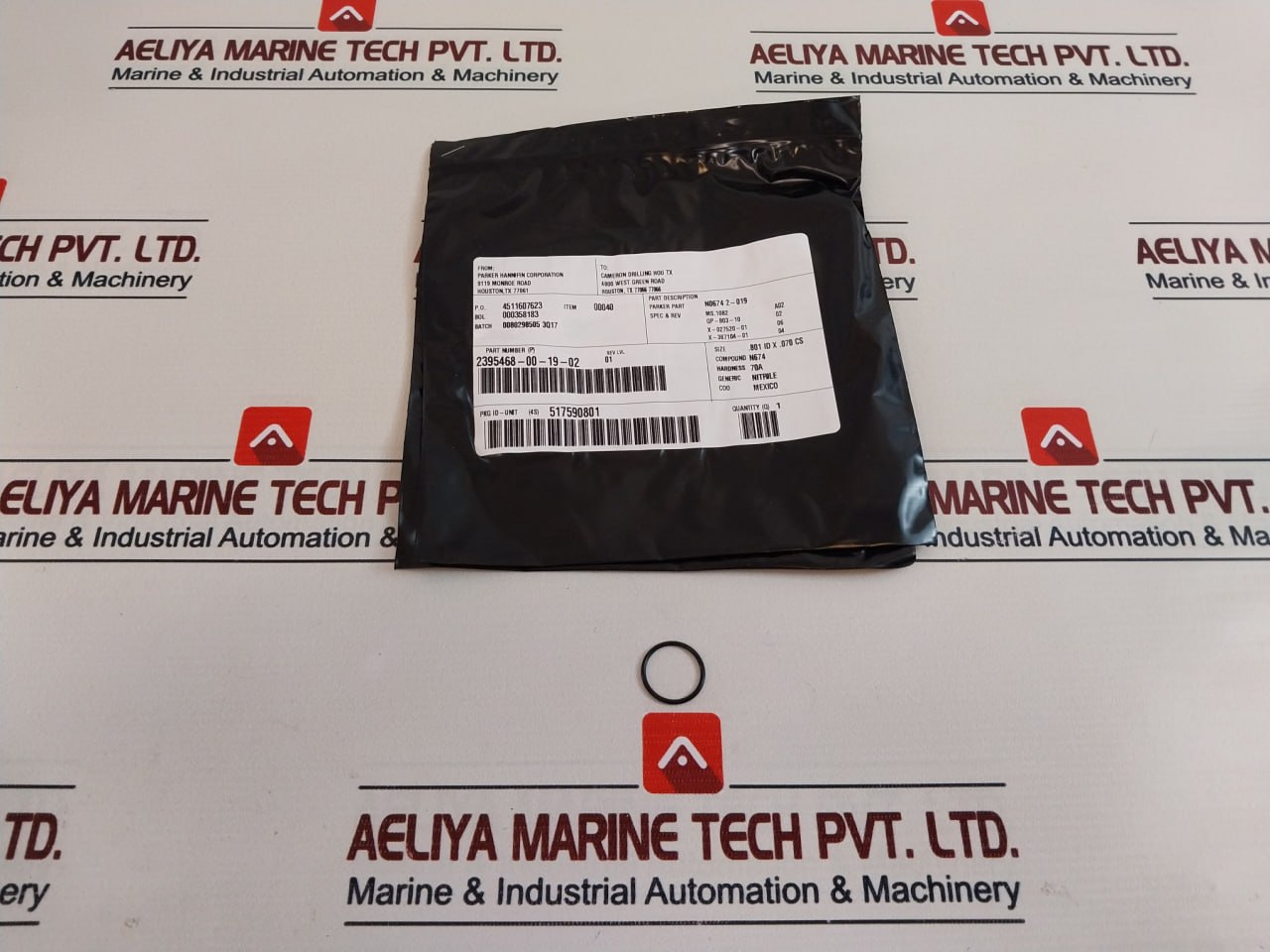

Part Number: 2395468-00-19-02 Rev 01
Description: O-Ring, As568-019, Nitrile 70d
Paer: N0674 2-019
Spec & Rev:
Ms1082 A02
Size: .801 Id X .070 Cs
Heat No.: 0080298505
Part Number: 2786012-04
Description: Pin, Dowel, .250” Od, .500” Long, Sst
Part Number: 2185039-14 Rev 04
Description: Spring, .650 Od X .815 Lg X .080 Wire
Heat No.: X0750
Part Number: 2185740-12
Description: Spring, 1.220 Od X 2.065 Lg X .142 Wire
Coo: Mexico
Coo: Usa
Made In Usa
Weight : 980 Gm
Ref No : 91792
