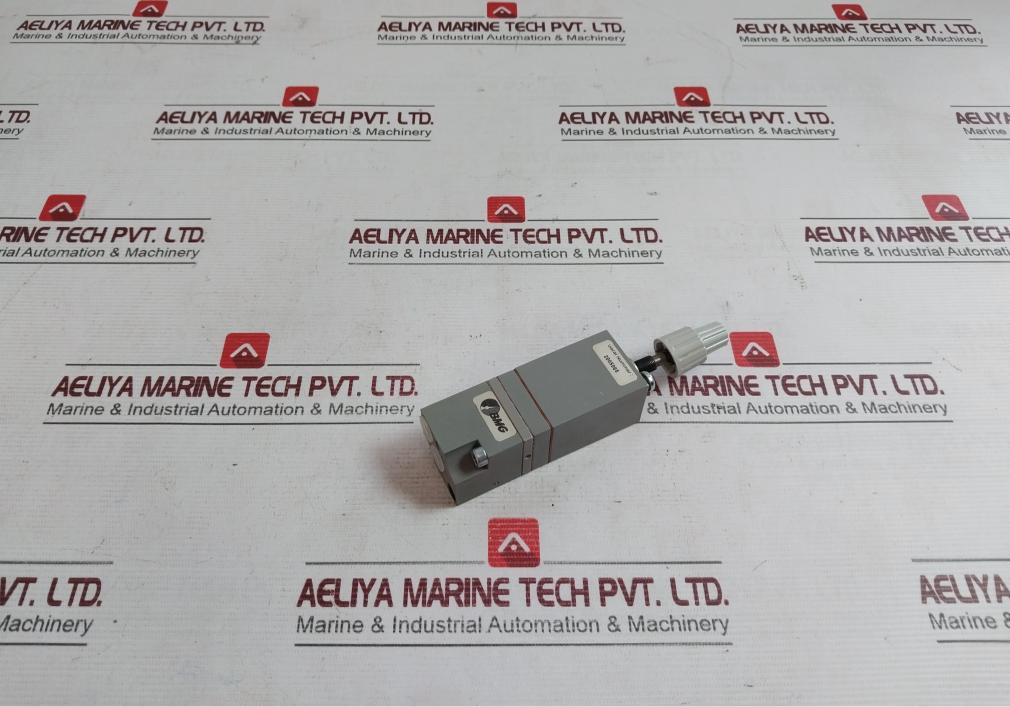

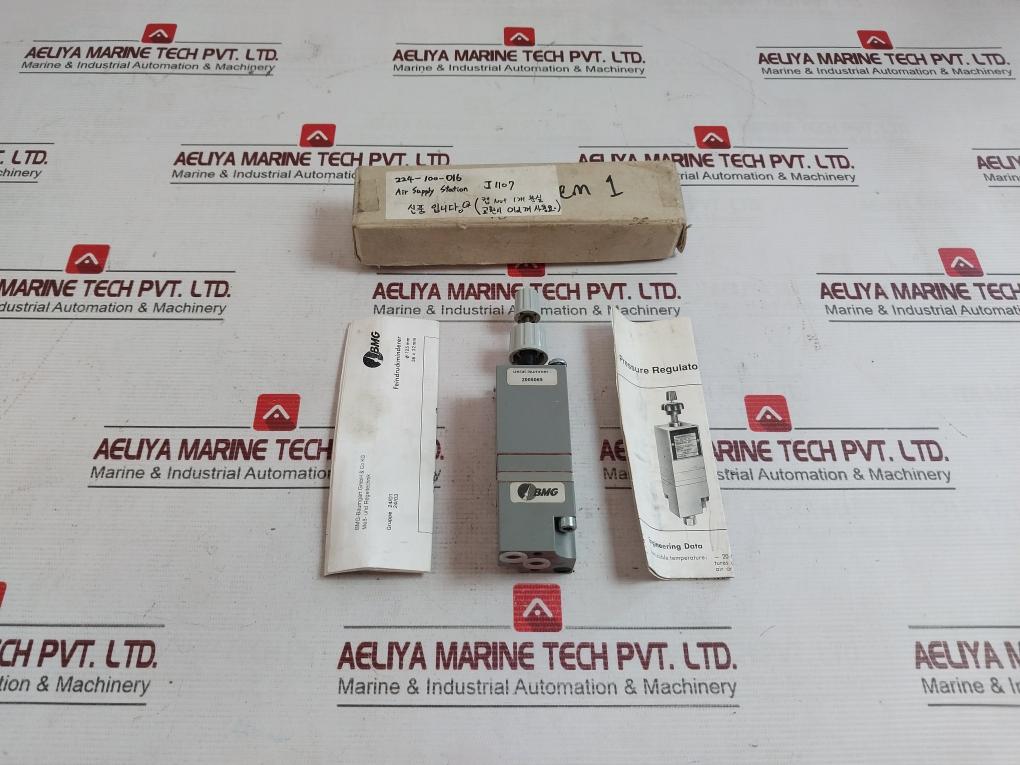

Bmg 24/03-03 Fine Pressure Reducer

Bmg 24/03-03 Fine Pressure Reducer
Bmg-Baumgart Gmbh & Co Kg
Feindruckminderer/Fine Pressure Reducer
Pressure Regulators 36 X 32 Mm
Typ/Type: 24/03-03
Pm= Minderdruck/Less Pressure Max 4 Bar
Z Pm + 0,4
Max 10 Bar
Gerat Nummer/Generated Number: 2005065
Group 24/03
Admissible Temperature: -20 To 60˚C
Upstream Pressure Pv In Kp/Cm2
Input E
Max. Pv: 10
Min. Pv: Pv Greater Than Pm+0,4
Downstream Pressure Pm In Kp/Cm2
Output A
0,02 To 4,0
Flow Q In Nm3/H
Approx. 1,2 • Pm (Pm In Kp/Cm2)
224-100-016
Weight : 470 Gm
Ref No : 169776
