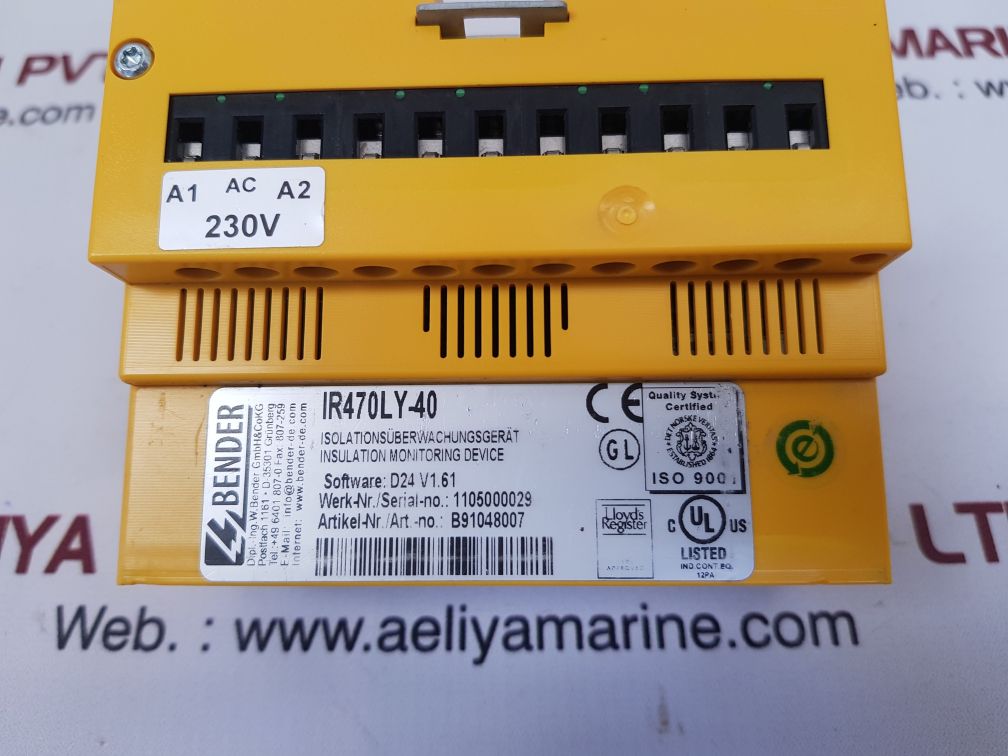

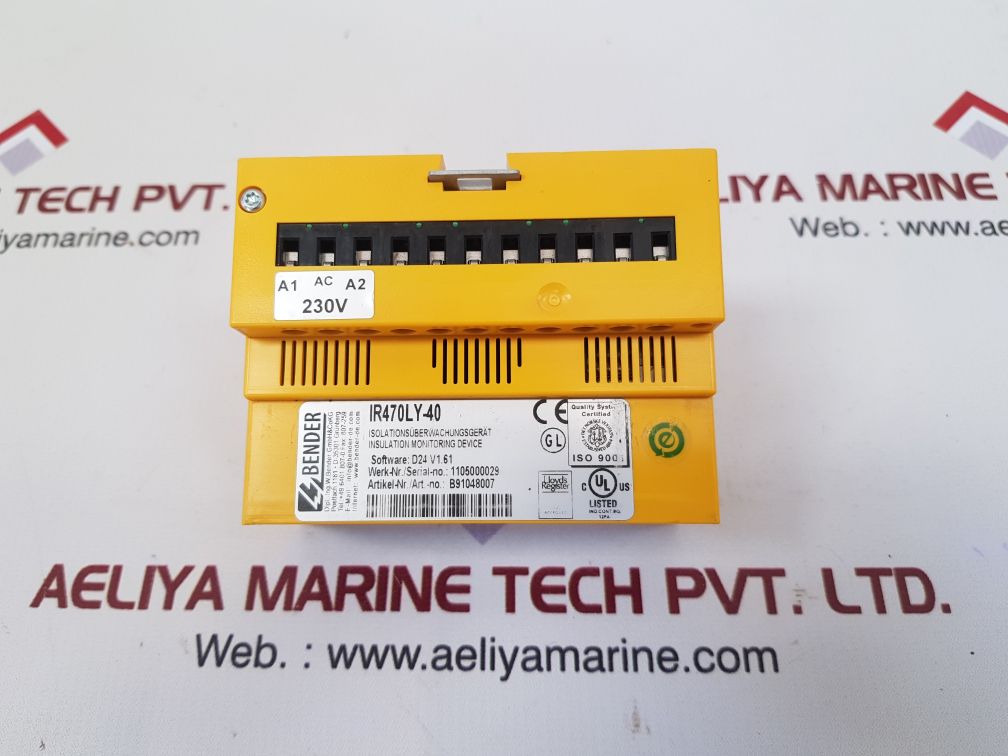

| Attribute | Value |
|---|---|
| Manufacturer | Dipl.-Ing. W Bender GmbH + Co. KG |
| Model | IR470LY-40 |
| Type | Insulation Monitoring Device |
| Software | D24 v1.61 |
| Article Number | B91048007 |
| Series | Serie 470 |

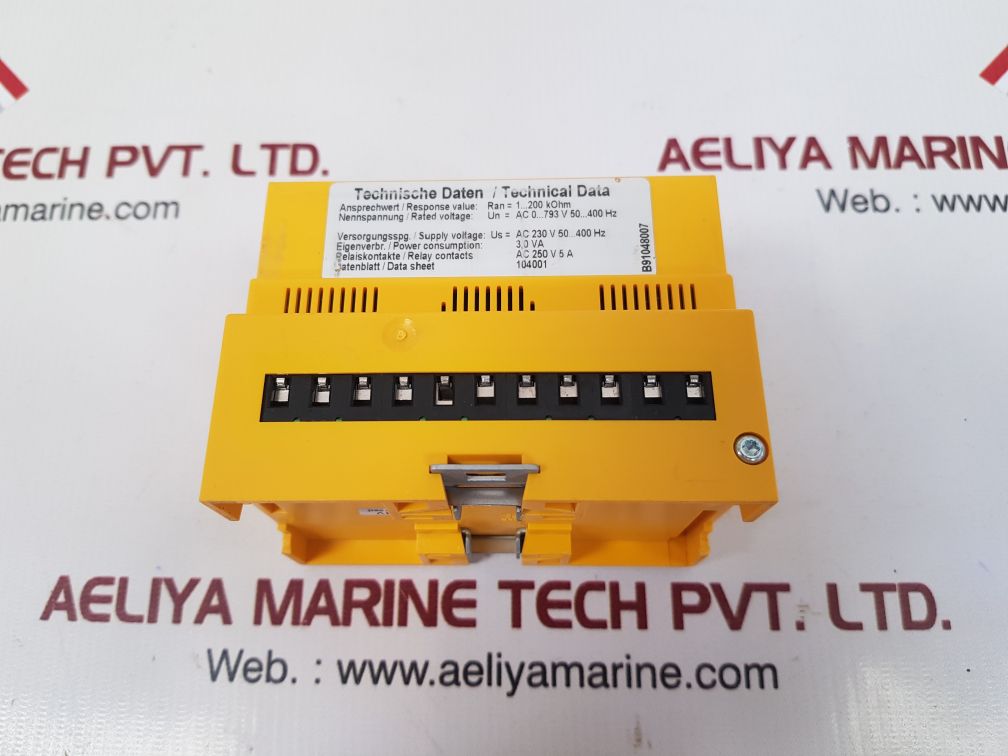

| Monitor Resistance | 1-20 kΩ |
| Response Value | RAN = 1…200 kΩ |
| Rated Voltage | Un = AC 0…793 V, 50…400 Hz |
| Supply Voltage | Us = AC 0…230 V, 50…400 Hz |
| Power Consumption | 3.0 VA |
| Relay Contacts | AC 250 V, 5 A |
| Data Sheet | 104001 |
| Weight | 350 g |
What is Bender IR470LY-40 A-Isometer?
The Bender IR470LY-40 is a special device for insulation monitoring in ungrounded AC, DC, and AC/DC systems. The unit monitors insulation resistance between conductors and earth continuously and notifies users of insulation deteriorations or failures. In contrast to basic ground-fault detection, the IR470LY-40 provides continuous and anticipatory monitoring even under working leakage capacitance.
This clever device facilitates the premature detection of electrical dangers, allowing engineers, electricians, and maintenance personnel to take corrective action before a failure or risk.
Features of Bender IR470LY-40 A-Isometer
Universal System Compatibility:
Ideal for AC, DC, and AC/DC ungrounded systems of up to 793 V.
Adjustable Response Values:
The unit permits accurate tailoring of alarm thresholds for insulation resistance to meet varied applications.
Automatic Adaptation to System Capacitance
Sophisticated technology facilitates precise measurement even in systems with high leakage capacitance.
LED and Relay Indications:
LED visual indications and relay outputs for instantaneous indication of insulation faults.
Test and Reset Functions:
Test/reset buttons integrated within or remotely accessible to confirm correct function and reset alarms.
Compact DIN Rail Mounting:
Space-saving construction makes it perfect for small panels or control cabinets.
Digital Communication Ready:
Certain models in the series are Modbus-compatible to be built into monitoring networks.
Fail-Safe Operation:
Designed to trigger or alarm when there is device failure or wiring fault, providing continuous safety.
Uses of IR470LY-40 A-Isometer Monitoring Device
Due to its versatility, the Bender IR470LY-40 can find use in a variety of applications:
Marine Electrical Systems:
Particularly important in ungrounded marine AC/DC systems, where fault isolation is not so easy.
Industrial Automation Panels:
Avoid unforeseen shutdown of machines caused by insulation breakdown.
Offshore Platforms and Ships:
Guarantees continuous supervision of high-humidity, salt-contaminated power systems.
Data Centers and Hospitals:
In sensitive spaces where even temporary loss of power can be disastrous.
Battery Storage Systems:
Monitor insulation in renewable energy installations, like solar or UPS-supported installations.
Why Select the Bender IR470LY-40 A-Isometer?
Tested Reliability:
Bender is a worldwide respected brand for electrical safety. The IR470LY-40 reflects years of field-proven performance and R&D.
Fault Detection Early:
By detecting insulation resistance drops ahead of time, it avoids sudden shutdowns, fire hazards, or equipment breakdown.
Compliance with Standards:
Aids you in achieving international safety standards such as IEC 61557-8, IEC 60364, and maritime classification rules.
Cost Savings:
Prevents expensive downtime, breakdowns, and possible liability due to accidents.
Easy Integration:
Installs easily in new or current installations with transparent wiring, modular design, and adjustable settings.
