Bender Ir1570W-435 Insulation Monitoring Device B91044000W Relay Ac 230 5A

Bender Ir1570W-435 Insulation Monitoring Device B91044000W Relay Ac 230 5A
dipl.-ing w. bender gmbh & cokg

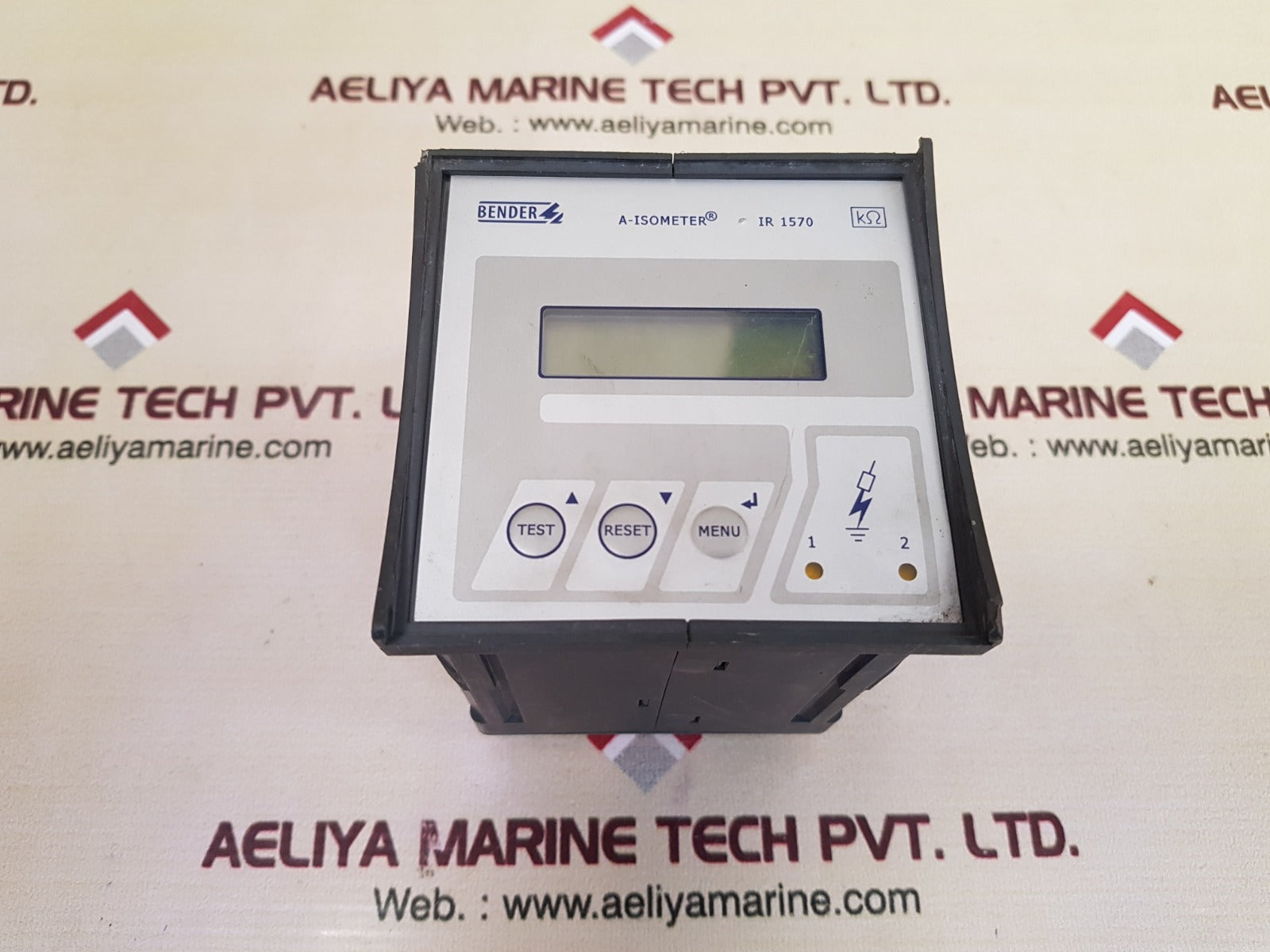

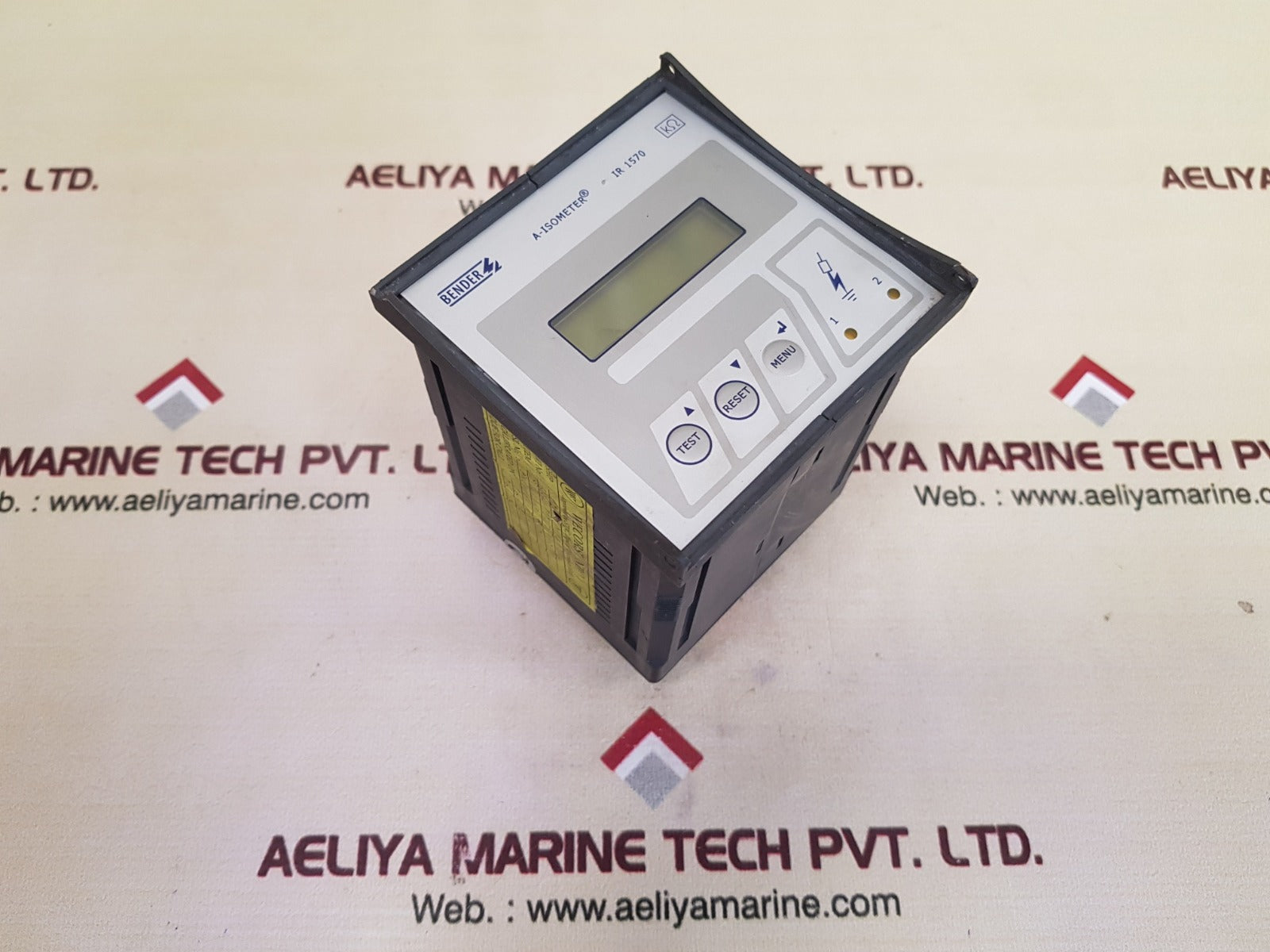

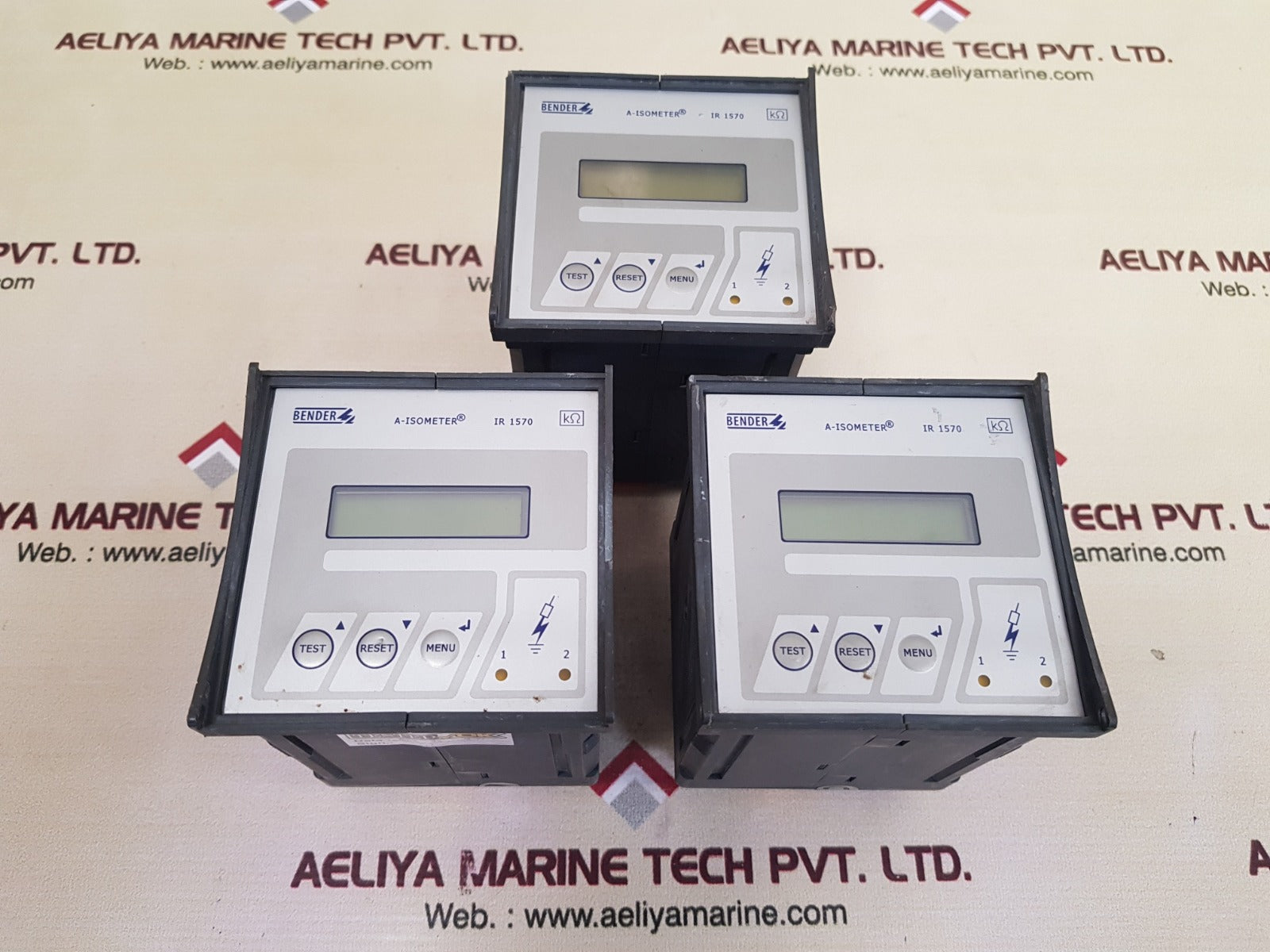

a-isometer
ir 1570
kω
ir1570w-435
isolationsüberwachungsgerät
insulation monitoring device
software: d196 v1.3
artikel-nr./ art.-no.: b91044000w

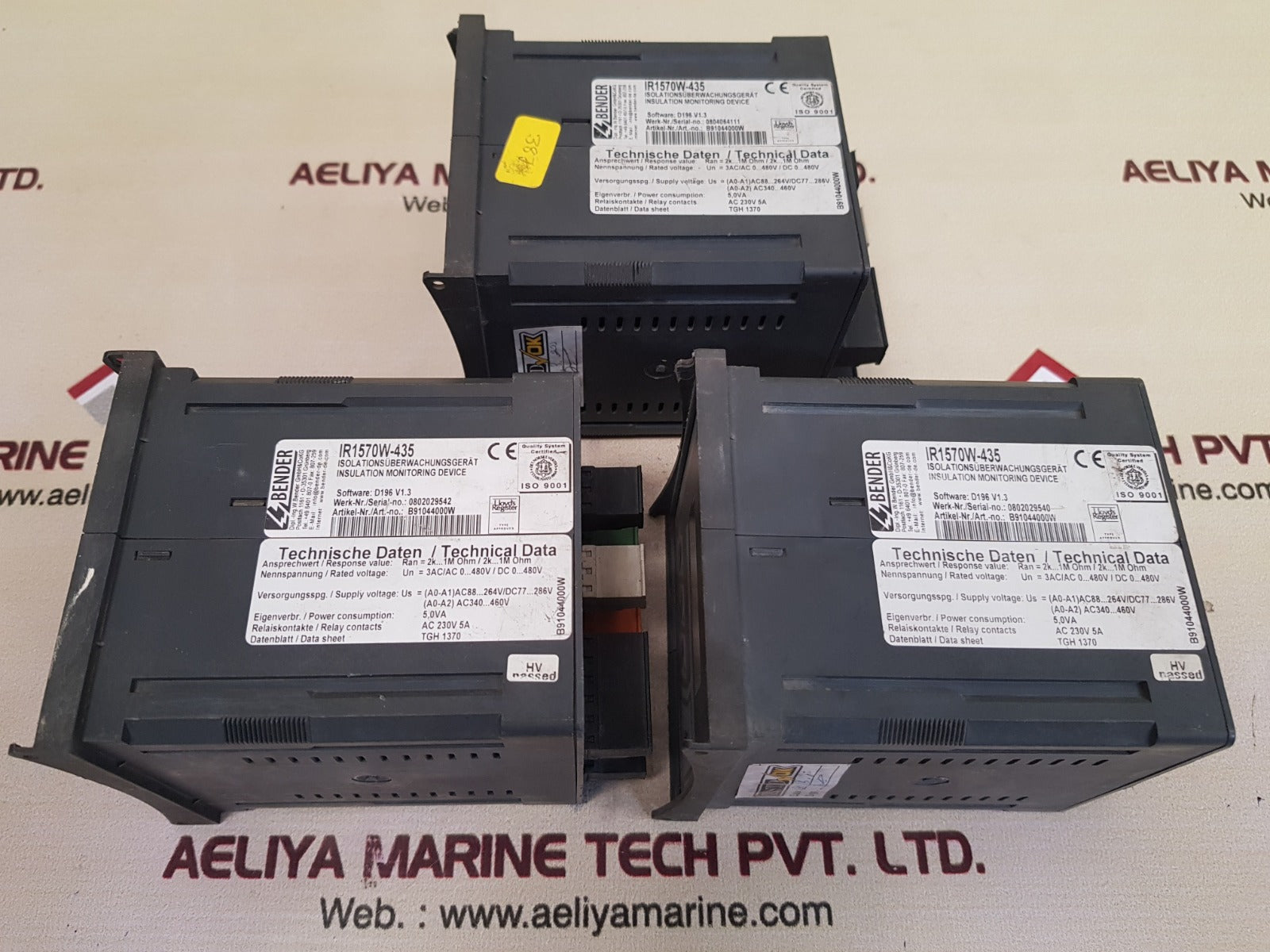

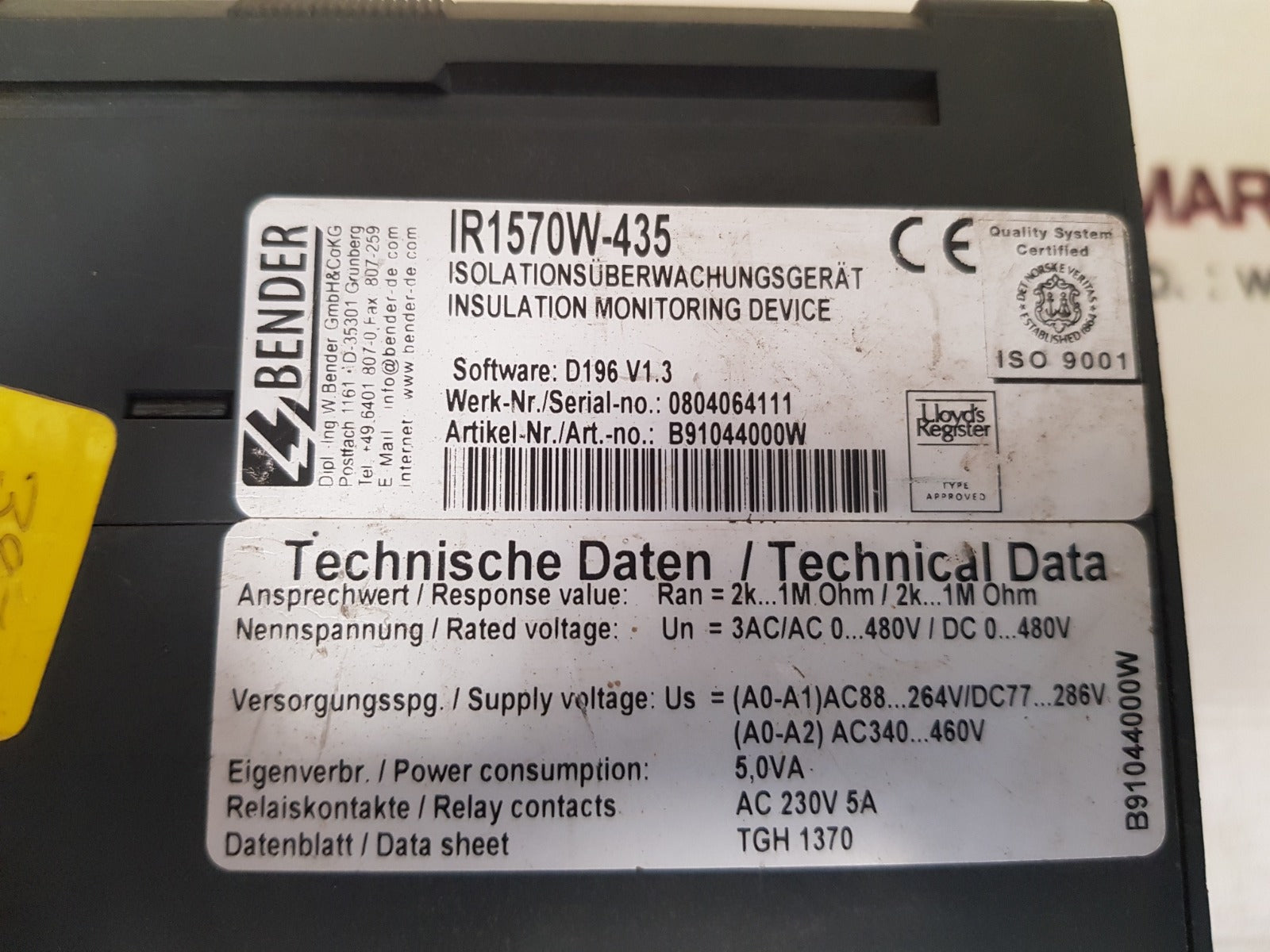

technische daten / technical data
ansprechwert / response value : ran= 2k…1m.ohm/2k…1m ohm
nennspannung/rated voltage: un= 3ac/ac 0…480v/dc 0…480v
versorgungsspg./supply voltage: us= (a0-a1)ac88…264v/dc77…286v
(a0-a2)ac340…460v
eigenverbr. /power consumption: 5,0va
relaiskontakte/relay contacts: ac 230v 5a
weight: 375 gm
