| Attribute | Value |
|---|---|

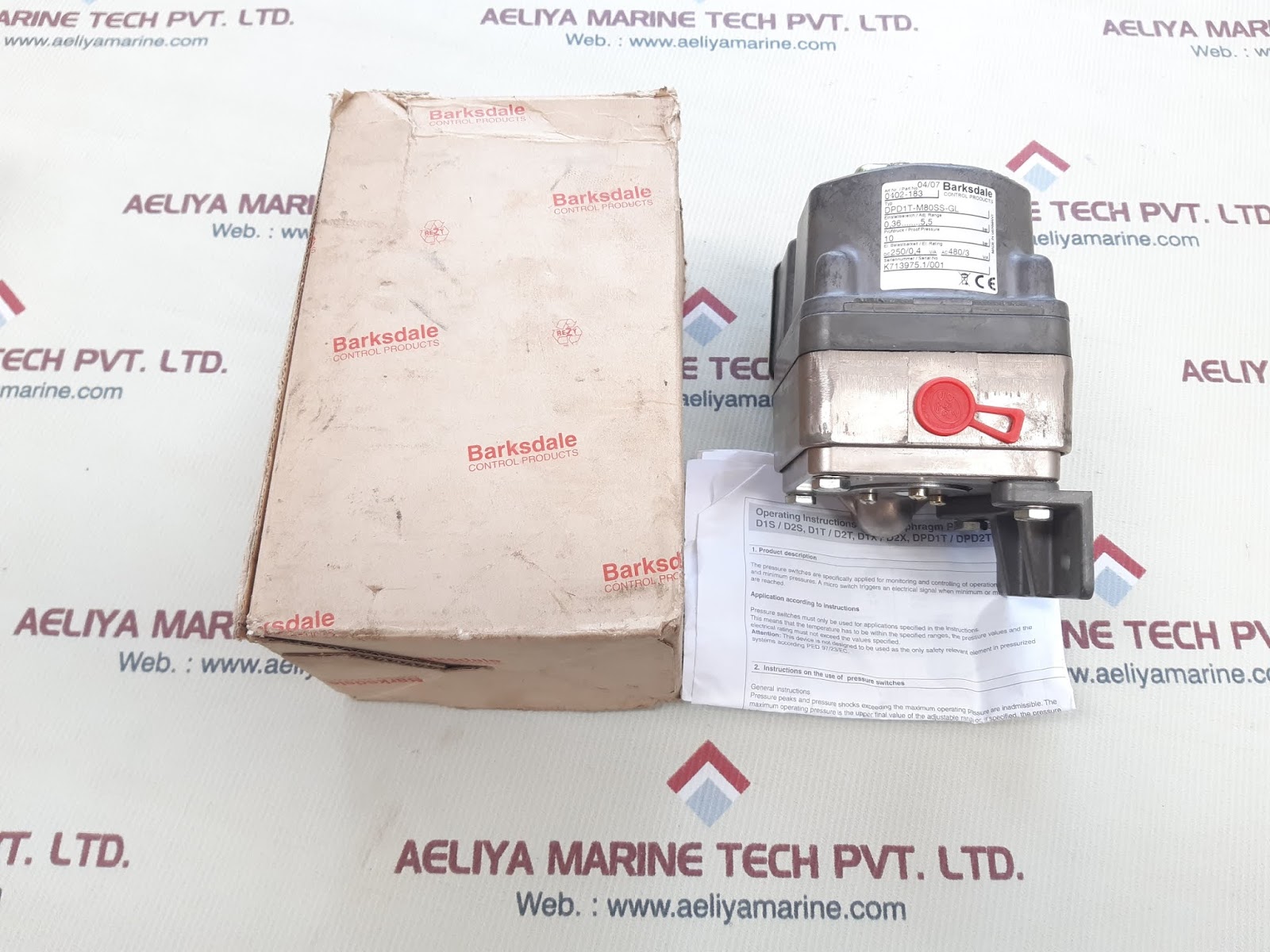

| Product Name | Barksdale DPD1T-M80SS-GL Differential Pressure Switch |
| Manufacturer | Barksdale Control Products GmbH |
| Part Number (Art. Nr.) | 0402-183 |
| Type | DPD1T-M80SS-GL |
| Adjustable Range | 0.36 to 5.5 bar |
| Proof Pressure | 10 bar |
| Electrical Rating (DC) | 250V / 0.4 A |
| Electrical Rating (AC) | 480V / 3 A |
| Made In | Germany |
| Weight | 1.540 kg |
What is a Differential Pressure Switch?
A differential pressure switch is a type of pressure switch that monitors the difference in pressure between two points in a system. It triggers an electrical switch when the pressure difference reaches a predetermined setpoint. These switches are essential in applications where maintaining a specific pressure differential is critical for optimal performance and safety.
Barksdale DPD1T-M80SS-GL: Key Features and Benefits
The Barksdale DPD1T-M80SS-GL is a diaphragm-type differential pressure switch known for its accuracy, reliability, and robust construction. Some of its key features include:
- Adjustable Setpoint: The switch allows for easy adjustment of the pressure differential setpoint, providing flexibility for various application requirements.
- High Accuracy: The DPD1T-M80SS-GL offers high accuracy in pressure differential sensing, ensuring precise control and monitoring.
- Durable Construction: Built with a rugged enclosure, the switch can withstand harsh industrial environments, ensuring long-lasting performance.
- Wide Operating Range: The switch can operate within a broad pressure range, making it suitable for diverse applications.
- Various Mounting Options: The DPD1T-M80SS-GL offers multiple mounting options, facilitating easy installation in different systems.
Applications of the Barksdale DPD1T-M80SS-GL
The Barksdale DPD1T-M80SS-GL differential pressure switch finds applications in various industries, including:
- HVAC Systems: Monitoring and controlling air filter differential pressure to ensure optimal airflow and energy efficiency.
- Industrial Automation: Detecting pressure drops across filters, pumps, and other equipment to prevent failures and maintain system performance.
- Oil and Gas: Monitoring pressure differentials in pipelines and processing equipment for safe and efficient operations.
- Water Treatment: Controlling differential pressure in filtration systems to ensure water quality and prevent clogging.
- Manufacturing: Monitoring pressure differences in hydraulic and pneumatic systems for precise control and safety.
Choosing the Right Differential Pressure Switch
Selecting the appropriate differential pressure switch is crucial for optimal system performance and safety. When choosing a switch, consider the following factors:
- Pressure Range: Ensure the switch’s operating pressure range aligns with the application requirements.
- Set Point Adjustment: Determine if the switch offers adjustable setpoints for flexibility.
- Accuracy: Choose a switch with the required accuracy for precise pressure control.
- Environmental Conditions: Consider the operating environment, including temperature, humidity, and potential exposure to harsh substances.
- Mounting Options: Select a switch with suitable mounting options for easy installation.
