Amco Kc 22 A1 Assembly Drawing Kit

Amco Kc 22 A1 Assembly Drawing Kit
(Maker): Amco- Asahi Mechatronic Corporation
Mfg: Amco Engineering
Damcos A/S
Description: Assembly Drawing
Component: Type & Version
Kc 22 A1
Rls 222/5-68
Drawing No.: 140ad-0184p
Rev: A

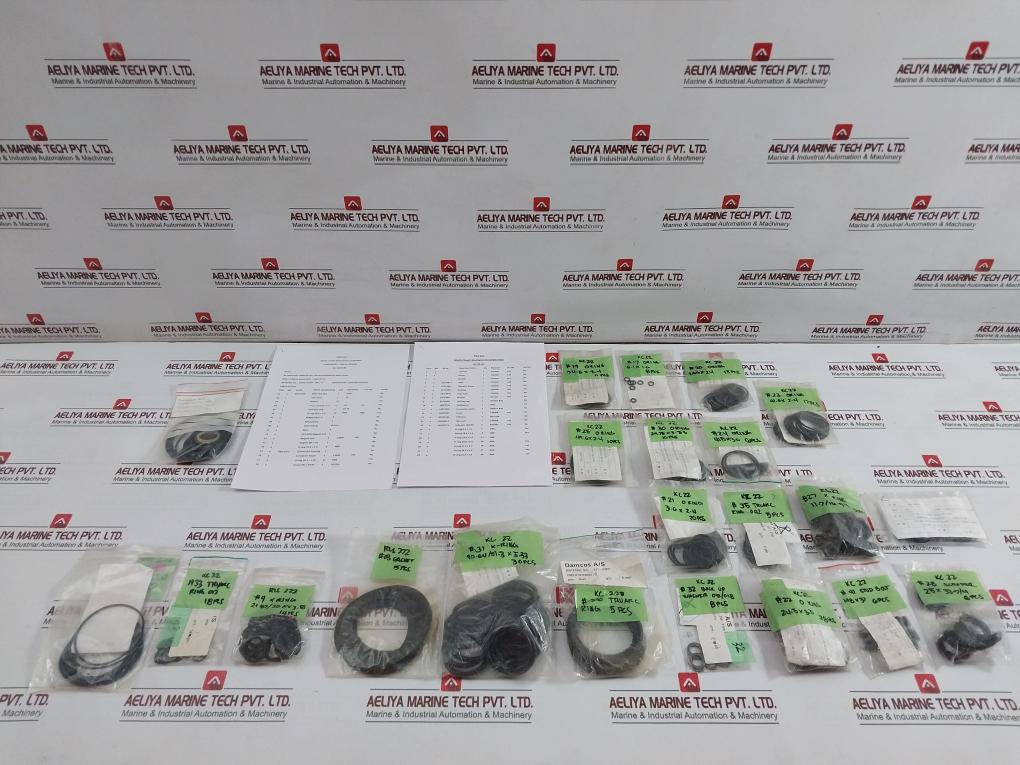

Parts Description: Set For Seals For Kc 12-22/Seal Kit Kc 12-22
Material No/ Id No: 219-0200

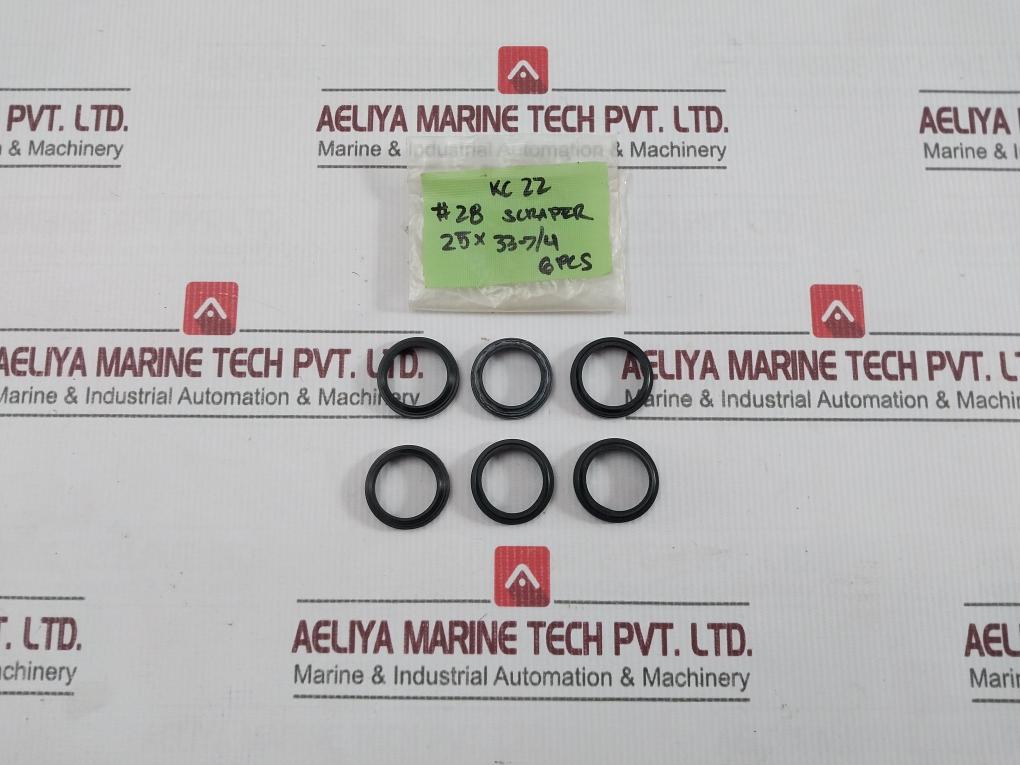

Parts Description: Scraper 25×33-7/4
Kc 22
Material: Nbr
#28
Parts Description: Truarc Ring 075
Material No/Id No: 267-0360
Circlip Internal: #75
Material: S30c Y05
#36
Product Name/Parts Description: X-Ring 40.64/51.3×5.33
Material: Nbr
Item # 31
Item: J4b2 16-0357/Jm-Part-C16-00
Use: **32a Cryogenic Globe Valve// Vs#53 Vs#53//Spary Nozzle Inlet Valve
Parts Description: Gasket
Rls 222
Material: Nbr
#03
Parts Description: X-Ring 21.82/28.88×3.53
Material: Nbr
#4
Parts Description: Truarc Ring 012
Id No: 267-0009
Material: S30c Y05
#33
Product Name/ Parts Description: O-Ring 69.6×2.4
Material: Nbr
Item # 06
Draw No.: 140ad-0183p-A/140ad-0184p
For: 32a Cryogenic Globe Valve // V

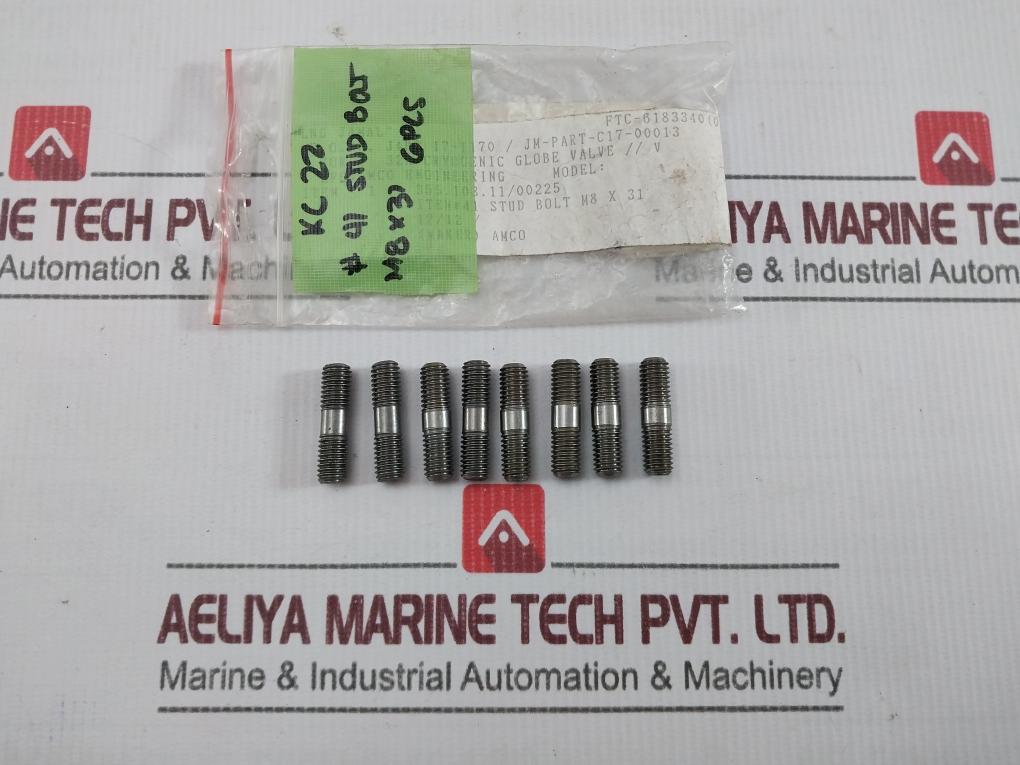

Parts Description: Stud Bolt M8x31 12/12
Material: Sus316
Item: #41
Parts Description: X-Ring 11.7/16.99×2.62
Material: Nbr
#27
Parts Description: Truarc Ring 042
No/Id No: 267-0336
Material: S30c Y05
#35
Product Name/ Parts Description: O-Ring 31.6×2.4
Material: Nbr
Item # 21
Product Name/ Parts Description: O-Ring 28.3×1.78
Material: Nbr
Item # 17
Parts Description: Back-Up Washer 012/018
Id No/ No: 258-9109
Material: S30c
#32
Product Name/ Parts Description: O-Ring 24.5×3.0
Material: Nbr
Item # 22
Product Name/Parts Description: O-Ring 6.1×1.6
Material: Nbr
Item # 17
Product Name/ Parts Description: O-Ring 49.6×2.4
Material: Nbr
Item # 25
Product Name/ Parts Description: O-Ring 24.6×2.4
Material: Nbr
Item # 19
Product Name/ Parts Description: O-Ring 41.5×3.0
Material: Nbr
Item # 24
Product Name/ Parts Description: O-Ring 29.75×3.53
Material: Nbr
Item # 30
Product Name/ Parts Description: O-Ring 41.6×2.4
Material: Nbr
Item # 23
Product Name/ Parts Description: O-Ring 29.6×2.4
Material: Nbr
Item # 20
Weight : 650 Gm
Ref No : 190242
