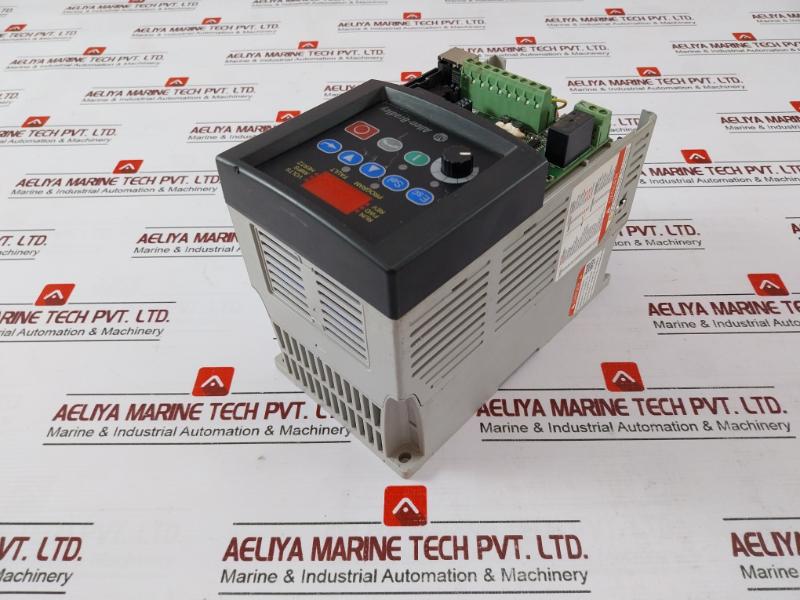

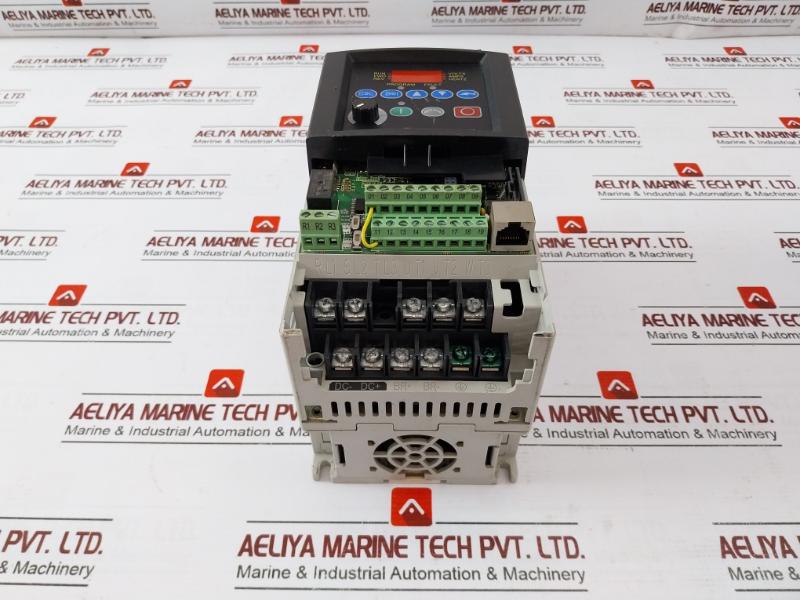

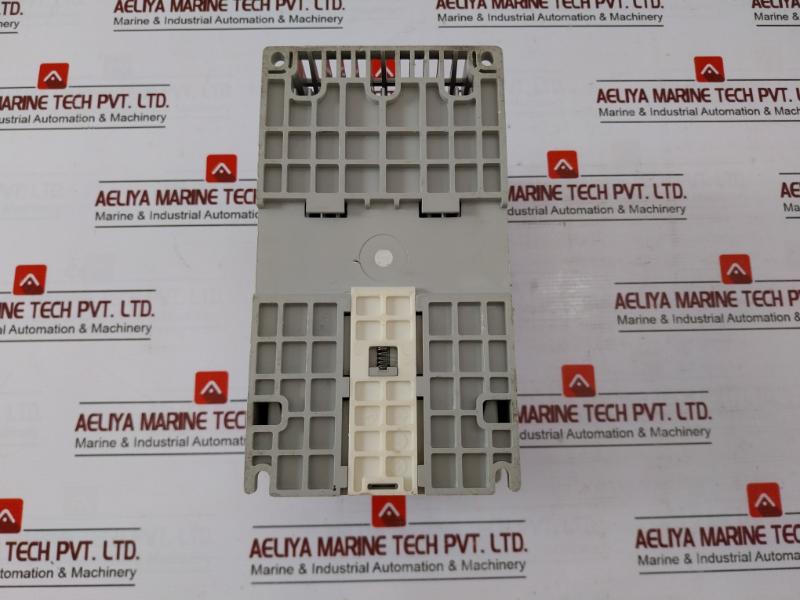

Allen-Bradley Rockwell Automation 22b-A8p0n104 Powerflex 4 Inverter Drive 400v

Allen-Bradley Rockwell Automation 22b-A8p0n104 Powerflex 4 Inverter Drive 400v
Allen-Bradley
Rockwell Automation
Cat No.: 22b-A8p0n104
Series: A
Ip20/Ul Open-Type With Top Cover Removed (Rated -10°C To 50°C Ambient).
Ip30/Nema 1/Ul Type 1 With Top Cover And Optional Conduit Box Kit
Motor Rating: 1.5kw/2.0hp
Input: 1 Phase, 200-240v, 48-63hz
Ac Voltage Range: 180-264
Amps: 18.0
Output: 3 Phase, 0-400v
Ac Voltage Range: 0-230
Continuous Amps: 8.0
60 Sec Ovld Amps: 12.0
E59272
Short Circuit Current: 100ka
Power Terminal Wire:
Use 75°C Cu Wire
5.3 Mm2-1.3 Mm2 (10-16 Awg)
Torque 1.96 Nm (17.4 In-Lbs)
Frn: 6.02
Product Of China
Weight : 1.830 Kg
Ref No : 160309
