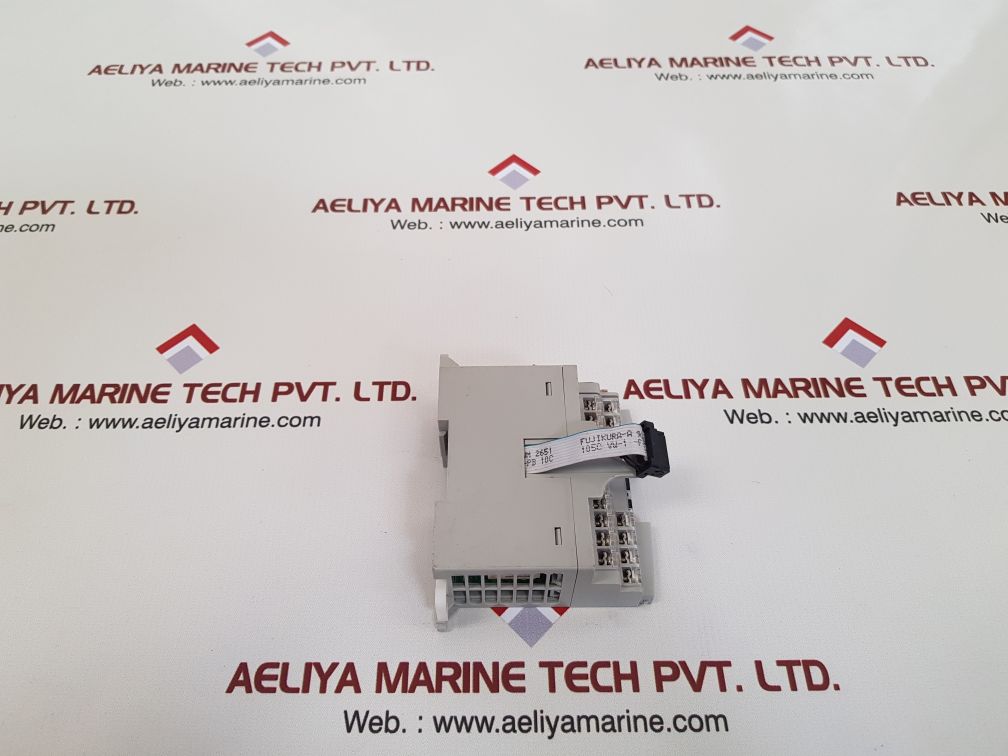

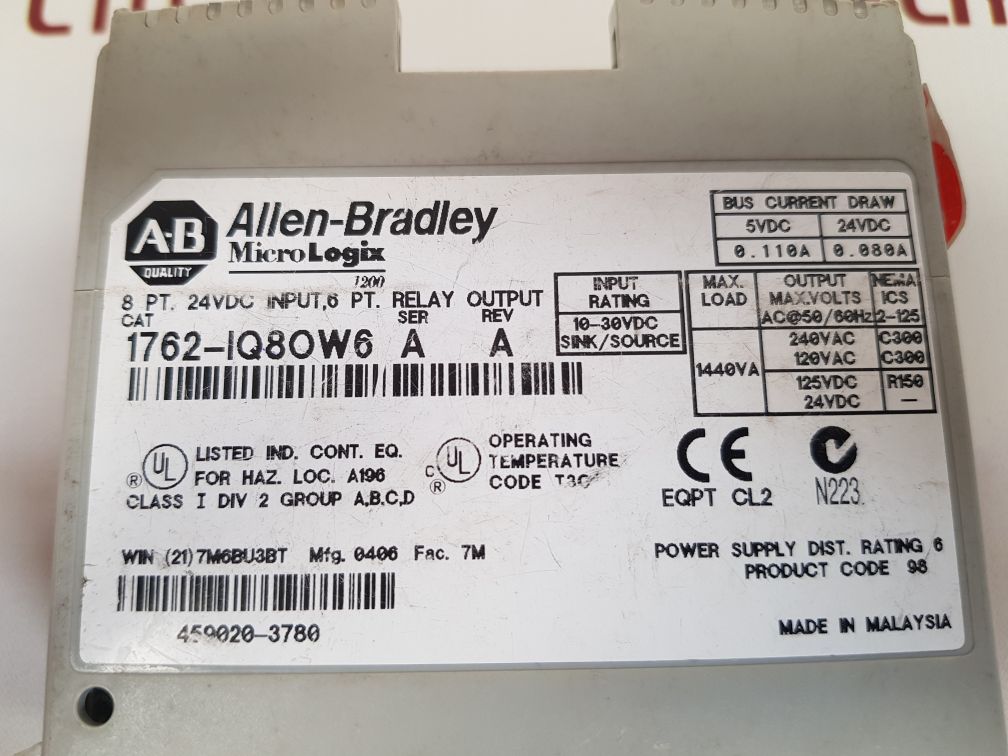

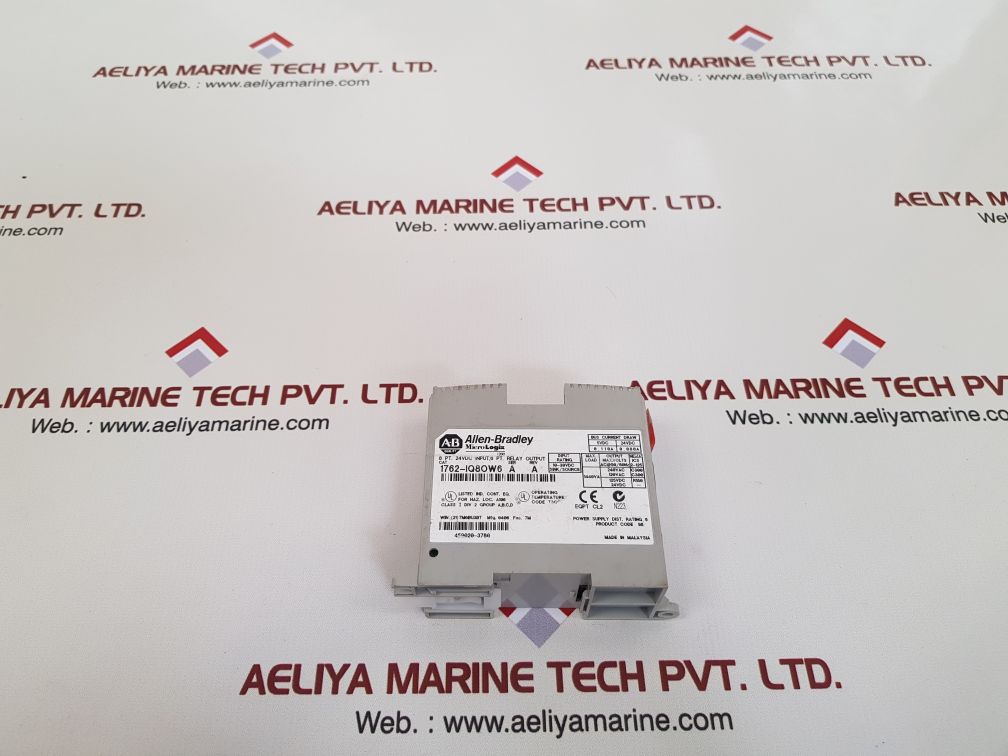

| Attribute | Value |
|---|---|
| Brand | Allen-Bradley |
| Logo | A-B Quality |
| Series | MicroLogix 1200 |
| Input/Output | 8 pt. 24VDC input, 6 pt. relay output |
| Catalog Number | 1762-IQ8OW6 |
| Series / Revision | Series A, Revision A |
| Relay Output Type | Relay Output |
| Operating Temperature Code | T3C |
| Class/Division | Class I Div 2 Group A, B, C, D |
| Win Code | (21) 7M6BU3BT |
| Factory Code | 7M |
| Serial/Production Code | 459020-3780 |
| Power Supply Distribution Rating | 6 |
| Product Code | 98 |
| Input Rating | 10-30 VDC |
| Input Type | Sink/Source |
| Bus Current Draw (5VDC / 24VDC) | 0.110A / 0.080A |
| Max Load | 1440 VA |
| Output Max. Volts (AC @ 50/60Hz) | 2-125 |
| NEMA ICS Ratings | 240VAC C300, 120VAC C300, 125VDC R150, 24VDC – |
| Country of Manufacture | Malaysia |
| Weight | 190 gm |

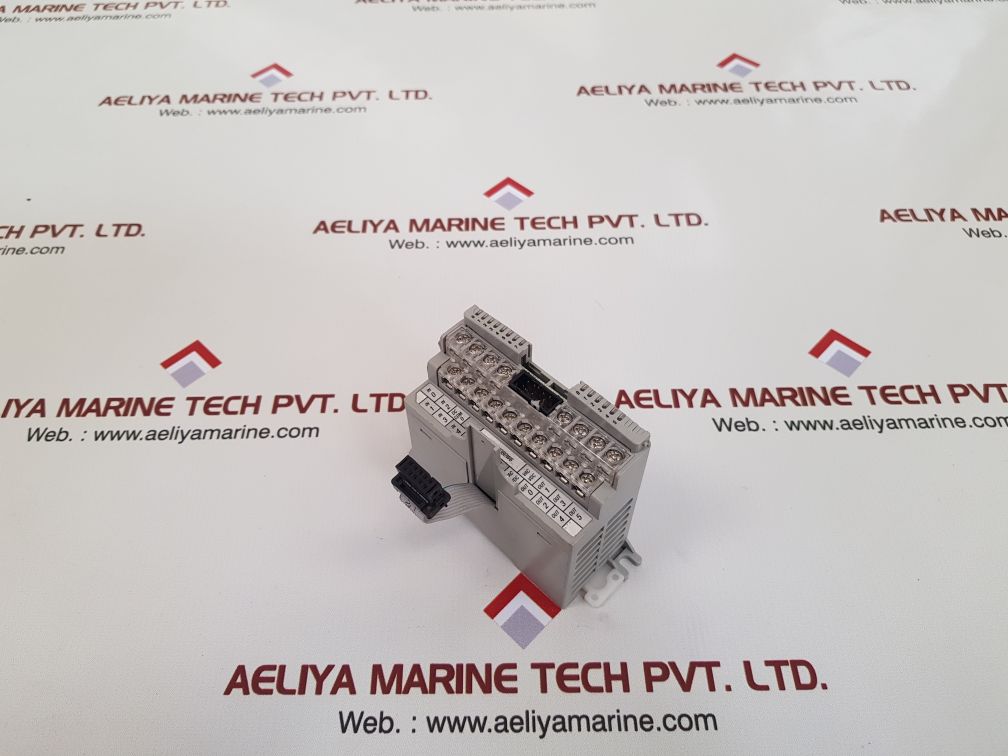

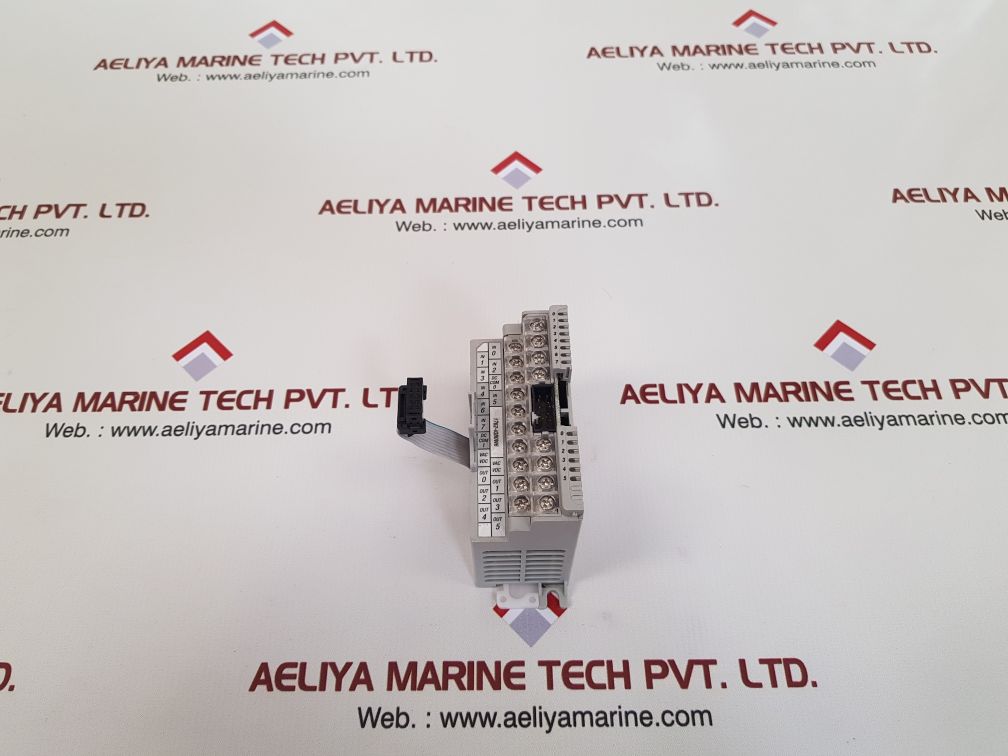

What is the 1762-IQ8OW6 Relay Output Module?
The 1762-IQ8OW6 module is a combination input/output module for use with the MicroLogix 1200 PLC system. It has 8 digital inputs and 6 relay outputs, which enable direct integration with most control devices. The module strikes a balance between size and functional flexibility, which makes it perfect for applications where basic on/off control with electrical isolation is needed.
Key Features
Compact Design: Tightly packed footprint suitable for panel-mounted systems.
Input Type: Sinking/Sourcing 24V DC digital inputs.
Output Type: Relay outputs, with switching of AC or DC loads.
High Electrical Isolation: Shields internal electronics against surges and voltage spikes.
DIN Rail or Panel Mount: Convenient and flexible installation.
Removable Terminal Blocks: Convenient wiring and easy maintenance.
LED Indicators: Offers instant visual status of each I/O point.
Technical Specifications
Inputs: 8 digital inputs (24V DC, sinking/sourcing)
Outputs: 6 relay outputs (max 2A per point, 8A total)
Operating Voltage: 24V DC (inputs), 10-265V AC / 5-125V DC (relay outputs)
Isolation: 1500V RMS between field side and logic side
Dimensions: 90 x 87 x 40 mm approx.
Mounting Type: DIN rail or panel mount
Series and Revision: Series A, Revision A
Benefits of Using the 1762-IQ8OW6
Flexible Control: Its combination of input and relay output enables it to connect to any type of field device, be it sensors, indicators, solenoids, or relays.
Space Optimization: Ideal for compact control panels or machine cubicles where available space is critical.
Reliability: Relay output offers heavy duty switching for both AC and DC circuits, allowing it to stand up to heavy industrial use.
Plug-and-Play with MicroLogix 1200: Integrates smoothly with Allen-Bradley’s MicroLogix 1200 PLC for easy setup and dependable operation.
Cost-Effective: Minimizes the need for individual input and output modules, saving on installation and hardware expenses.
Applications
Due to its flexibility and dependability, the 1762-IQ8OW6 is applied in a number of industrial and commercial applications:
Packaging Machines: For limit switch and actuator control.
HVAC Systems: To control fans, dampers, and alarms.
Material Handling: For controlling conveyor motors and sensors.
Water Treatment: Valve and pump switching, monitoring.
Small Machinery Automation: Ideal for control of individual machines with minimal I/O requirements.
