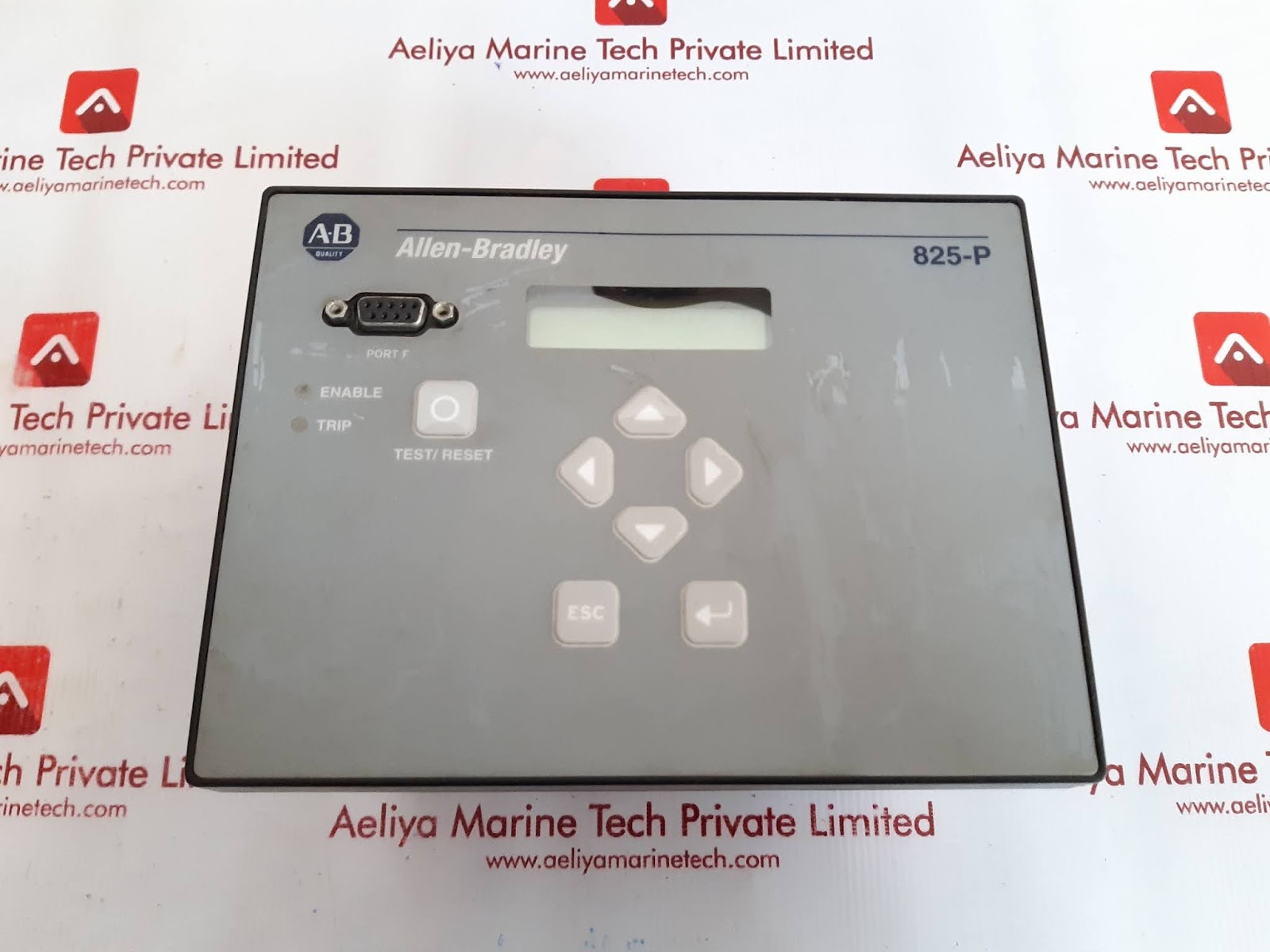

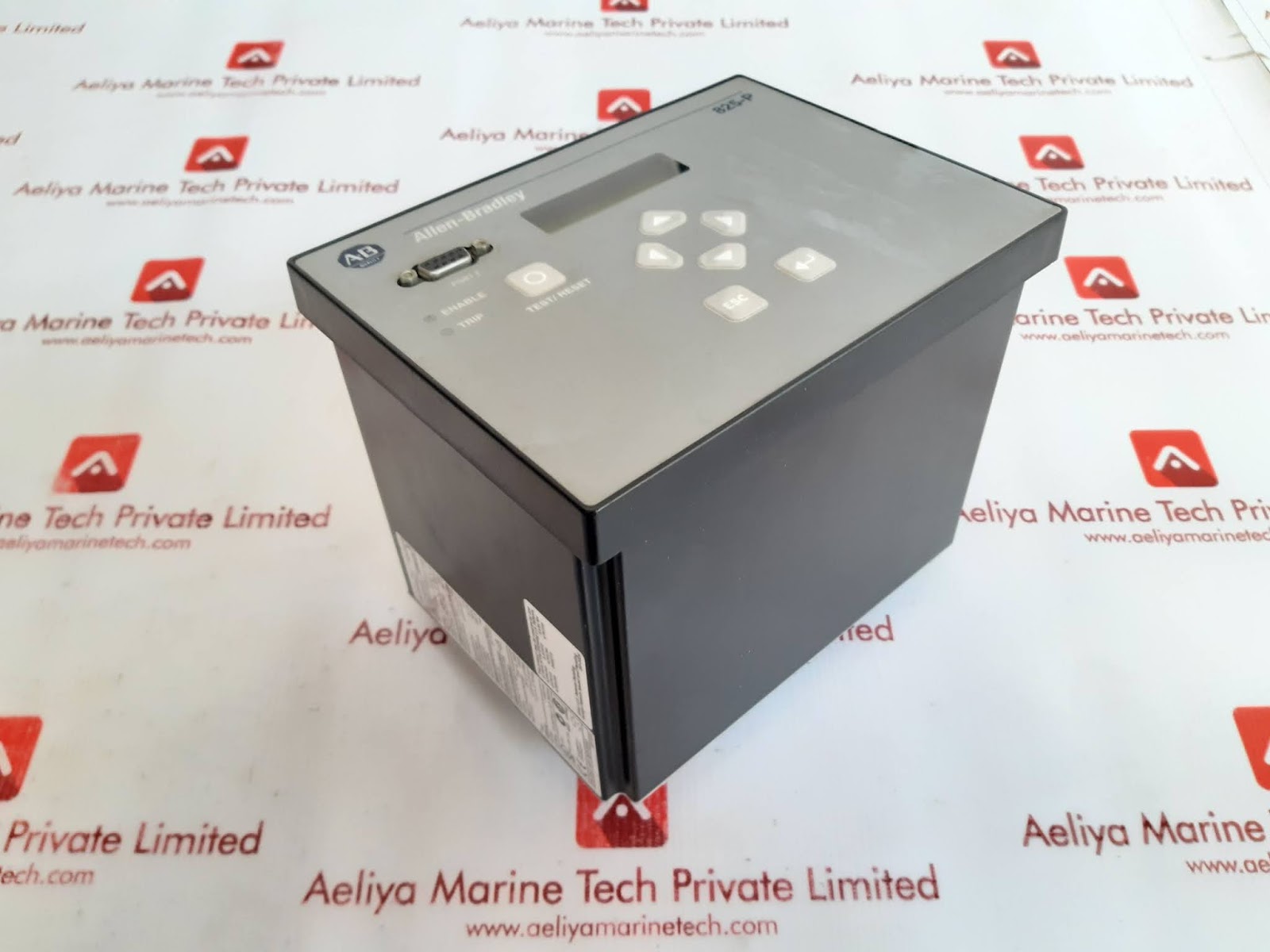

ALLEN-BRADLEY 825-P MODULAR PROTECTION SYSTEM 825-PD

Allen-bradley 825-pd control module ser.B
allen-bradley
a-b quality
825-p
cat 825-pd*
ser b

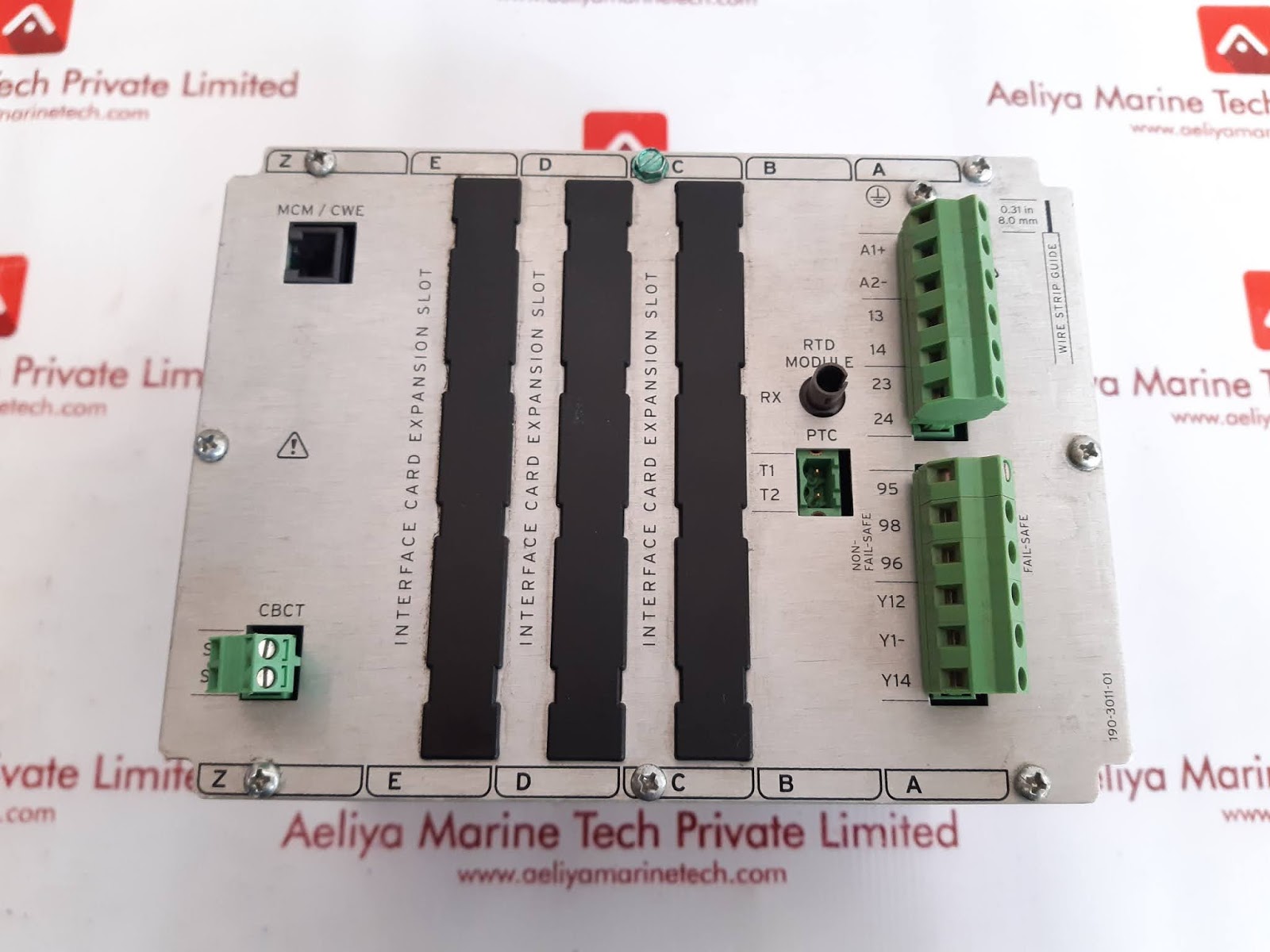

supply terminals(a1+/a2-)
supply range (us) 110-250v—
110-240 v, 45-65hz~
va rating 40 va/ 15 w
internal fuse t3.15a h 250v
rated impulse withstand (uimp) 4 kv
insulation voltage(ui) 300 v
standard outputs (95/96/98,13/14,23/24)
operational voltage (ue) 240 v~max
operational current (ie) 3 a @ 120 v
1.5 a @ 240 v
thermal current (ithe) 5a
utilization category ac-15
contact rating designation b300
insulation voltage (ui) 300 v
short-circuit rating 1ka
standard control inputs (y1-/y12/y14)
input voltage(un) 24v~
optional outputs and inputs
environment 60°c max surround air
enclosure type 12, ip65
degree of protection (terminals) ip20
wire (75°c cu) 26 to 12 awg
0.14 to 2.5 mm2
torque 7 lb-in, 0.79nm
trip class 1-600 sec
trip rating sf setting x fla setting
159-0025
198-0409
190-3011-01
wire strip guide
made in usa
weight: 1.860 kg
