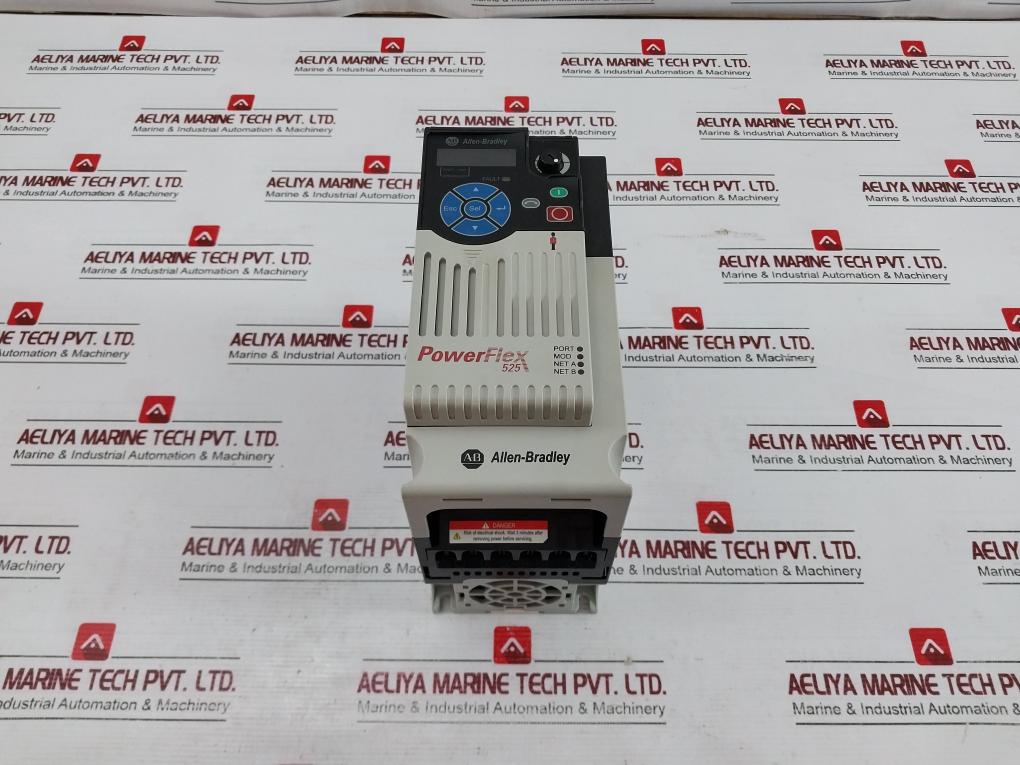

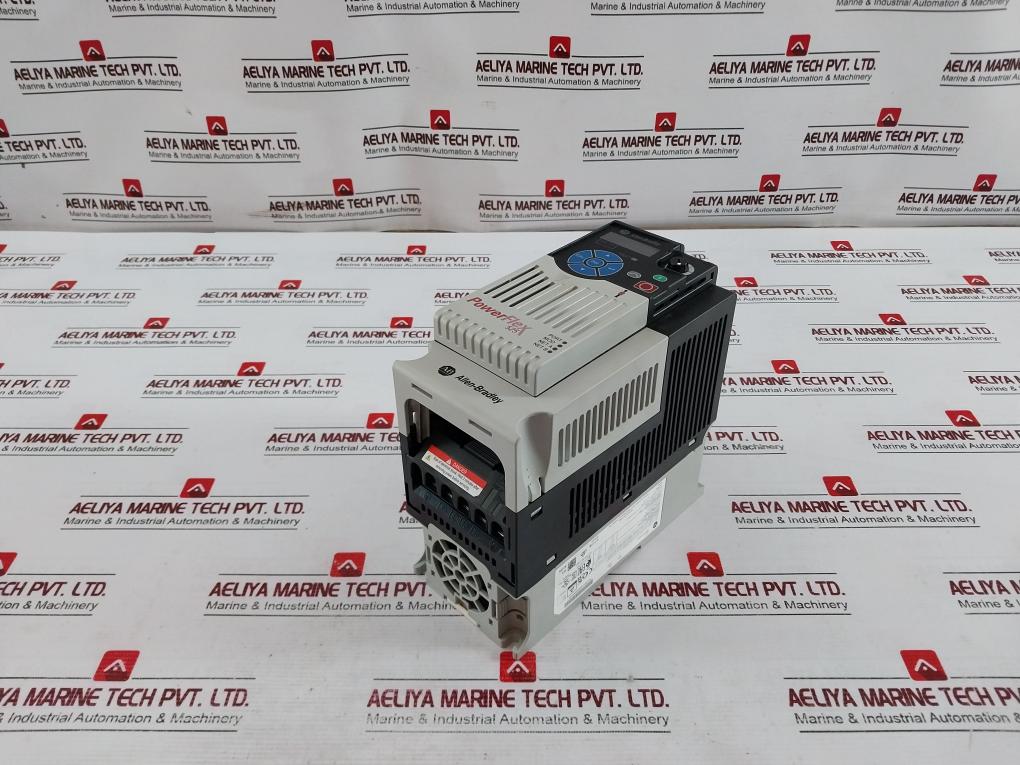

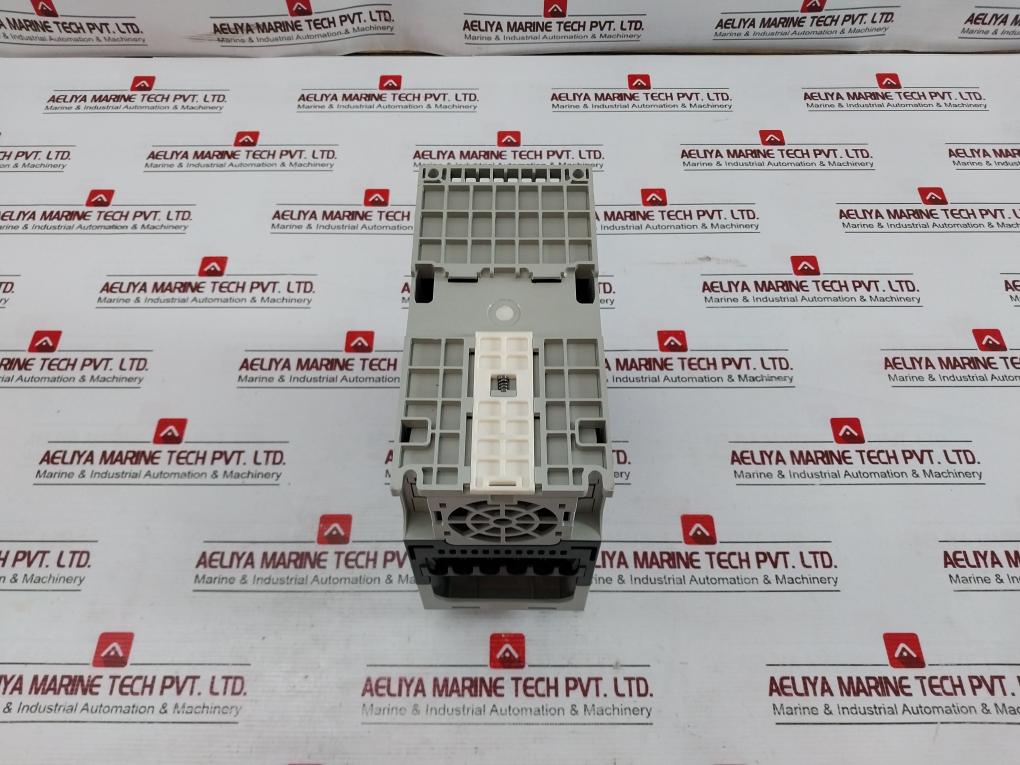

Allen-Bradley 25b-D010n104 Powerflex 525 15kw Ac Drive

Allen-Bradley 25b-D010n104 Powerflex 525 15kw Ac Drive
Allen-Bradley
A-B
Rockwell Automation
Ethernet/Ip
Power Flex 525
Cat: 25b-D010n104
Series: A
Fw: 7.001
Ip20/Ul Open-Type (Rated -20°C To 50°C Ambient)
Ip20/Ul Open-Type With Top Fan Kit Installed (Rated -20°C To 70°C Ambient)
Ip30/Nema 1/Ul Type 1 With Top Cover And Optional Conduit Box Kit
(Rated -20°C To 45°C Ambient)
Power: 4.0kw/5.0hp
Input: 3 Phase, 380-480v, 47-63hz
Ac Voltage Range: 323-528
Output: 3 Phase, 0-500hz
Ac Voltage Range: 0-460
Continuous Amps: 10.5
60 Sec Ovld Amps: 15.75
Short Circuit Current: 100ka
Power Terminal Wire
Use 75°C Cu Wire (Use 90°C Cu Wire If Greater Than 50°C Ambient)
2.1mm2 – 8.4mm2 (14-8 Awg)
Torque 1.96nm (17.4 In-Lbs)
Pn-164059
2083541
E59272
Ii (2) Gd
Tuv 12 Atex 7199 X
Ie2 42.8%
Power Module
Cat No: 25b-D010n104
Control Module
Cat No: 25b
Mac Id: 5c21673f533a
Asa: 70607d46
2945455902 H/P
5502645802
Acqoyw121396
1952 3513 984
33085996xxtlw01
Product Of China
Weight : 1.530 Kg
Ref No : 161710
