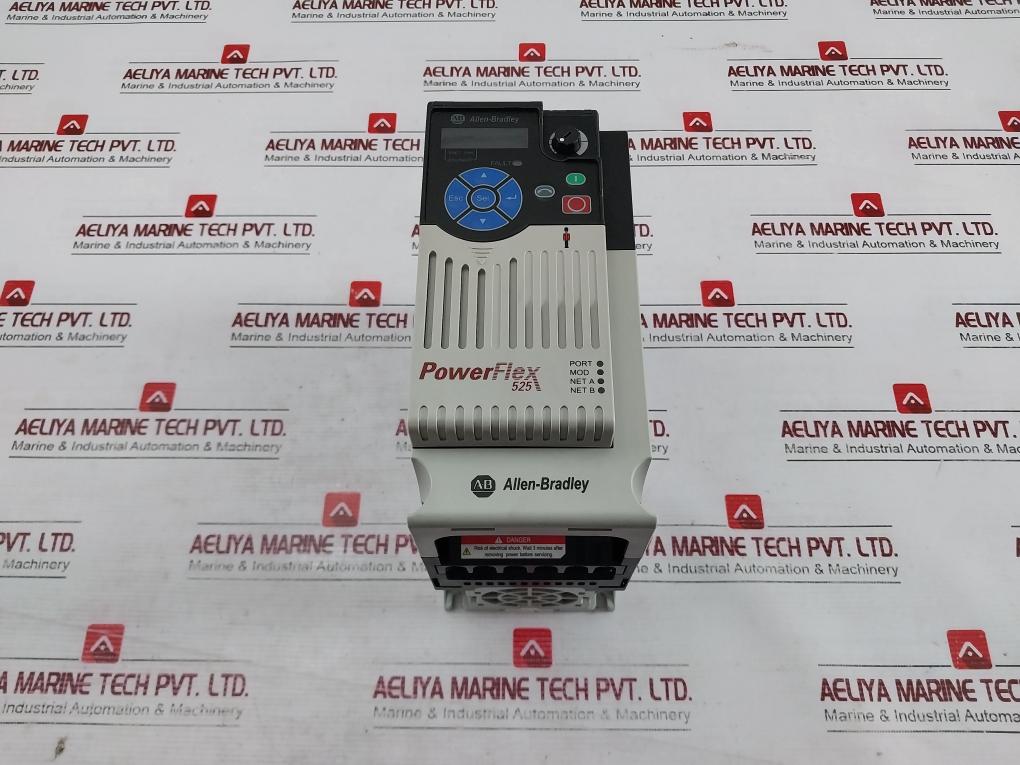

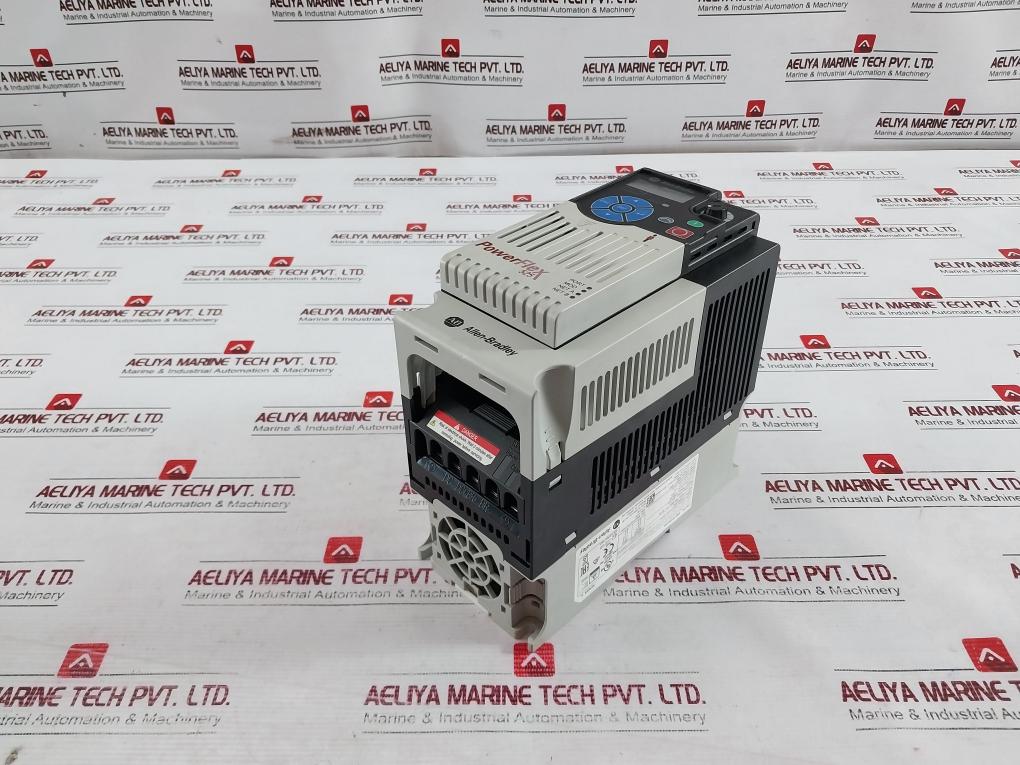

Allen-Bradley 25b-D010n104 Power Flex 525 Power Module 480v

Allen-Bradley 25b-D010n104 Power Flex 525 Power Module 480v
Allen-Bradley
A-B
Rockwell Automation
Ethernet/Ip
Power Flex 525
Power Module
Cat No: 25b-D010n104
Series: A
Ip20/Ul Open-Type (Rated -20°C To 50°C Ambient)
Ip20/Ul Open-Type With Top Fan Kit Installed (Rated -20°C To 70° Ambient)
Ip30/Nema 1/Ul Type 1 With Top Cover And Optional Conduit Box Kit Installed (Rated -20°C To 45°C Ambient)
Power: 4.0kw/5.0hp
Input: 3 Phase, 380-480v, 47-63hz
Ac Voltage Range: 323-528
Output: 3 Phase, 0-500hz
Ac Voltage Range: 0-460
Continuous Amps: 10.5
60 Sec Ovld Amps: 15.75
Short Circuit Current: 100ka
Power Terminal Wire:
Use 75°C Cu Wire (Use 90°C Cu Wire If Greater Than 50°C Ambient)
2.1mm2-8.4mm2 (14-8 Awg)
Torque 1.96nm (17.4 In.Lbs.)
Frn: 6.001
E59272
Ii (2) Gd
Tuv 12 Atex 7199 X
Control Module
Cat No: 25b
Mac Id: 184c08f7a7b8
Asa: E0276880
2945455902
H/P
Product Of Taiwan
Weight : 1.530 Kg
Ref No : 161712
