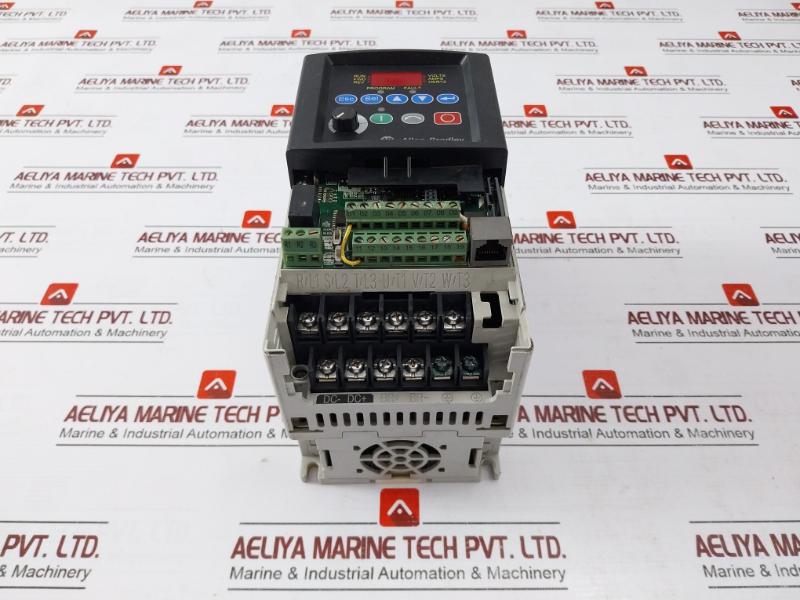

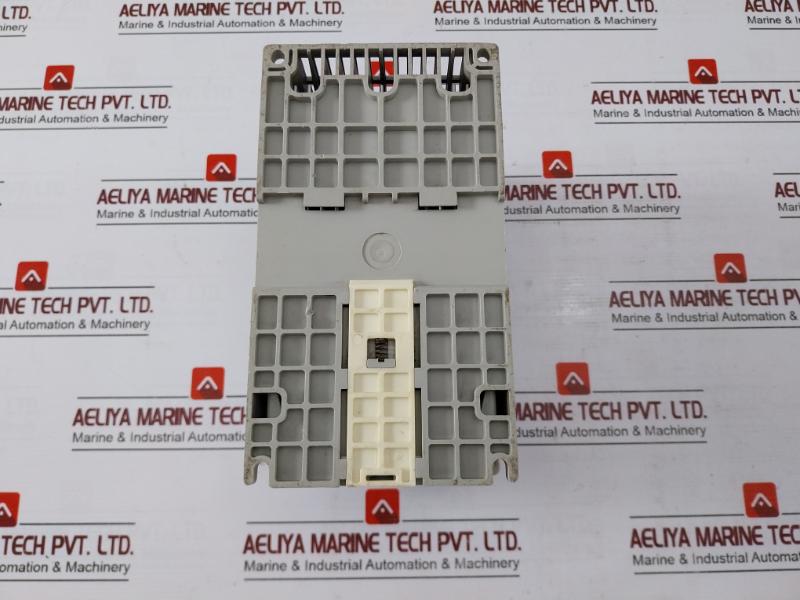

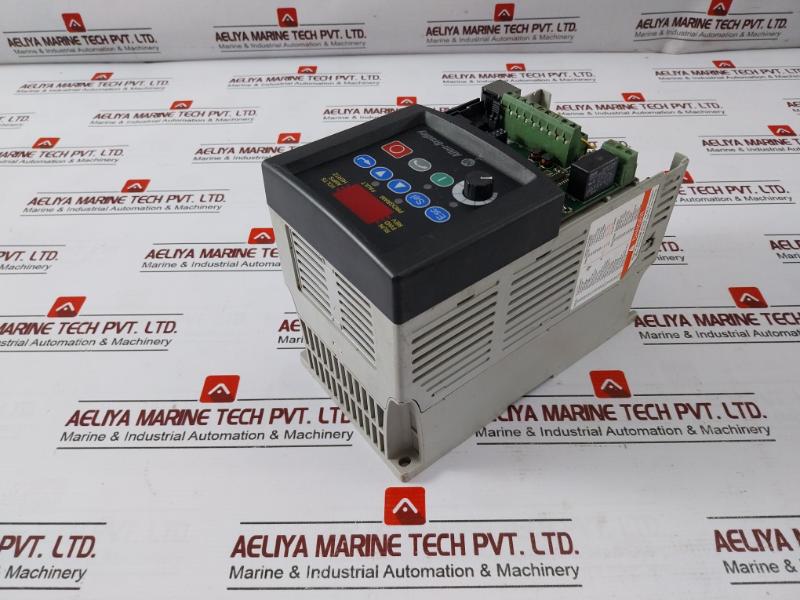

Allen-Bradley 22b-D4p0n104 Powerflex 4 Inverter Drive

Allen-Bradley 22b-D4p0n104 Powerflex 4 Inverter Drive
Allen-Bradley
A-B
Cat No: 22b-D4p0n104
Series: A
Ip20/Ul (Rated -10°C To 50°C Ambient)
Ip30/Nema 1/Ul
Installed (Rated -10°C To 40°C Ambient)
Motor Rating: 1.5kw/2.0hp
Input: 3 Phase, 48-63hz
Ac Voltage Range: 342-528
Amps: 5.7
Output: 3 Phase, 0-400hz
Ac Voltage Range: 0-460
Continuous Amps: 4.0
60 Sec Ovld Amps: 6.0
Short Circuit Current: 100ka
Power Terminal Wire: Use 75°C Cu Wire
5.3 Mm2-1.3mm2 (10-16 Awg)
Torque: 1.96nm (17.4 In.-Lbs.)
P/R: Aab
Frn: 1.01
Made In Taiwan
Weight : 1.700 Kg
Ref No : 160311
