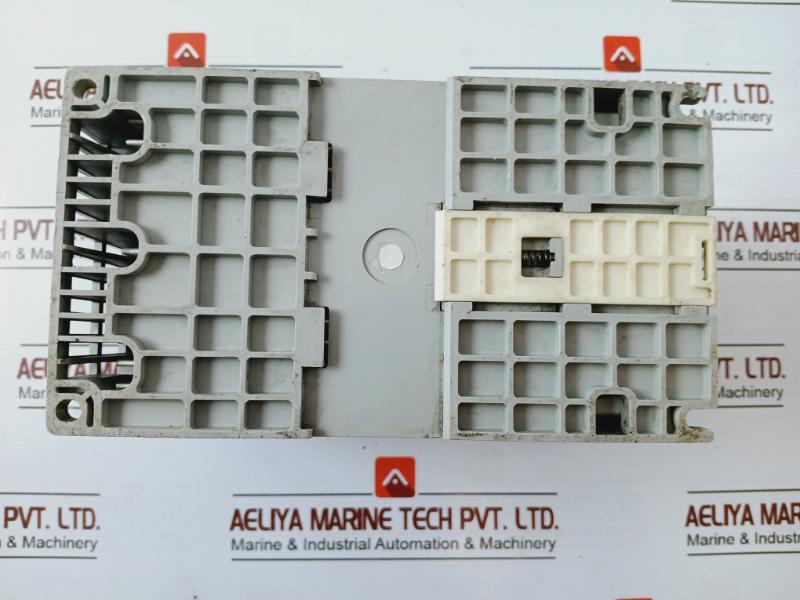

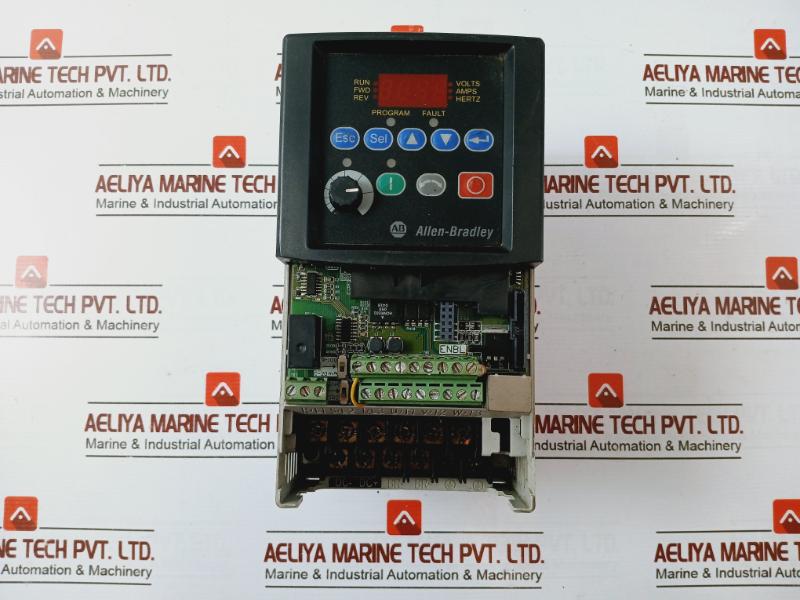

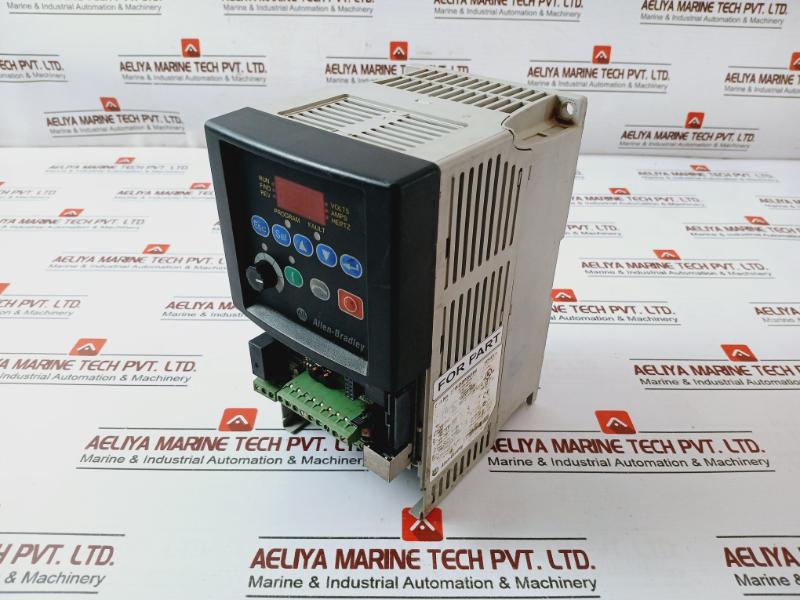

Allen-Bradley 22b-D2p3n104 Ac Drive 480v

Allen-Bradley 22b-D2p3n104 Ac Drive 480v
Allen-Bradley
A-B
Oeg
Cat No.: 22b-D2p3n104
Series: A
Ip20/Ul Open-Type With Top Cover Removed (Rated -10°C To 50°C Ambient)
Ip30/Nema 1/Ul Type 1 With Top Cover And Optional Conduit Box Kit
(Rated -10°C To 40°C Ambient)
Motor Rating: 0.75kw/1.0hp
Input: 3 Phase, 380-480v, 48-63hz
Ac Voltage Range: 342-528
Amps: 3.2
Output: 3 Phase, 0-400hz
Ac Voltage Range: 0-460
Continuous Amps: 2.3
60 Sec Ovld Amps: 3.45
Short Circuit Current: 100ka
Power Terminal Wire:
Use 75°C Cu Wire
5.3mm2-1.3mm2 (10-16awg)
Torque: 1.96nm (17.4 In.-Lbs)
Frn: 2.01
Pch-112d2h
12v—
Tv-3 (No)
5a (No)/3a (Nc)
30v—/277v~Res.
5a/3a 277v~Res.
5a/3a 30v—Res.
0437
Made In China
Weight : 1.600 Kg
Ref No : 160016
