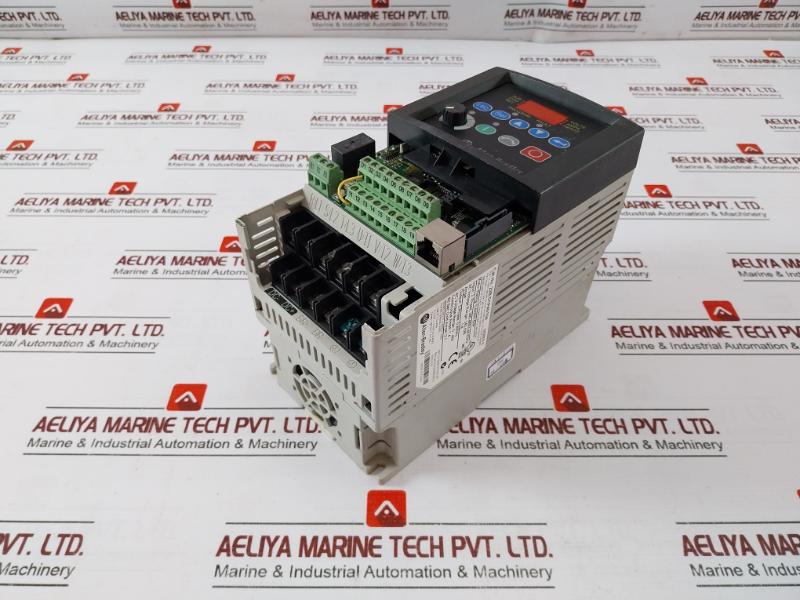

Allen-Bradley 22b-D1p4n104 Powerflex 4 Inverter Drive

Allen-Bradley 22b-D1p4n104 Powerflex 4 Inverter Drive
Allen-Bradley
Series: A
Cat No: 22b-D1p4n104
Ip20/Ul Open-Type With Top Cover Removed (Rated -10°C To 50°C Ambient).
Ip30/Nema 1/Ul Type 1 With Top Cover And Optional Conduit Box Kit
Motor Rating: 0.4kw/0.5hp
Input: 3 Phase, 380-480v, 48-63hz
Ac Voltage Range: 352-528
Amps: 1.8
Output: 3 Phase, 0-400hz
Ac Voltage Range: 0-460
Continuous Amps: 1.4
60 Sec Ovld Amps: 2.1
Short Circuit Current: 100ka
Power Terminal Wire:
Use 75°C Cu Wire
5.3 Mm2-1.3 Mm2 (10-16 Awg)
Torque 1.96 Nm (17.4 In-Lbs)
Frn: 6.01
Made In China
Weight : 1.560 Kg
Ref No : 160308
