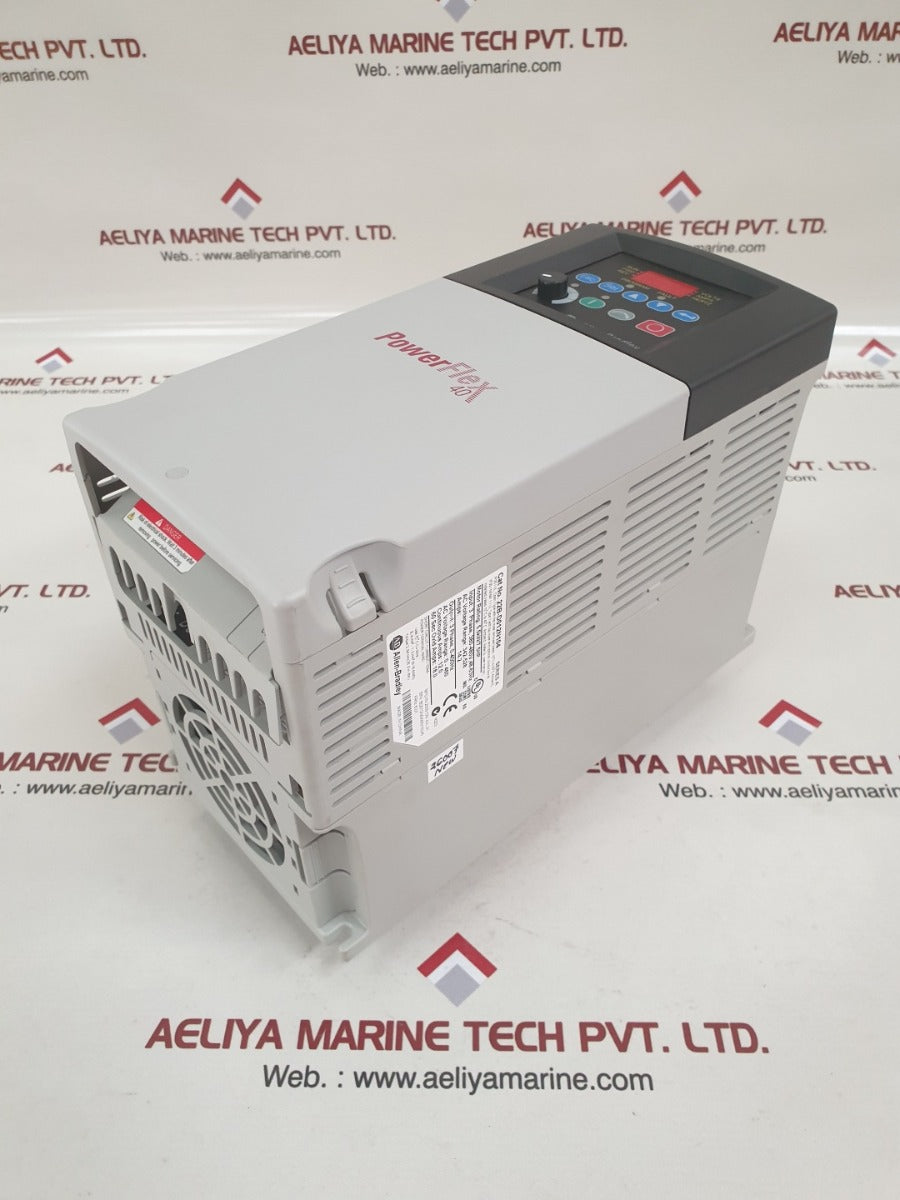

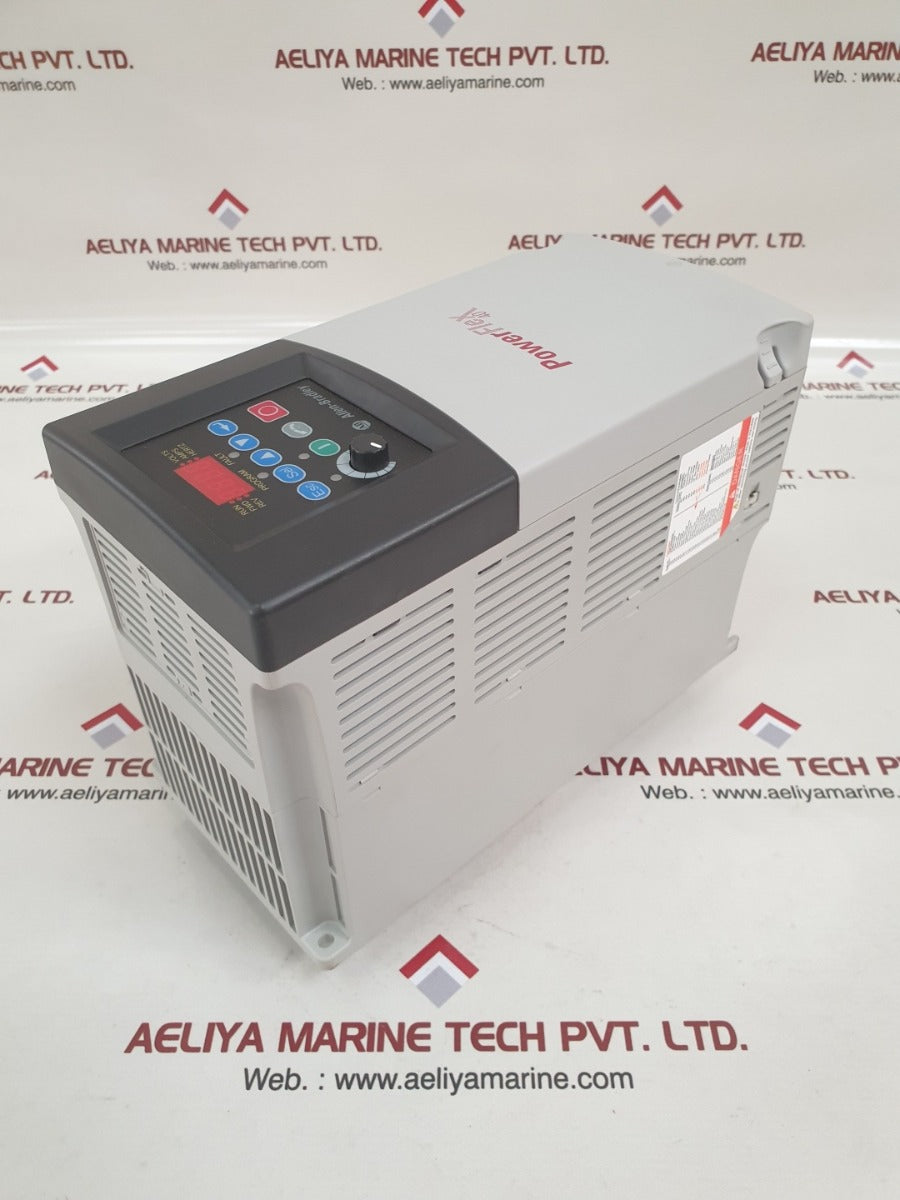

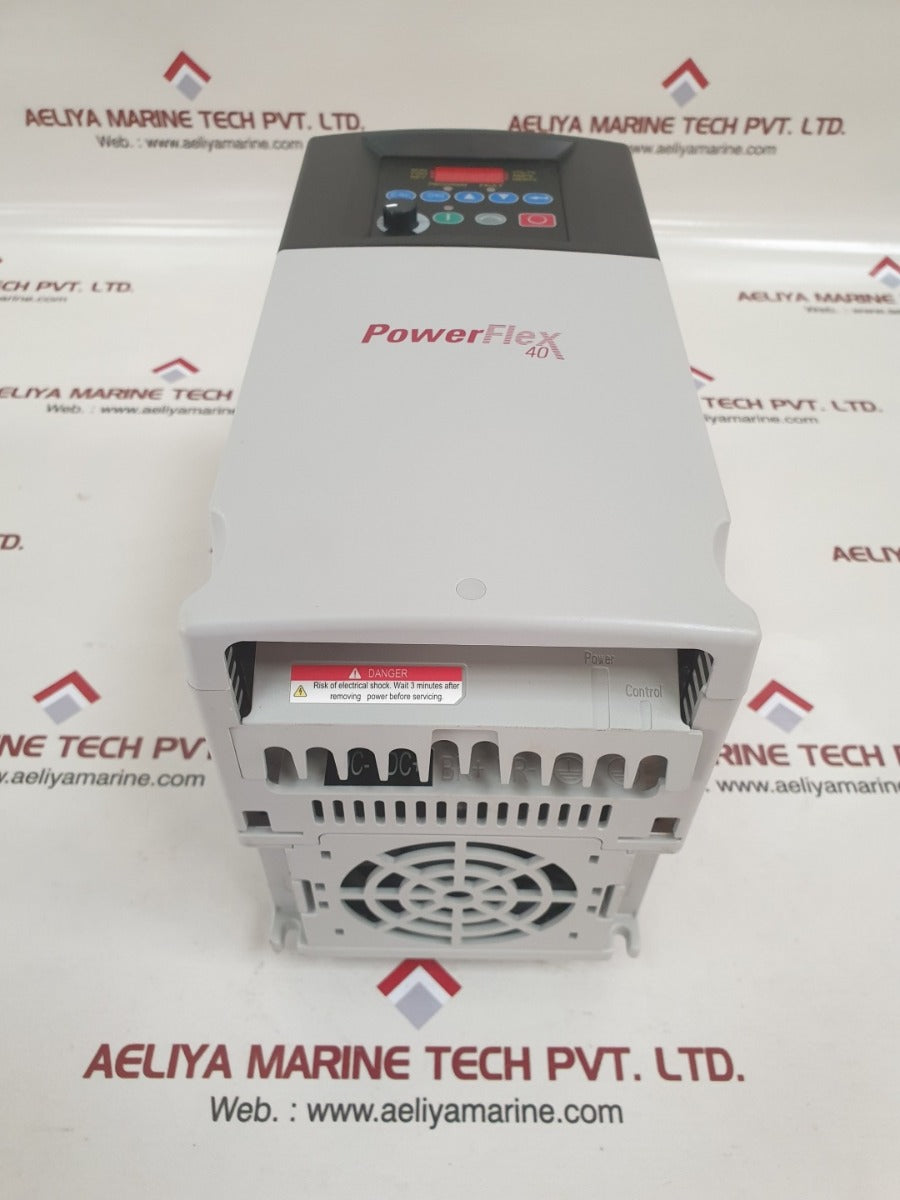

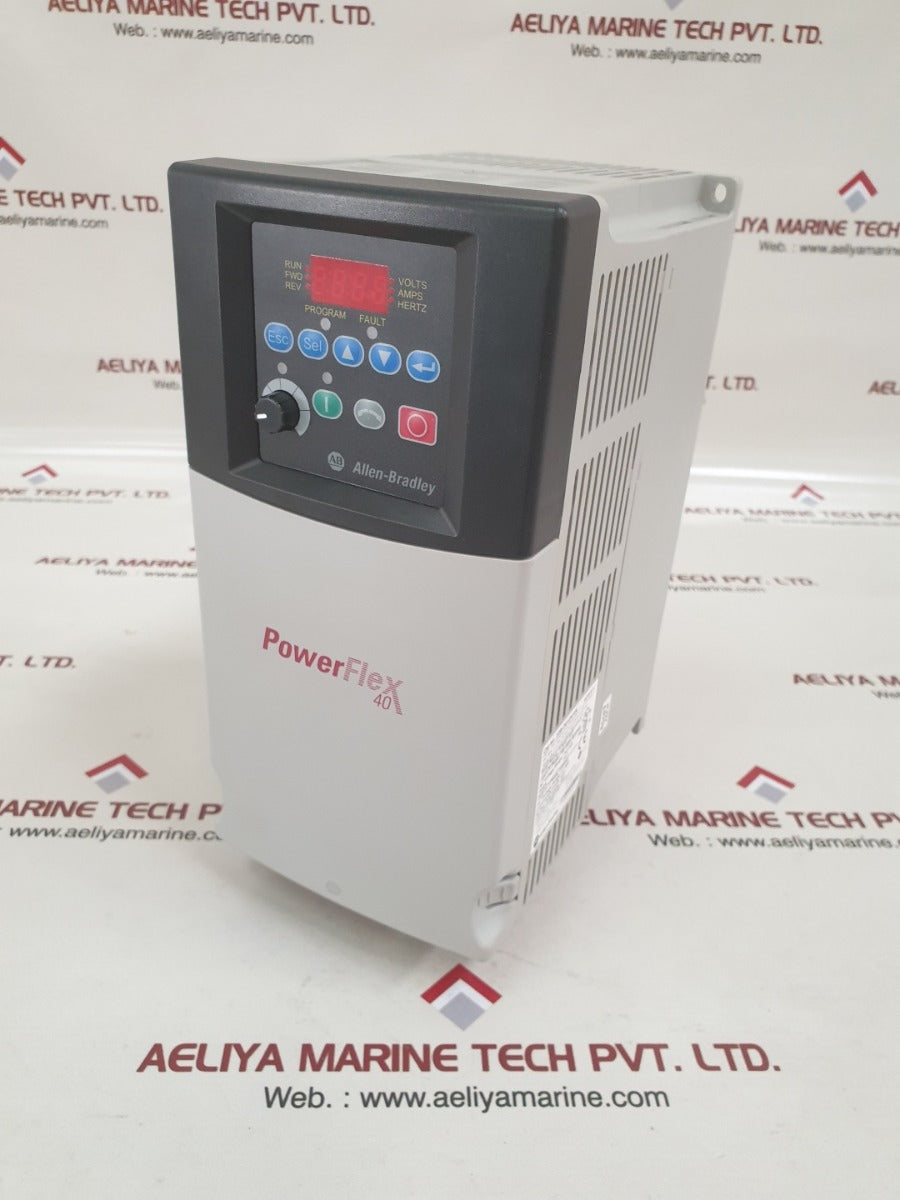

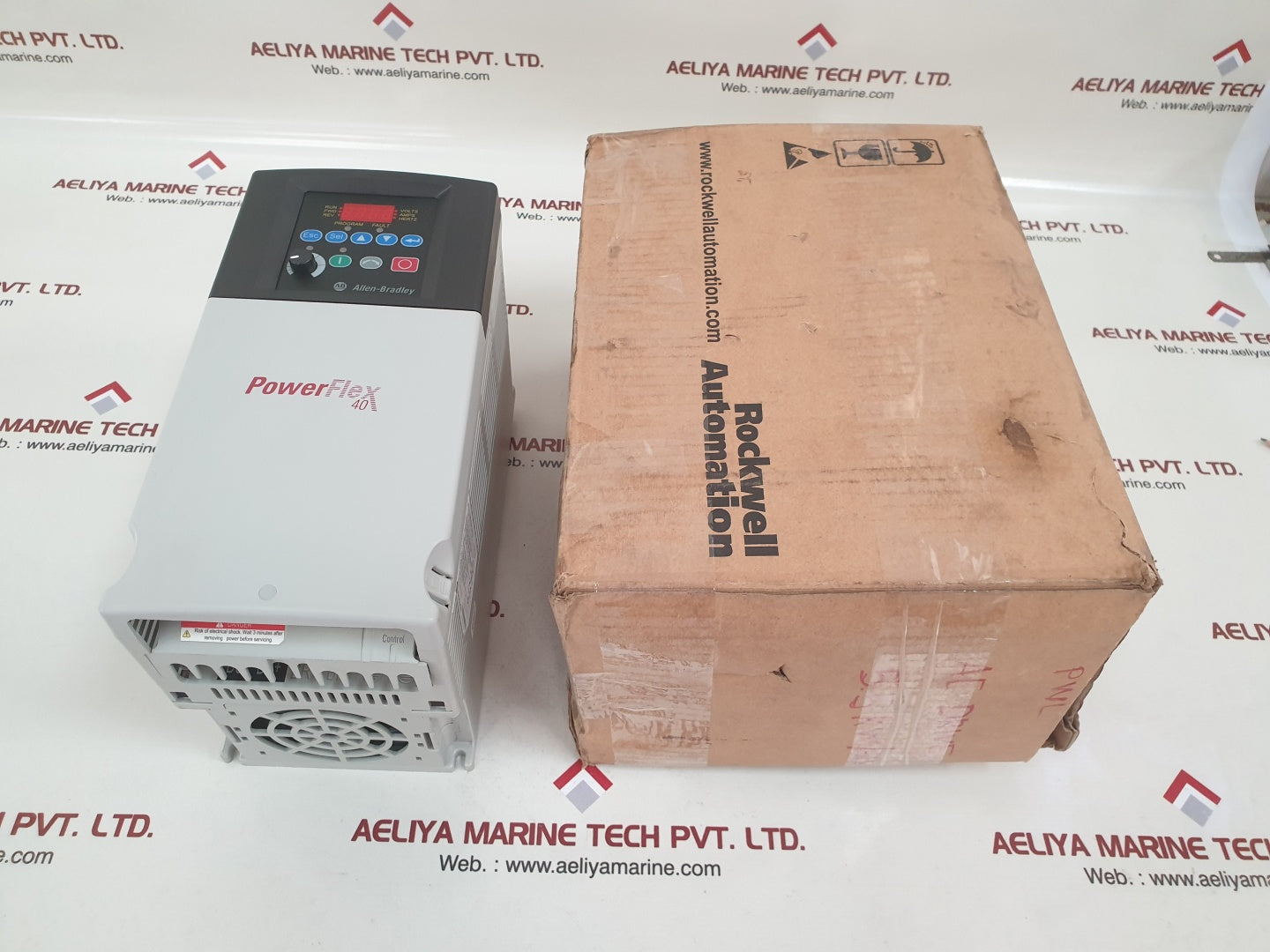

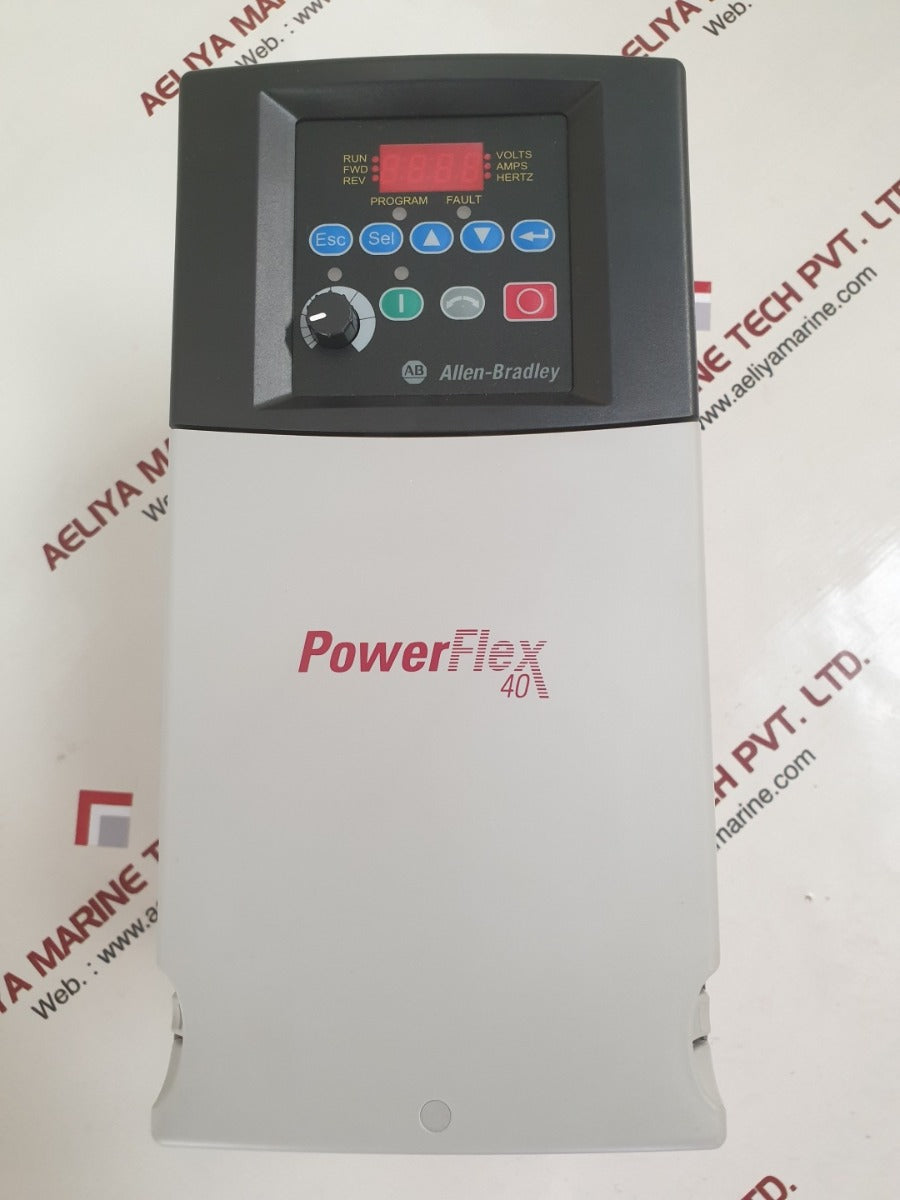

Allen-bradley 22B-d012N104 Powerflex 40 Ac Drive, 480 Vac, 3 Phase, 7.5 Hp, Ip20

Allen-bradley 22B-d012N104 Powerflex 40 Ac Drive, 480 Vac, 3 Phase, 7.5 Hp, Ip20
allen-bradley a-b
rockwell automation
power flex 40

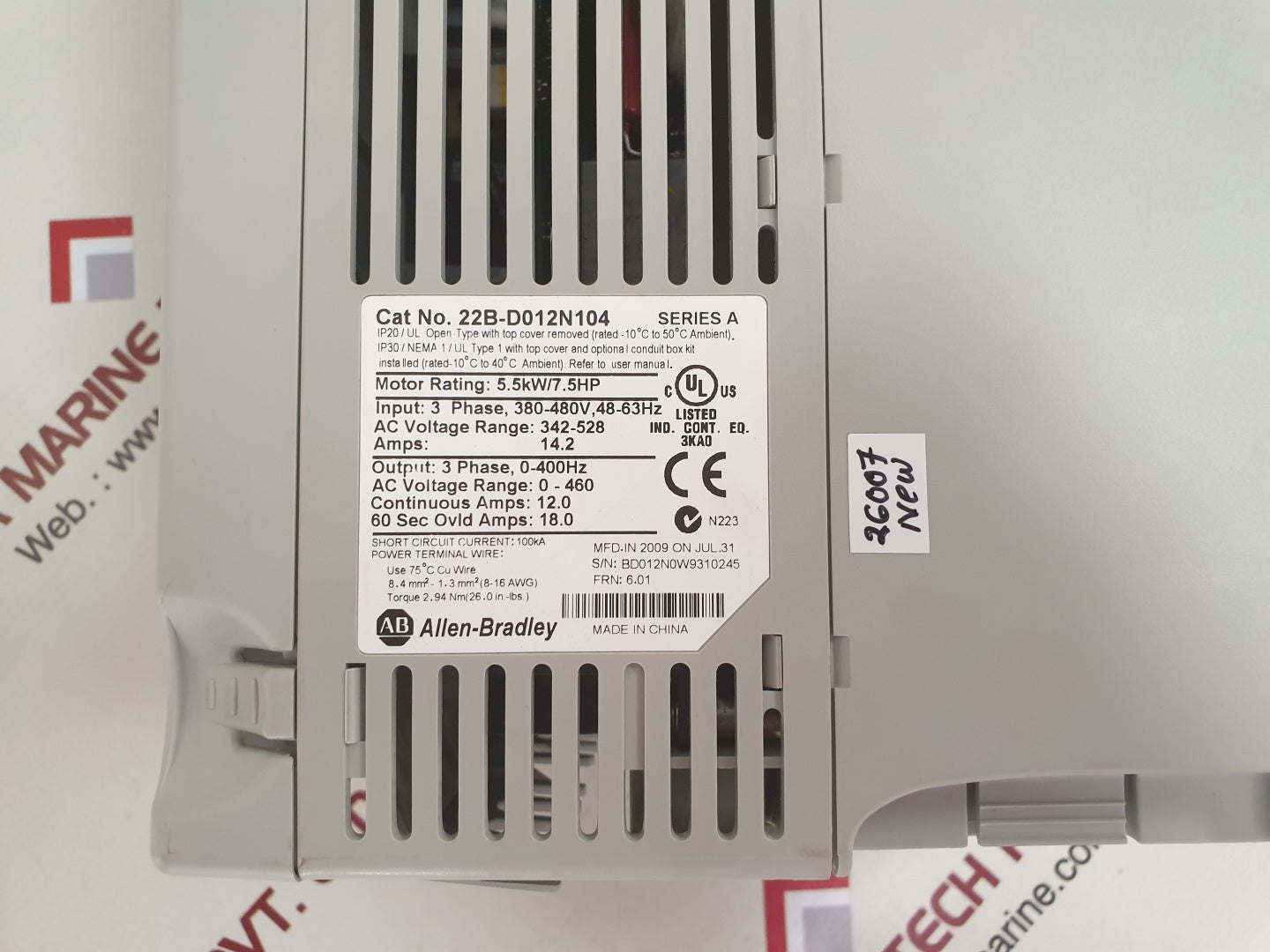

cat no. 22b-d012n104 series a
ip20/ul open-type with top cover removed (rated – 10°c to 50°c ambient)
ip30/nema 1/ul type 1 with top cover and optional conduit box kit
installed (rated – 10°c to 40°c ambient).
motor rating: 5.5kw/7.5hp
input: 3 phase, 380-480v,48-63hz
ac voltage range: 342-528
amps: 14.2
output: 3 phase, 0-400hz
ac voltage range: 0 – 460
continuous amps: 12.0
60 sec ovld amps: 18.0
short circuit current: 100ka
power terminal wire:
use 75°c cu wire
8. 4 mm² – 1. 3 mm² (8-16 awg)
torque 2.94 nm(26 0 in -lbs)
frn: 6.01
made in china
weight: 4.500 kg
