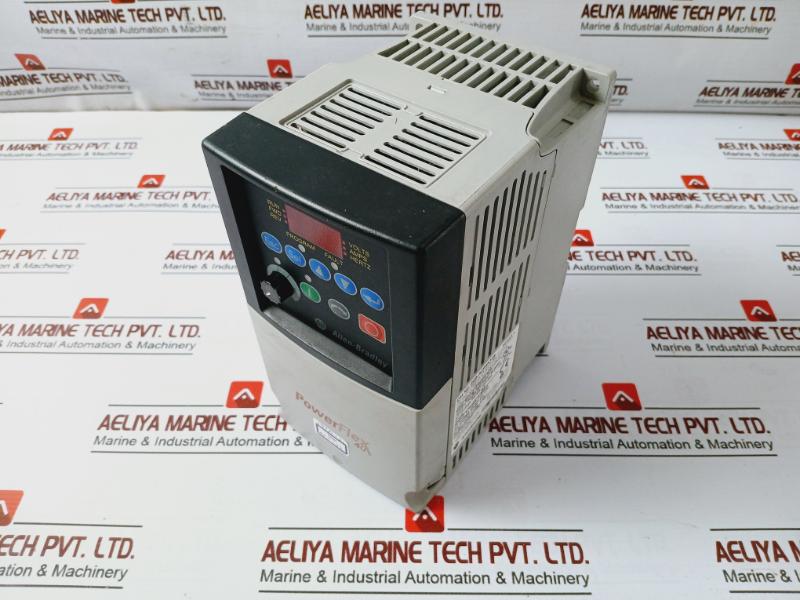

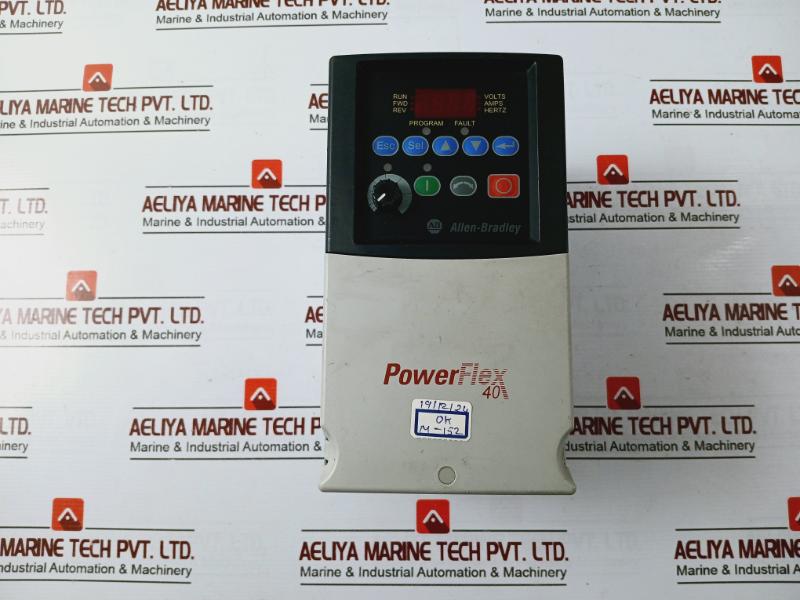

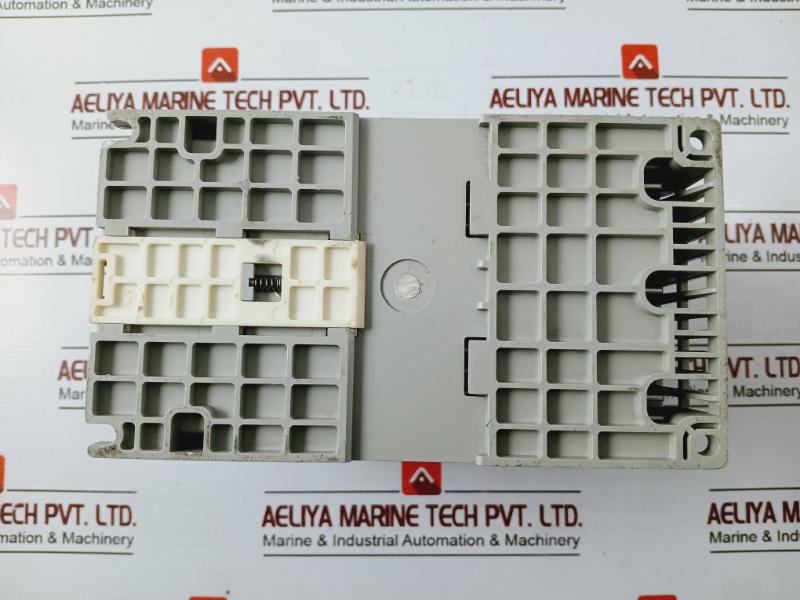

Allen-Bradley 22b-A2p3n104 Ac Drive 240v

Allen-Bradley 22b-A2p3n104 Ac Drive 240v
Allen-Bradley
Power Flex 40
Cat No: 22b-A2p3n104
Series: A
Ip20/Ul Open-Type With Top Cover Removed (Rated -10°C To 50°C Ambient)
Ip30/Nema 1/Ul Type 1 With Top Cover And Optional Conduit Box Kit
Motor Rating: 0.4kw/0.5hp
Input: 1 Phase, 200-240v, 48-63hz
Ac Voltage Range: 180-264
Amps: 6.0
Output: 3 Phase, 0-400hz
Ac Voltage Range: 0-230
Continuous Amps: 2.3
60 Sec Ovld Amps: 3.45
Short Circuit Current: 100ka
Power Terminal Wire:
Use 75°C Cu Wire
5.3 Mm2-1.3 Mm2 (10-16 Awg)
Torque 1.96 Nm (17.4 In-Lbs)
Frn: 3.03
Made In China
Weight : 1.600 Kg
Ref No : 160021
