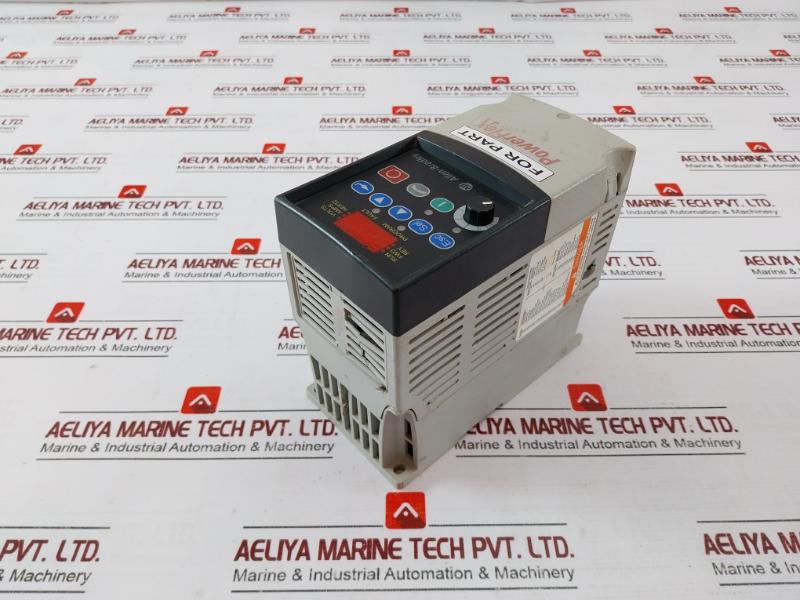

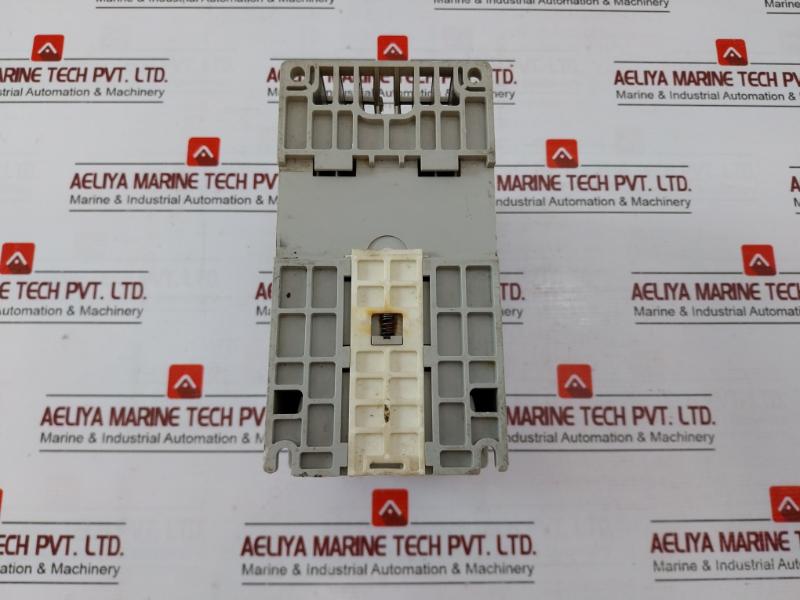

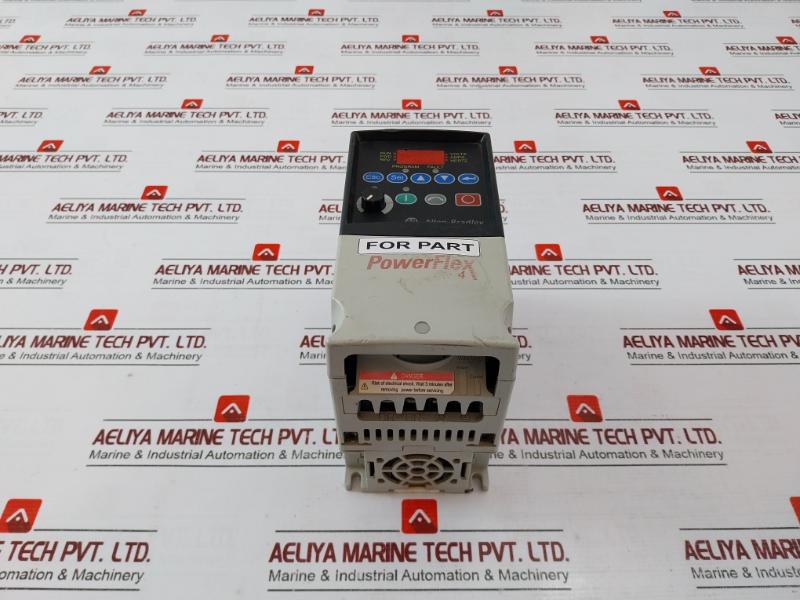

Allen-Bradley 22a-A2p1n103 Power Flex 4 Ac Drive 240v

Allen-Bradley 22a-A2p1n103 Power Flex 4 Ac Drive 240v
Allen-Bradley
Power Flex 4
Series: A
Cat No: 22a-A2p1n103
Ip20/Ul Open-Type With Top Cover Removed (Rated -10°C To 50°C Ambient)
Ip30/Nema 1/Ul Type 1 With Top Cover And Optional Conduit Box Kit
Motor Rating: 0.4kw/0.5hp
Input: 1 Phase, 200-240v, 48-63hz
Ac Voltage Range: 180-264
Amps: 5.3
Output: 3 Phase, 0-240hz
Ac Voltage Range: 0-230
Continuous Amps: 2.1
60 Sec Ovld Amps: 3.15
Short Circuit Current: 100ka
Power Terminal Wire:
Use 75°C Cu Wire
3.3 Mm2-0.8 Mm2 (12-18 Awg)
Torque 1.96 Nm (17.4 In-Lbs)
Frn: 6.01
Made In China
Weight : 950 Gm
Ref No : 160305
