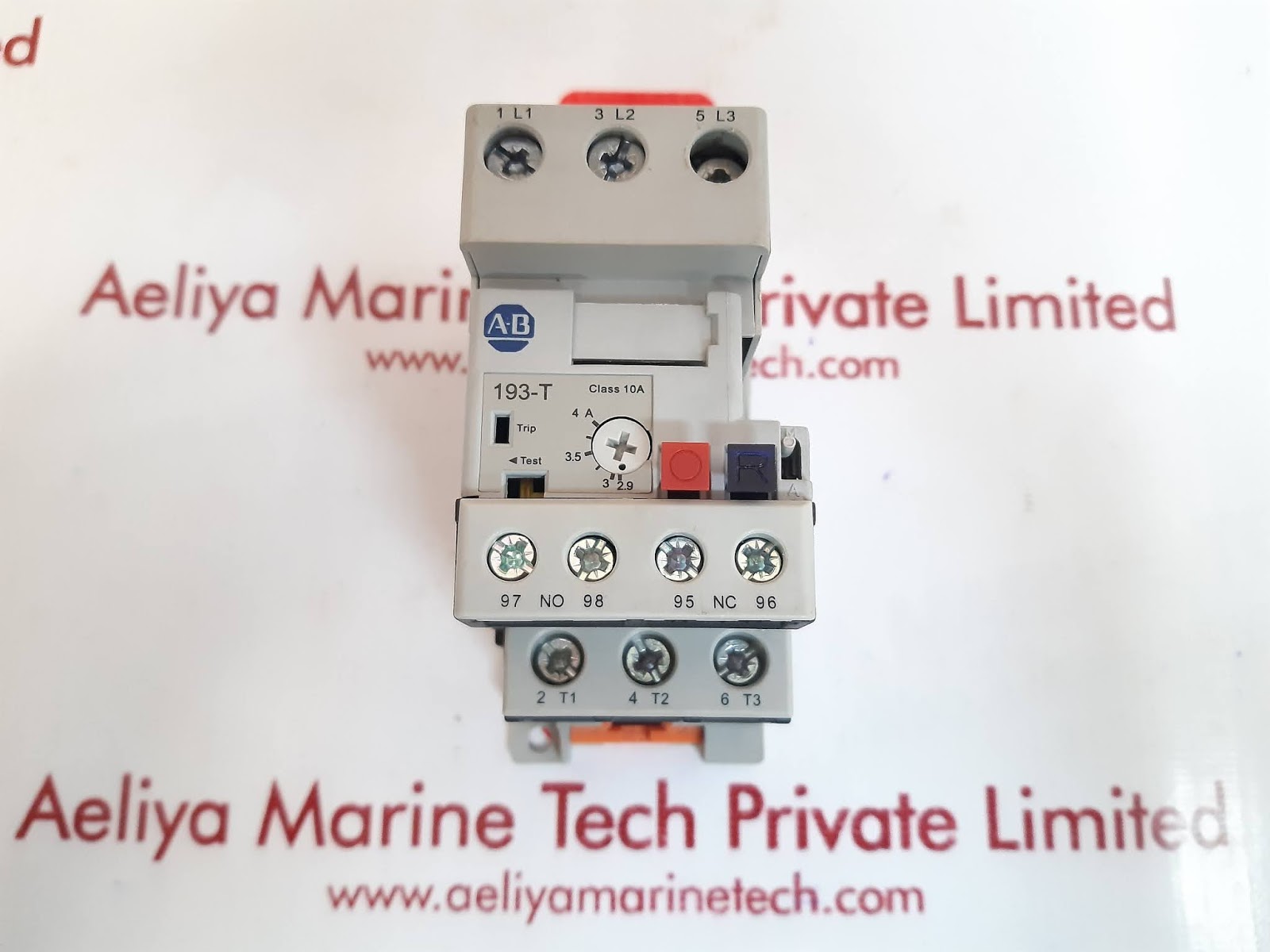

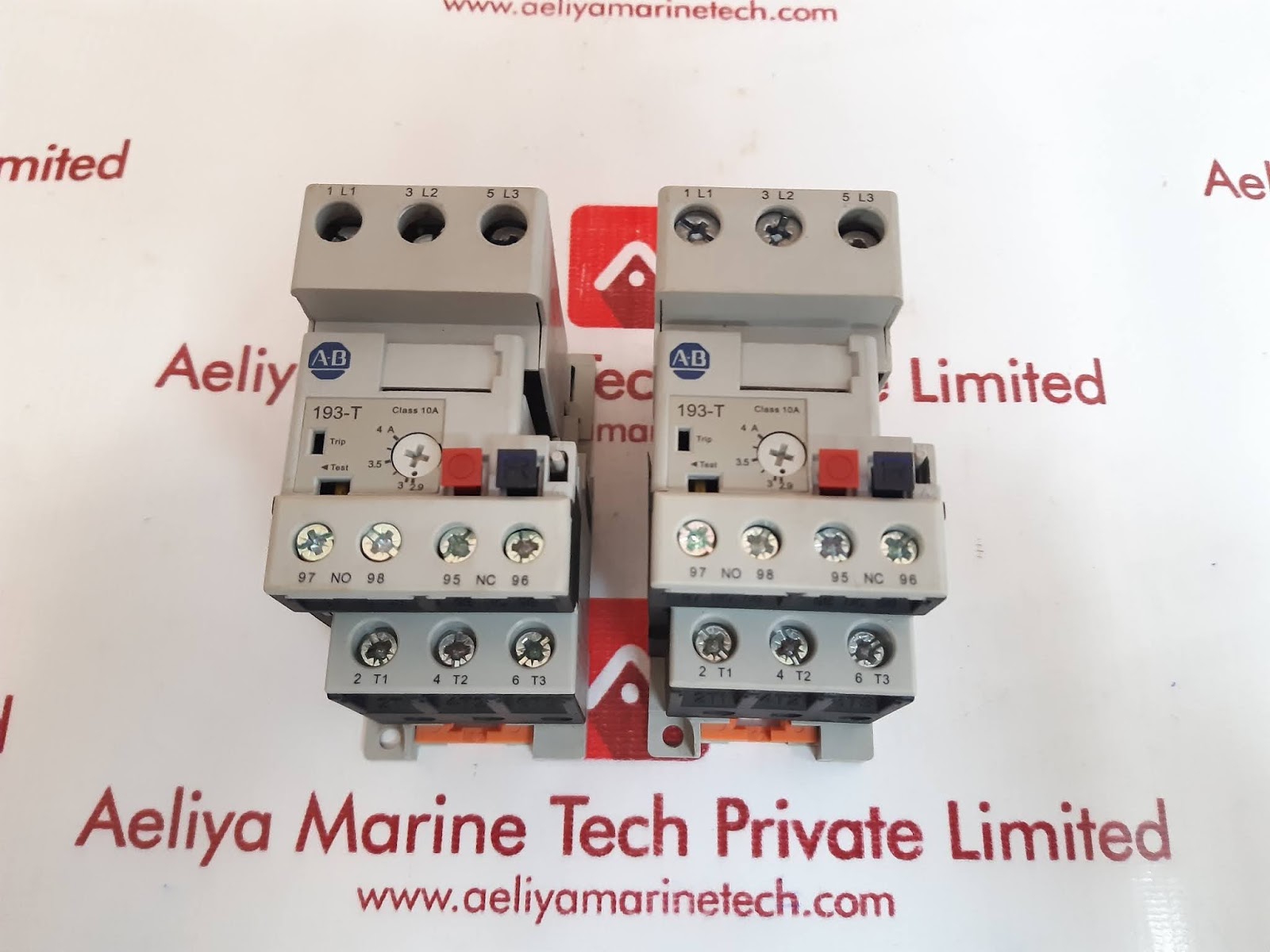

ALLEN-BRADLEY 193-T1AB40 BI-METALIC THERMAL OVERLOAD RELAY

Allen-bradley 193-t1ab40 ser.A thermal overload relay 2.9 – 4.0a
allen-bradley a-b
193 – t class 10a
cat 193-t1ab40
ser a
setting range : 2.9 – 4.0a
en/iec 60947 – 1/ – 4 -1/ – 5 -1
ue/ui= 690v 50/60 hz
uimp = 6kv aux. uimp = 4kv
gl/gg max.
iec coord – type “1” 50a
iec coord – type “2” 16a
ie 4a 2a 1.6a 0.15a
gl/gg 6a max.
ith 5a
cat. 193-t1apm ser a
600 v ac max. 38 fla
main terminals
no.16…6 awg 16…25 lb-in
use 75°c copper wire only
iec / en 60947 – 4 – 1
690 v ie = ith = 38a
aux.cont. a600, q300
trip rating is 125% dial setting
75°c cu wire only awg 16…10
torque 1.5…2.2 nm 13…20 lb – in
class 10
class k fuses
gb 14048.4
ue/ui = 690v / 1000v 50hz
made in china
weight: 200 gm
