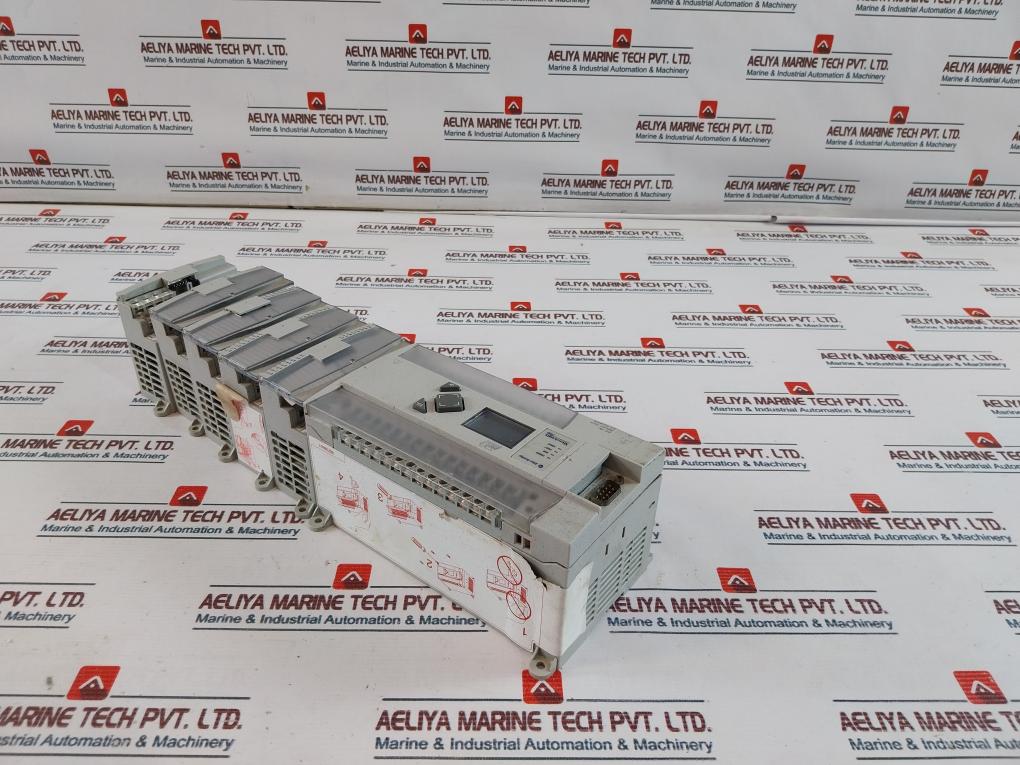

Allen-bradley 1762-if2of2 Module Set 24vdc

Allen-bradley 1762-if2of2 Module Set 24vdc
Allen-bradley
A-b
Micrologix 1200
2 Ch Input/2 Ch Output Analog Module
Cat: 1762-if2of2/1762-if20f2
Ser: A
Rev: D
Frn: 1.2
Bus Current Draw
5vdc 24vdc
0.04a 0.105a
Input Ranges
4-20ma, 0-10vdc, Class2
Output Ranges
4-20ma, 0-10vdc
Class I Div 2 Group A, B, C, D
Operating Temperature Code T3c
Power Supply Dist. Rating 6
Product Code 75
Fac: 7m
459020-1971
Win (21) 7m8da9dz
4 Ch Analog Input Module
Cat: 1762-if4
Rev: B
Frn: 1.0
Bus Current Draw
5vdc 24vdc
0.04a 0.05a
Input Ranges
4-20ma, ±10vdc, Class2
Product Code 67
Win (21) 7m8da6em
459020-1981
8 Pt. 24vdc Source Output
Cat: 1762-ob8
Ser: A
Rev: B
Bus Current Draw
5vdc 24vdc
0.115a 0.0a
Current Rating @ 24vdc
Max.cont.amps/pt Max.cont.amps/com
1.0a @ 30°c 8a @ 30°c
0.5a @ 55°c 4a @ 55°c
Surge= 2a Max. For 10ms Every 2 Sec
Product Code 101
Win (21) 7m6dd1qr
459020-2031
16 Pt. 24vdc Source Output
Cat: 1762-ob16
Bus Current Draw
5vdc 24vdc
0.175a 0.0a
Product Code 103
Win (21) 7m6dm3ed
459020-2161
16 Pt. 24vdc Sink/source Input
Cat: 1762-iq16
Bus Current Draw
5vdc 24vdc
0.060a 0a
Input Rating
10-30vdc
Sink/source
Product Code 97
Win (21) 7m6dm5rf
459020-2041
Cat: 1766-l32bwa
Rev: E
Frn 05
Input: 12-24vdc Class 2
Relay Outputs: 1440va Max.
Line: 100-240 Vac
50-60hz 120va Max
Contact Rating
Nema-ics 5
Ac C300
Dc R300
Class I Div. 2 Group A, B, C, D
Temp. T3c
6l32bwa**ae0519106922
Product Of Singapore
Product Of Malaysia
Weight : 1.610 Kg
Ref No : 132143
