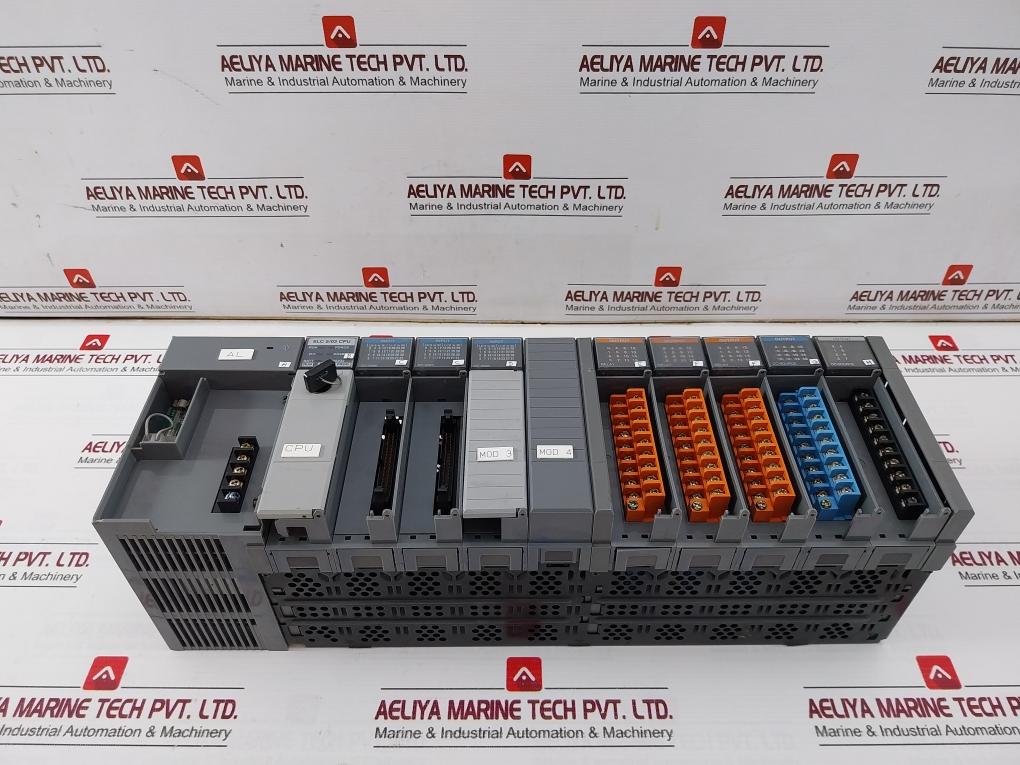

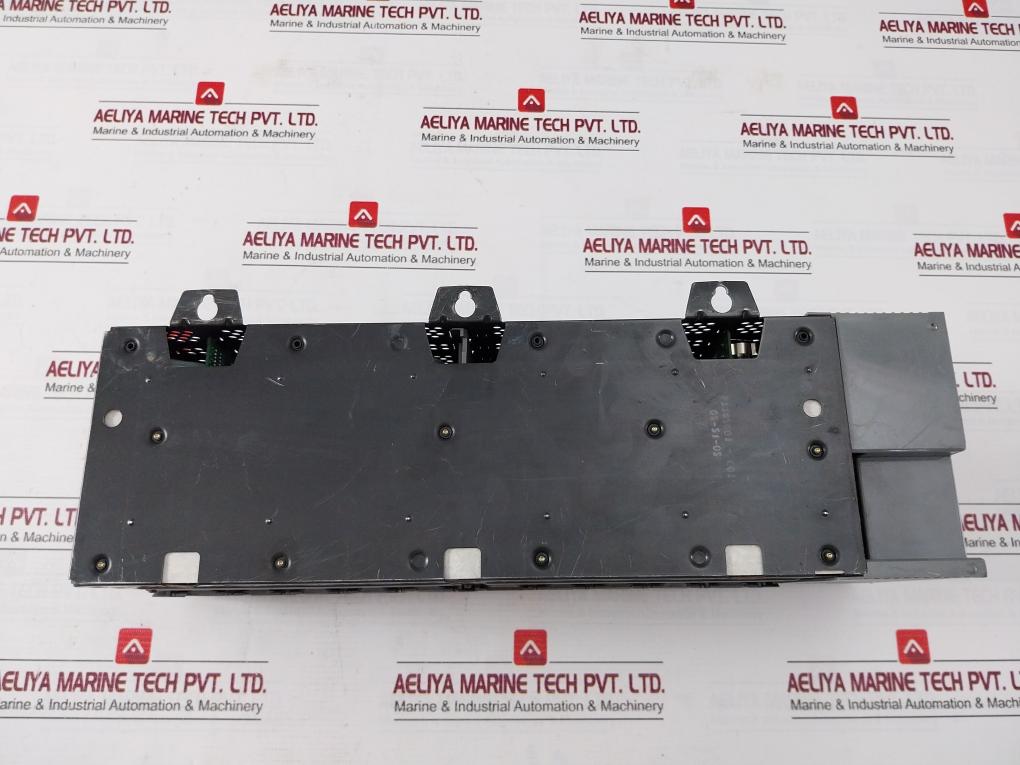

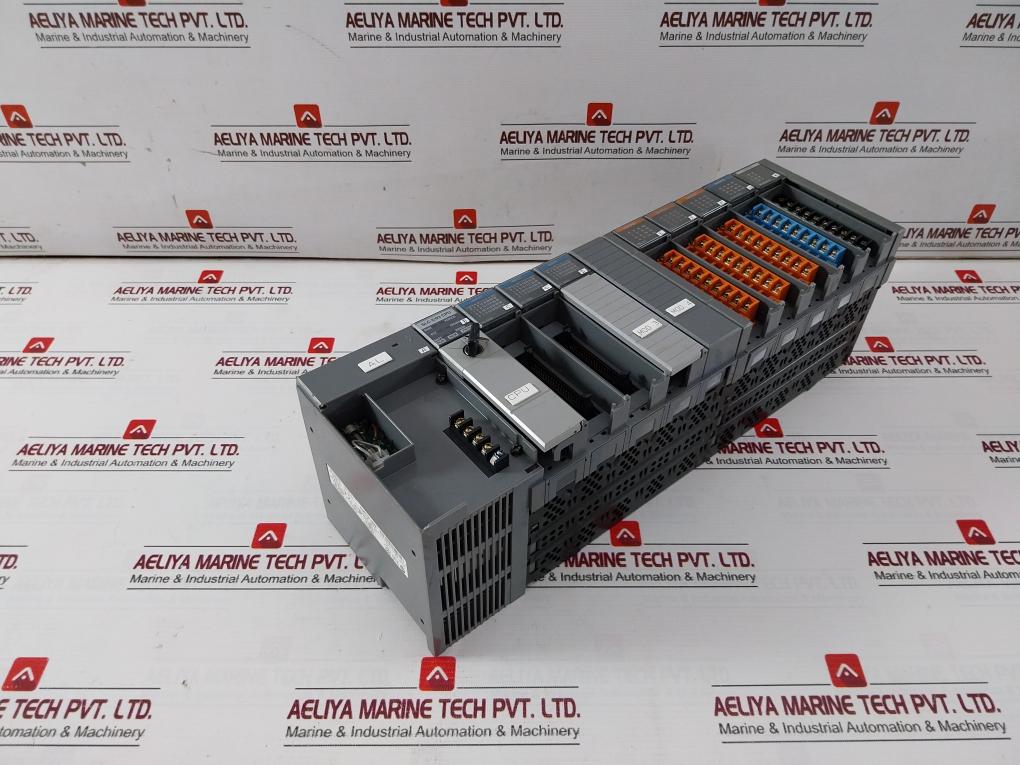

Allen-Bradley 1747-L532 Processor Unit 265v

Allen-Bradley 1747-L532 Processor Unit 265v
Allen-Bradley
A-B Quality
Slc 500
Power Supply
Cat: 1746-P2
Ser: C
Win( 21 )7m3dj3xc
Mfg: 0301 Fac. 7m
Line Voltage:
85-132 Vac ~
170-265 Vac
50/60hz
Output:
5a @5 Vdc
0.96a@24 Vdc
User: 0.2a @24 Vdc
Operating Temp. Code T3c
Use 75°C Copper Wire
459060-0020
Scb120d
Processor Unit
Slc 5/03 Cpu
Cat: 1747-L532
Ser: E
Proc. Rev: 8
Win (21) 1p0xh7gy
Mfg: 0402 Fac. 1p
Operating System Information:
O.S.# 1747-Os302
Ser: C
Frn: 5
Current Requirements:
500ma @ 5v Dc
175ma @ 24 Vdc
32xe08302c05
Cat: 1747-M11
Ser: B
D2m 0fy 04 98829-322 0210
A40847-217-55 D 55d
Input Module
Dc-Sink
Cat: 1746-Ib32
Ser: D
Win( 21 )7m4ba0tg
Mfg: 0202 Fac.7m
Input Voltage:
15-30 Vdc— @50°C
15-26.4 Vdc— @60°C
459020-2560
102470
Ma459221-1981
Psw1.1
94v-0
0502
Win (21)7m4ba0tx
151811-1660
Output Module
Relay
Cat: 1746-Ow16
Ser: C
Win(21)7m2gm2x0
Mfg: 0801 Fac. 7m
Output Voltage:
5-265 Vac ~ 50/60hz
5-125 Vdc —
Output Contact Ratings:
Max. Volts Ue:
240vac 120vac
125 Vdc
V.A. Rating (Maximum Per Module) 1440va
459020-0330
459221-1370
100730
151811-0370
Win(21)7m2hj5ej
Mfg: 0202 Fac.7m
Output Module
Dc Source
Cat: 1746-Ob16
Ser: D
Win(21)1p0xf9gv
Mfg: 0402 Fac.1p
Output Voltage: 10-50 Vdc—
Output Ratings:
0.5 Amp / Output @30°C
0.25 Amp / Output @60°C
963210
96321094 B01
D2n Ben 04 98848-170 0212
S96321002 A01 02a01
.0201 Gx 211-V0a
Output Module
Dc-Source
Cat: 1746-Ob8
Ser: A
Win(21)6n1di6g0
Mfg: 0901 Fac.6n
Output Voltage: 10-50 Vdc —
Output Ratings:
1.0 Amp / Output @30°C
0.5 Amp / Output @60°C
459020-0290
1746-Ob8 8-Tr. Source (H)
C-8730-1263
C-8730-4263-3
100690
Mec-40v
10-Slot Rack
Cat: 1746-A10
Ser: B
*St2fd6vx*
Made In Malaysia
Made In U.S.A.
Made In Japan
Weight : 4.050 Kg
Ref No : 180286
