| Attribute | Value |
|---|---|
| Manufacturer | Allen-Bradley (A-B) |
| Catalog Number | 1606-XL480E-3W |
| Type | Power Supply |
| Series | 1606-XL |
| Input | 3AC 400-500V 1.7A/Phase 50-60Hz
(Operational Range: 340…576VAC) |
| Output | DC 24-28V / 20A |
| Continuous Power | 480W |
| Factory Set | 24.5V |
| Peak Power | 600W |
| Operational Temperature Range | 0…+60°C |
| Serial Number | 30399400B |
| Series | B |
| Code | 303..10 E |
| Reference Number | *5757283* |
| Country of Manufacture | Made in Czech Republic |
| Weight | 1.680 kg |

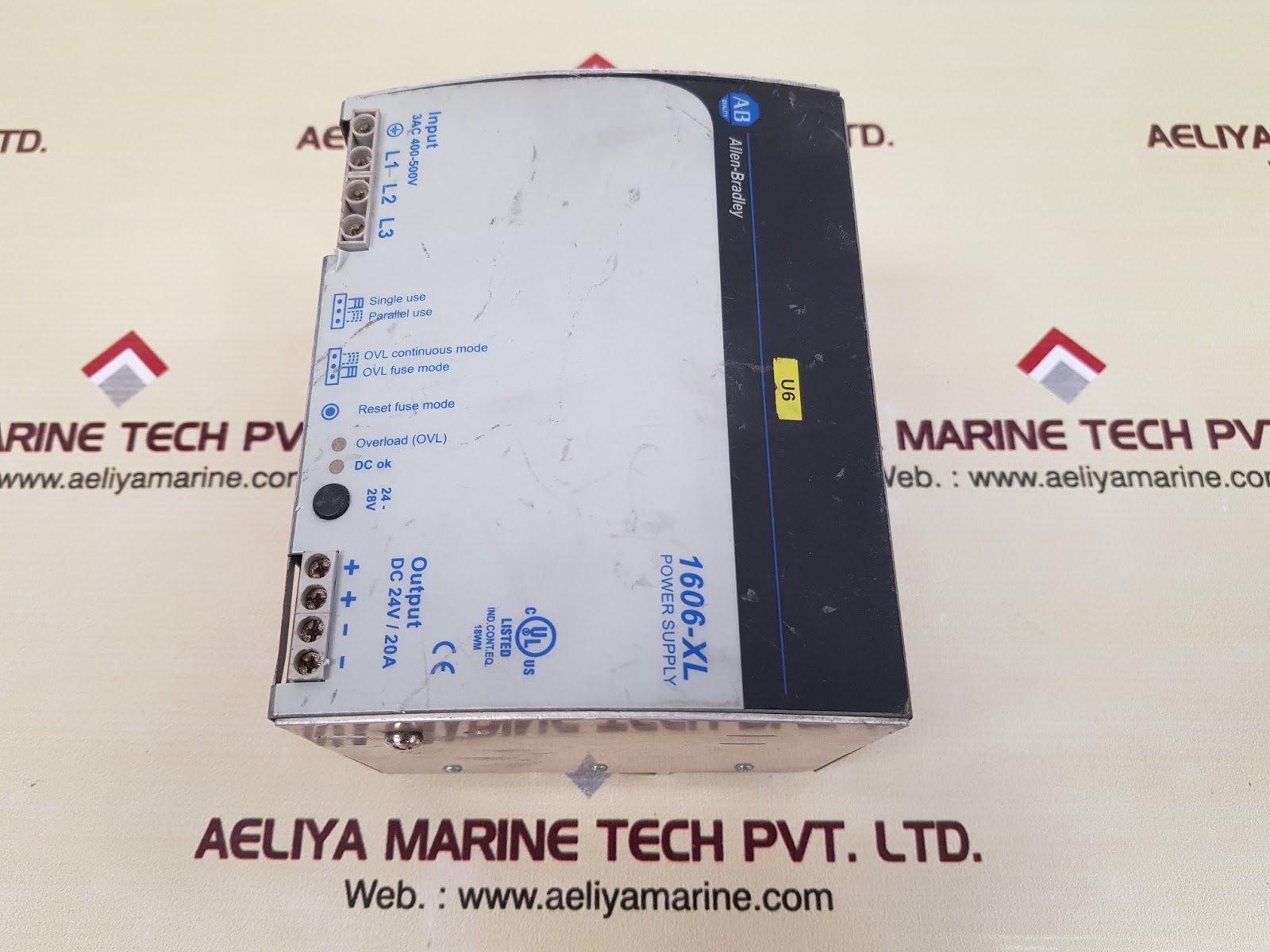

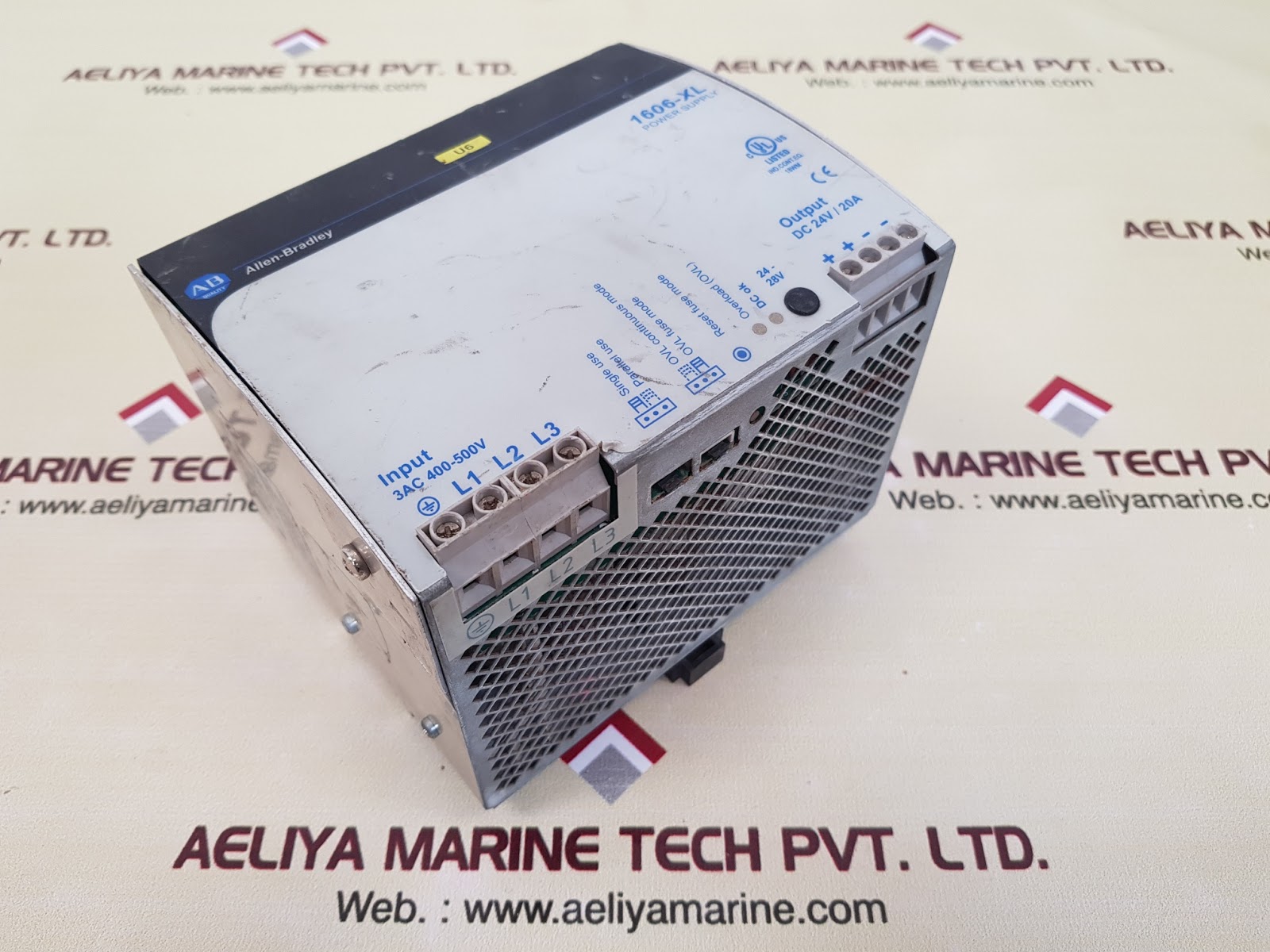

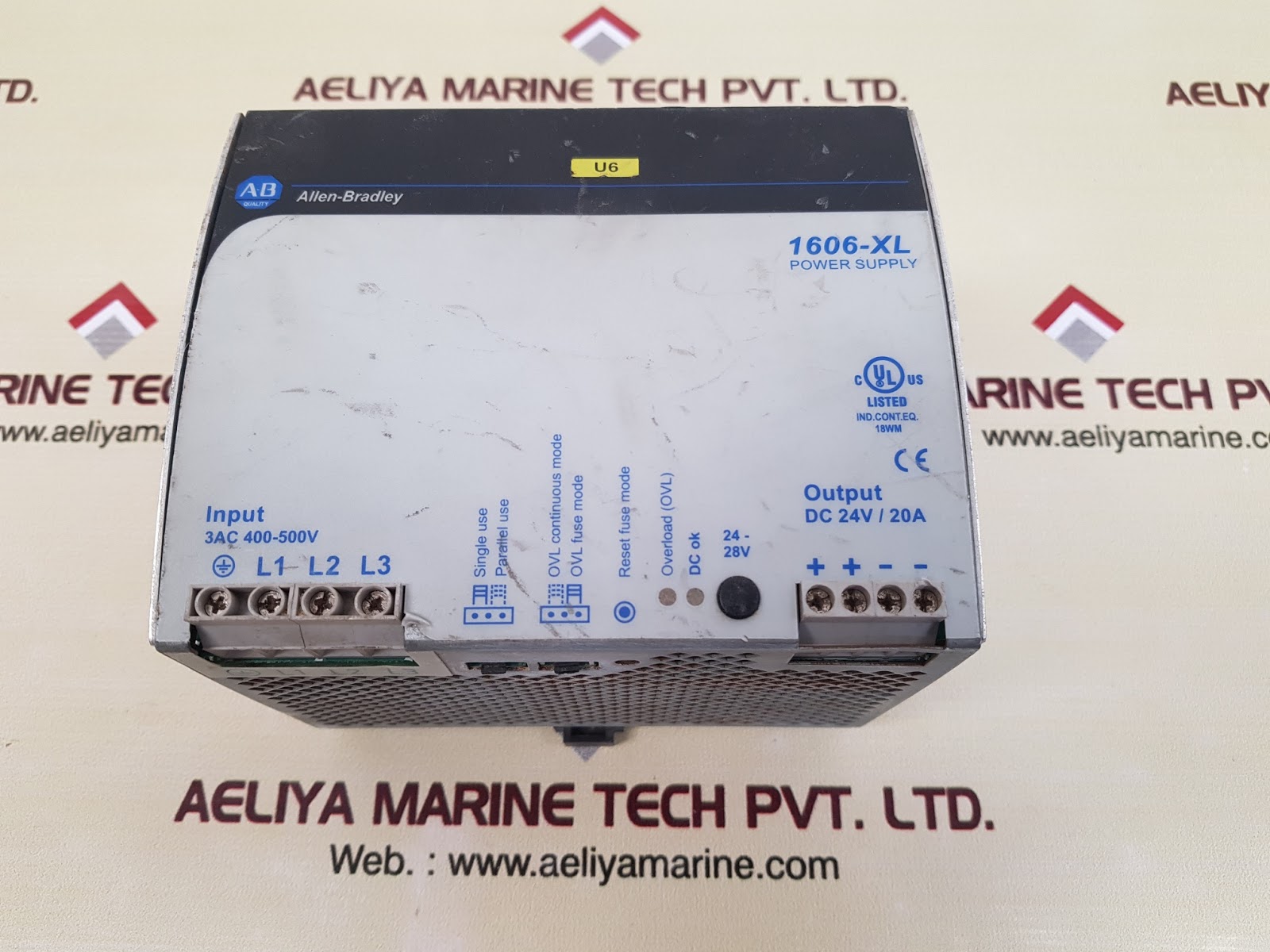

Overview of the Allen-Bradley 1606-XL480E-3W
The Allen-Bradley 1606-XL480E-3W is an industrial power supply with high performance that is built to provide reliability, efficiency, and longevity in automation systems. It is part of the 1606 XL series, which is recognized for its compact size, high power efficiency, and enhanced protection capabilities.
Key Features of the 1606-XL480E-3W
Input Voltage Range: 380-480V AC, which makes it ideal for most industrial settings.
Output Voltage: 24V DC at 20A, delivering stable and consistent power.
High Efficiency: Up to 94% efficiency, reducing energy loss and heat generation.
Three-Phase Input: Suitable for heavy industrial use that demands a stable power supply.
Compact Size: Space-efficient design for easy mounting in control panels.
Protection Mechanisms: Short circuit, overload, and overvoltage protection.
DIN Rail Mountable: Easy and fast installation in electrical panels.
Why Choose the Allen-Bradley 1606-XL480E-3W?
There are many reasons why industries prefer this power supply to others:
✅ 1. Exceptional Reliability
Industrial automation needs continuous power, and this model delivers clean and stable DC power, cutting down on failures and downtime.
✅ 2. Energy Efficiency
With a stunning 94% efficiency, it reduces heat dissipation and delivers maximum energy savings. This also decreases cooling demands and operating costs.
✅ 3. Durable and Rugged
Designed for challenging industrial applications, this power supply is resistant to vibrations, temperatures, and strenuous conditions.
✅ 4. Space-Saving and Compact
With its compact design, the 1606-XL480E-3W is easy to install in control panels without using much space.
✅ 5. Safety and Protection
With short circuit, overload, and overvoltage protection, the unit keeps the connected devices protected from electrical malfunctions.
Uses of the 1606-XL480E-3W
The power supply is universally applied in a variety of industries, such as:
✔️ Factory Plants – Supplies power to automated machinery and robots.
✔️ Industrial Control Systems – Supplies a reliable power source for PLCs and control circuits.
✔️ Material Handling – Powers conveyor systems and automated logistics.
✔️ Oil & Gas Industry – Provides dependable power in off-grid and abusive environments.
✔️ Water Treatment Plants – Maintains critical monitoring and control systems running.
