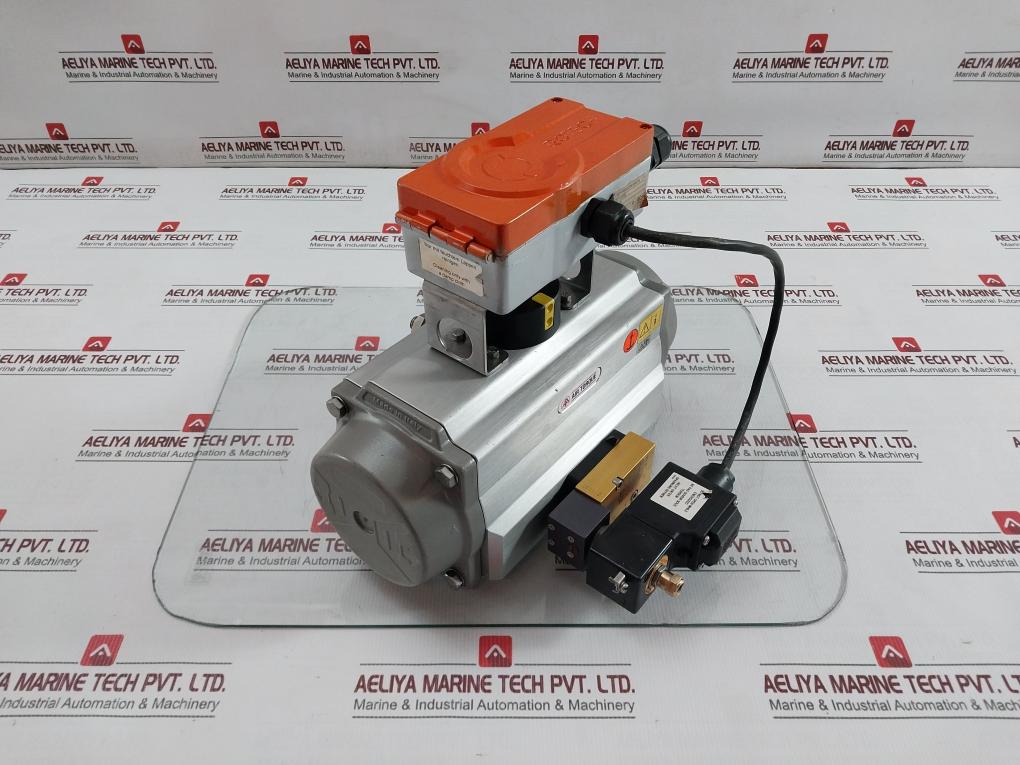

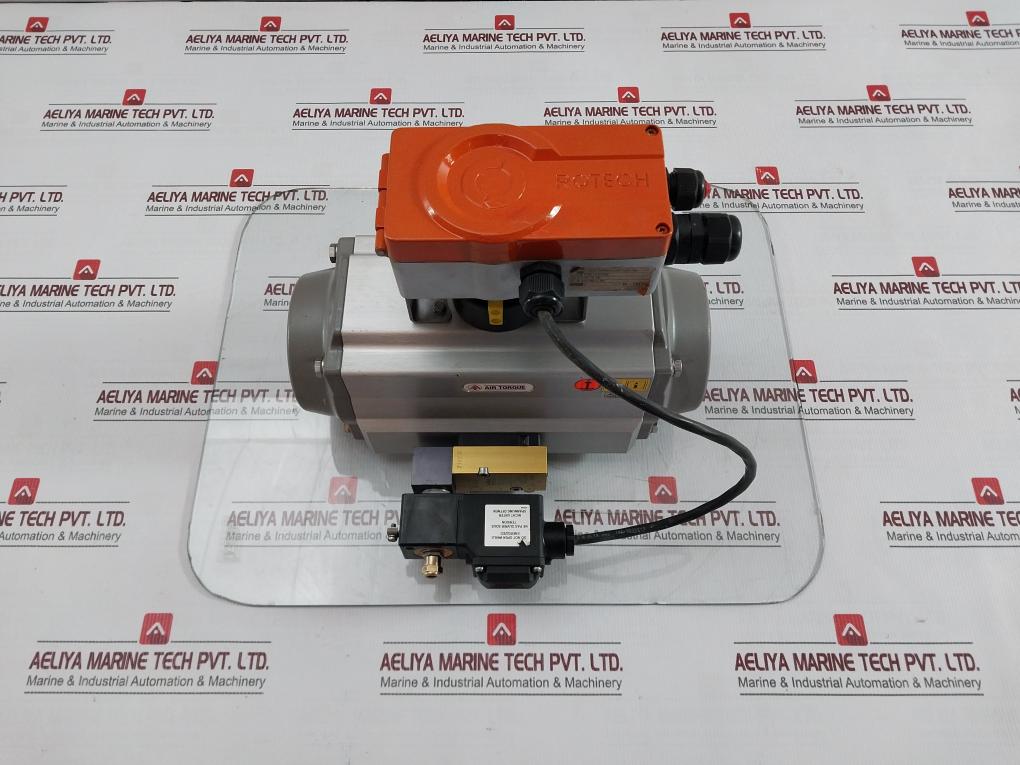

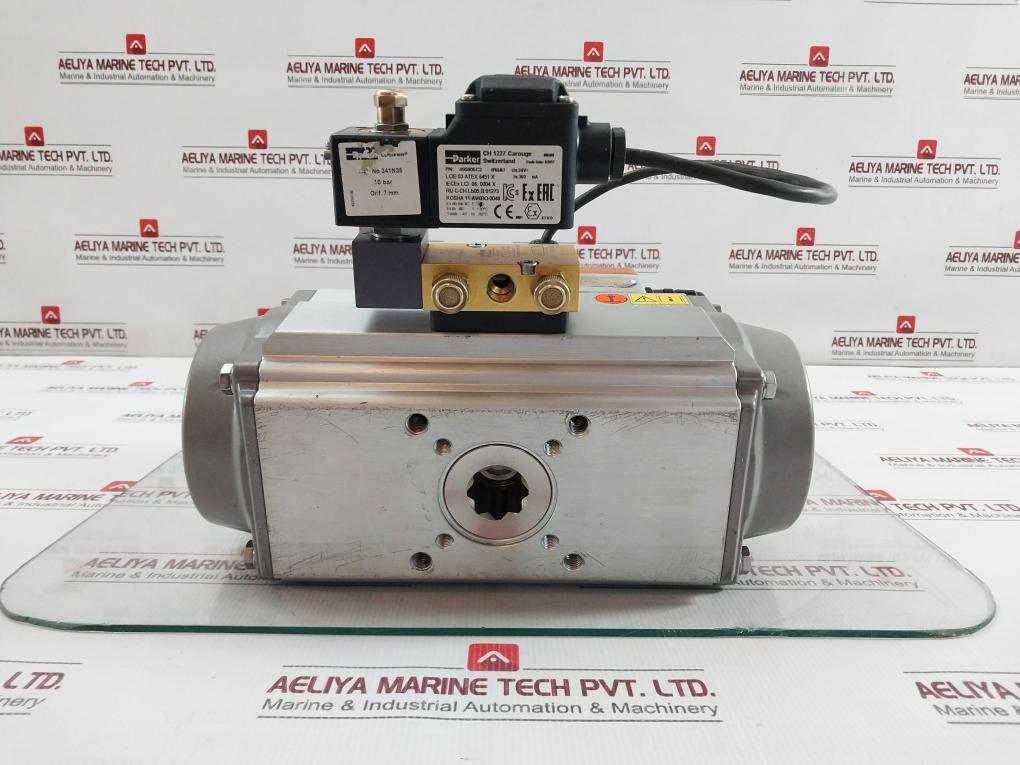

Air Torque Dr00220u Azl Pneumatic Actuator 24v

Air Torque Dr00220u Azl Pneumatic Actuator 24v
Air Torque
Rotech Antriebselemente Gmbh
Parker Lucifer
Typ Und Modell/Type And Model: Dr00220u Azl
En Iso 5211: F07f10-N-Ds-22
Max. Zul.Druck/Max Allowed Pressure: 8 Bar
Drehmoment Bei/Torque At: 5,5 Bar
Max Nm: 236
Betr.Temp: -40°C To +80°C
Zubehoranschluss/Accessory Connection: Aa2
Luftanschluß/Air Connection: G 1/4”
Iec 61508: Sil 3-Capable
90° Rotation-Asst
Model Nr: Acr1areaazzm252m20al
Alb-Modul Crouzet 83.139.1
Gehause/Housing Aluminium: 160x82x60
Mit M25x1.5 + M20x1.5 Sw.Ex E
Torque For Cover 1.5 To 2 Nm
496548
Z18230
P/N: 495905c2
Ip66/67
Un: 24v=
In: 360 Ma
Tamb: -40 To 80°C
496489
Cat No: 341n35
10 Bar
Orif: 7 Mm
482993e
Made In Italy
Designed In Switzerland
Weight : 10.010 Kg
Ref No : 190234
