Abb Hd4/W 12.12.32 Circuit-Breaker 12 Kv

Abb Hd4/W 12.12.32 Circuit-Breaker 12 Kv
Made By Abb
Ats Elettronica Srl
Circuit-Breaker
Hd4

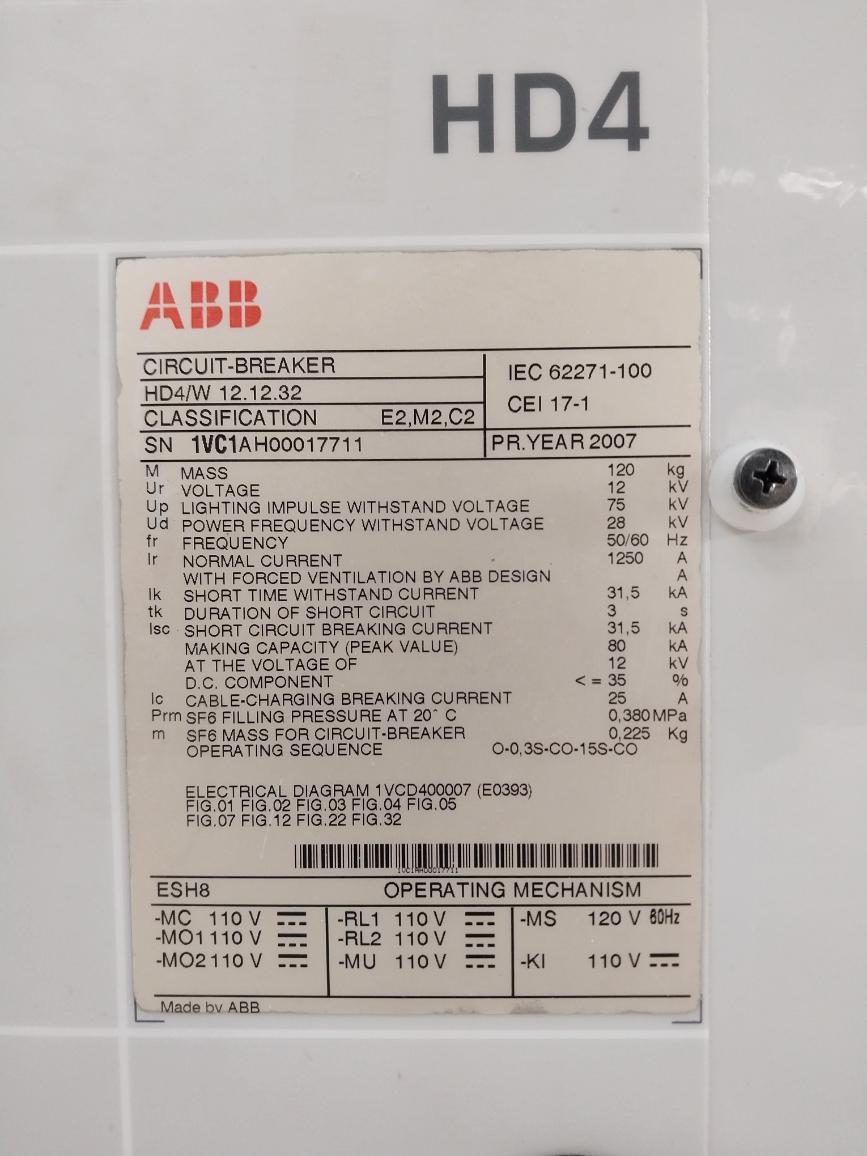

Hd4/W 12.12.32
Classification: E2, M2, C2
Iec 62271-100
Cei 17-1
Ur Voltage: 12 Kv
Up Lighting Impulse Withstand Voltage: 75 Kv
Ud Power Frequency Withstand Voltage: 28 Kv
Fr Frequency: 50/60 Hz
Ir Normal Current: 1250 A
Ik Short Time Withstand Current: 31.5 Ka
Tk Duration Of Short Circuit: 3 S
Isc:
Short Circuit Breaking Current: 31,5 Ka
Making Capacity (Peak Value): 80 Ka
At The Voltage Of: 12 Kv
D.C. Component: Less Than= 35 %
Ic Cable-Charging Breaking Current: 25 A
Prm Sf6 Filling Pressure At 20 C: 0,380 Mpa
Operating Sequence: O-0,3s-Co-15s-Co
Esh8
Operating Mechanism
-Mc/-Mo1/-Mo2/-Rl1/-Rl2/-Mu/-Ki 110 V—
-Ms 120 V 60hz
Sf6
200711760
Fas: 000000721089
02 04 06 08 10 12 14 20 22 30 33 36 34 40 42 44
507893802
00007328200702
1vc1wl648x01c
1vcr002948g0003
1vc115006735a04
C.S.003
5420057800300000
509155823
505481
506604801
00013095200701
00012853200701
00012031200701
1vcr006410
433033-831
Saar Cavi
Type: Y1
Ui: 380v~
Ith2: 16a
Weight : 114.600 Kg
Ref No : 190658
