Circuit-Breaker
Hd4
Hd4/W 12.12.32

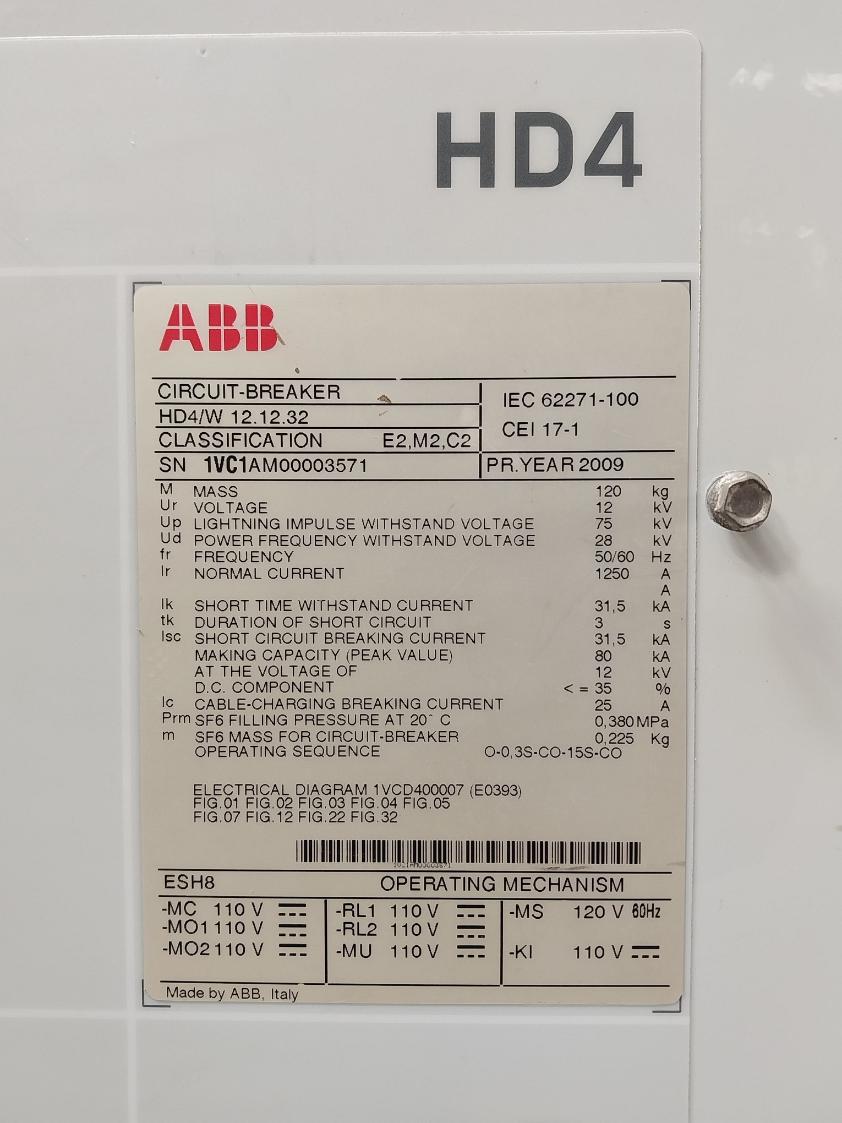

Classification: E2, M2, C2
Iec 62271-100
Cei 17-1
Ur Voltage: 12 Kv
Up Lightning Impulse Withstand Voltage: 75 Kv
Ud Power Frequency Withstand Voltage: 28 Kv
Fr Frequency: 50/60 Hz
Ir Normal Current: 1250 A
Ik Short Time Withstand Current: 31.5 Ka
Tk Duration Of Short Circuit: 3 S
Isc:
Short Circuit Breaking Current: 31,5 Ka
Making Capacity (Peak Value): 80 Ka
At The Voltage Of: 12 Kv
D.C. Component: Less Than= 35 %
Ic Cable-Charging Breaking Current: 25 A
Prm Sf6 Filling Pressure At 20 C: 0,380 Mpa
Operating Sequence: O-0,3s-Co-15s-Co
Esh8
Operating Mechanism
-Mc/-Mo1/-Mo2/-Rl1/-Rl2/-Mu/-Ki 110 V—
-Ms 120 V 60hz
Sf6
Sealed Pressure System
1vc1yf752x01c
1vc1y7579a01c
509155823
507893802
001230090205h8
200902731
Fas: 000003417860
02 04 07 12 14 20 22 30 33 36 34 40 42 44 45
506604801
002435090204af
002443090204af
002442090204af
1vcr006410
Cod/Code: 433033/831
Type: Y1
Ui: 380v~
Ith2: 16a
Italy
Weight : 114.600 Kg
Ref No : 190657
