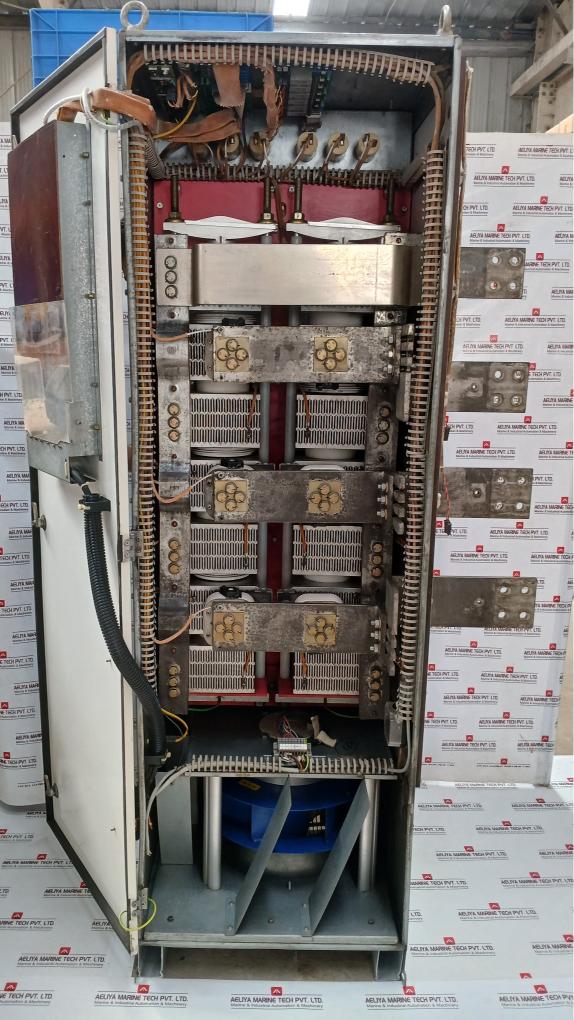

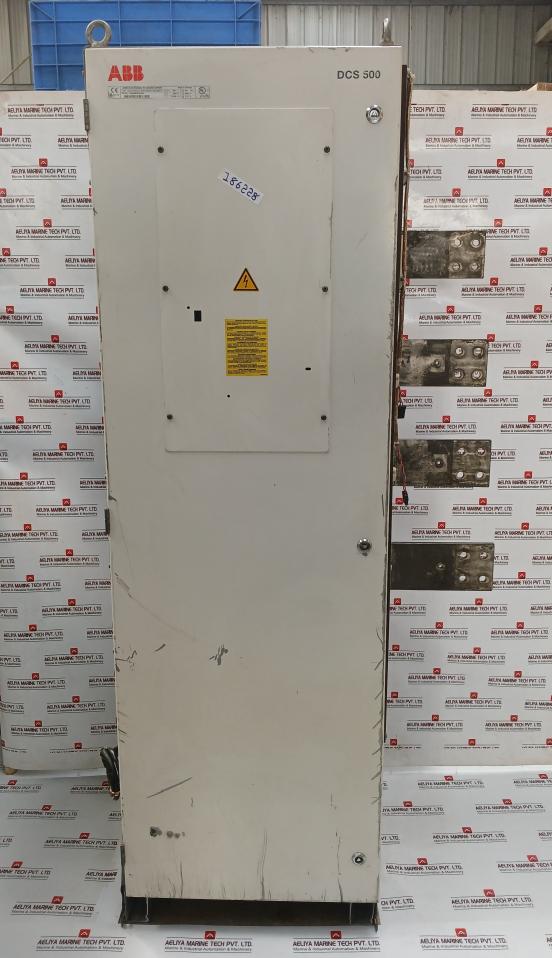

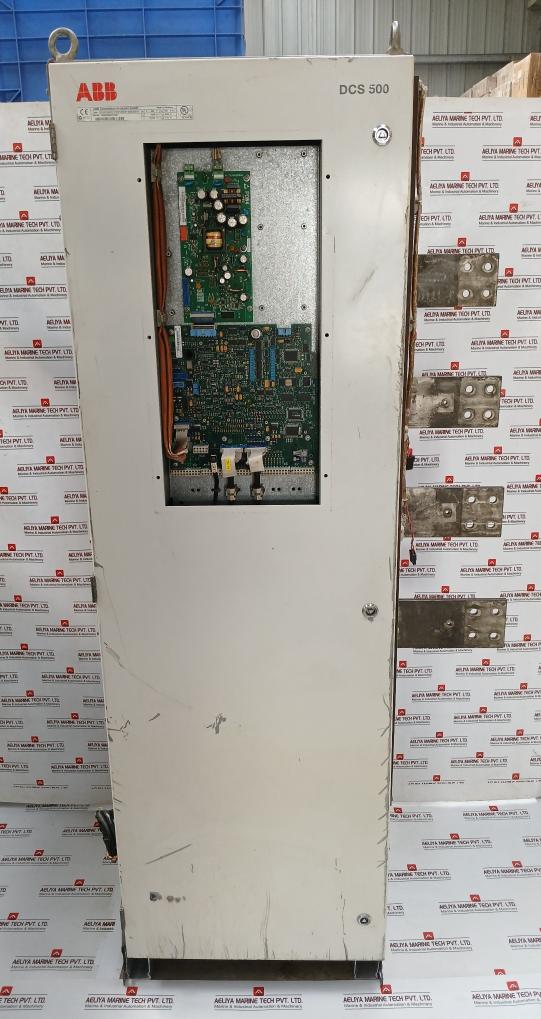

Abb Dcs 500 Power Converter For Dc Drive 400 V

Abb Dcs 500 Power Converter For Dc Drive 400 V
Abb Automation Products Gmbh
Johnson Controls
Ziehl-Abegg
Dcs 500
Type: Dcs501b5203-41r2100000-00c000010
U1: 3~ 400 V
I1: 4250 A
F1: 50/60 Hz
U2: 465 V D.C.
I2: 5200 A
I30: 5720 A
Type: Sdcs-Pow-4
Rev: D
3adt315100r1001
Type: Sdcs-Con-2a
Rev: L
3adt309600r0002
94v-0
3adt309611r6102/04
Type: Sdcs-Pin-51
Rev: G
3bse004940r1
Type: Cma-2
Rev: B
3adt220090r22
22009022 B 527 E025
Ip54
0 To 4 Mbar
Gr35c-2dk.6n.1r
131401e
3~400-500v +5/-10% D 50hz P1 2,2-2,9 Kw 55°C
3,9-6,5a 2850-2900/Min
3~400-500v ±10% D 60hz P1 3,3-3,6 Kw 70°C
5,2-4,9 A 3270-3380/Min
3~600v – 10% Y 60hz P1 3,1 Kw
3,3a 3180/Min Cosy 0,92 70°C
Ip 10 Thcl 155
30431689
E111399 Za-155
Mk 137-2dk.20.U
Iec60034-1
Made In Germany
Weight : 297 Kg
Ref No : 186228
