| Attribute | Value |
|---|---|

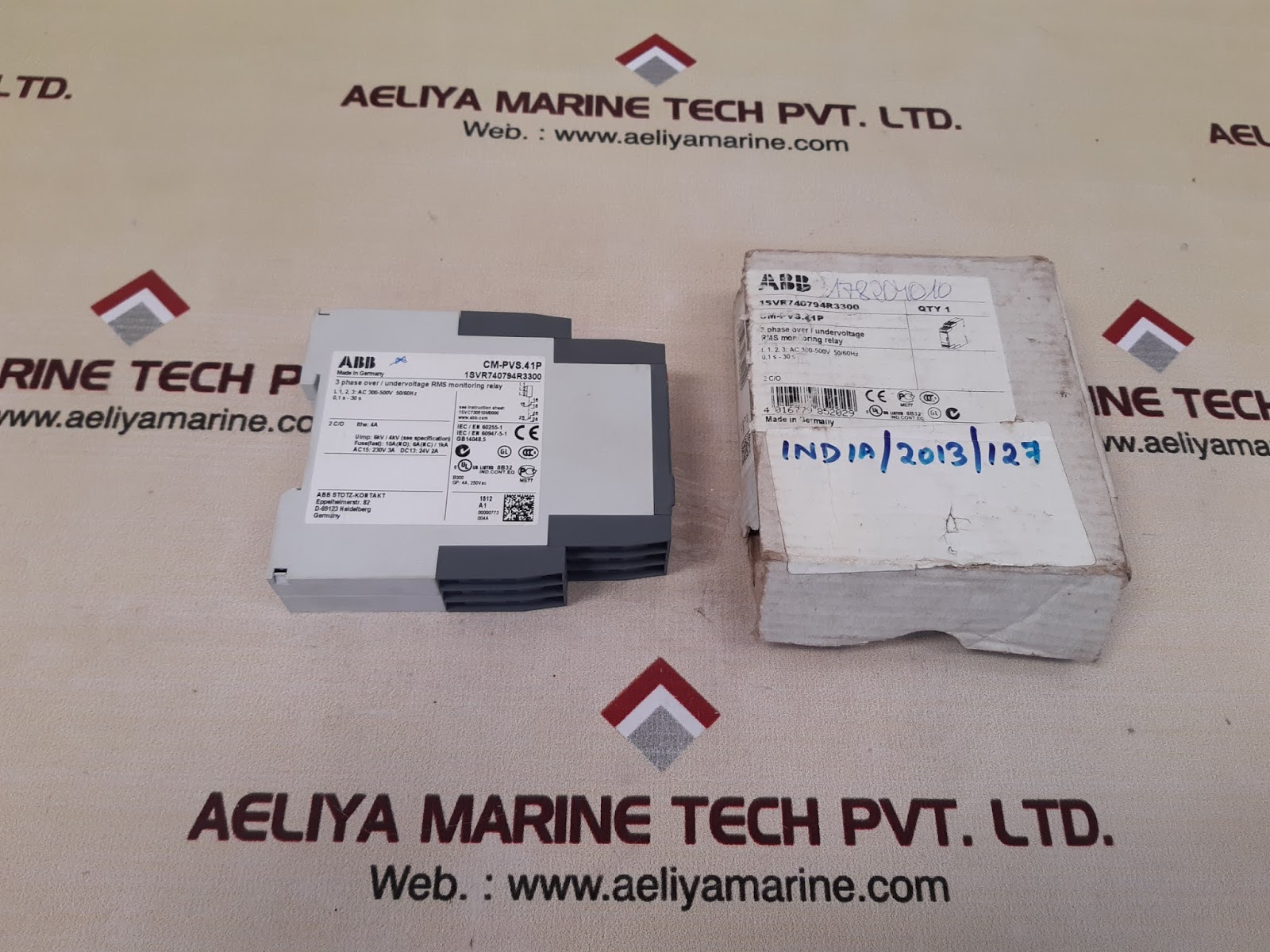

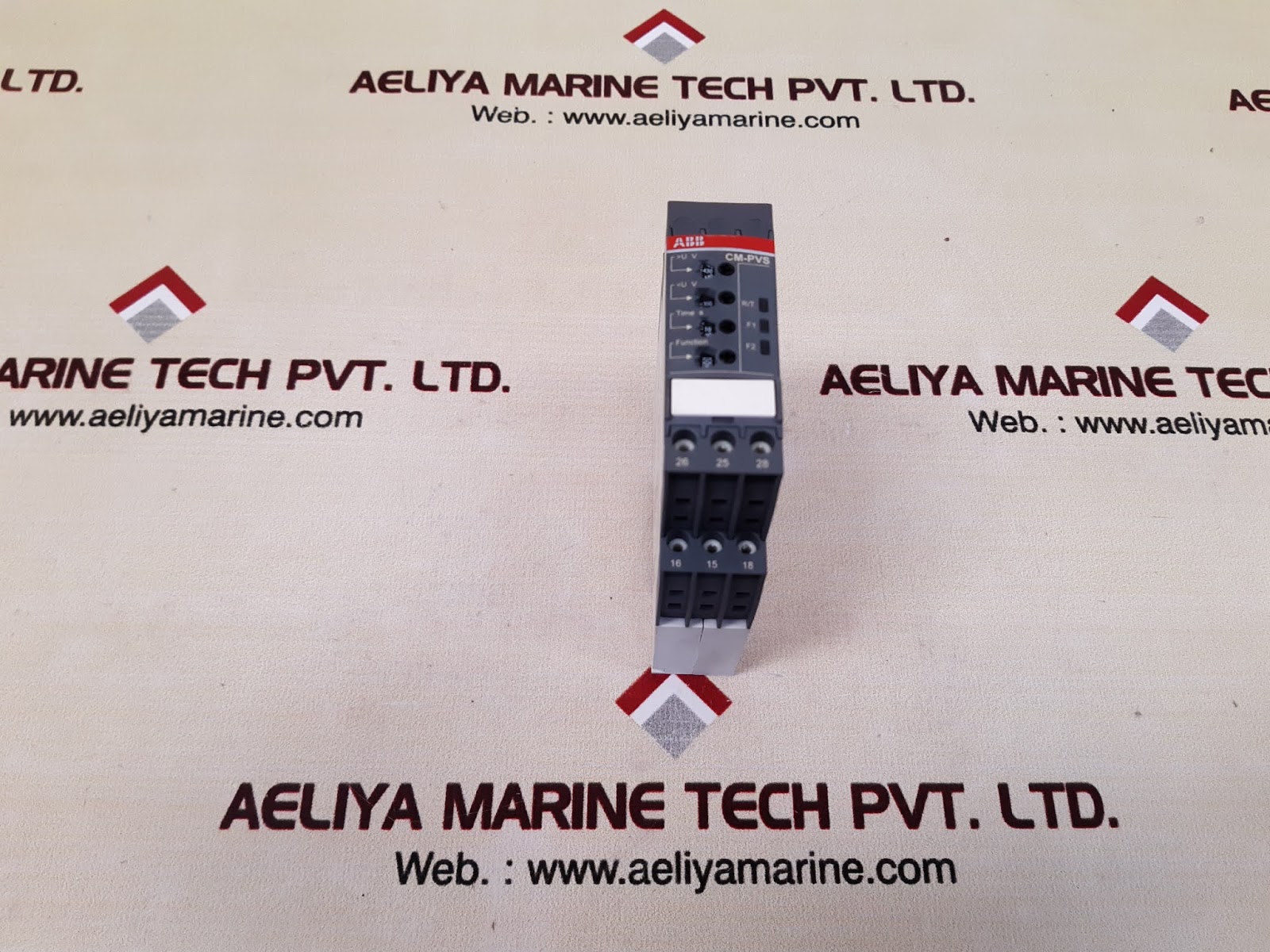

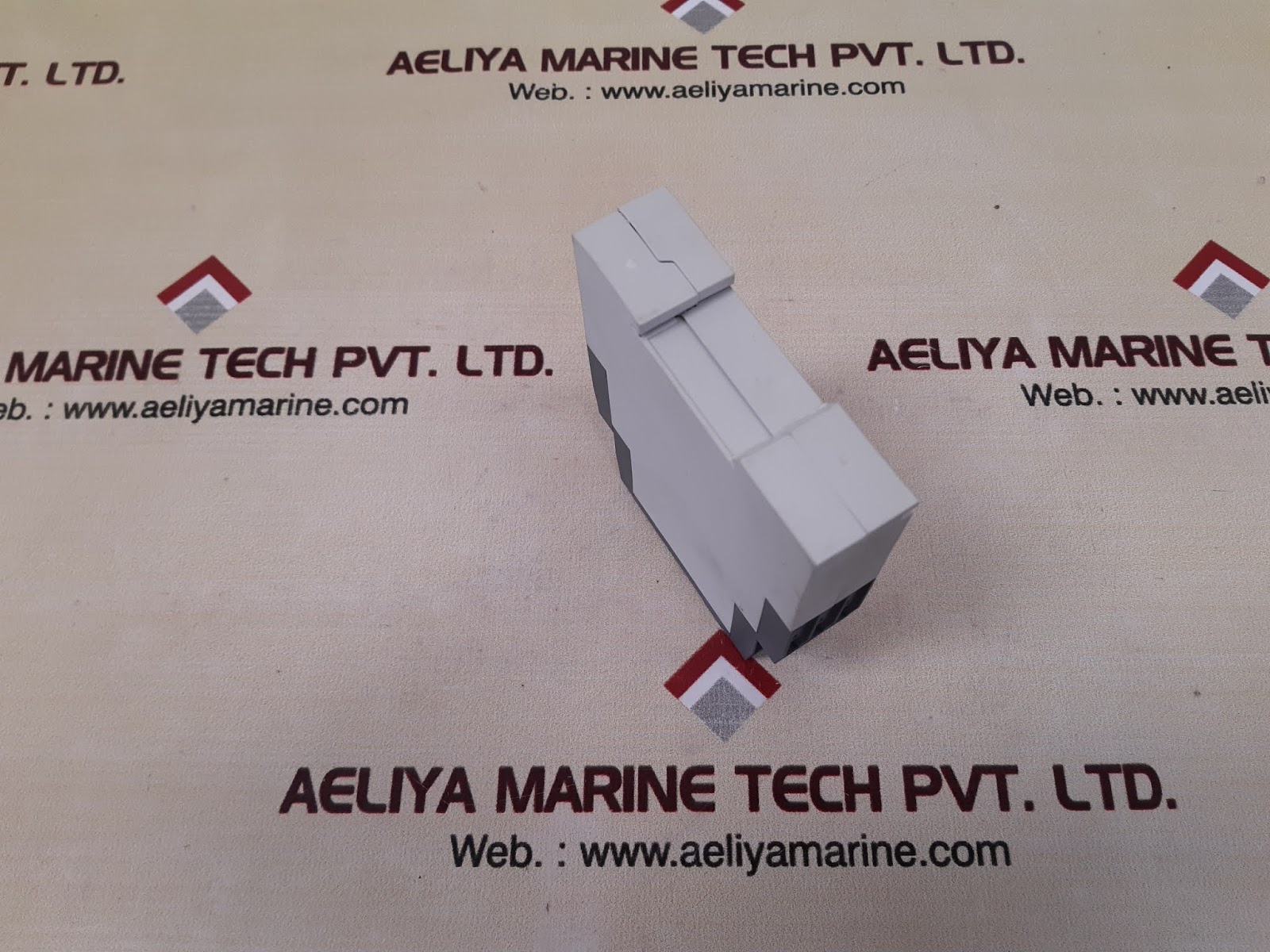

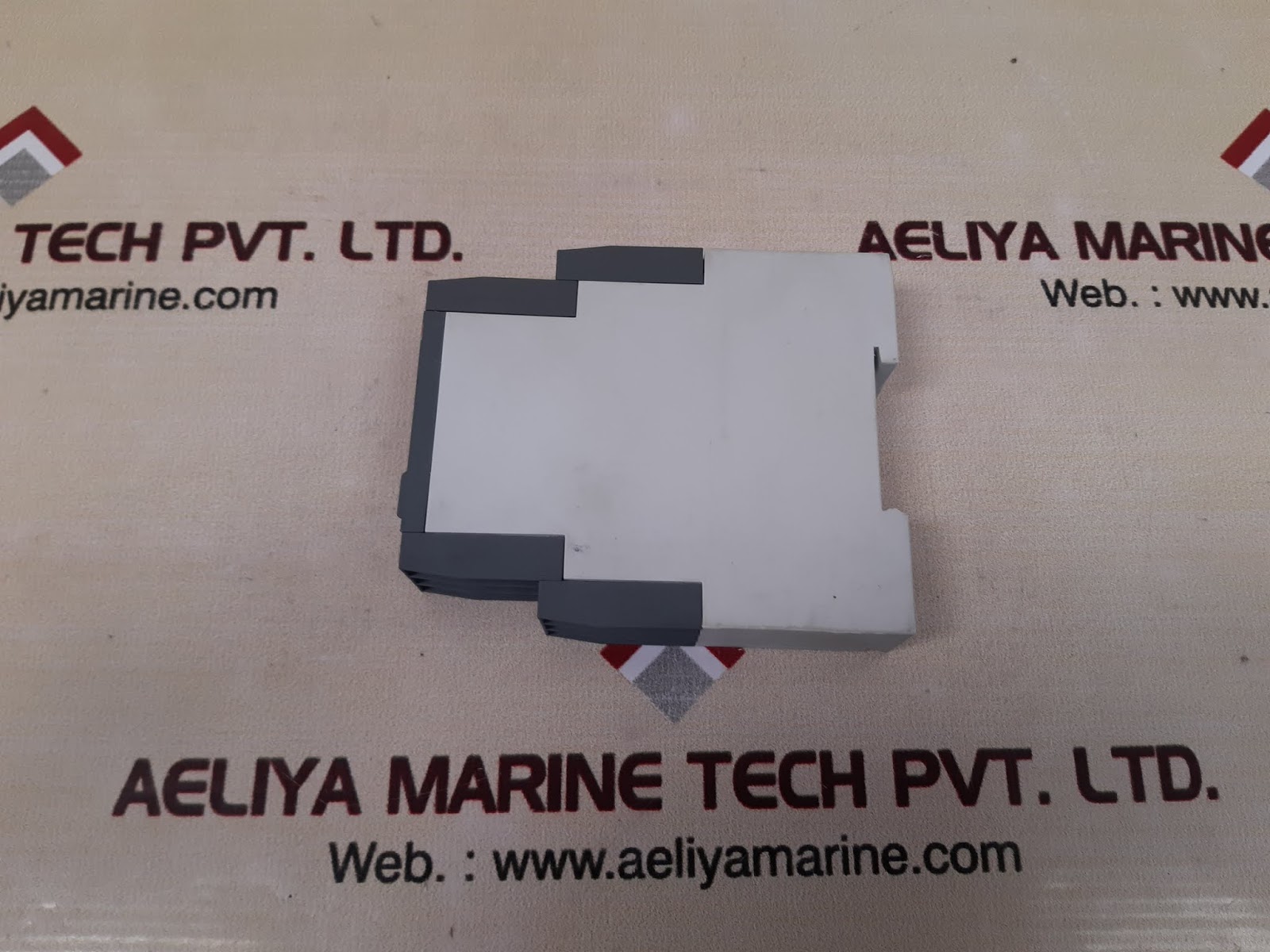

| Product Name | ABB CM-PVS.41P 3-phase Over/Undervoltage
Monitoring Relay |
| Brand | ABB Stotz Kontakt |
| Model | CM-PVS.41P |
| Part Number | 1SVR740794R3300 |
| Function | 3 Phase Over / Undervoltage RMS Monitoring Relay |
| Voltage Range | L1, L2, L3: AC 300-500V, 50/60Hz |
| Time Delay | 0.1s – 30s |
| Output Contacts | 2 C/O (SPDT), Ith: 4A |
| Impulse Withstand Voltage | Uimp: 6kV / 4kV |
| Fusing | Fast: 10A (NO); 6A (NC) / 1kA |
| AC-15 Rating | 230V 3A |
| DC-13 Rating | 24V 2A |
| Standards | IEC/EN 60255-1, IEC/EN 60947-5-1, GB14048.5 |
| Contact Rating | B300, GP: 4A, 250VAC |

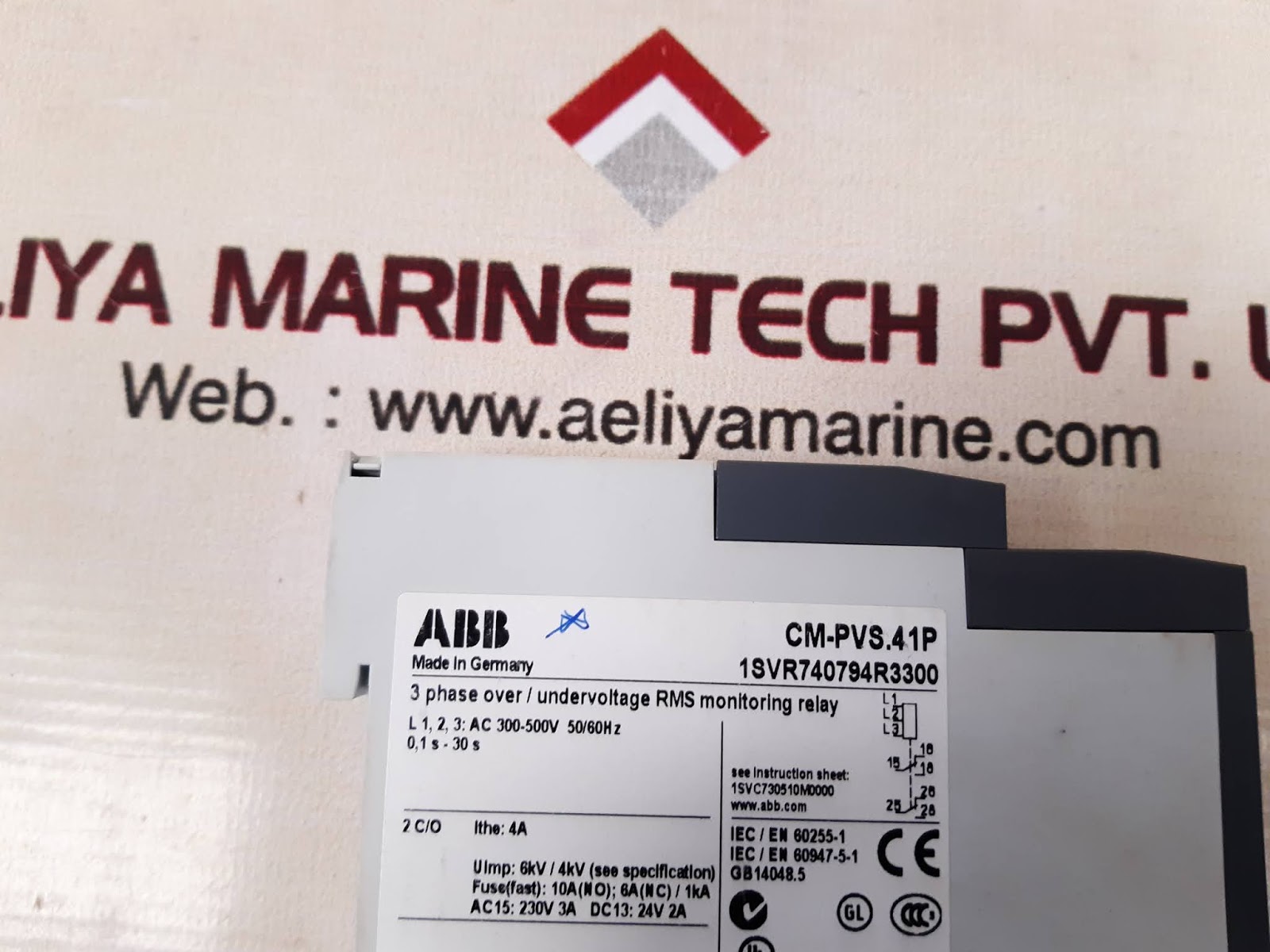

| Markings | 1512, A1, 00000773, 004A |
| Barcode | 4 016779 852029 |
| Country of Origin | Made in Germany |
| Weight | 150 gm |
What is the ABB CM-PVS.41P?
The ABB CM-PVS.41P (1SVR740794R3300) is a multi-function monitoring relay that senses abnormally high or low voltage conditions in three-phase systems. It safeguards against both undervoltage and overvoltage situations by isolating the system when voltage drops outside specified ranges. This makes it an essential component of any automated electric safety installation, particularly in industrial and commercial applications.
Main Features
Universal Voltage Monitoring: Detects undervoltage and overvoltage on three phases and neutral.
High Supply Voltage Range: Works from 160 to 300 VAC, ideal for multiple installations.
Adjustable Settings: Adjustable delay and threshold settings enable customization to match particular application requirements.
LED Indicators: Simple-to-understand LED status indicators give instant system diagnosis.
Space-Saving DIN-Rail Mounting: Convenient to mount in panels and electrical cabinets.
Technical Specifications at a Glance
Model: CM-PVS.41P
Part Number: 1SVR740794R3300
Voltage Range: 160–300 VAC (supply); 3-phase voltage monitors
Measuring Ranges: Over and undervoltage limits adjustable
Delay Time: Adjustable delay for fault recognition and reset
Output Contacts: 2 c/o (change-over) contacts
Mounting Type: DIN rail (35 mm)
Operating Temperature: -25°C to +60°C
Compliance: EN/IEC standards for industrial application
Applications of ABB CM-PVS.41P
The relay is commonly applied in various industries because of its heavy-duty design and accurate monitoring. Some of the key applications are:
Industrial Automation: Shields machines and PLCs against voltage fluctuations.
Building Automation: Provides stable power distribution in large commercial buildings.
Renewable Energy Systems: Shields sensitive components in solar and wind installations.
HVAC Systems: Saves expensive damage from electrical faults in heating and cooling systems.
Why Select ABB CM-PVS.41P?
ABB is a world-renowned brand recognized for its innovative electrical components. The CM-PVS.41P provides unparalleled precision and reliability. Here’s why it’s the best choice:
Durability: Designed for non-stop operation under demanding conditions.
Flexibility: Suitable for new installations or to upgrade existing systems.
Ease of Use: Tool-free wiring and simple parameter configuration.
Safety Compliance: Compliant with international electrical protection standards.
