| Attribute | Value |
|---|---|

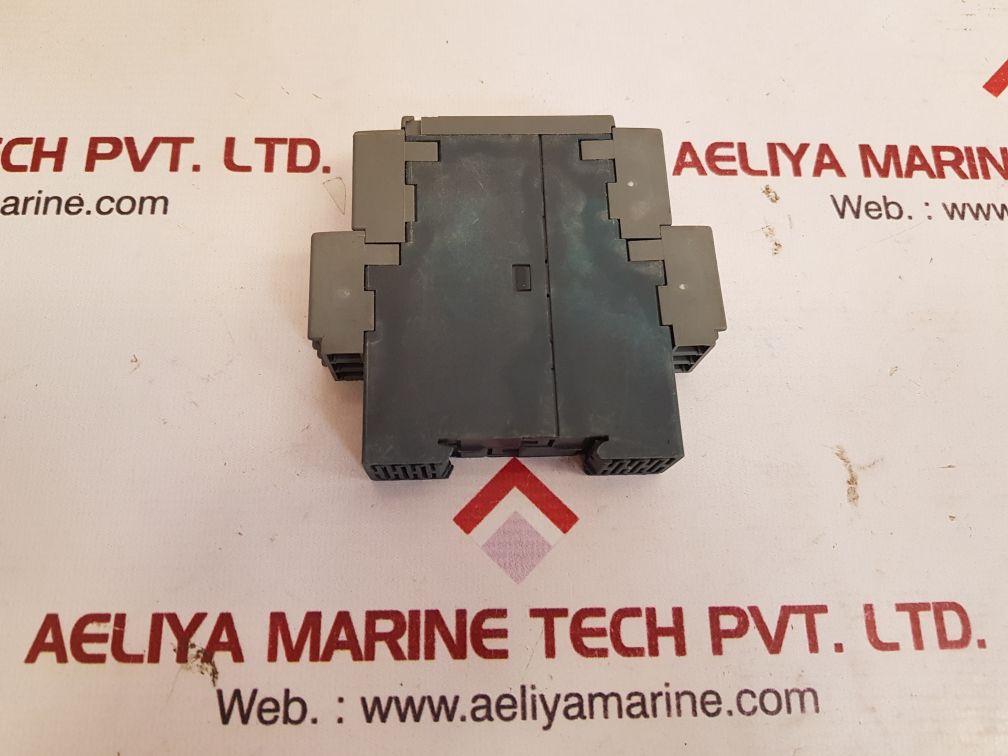

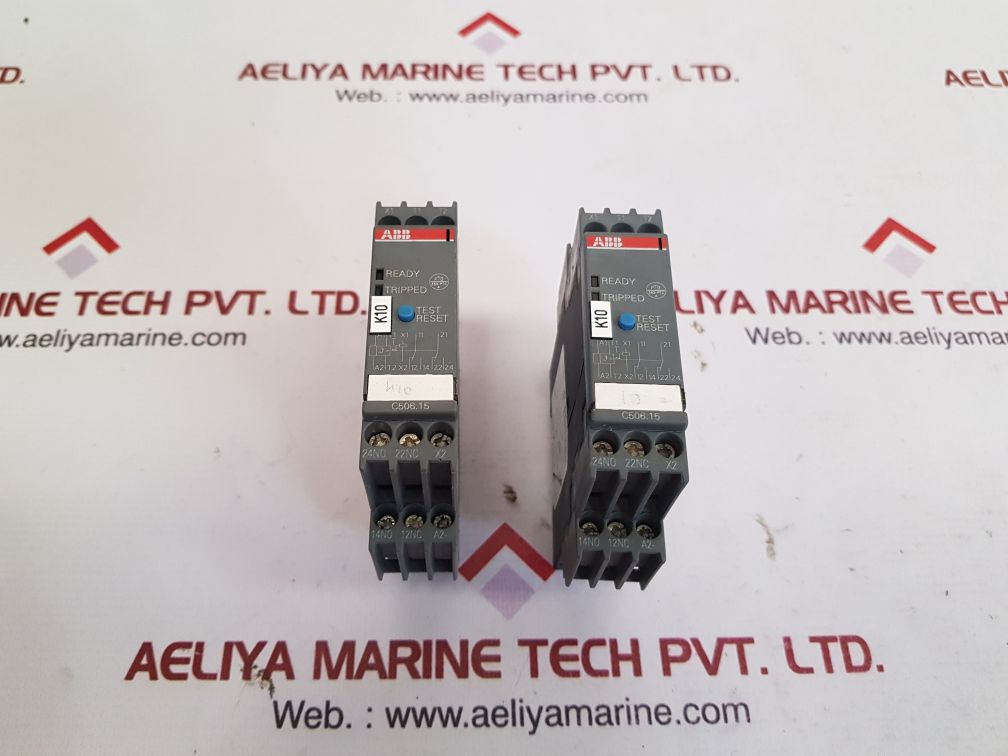

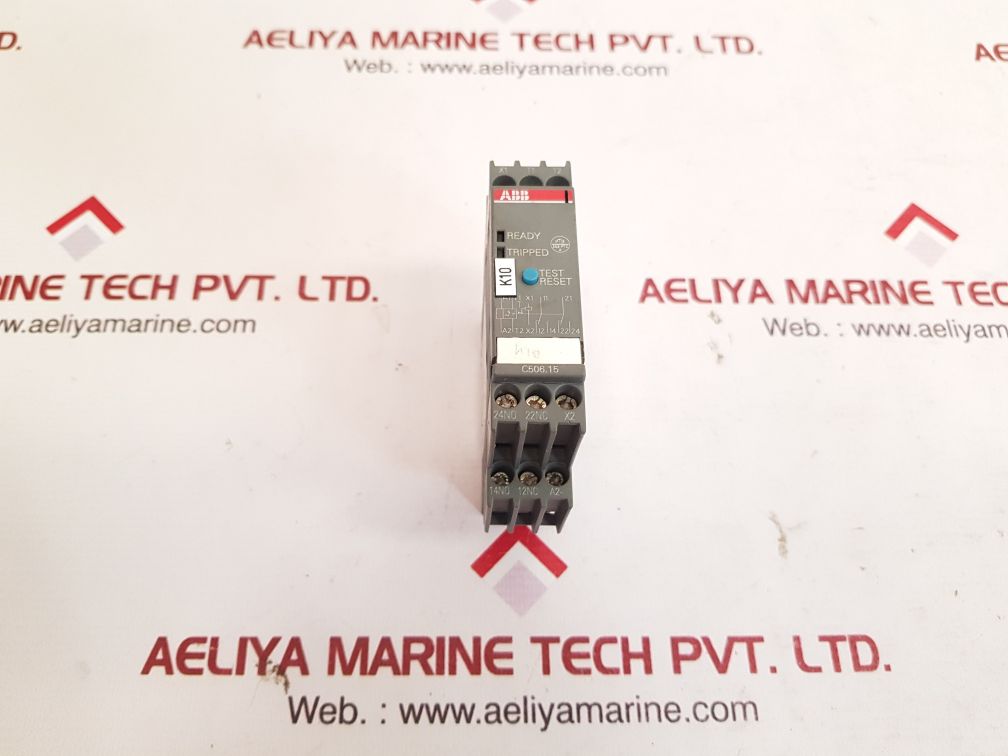

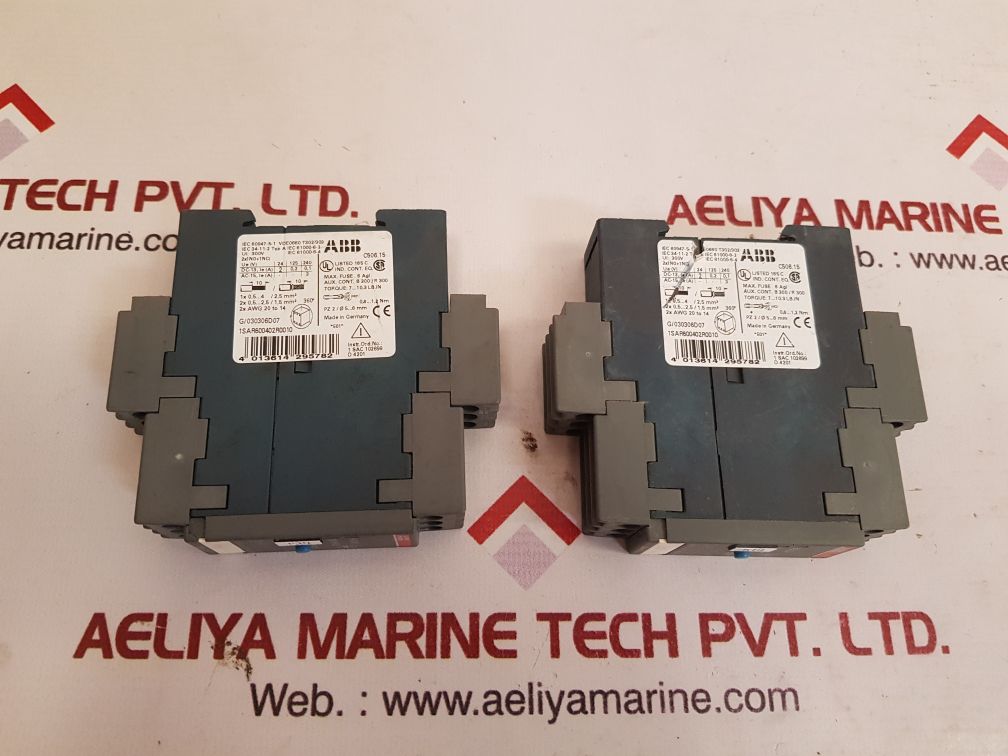

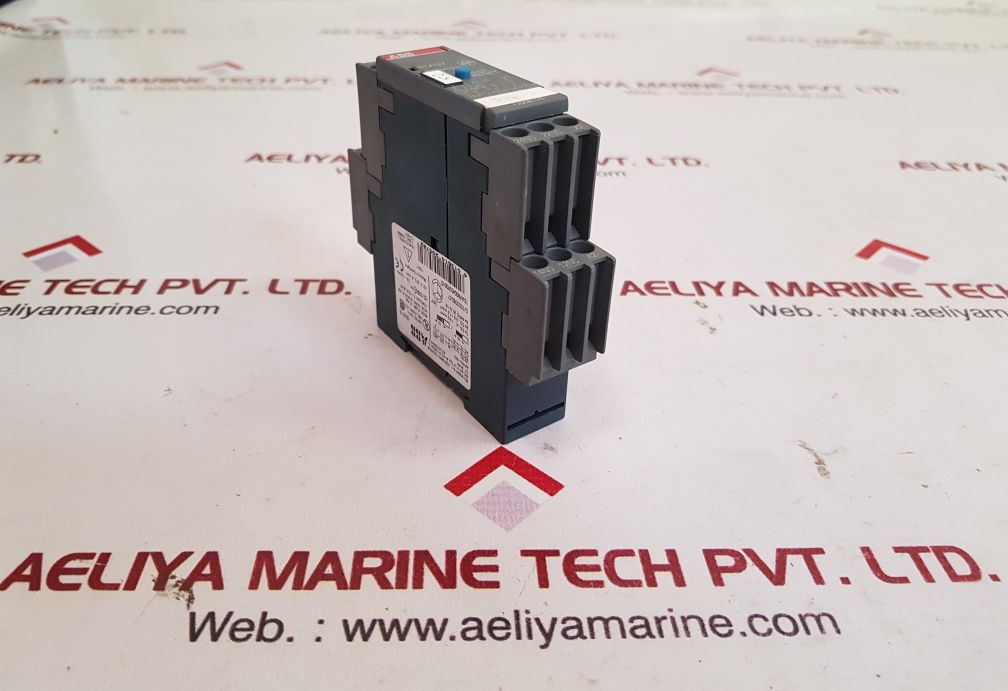

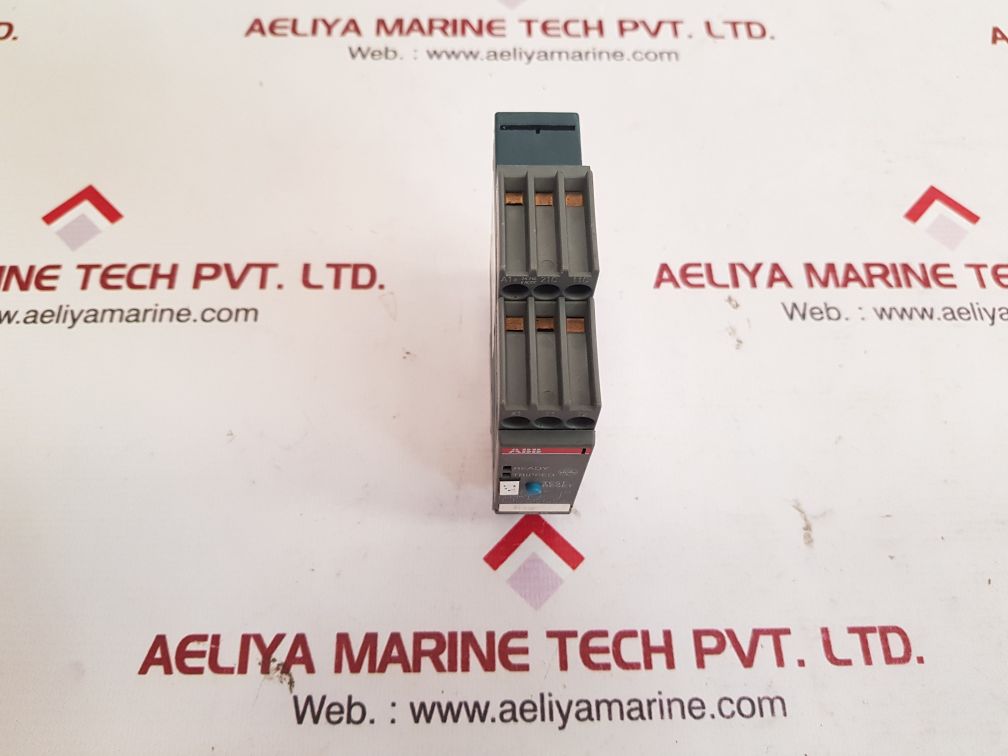

| Product Name | Abb C506.15 Safety Relay 1Sar600402R0010 300V |
| Brand | Abb |
| Model | C506.15 |

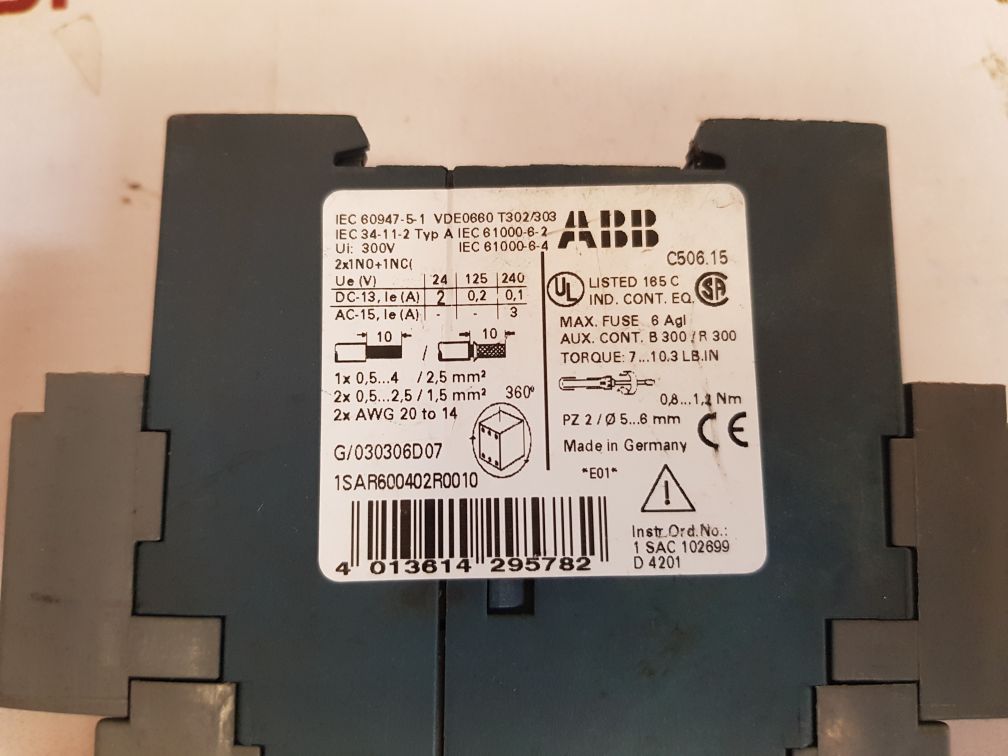

| Standards | Iec 60947-5-1 Vde0660 T302/303 |
| Additional Standards | Iec 34-11-2 Typ A Iec 61000-6-2 |
| Rated Insulation Voltage (Ui) | 300V Iec 61000-6-4 |
| Contacts | 2X1No+1Nc |
| Code | G/030306D07 |
| Part Number | 1Sar600402R0010 |
| Max Fuse | 6 Agl |
| Aux. Contact Rating | B300/R300 |
| Torque | 7…10,3 Lb.In |
| Marking | *E01* |
| Barcode | 4 013614 295782 |
| Code (Alt.) | K10 |
| Country of Origin | Made In Germany |
| Weight | 140 Gm |
What Is a Safety Relay and Why Is It Important?
Safety relays are essential for fault detection or unsafe condition detection in machinery and for initiating quick shutdown or corrective action to avoid accidents. In contrast to regular relays, safety relays are designed with redundancy and fail-safe capabilities to meet global safety standards (such as EN ISO 13849 and IEC 62061).
ABB’s C506.15 relay falls in the class of products that value human and machine protection with reduced downtime and risk to operations.
ABB C506.15 (1SAR600402R0010) in Brief
Following are some of the most prominent specifications and characteristics:
Product Name: ABB C506.15 Safety Relay
Part Number: 1SAR600402R0010
Voltage Rating: 300V
Function: Safety control and monitoring
Application Area: Industrial process control, machinery, and automation
Standards Compliance: Complies with international safety standards
This safety relay is constructed with high accuracy, providing consistent and reactive operation in key safety circuits.
Features and Benefits
High Safety Integrity:
As it has a capacity of 300V, ABB C506.15 is constructed to handle high-voltage systems without compromise on strict safety functions. The relay caters to SIL and PL-rated applications, with provision for full support of safety legislations.
Reliability and Longevity
The relay is housed in a strong case with superior resistance to shock, vibration, and temperature conditions. This makes it long-lasting and reduces replacement cycles.
Fail-Safe Design:
In case of a fault, the safety relay reverts to a safe condition. This makes catastrophic failure or injury much less likely.
Compact Form Factor:
It’s optimized to conserve space in control panels, which is particularly critical in today’s compact industrial environments.
Easy Installation and Maintenance:
With easily identifiable terminals and an intuitive setup, installation is trouble-free. Maintenance is kept to a minimum, and diagnostics are made easier with indicator LEDs.
Applications
The ABB C506.15 Safety Relay is used in a variety of industries and systems:
Machine Safety Systems – emergency stop circuits, safety doors, and light curtains
Industrial Automation – conveyors, robotic arms, CNC machines
Energy and Utilities – electrical panels, switchgear safety monitoring
Chemical and Processing Plants – safely managing dangerous operations
Material Handling Systems – computerized warehouses and lift systems
Its excellent performance in tough environments makes it an ideal solution for use in situations where safety cannot be compromised.
Why Select ABB for Safety Solutions?
ABB is a worldwide leader in automation and power technology. Their solutions are relied on globally for innovation, reliability, and compliance with safety standards. When you select a safety relay such as the C506.15, you’re not buying just a device—you’re gaining peace of mind, supported by ABB’s experience and engineering expertise.
