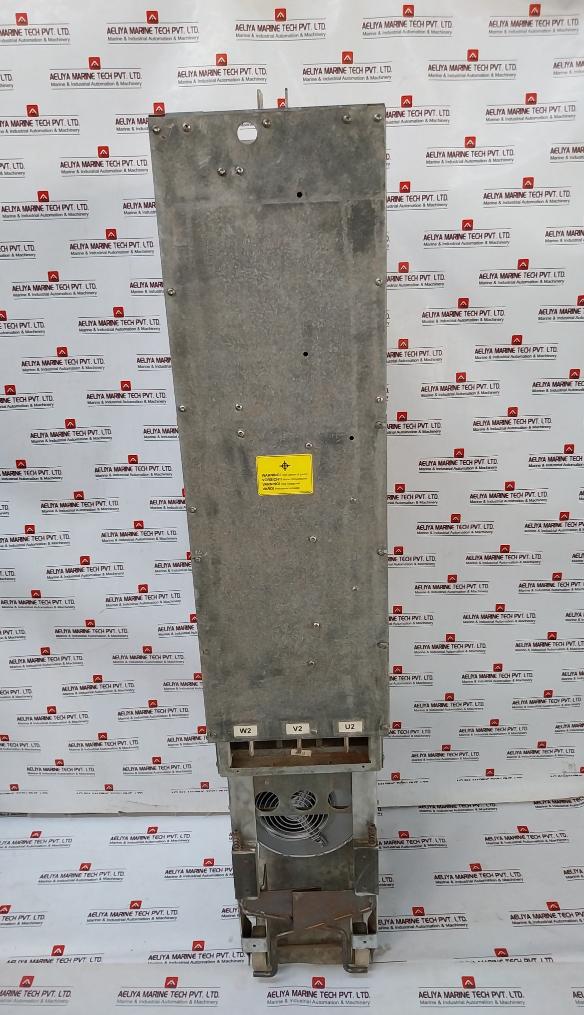

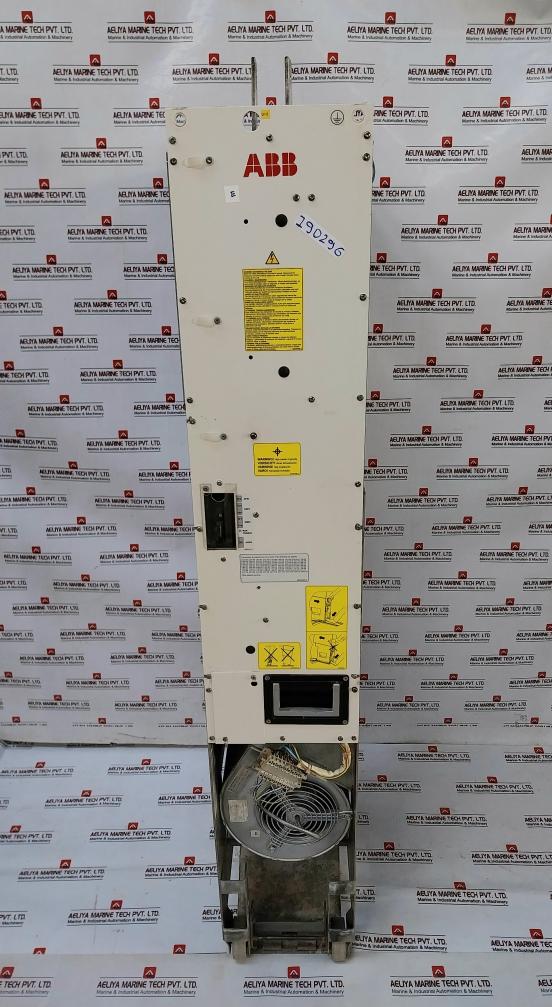

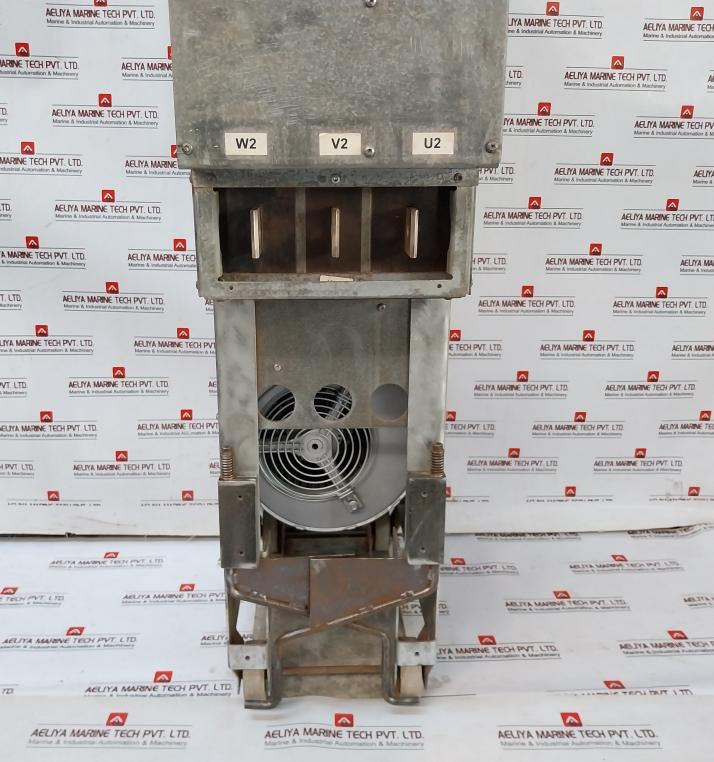

Abb Acs800-104-0580-7+E205+V991 Inverter Drive Module 976 V

Abb Acs800-104-0580-7+E205+V991 Inverter Drive Module 976 V
Abb Oy
Ebmpapst
Epcos
Ebg
Mcb
Acs800-104-0580-7+E205+V991
Code: 68685192
Inverter
Input: U 709…976 (848 Ul, Csa) Vdc
I 583 Adc
Output: U 3~ 0…690 (600 Ul, Csa) V
I 486 A
F 0…300 Hz
Line Converter
Input: U 3~525…690 (600 Ul, Csa) V
I 400 A
F 48…63 Hz
Output: U 742…976 (848 Ul, Csa) Vdc
I 485 Adc
Brake Chopper
Input: U 709…976 (848 Ul, Csa) Vdc
I 1171 Adc
Output: U 3x 0…976 (848 Ul, Csa) Vdc
I 3x 465 Adc
Ip00, Ul Open Type
48175

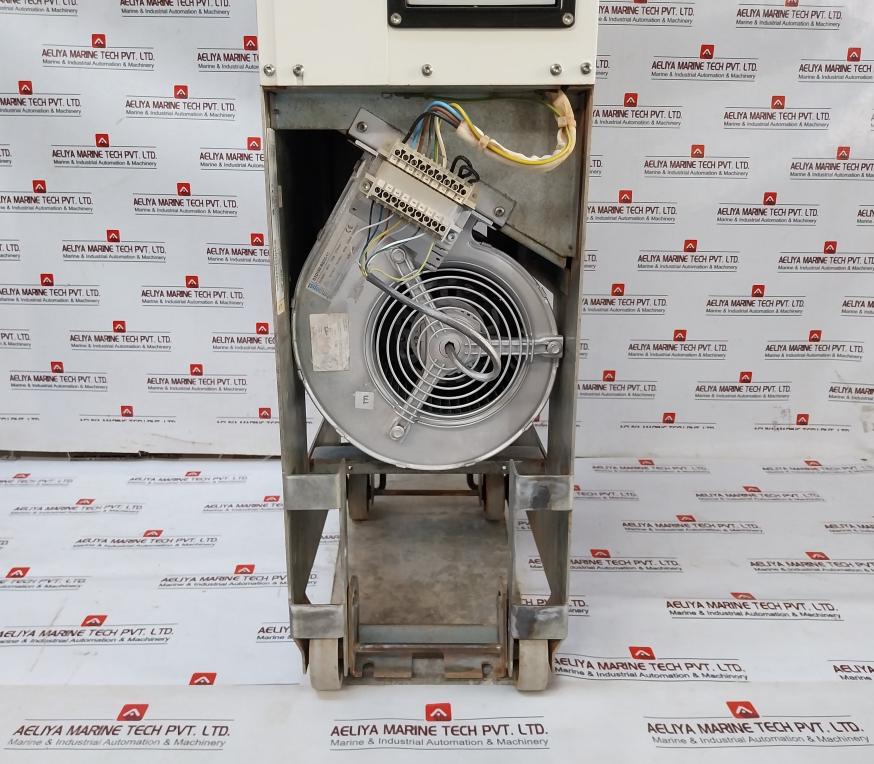

D2d160-Be02-11
230/400v~ 50hz 700w 2700min-1
*M2d074
230/400v~ 60hz 1055w 3000min-1
Ins.Ci.F
58978396 C
64791745 C
68654963 B
64703927 B
64785842b
64810901b
68908574b 1/2
68909058
Type: Atmb-01c
Rev: B
68295505 B 1/2
Code: 68295459b
Type: Aofc-02
Mod. Depose
Rcec 750
5 Ohm 5%
644 093
Vhp/6
3x8kgg
95610 Lf
64702220 C
B6-30-10
Code: 68436770a
Type: Agdr-71c
68685826
Type: Aint-14c
Rev: D
64493647d 1/2
Code: 64605666b
Type: Apow-01c
B43586-S3468-Q1
4600 µF (Q)
385 V-
25/085/56
05.09 S
B32656-S1474-K500
0.47 µF K
1500 V-
Mkp
X6
64702238 D
Made In Finland
Made In Germany
Weight : 133 Kg
Ref No : 190296
