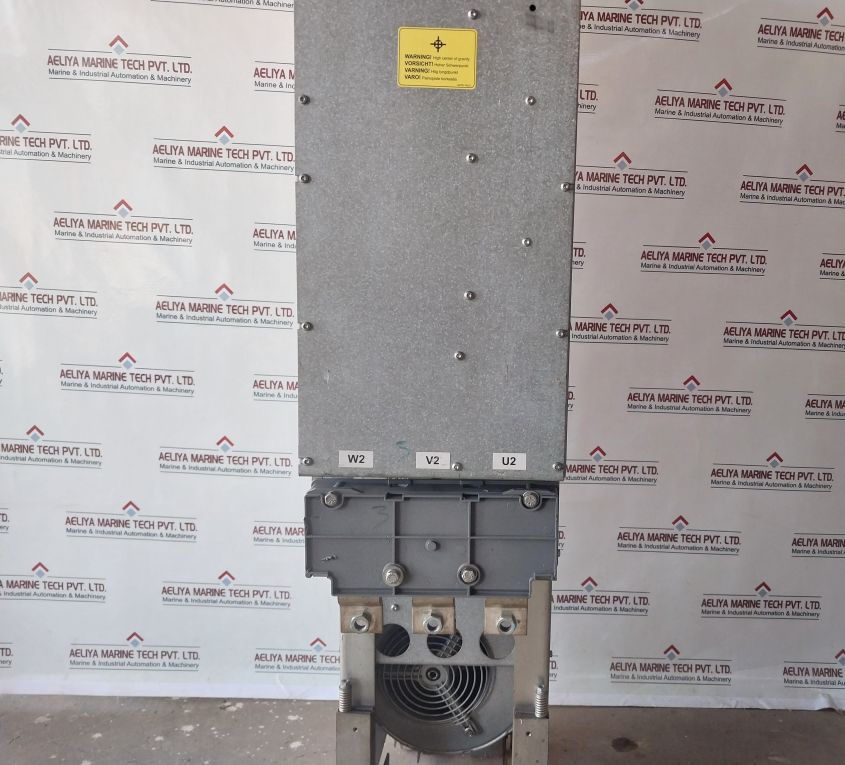

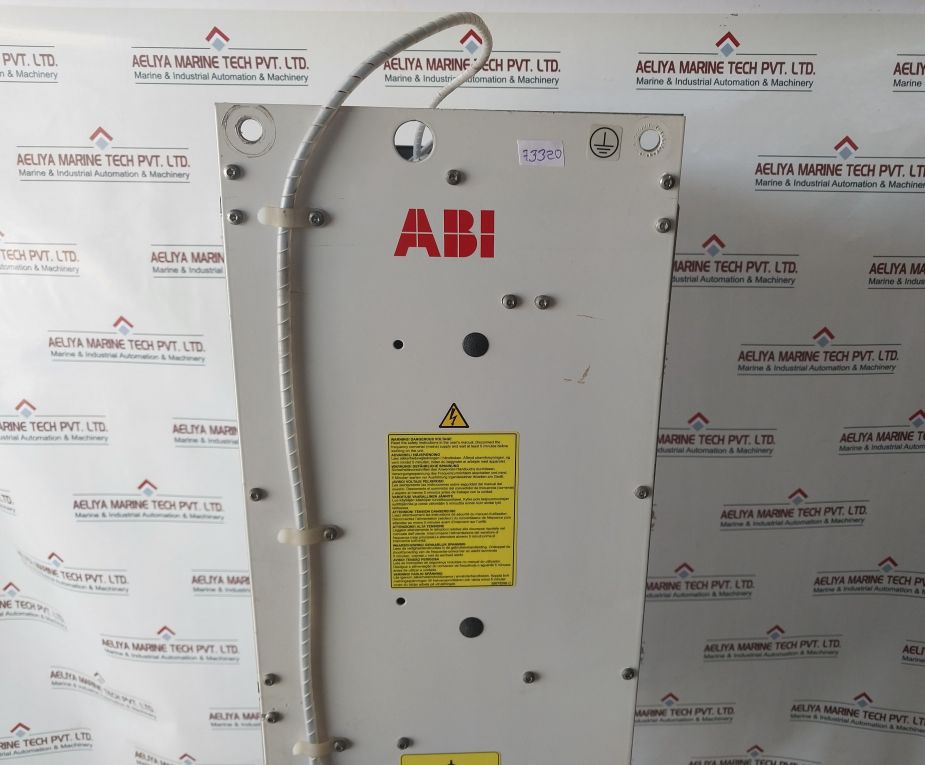

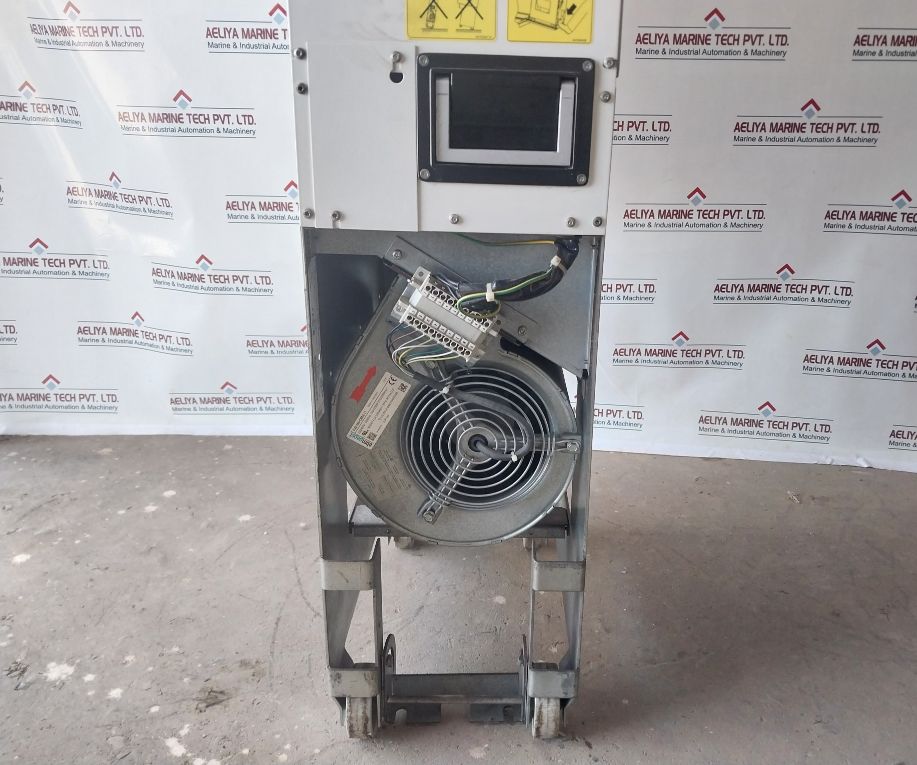

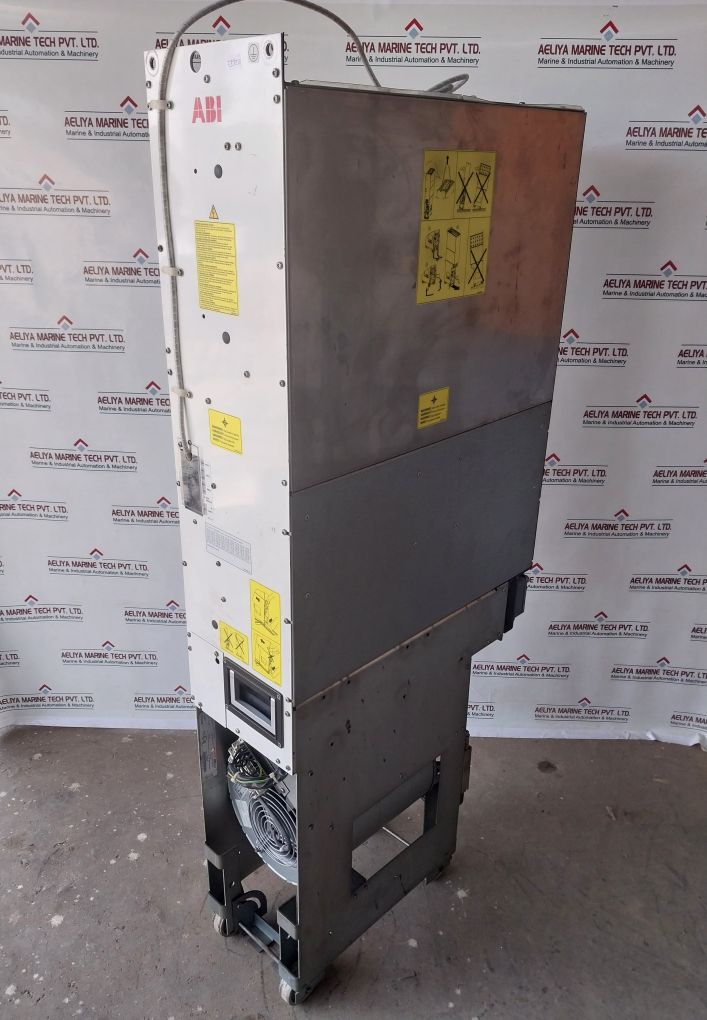

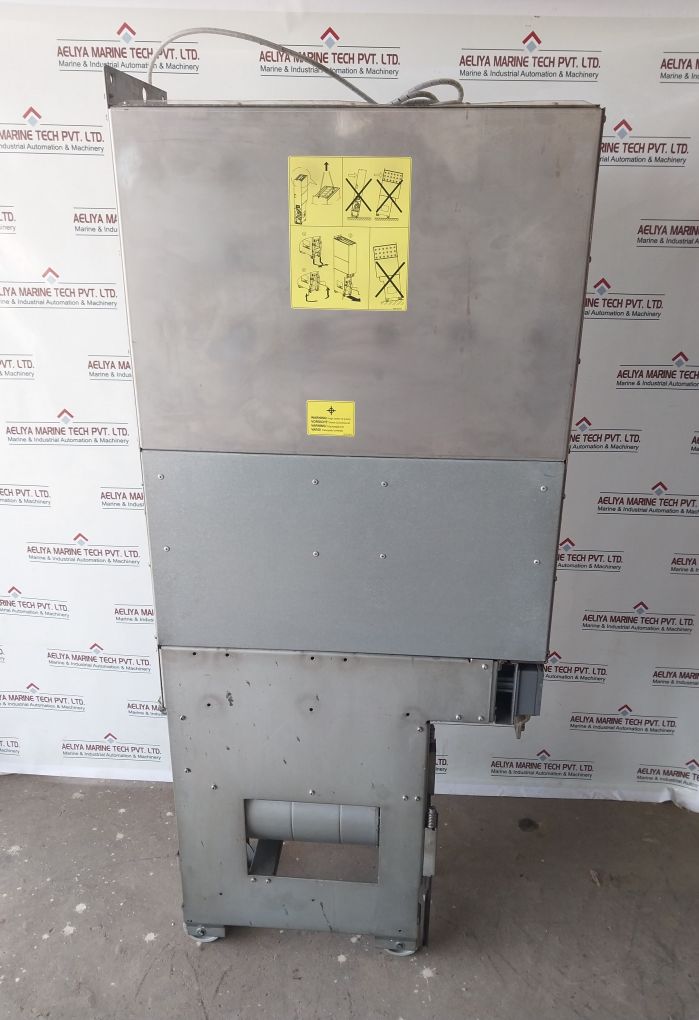

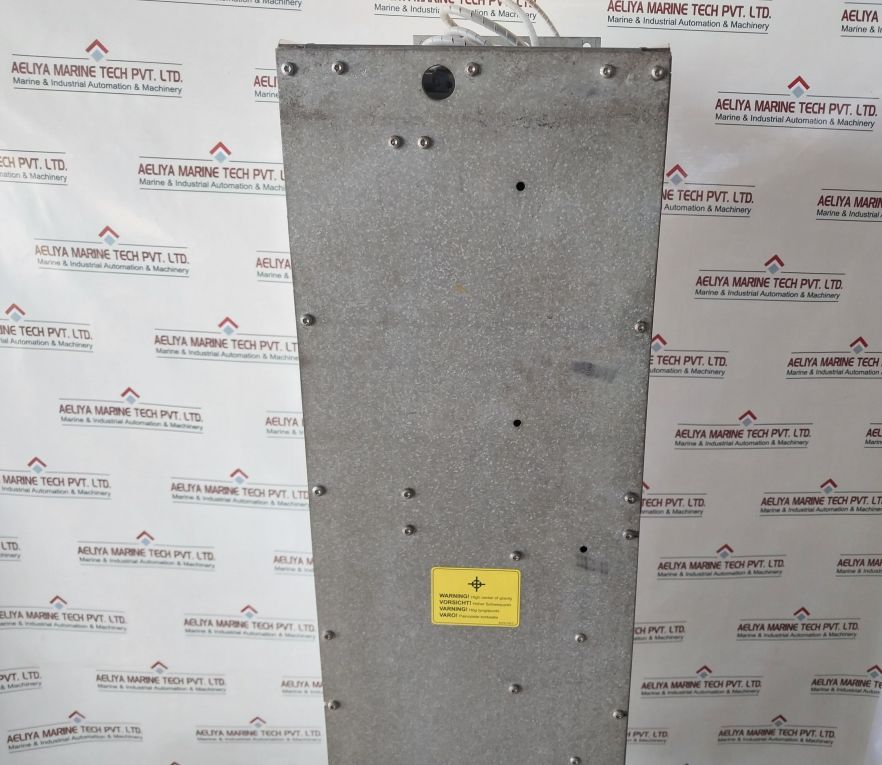

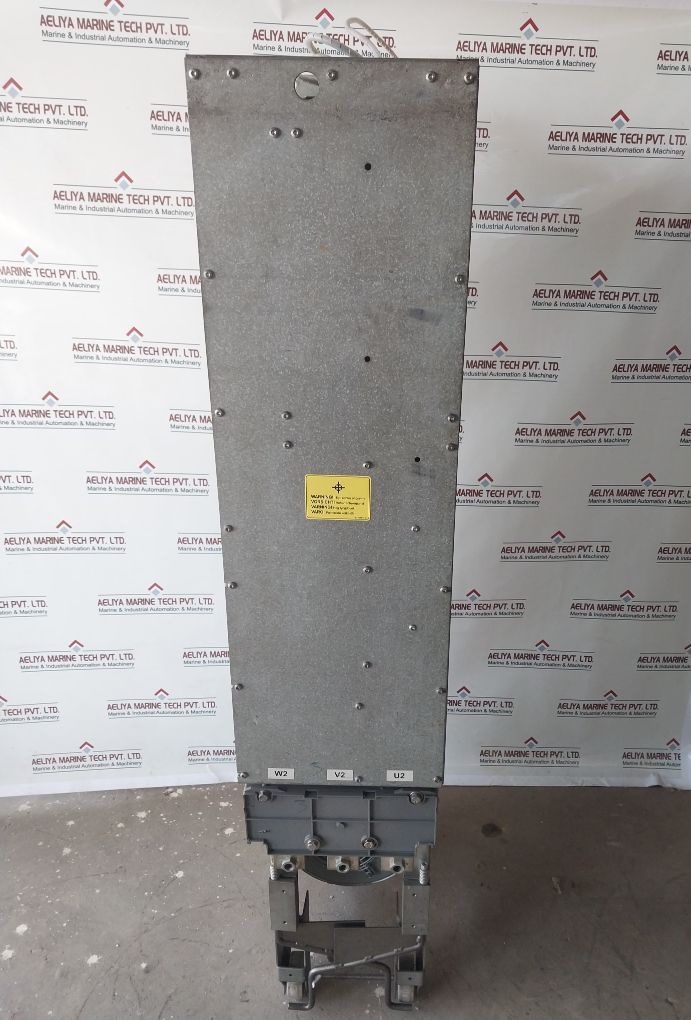

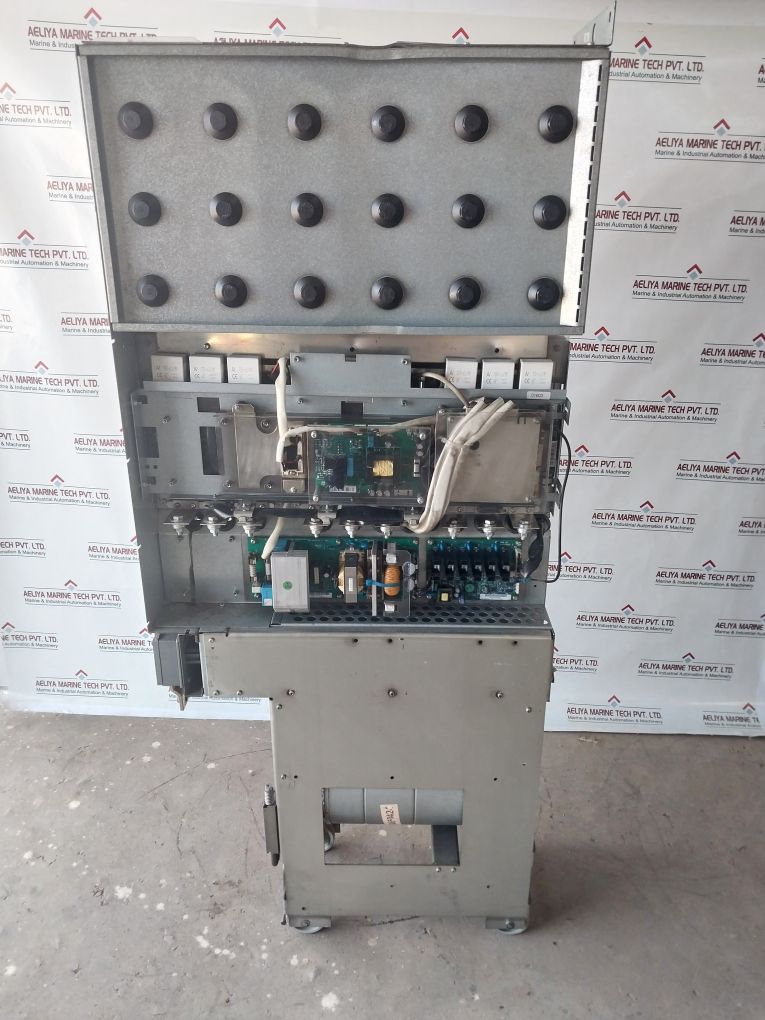

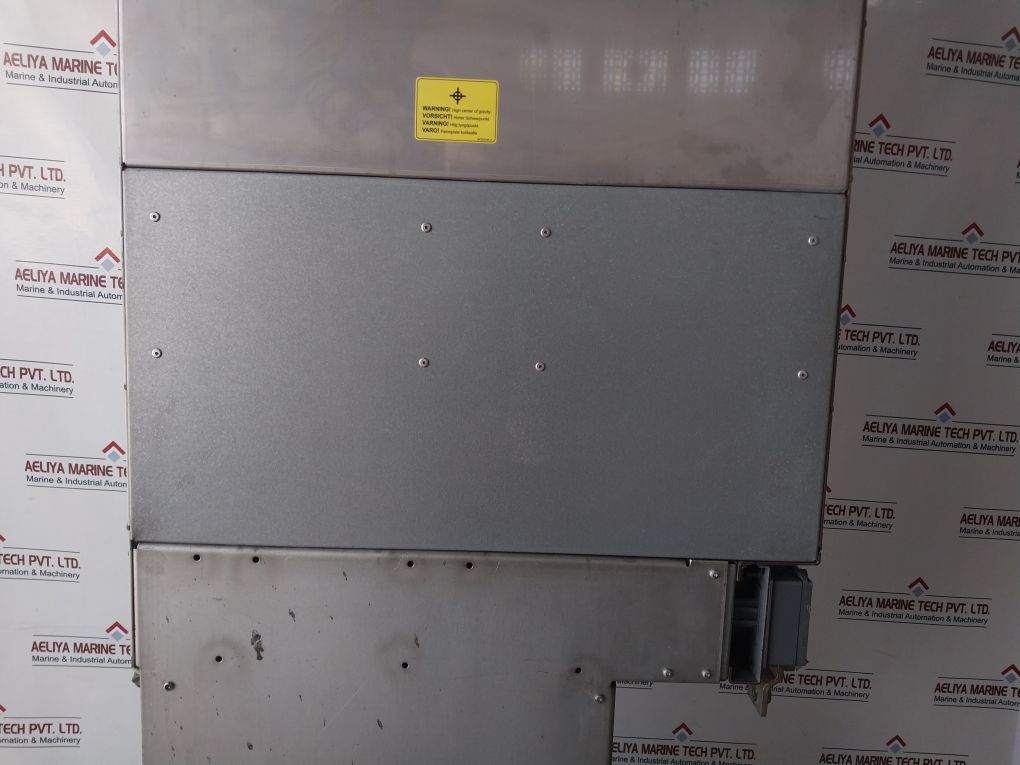

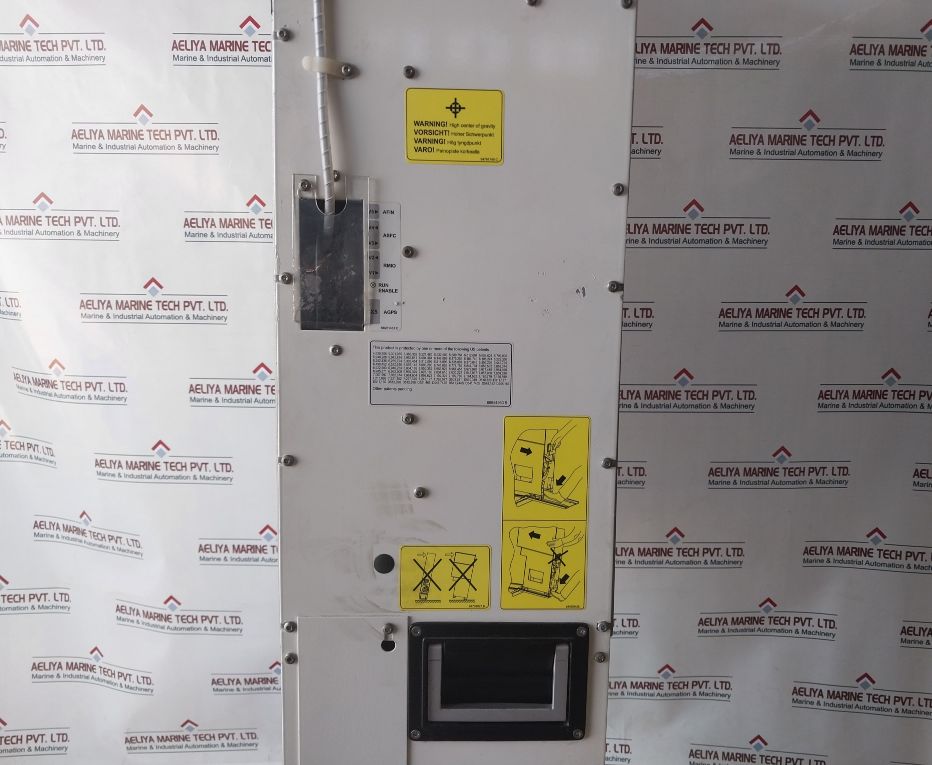

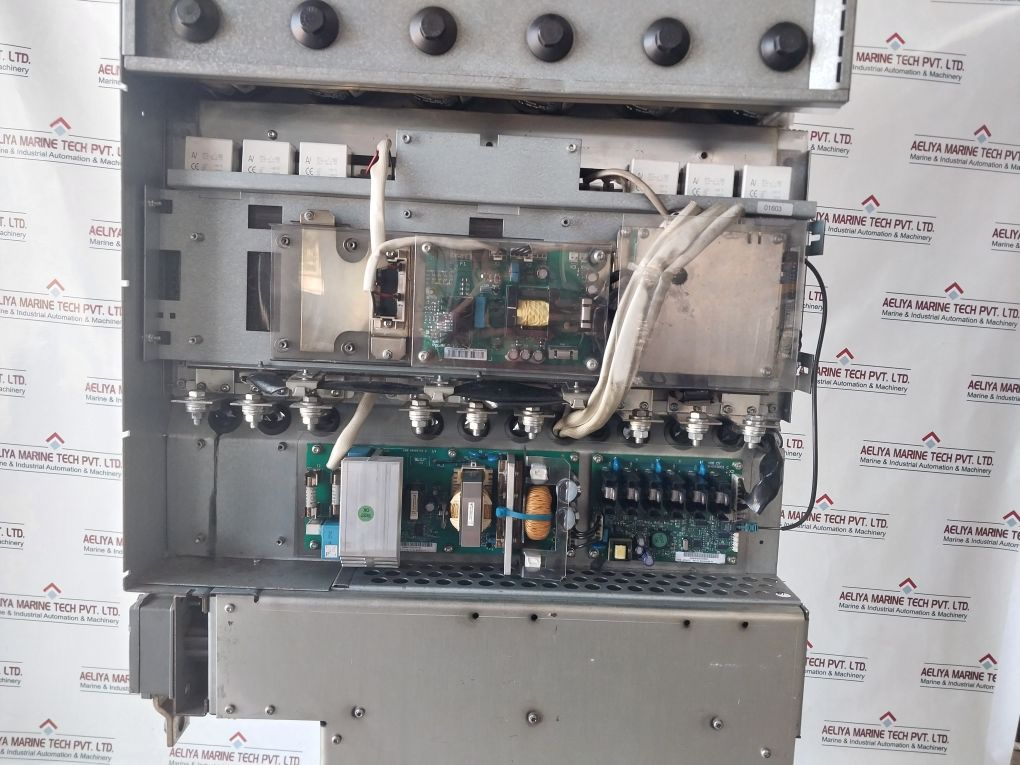

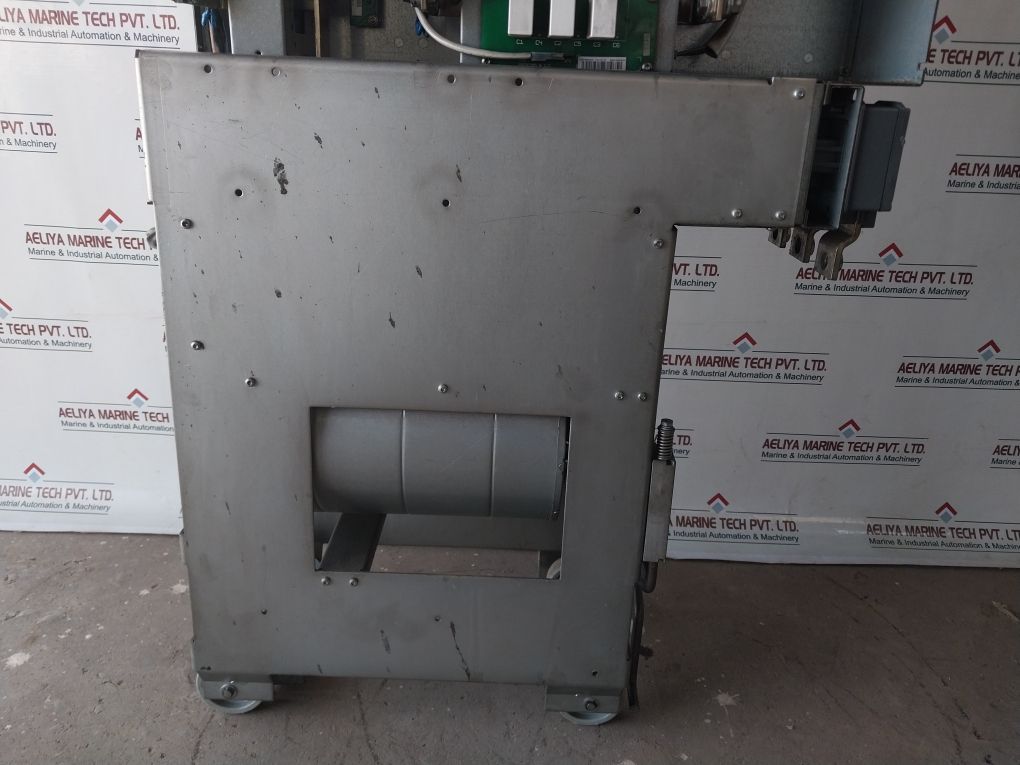

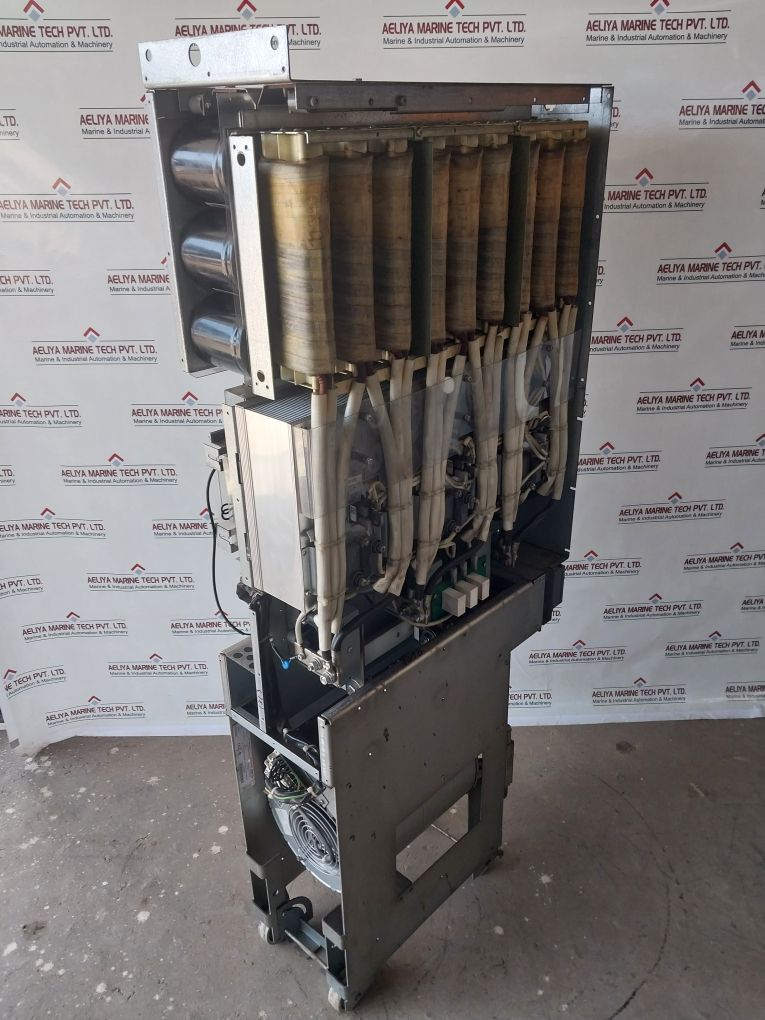

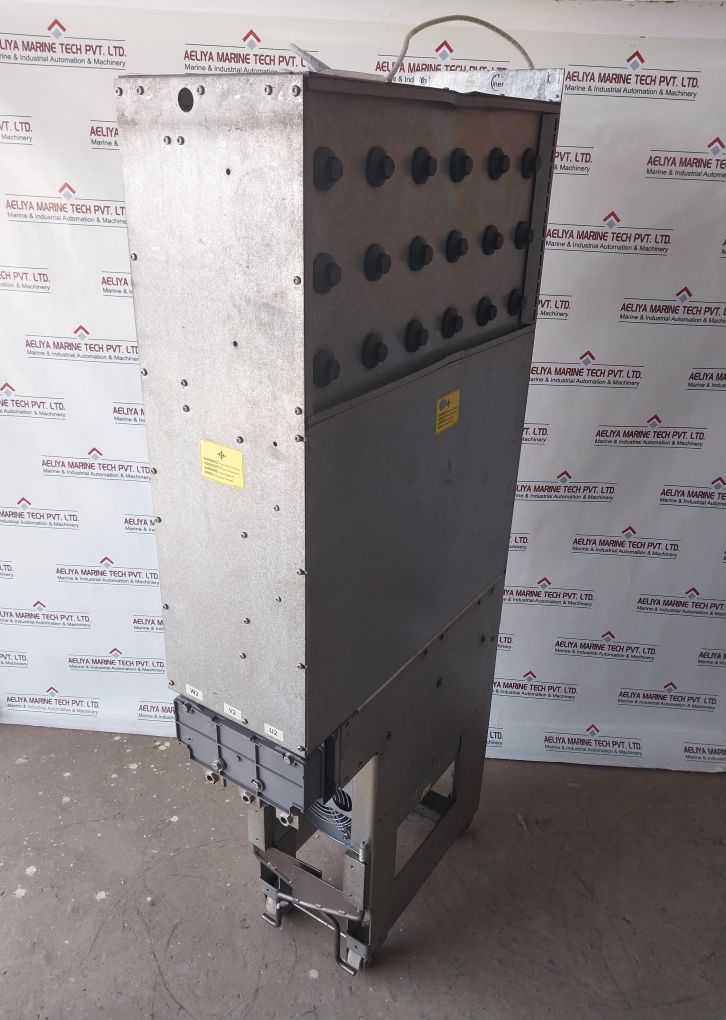

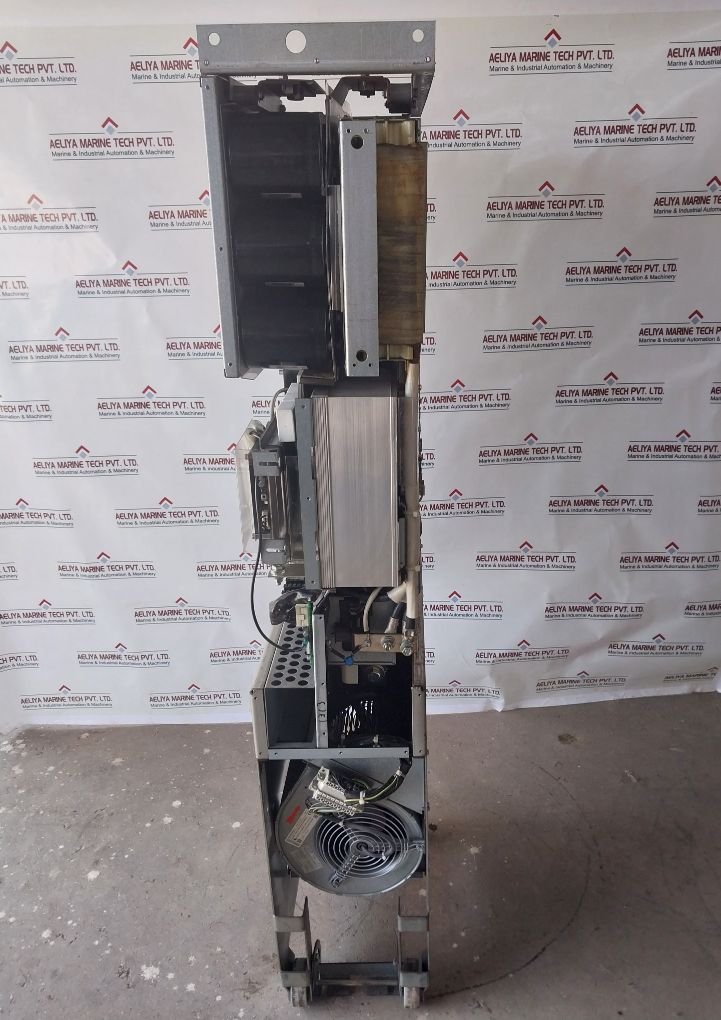

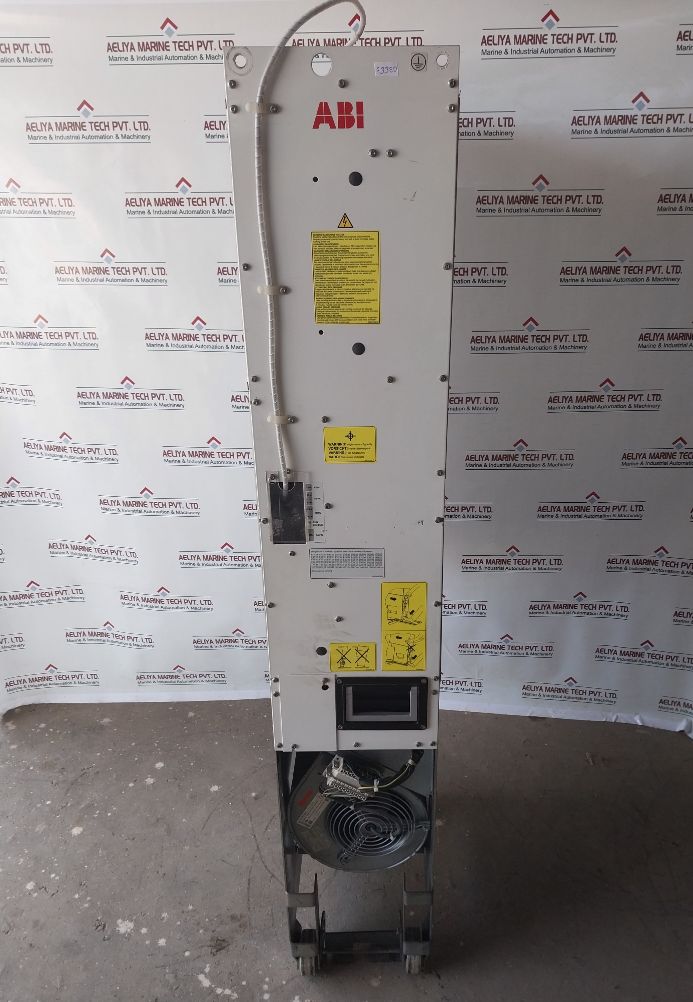

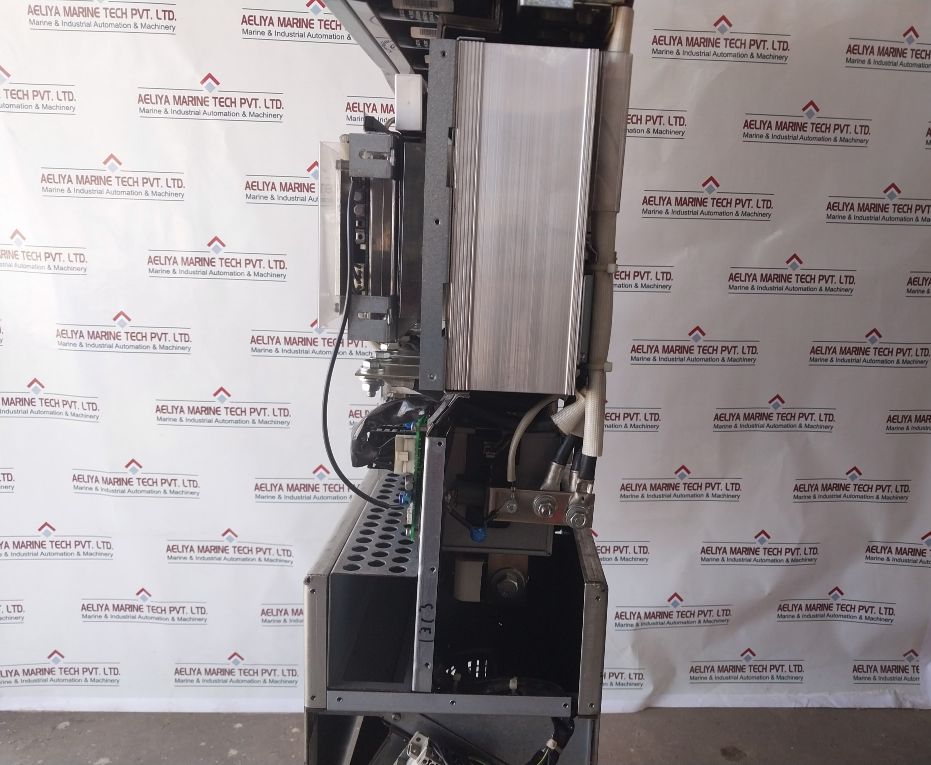

Abb Acs800-104-0580-7+c126+e205+v991 Inverter

Abb Acs800-104-0580-7+c126+e205+v991 Inverter
Abb Oy

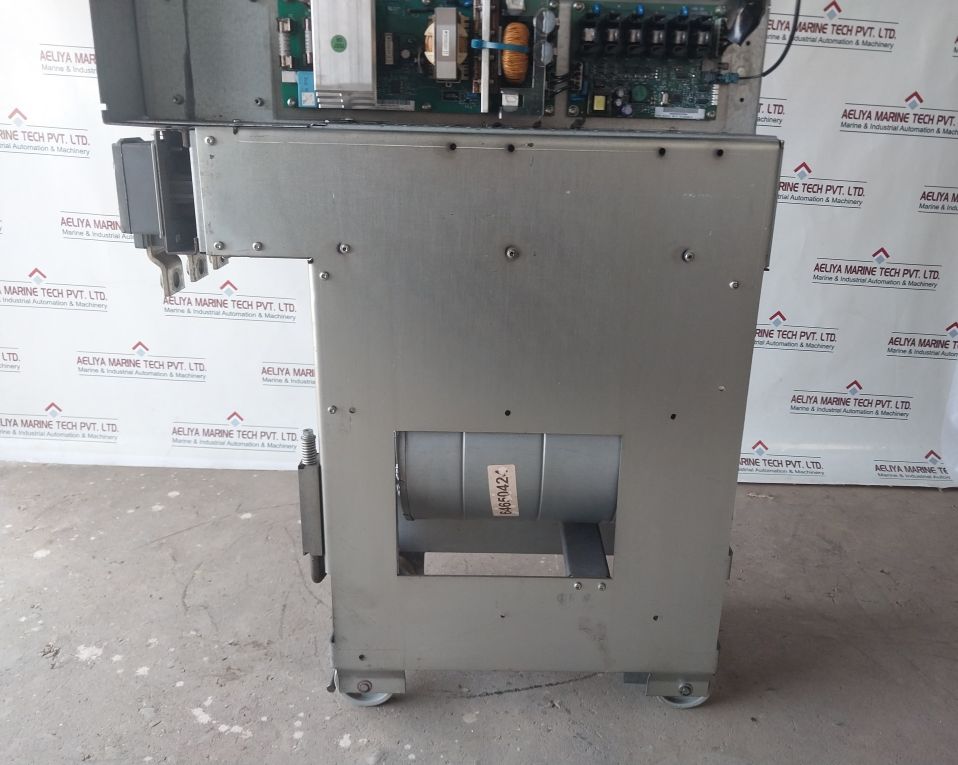

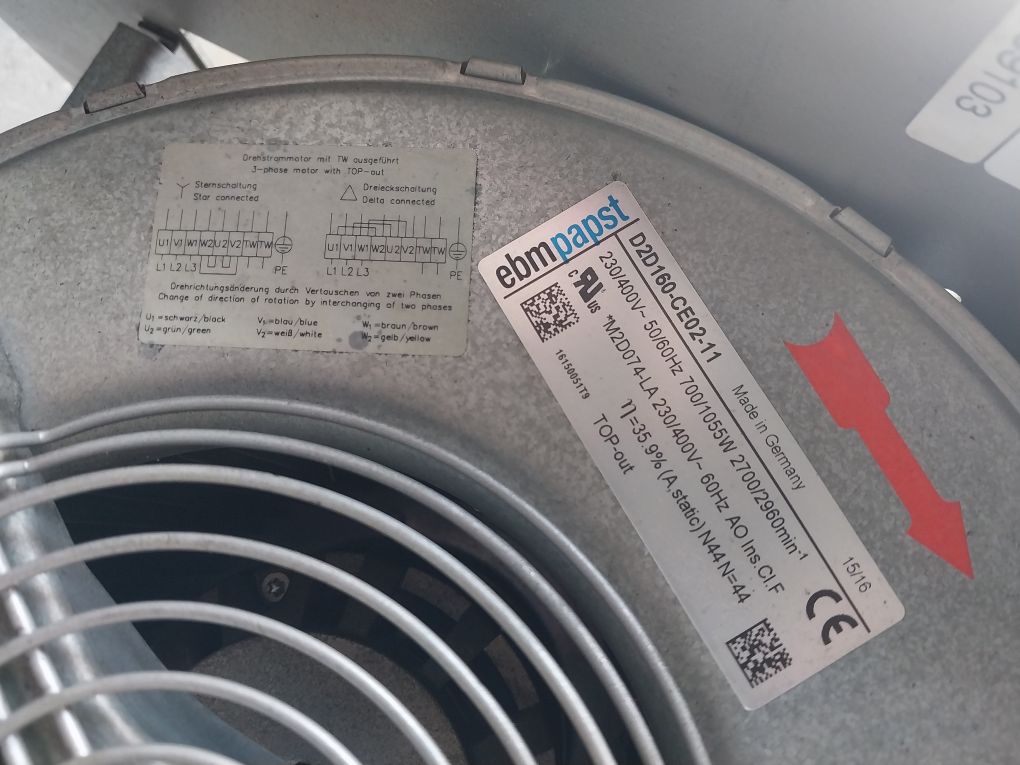

Ebmpapst
Trafotek Insulation System

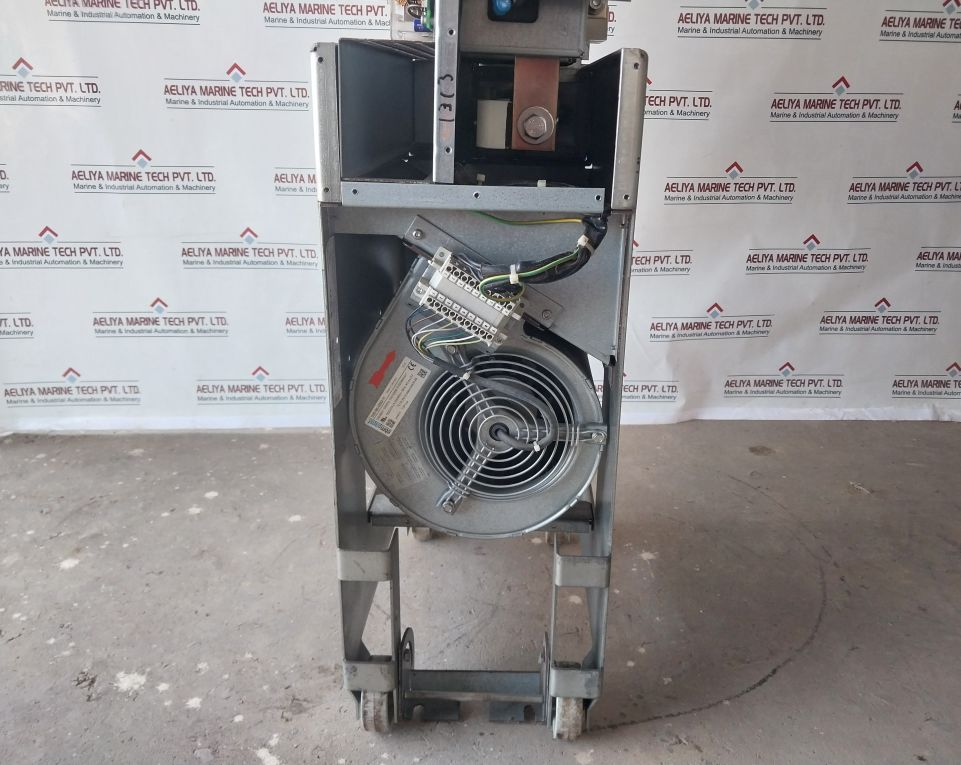

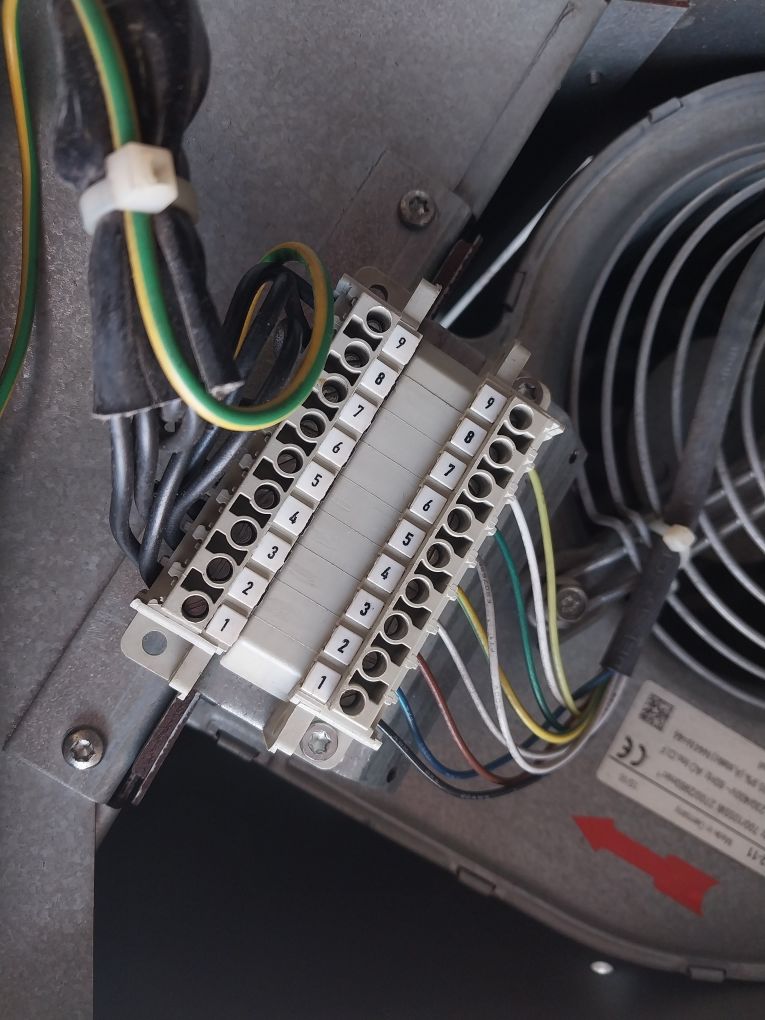

D2d160-ce02-11
230/400v~ 50/60hz 700/1055w 2700/2960min-1
*m2d074-la 230/400v~ 60hz Ao Ins.ci.f
Ƞ=35.9% (A, Static) N44n=44
16150051t9
Acs800-104-0580-7+c126+e205+v991
Code: 68685745

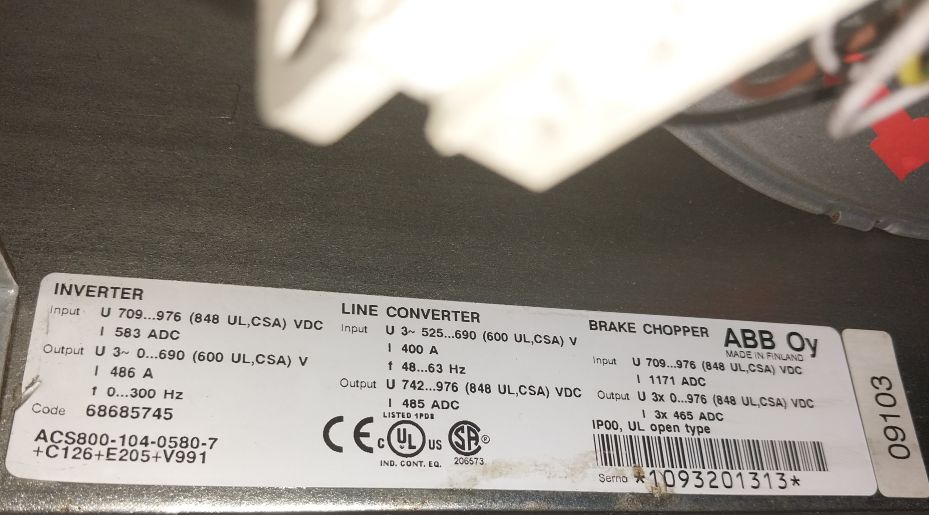

Inverter:
Input: U 709…976 (848 Ul, Csa) Vdc
I 583 Adc
Output: U 3~ 0…690 (600 Ul, Csa) V
I 486 A
F 0…300 Hz
Line Converter:
Input: U 3~ 525…690 (600 Ul, Csa) V
I 400 A
F 48…63 Hz
Output: U 742…976 (848 Ul, Csa) Vdc
I 485 Adc
Brake Chopper
Input: U 709…976 (848 Ul, Csa) Vdc
I 1171 Adc
Output: U 3x 0…976 (848 Ul, Csa) Vdc
I 3x 465 Adc
Ip00, Ul Open Type

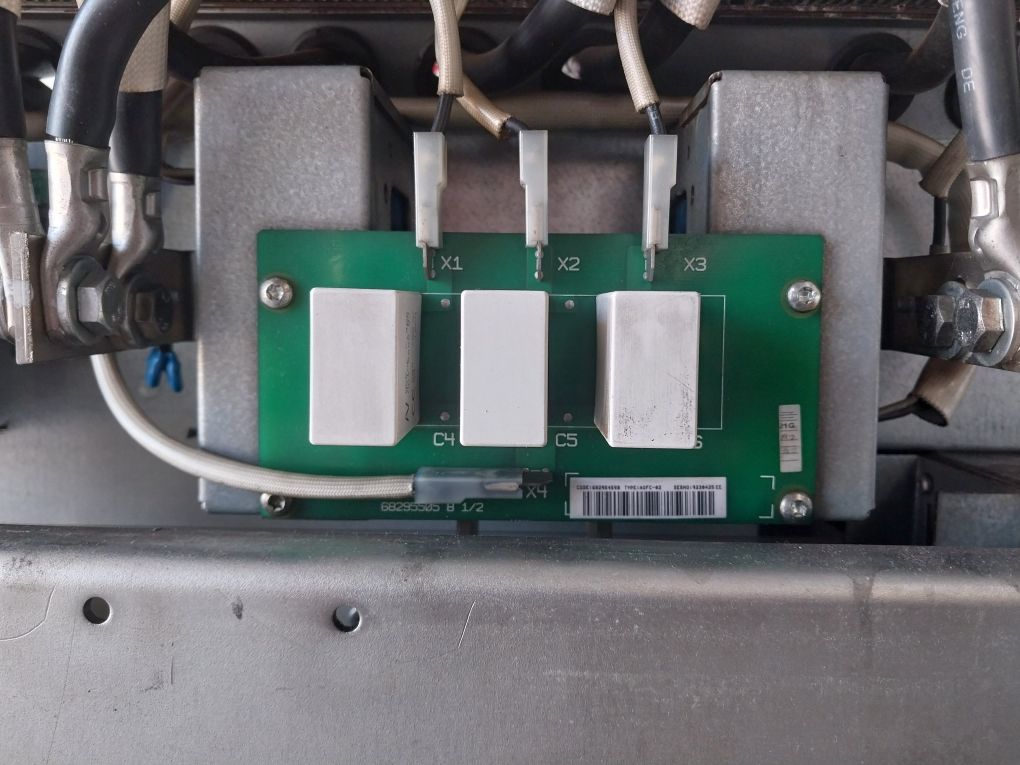

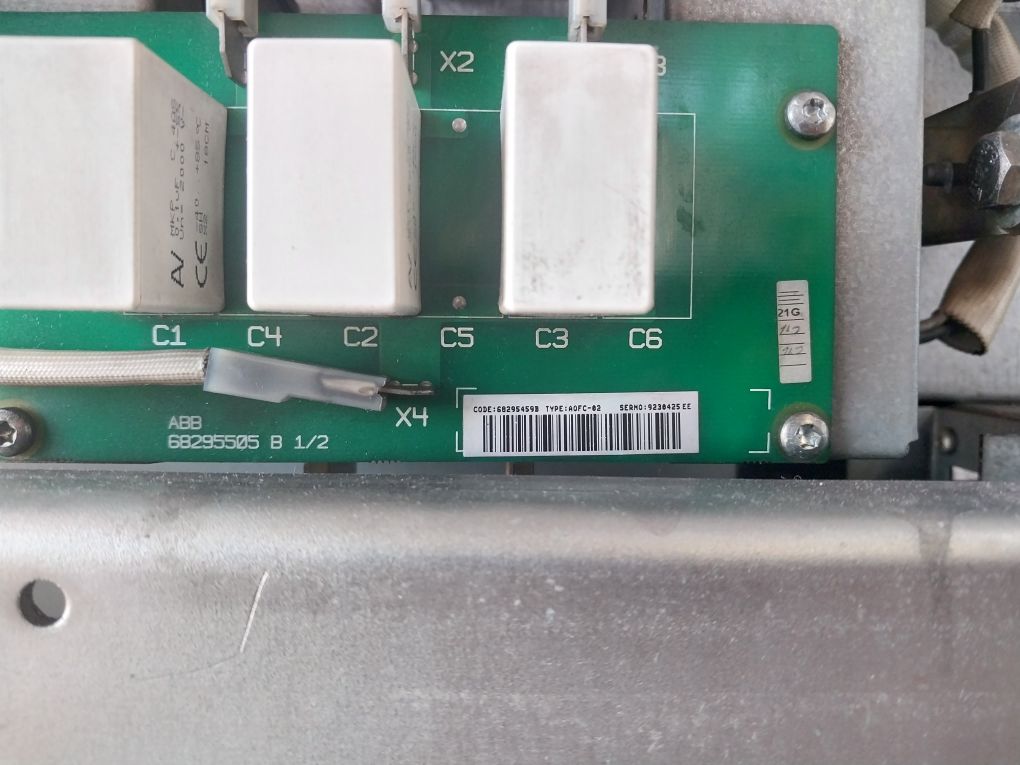

68295505 B 1/2
Code: 68295459b
Type: Aofc-02
68908574b 1/2
68909058b9230863 Kk

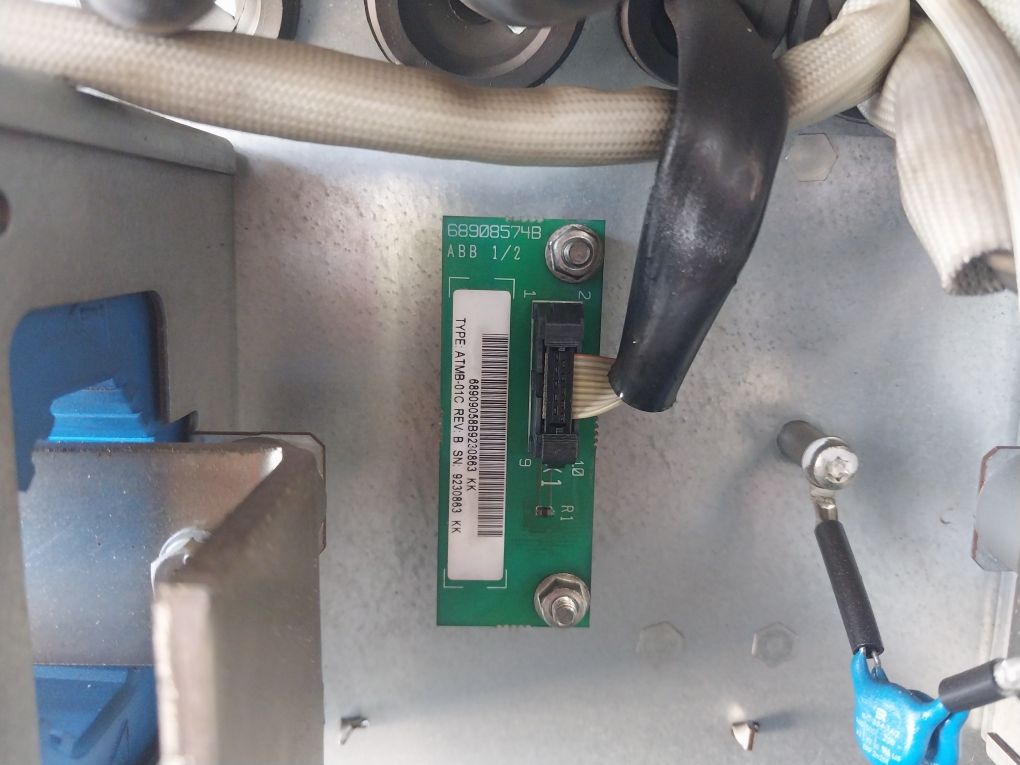

Type: Atmb-01c
Rev: B

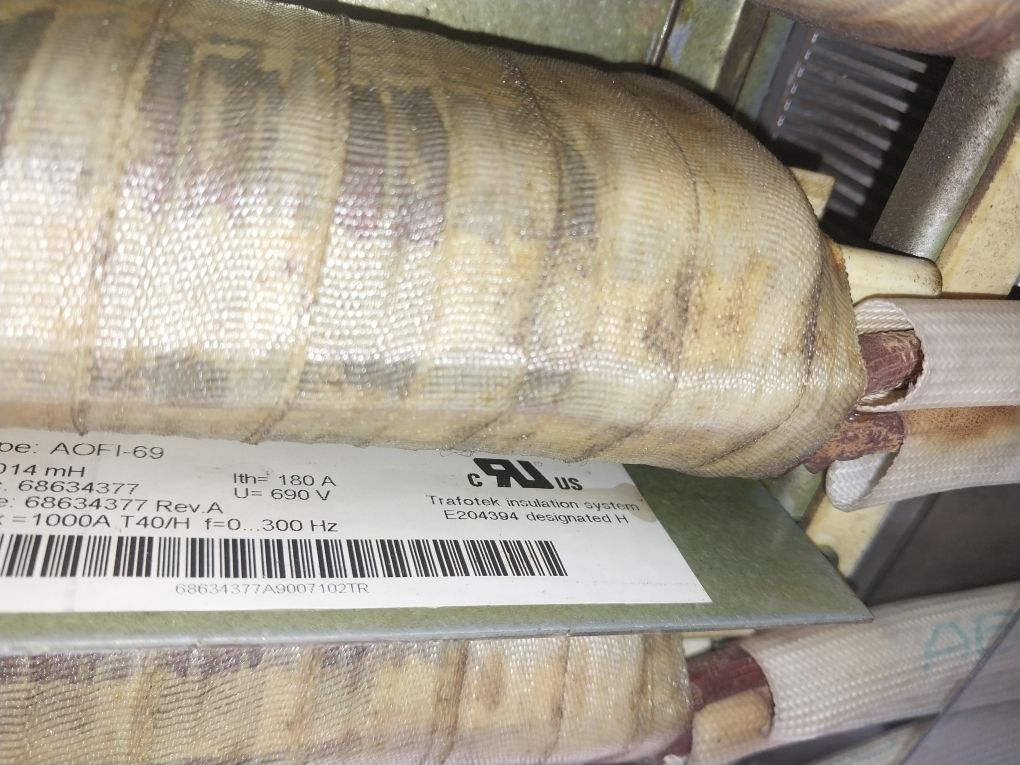

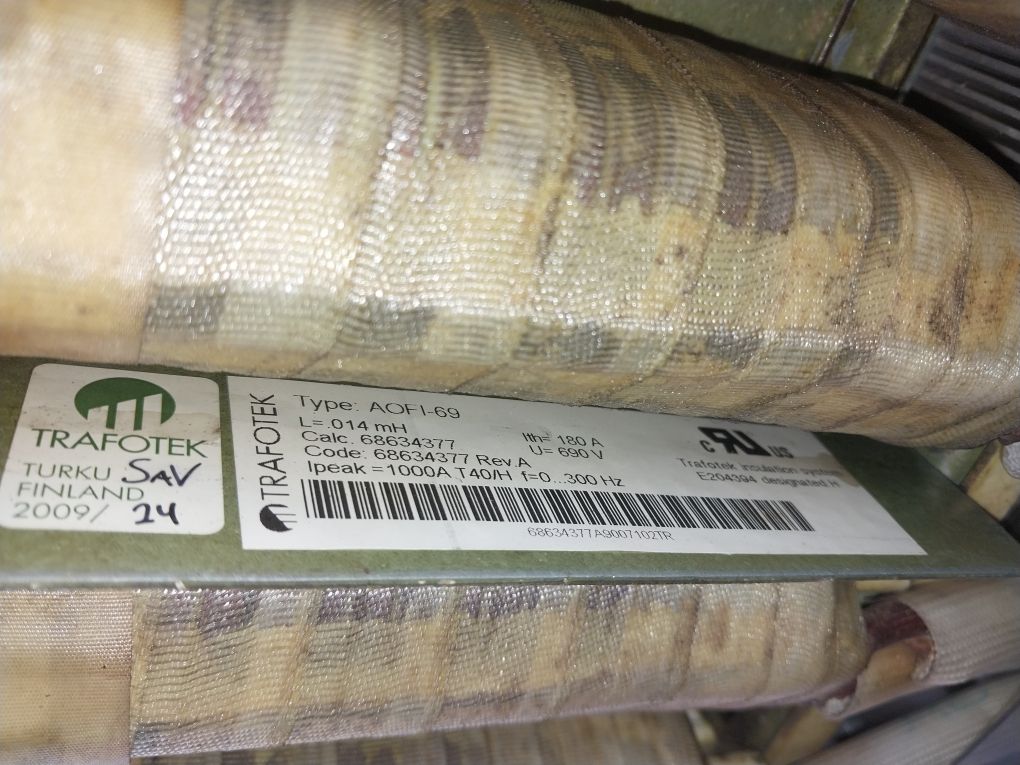

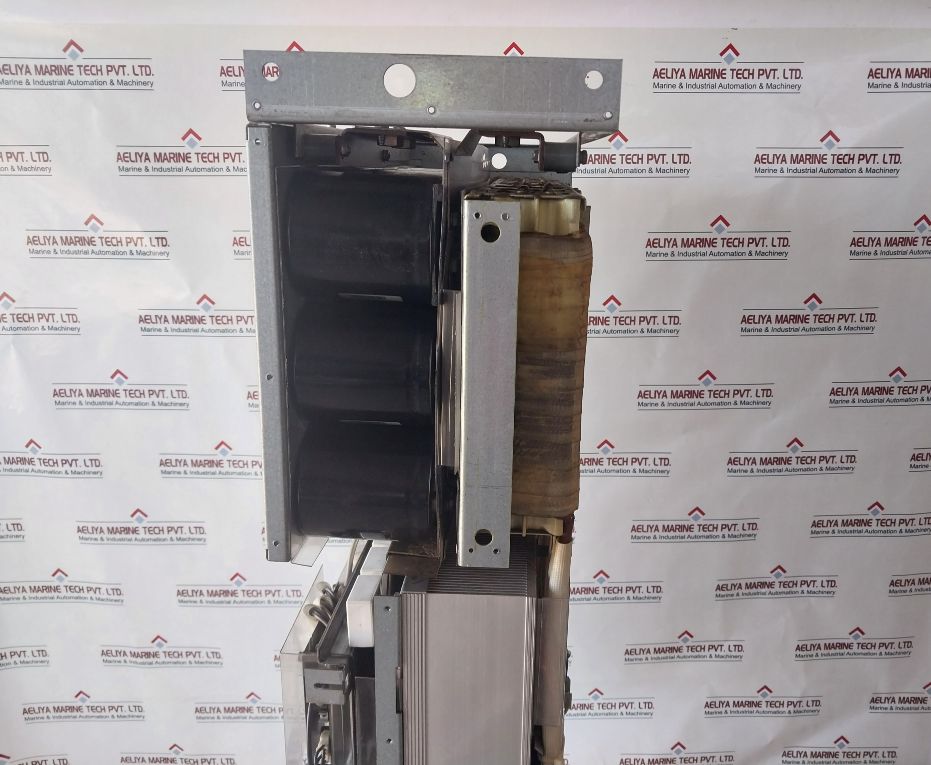

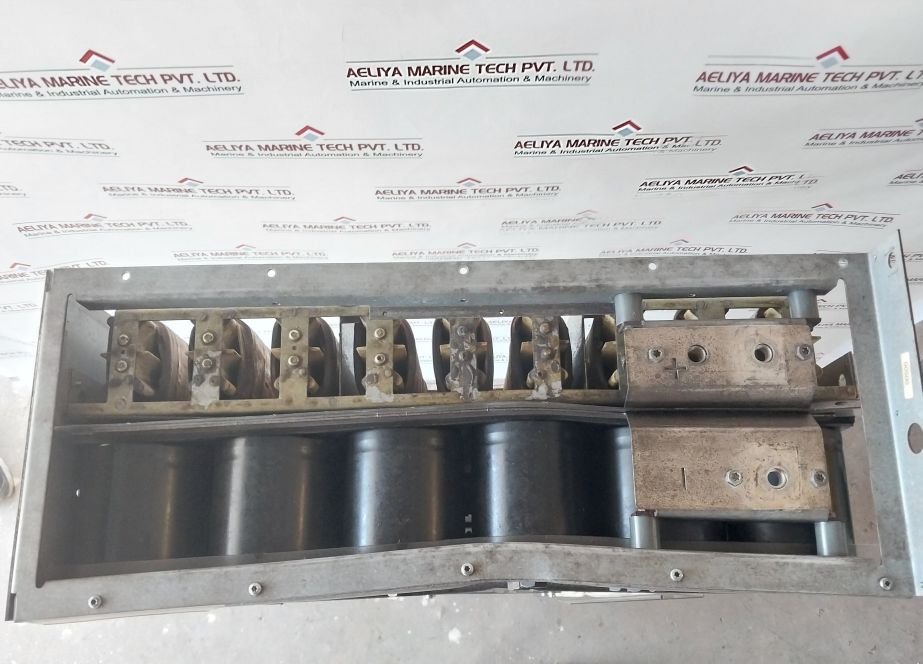

Type: Aofi-69
L= .014 Mh
Calc: 68634377
Code: 68634377 Rev. A
Ipeak=1000a T40/h F=0…300 Hz
Ith=180 A
U=690 V
68634377a9007102tr

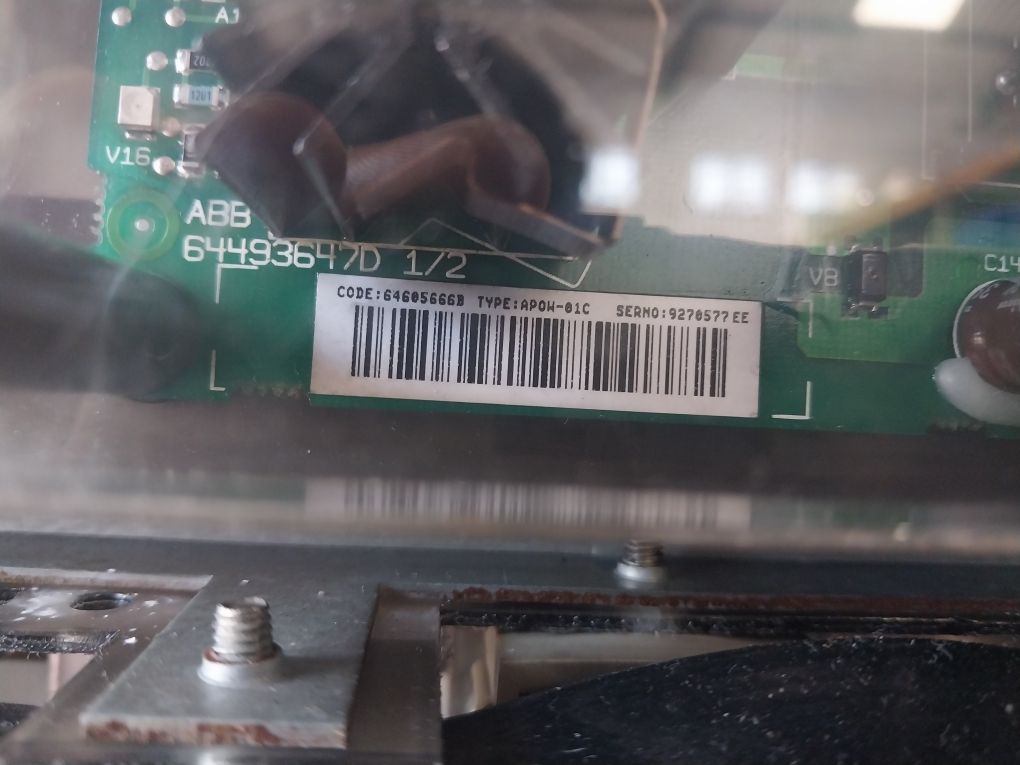

64493647d 1/2
Code: 64605666b
Type: Apow-01c

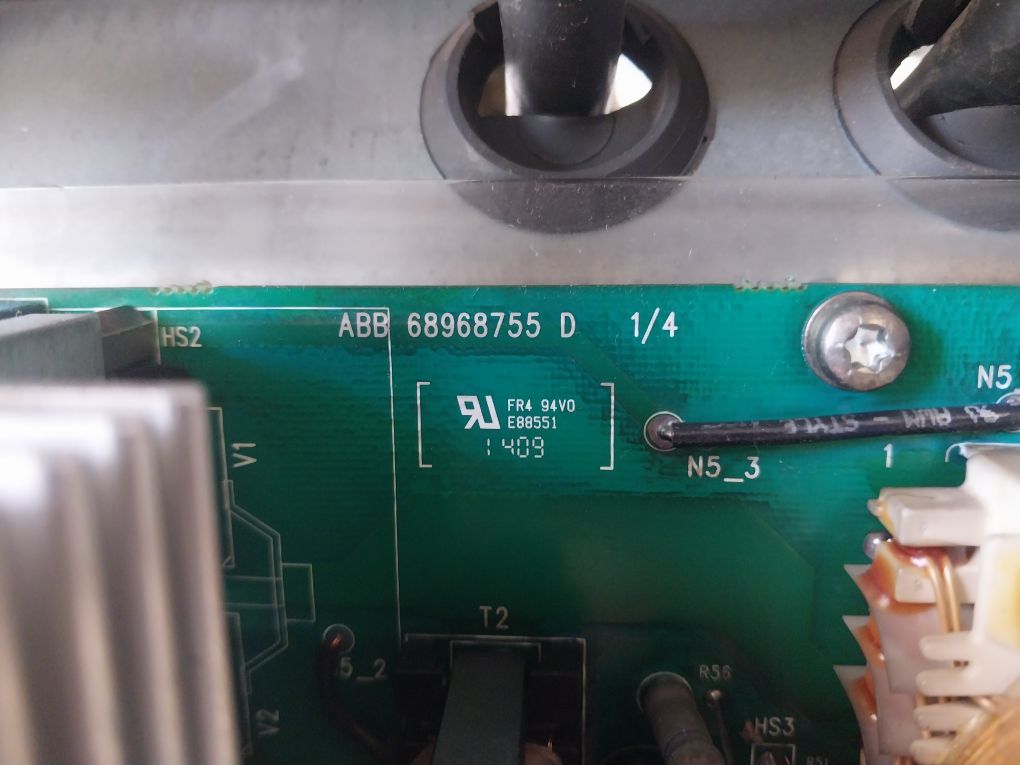

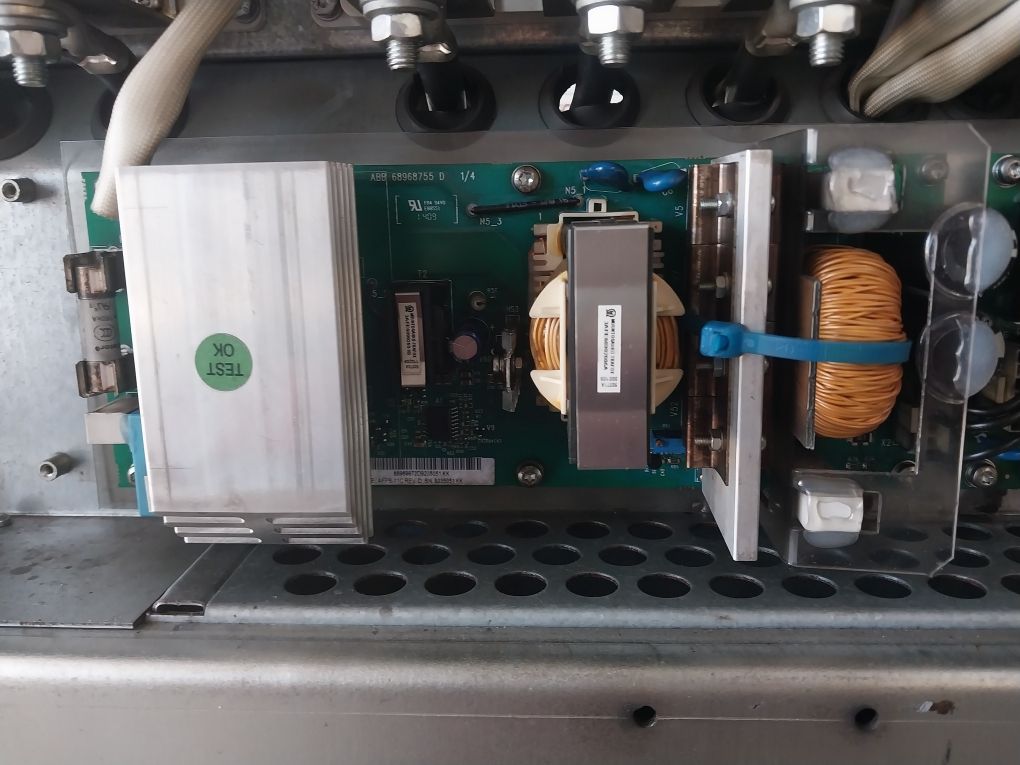

68968755 D 1/4
Fr4 94v0
E88551
68969972d9235051 Kk

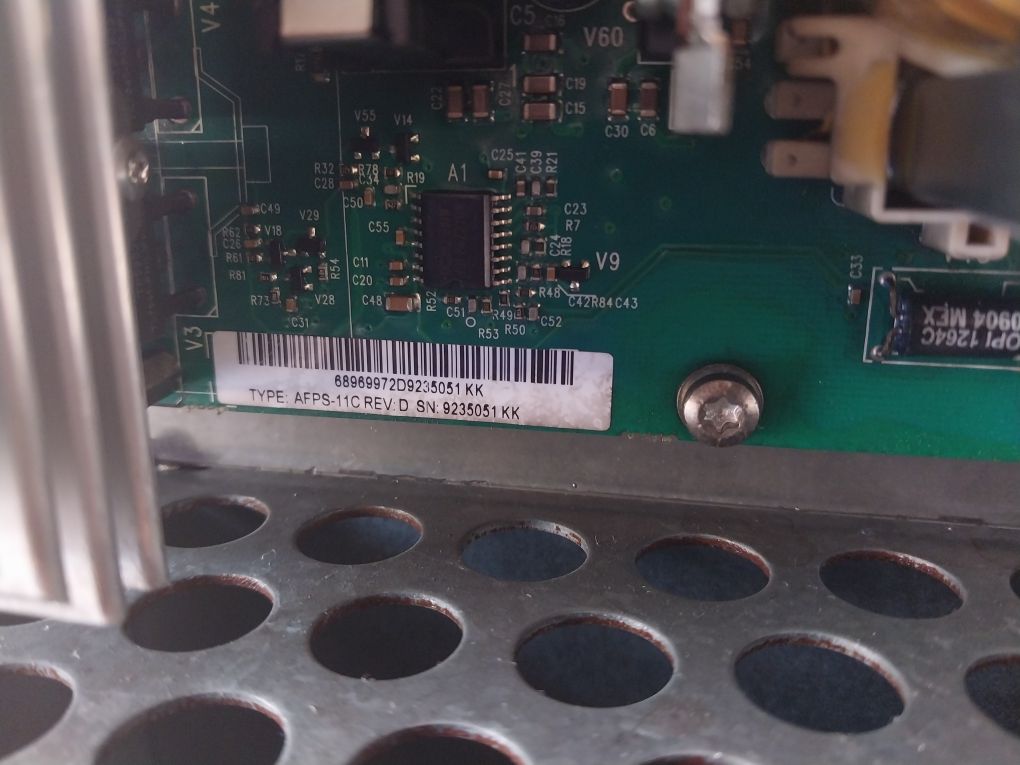

Type: Afps-11c
Rev: D
64693808d9250088kk

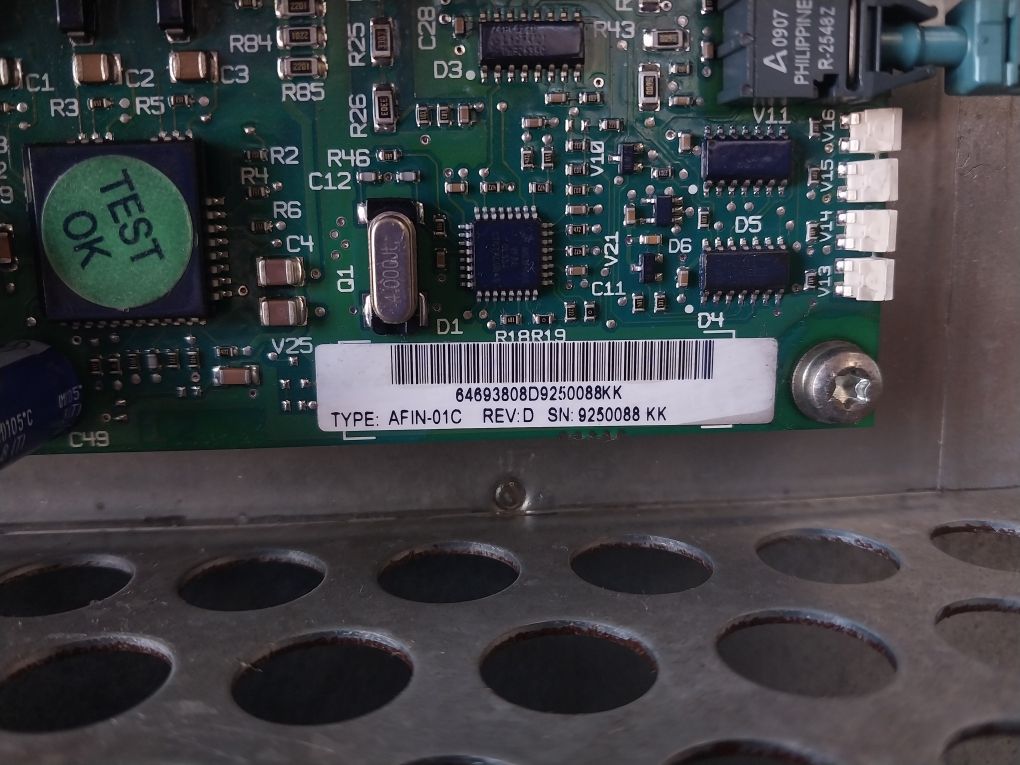

Type: Afin-01c

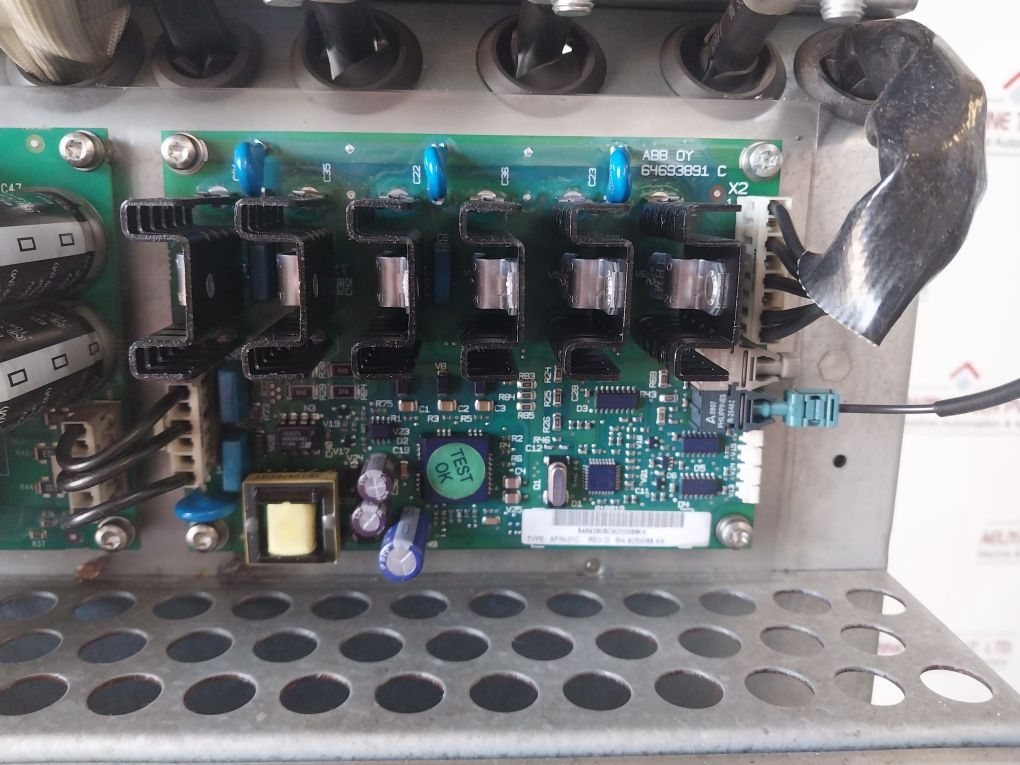

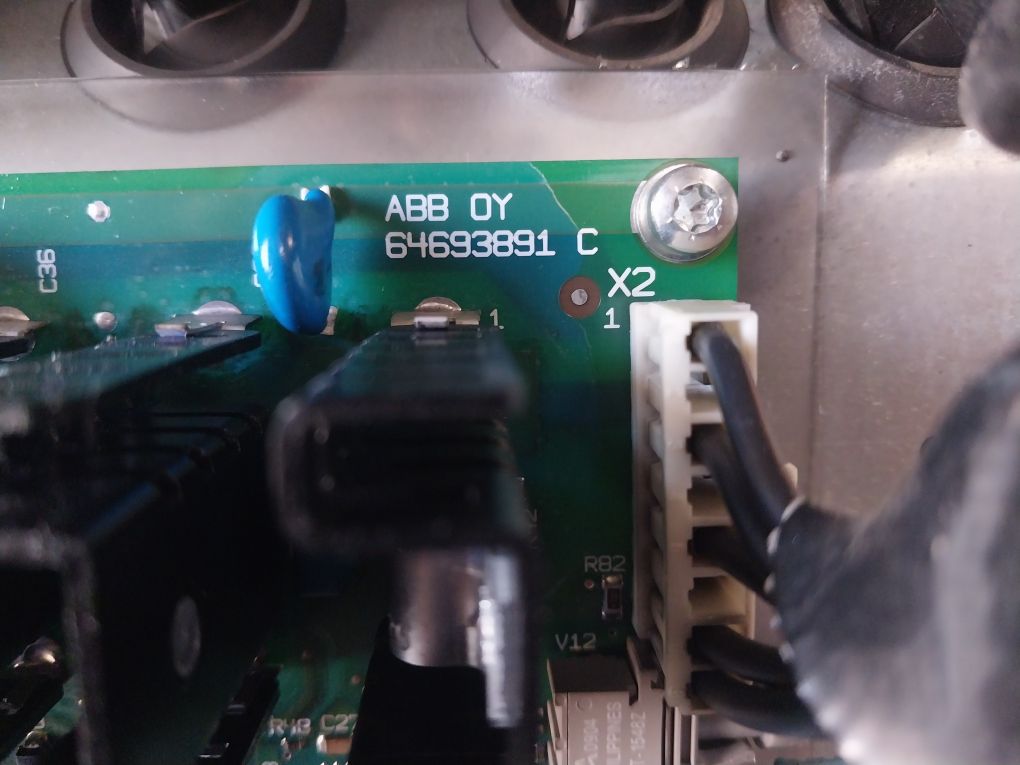

64693891 C

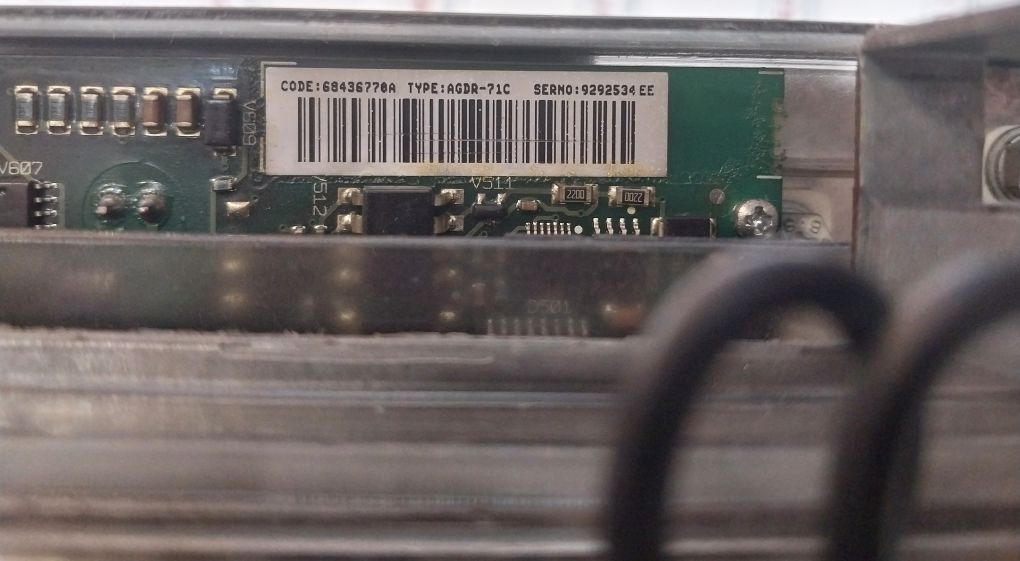

Code: 68436770a
Type: Agdr-71c

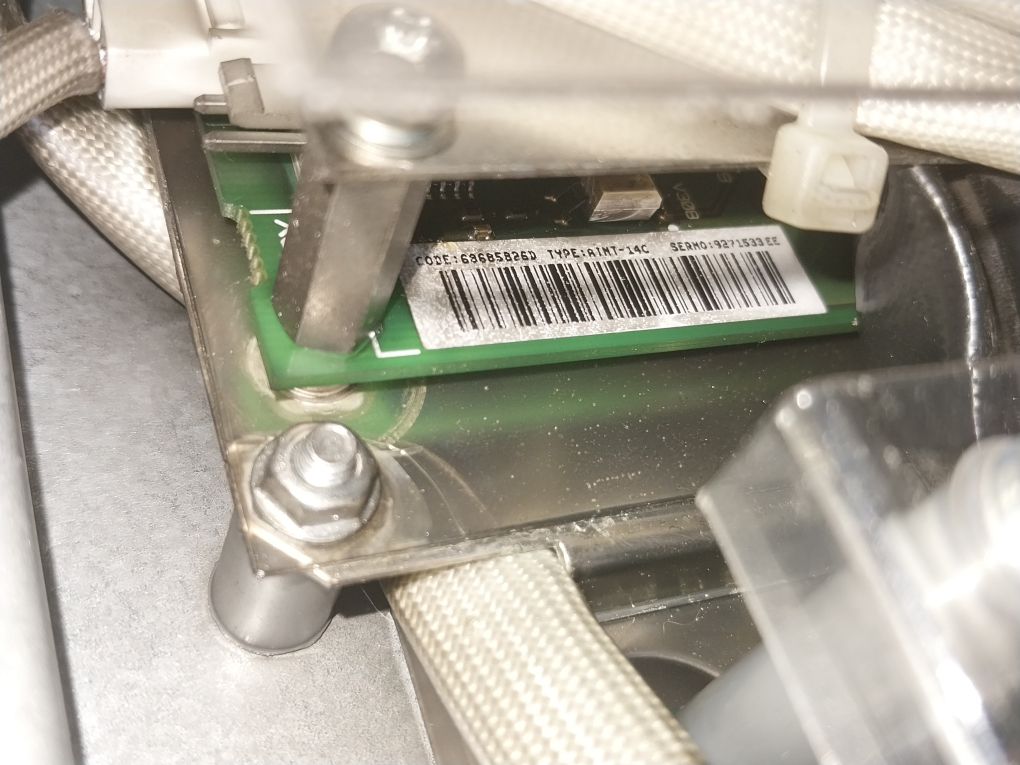

Code: 68685826d
Type: Aint-14c

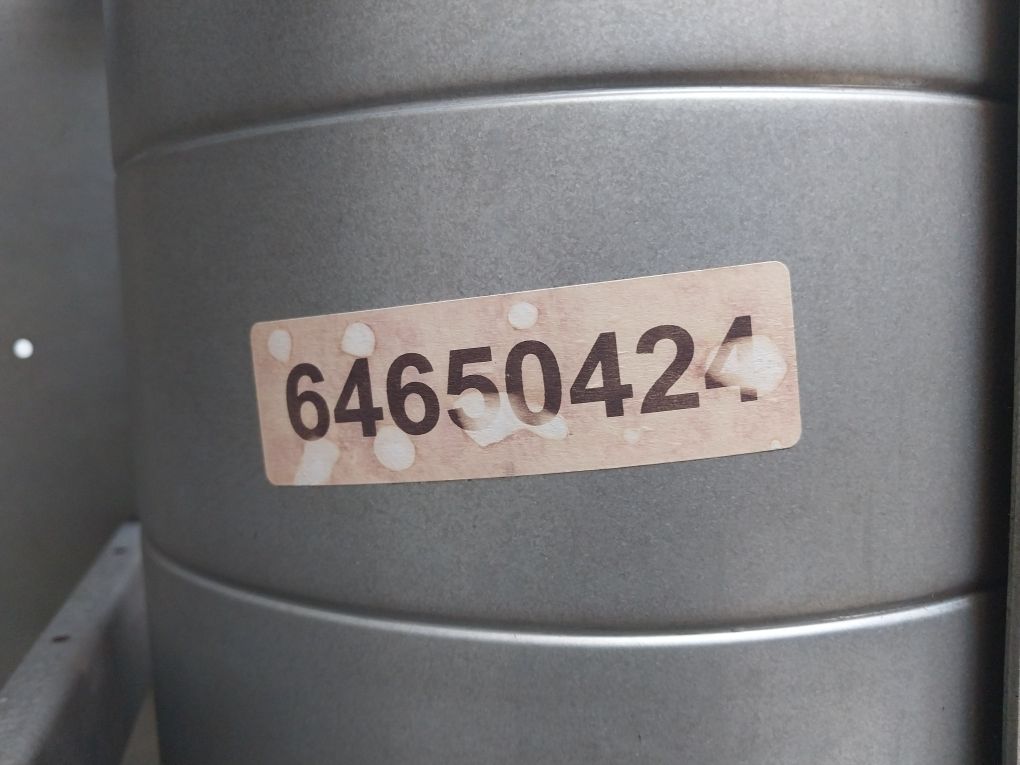

64650424

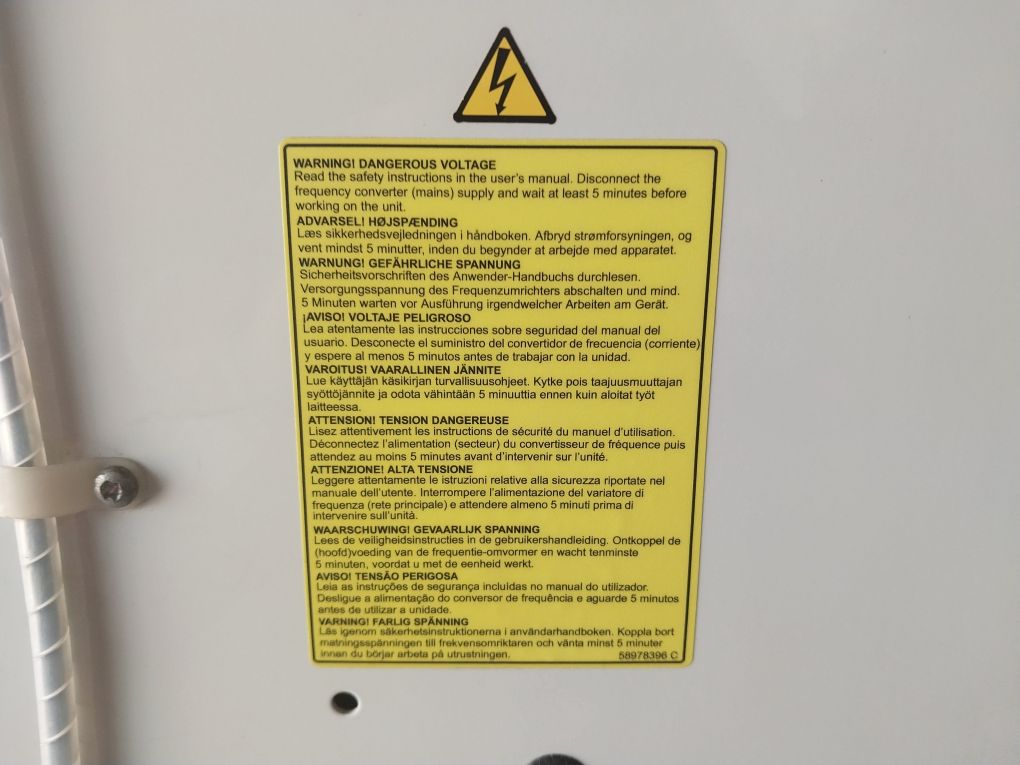

58978396 C

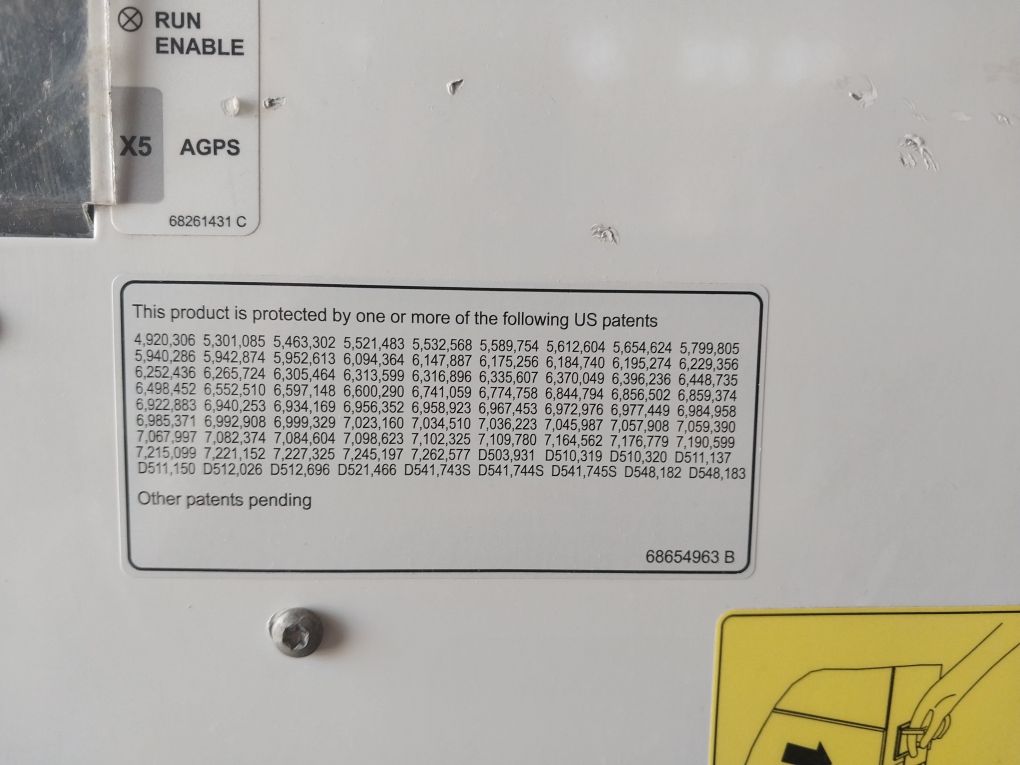

68654963 B
68261431 C

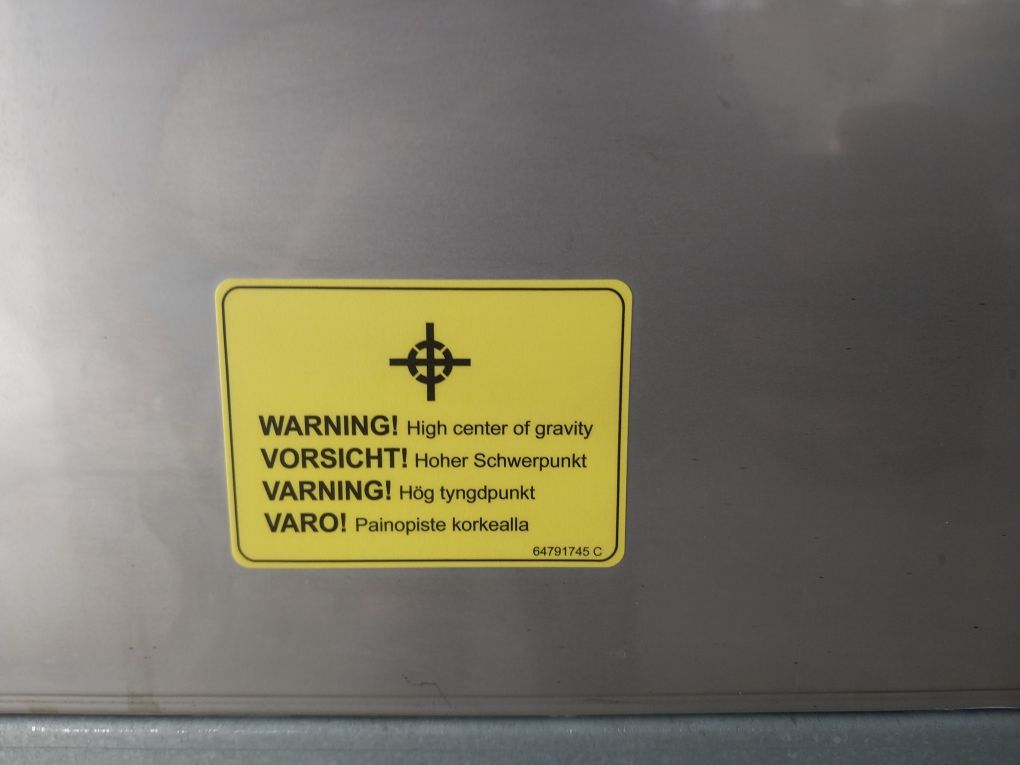

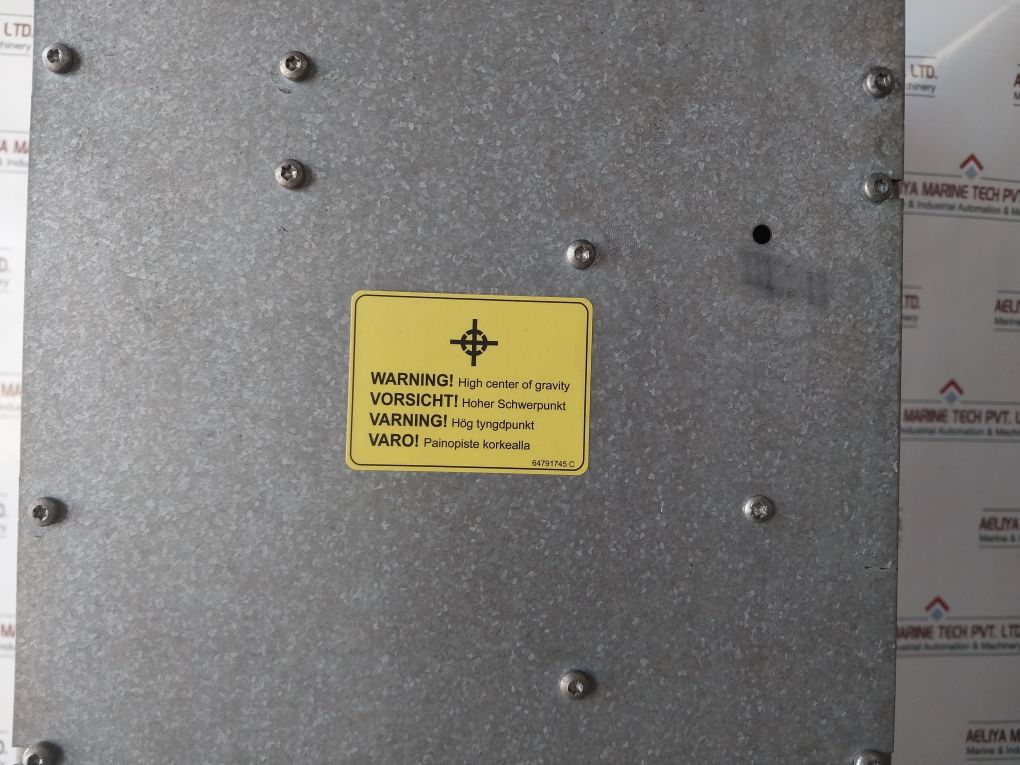

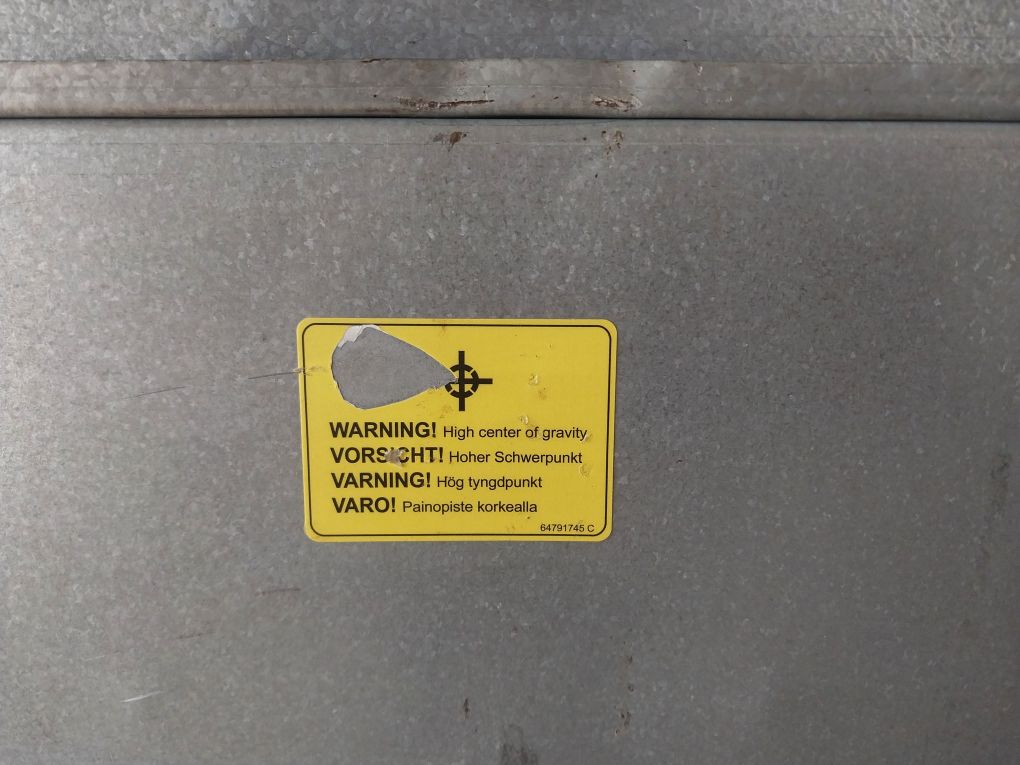

64791745 C
64810901b

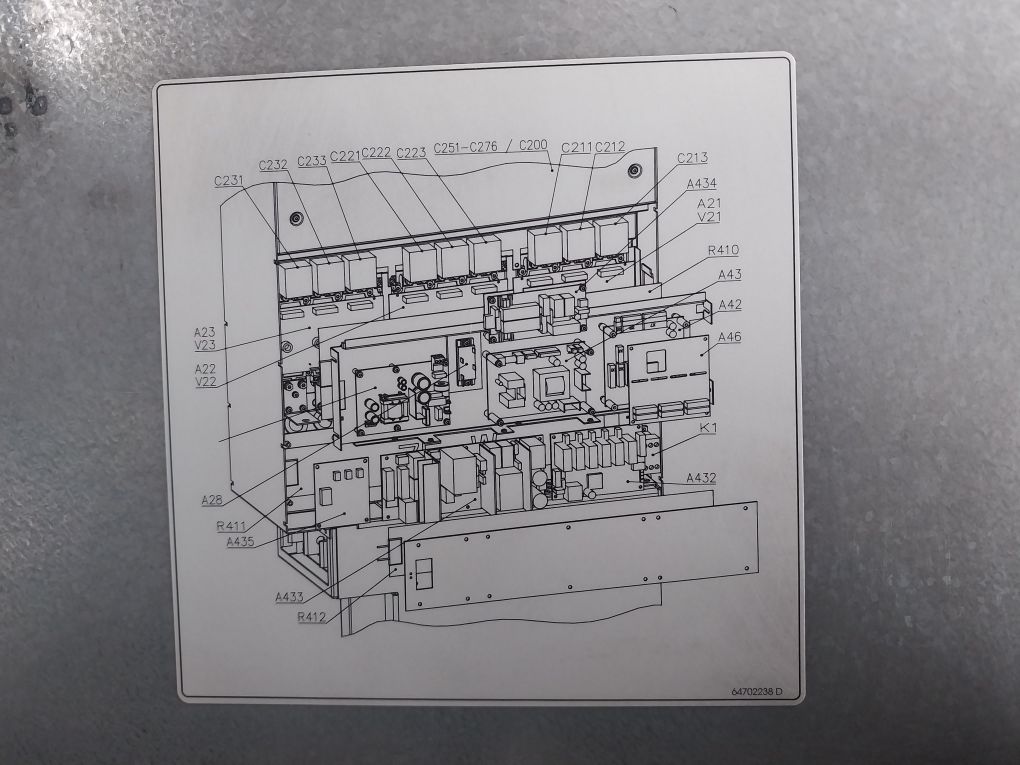

64702238 D
Made In Finland
Made In Germany
Weight : 139 Kg
Ref No : 73320
