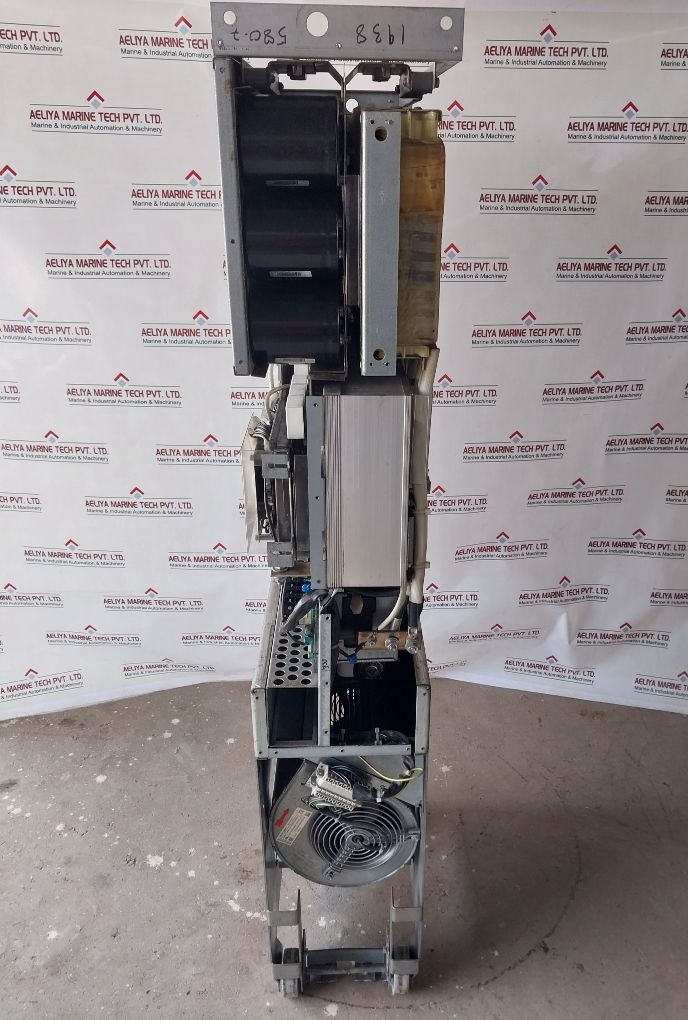

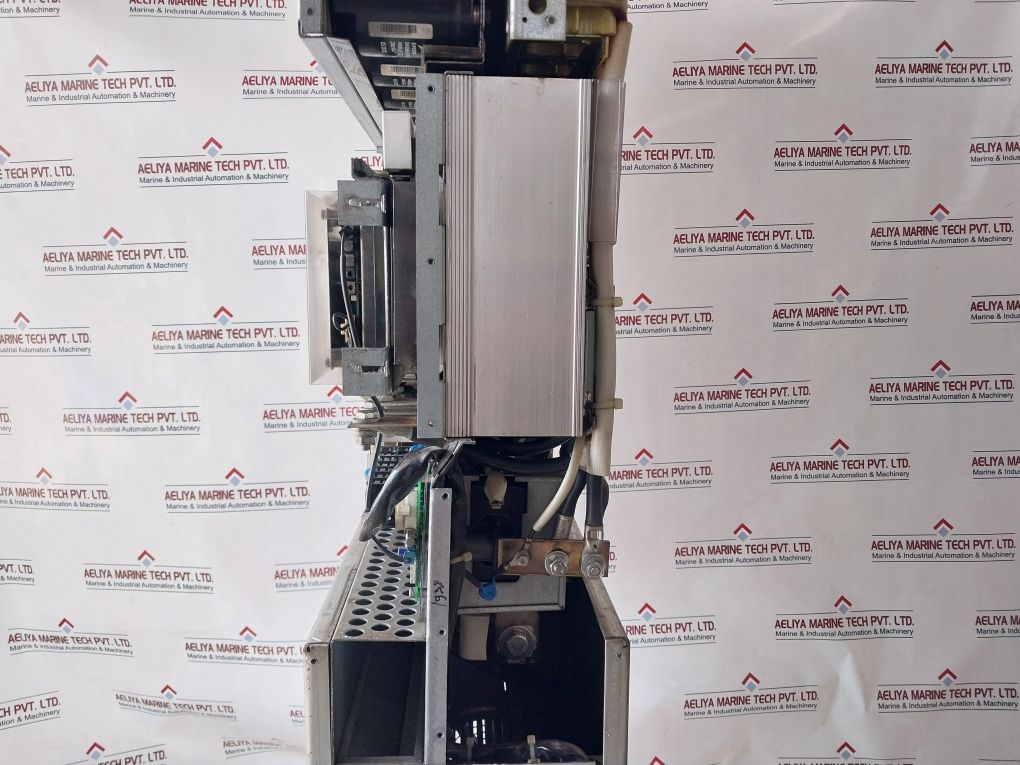

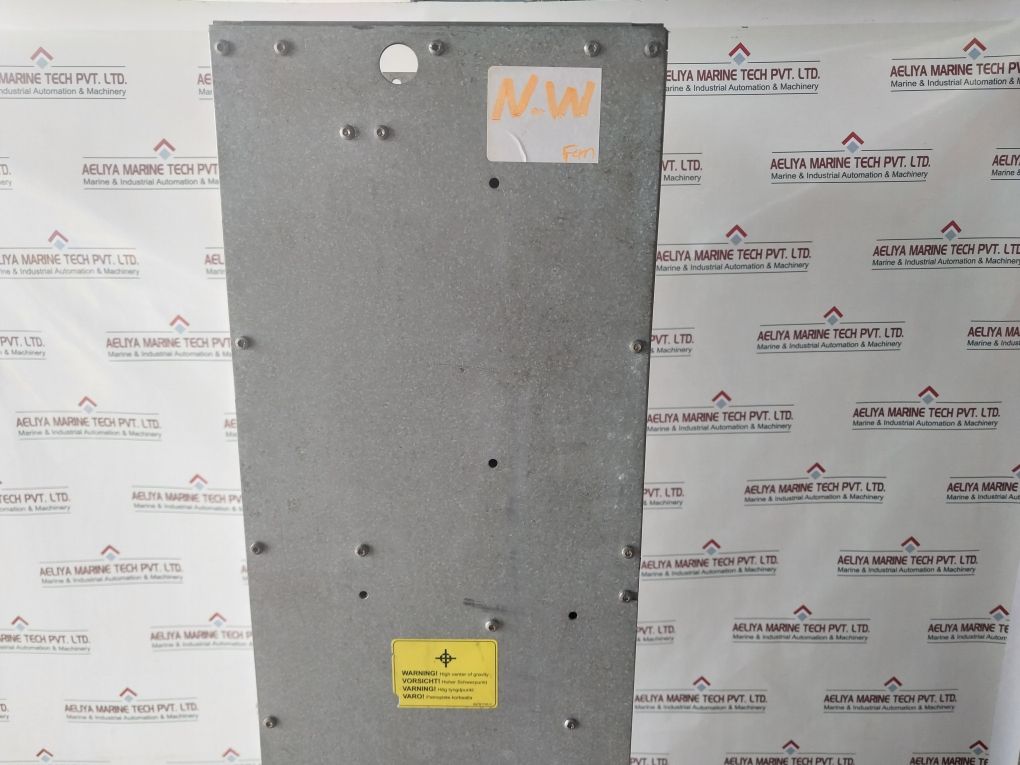

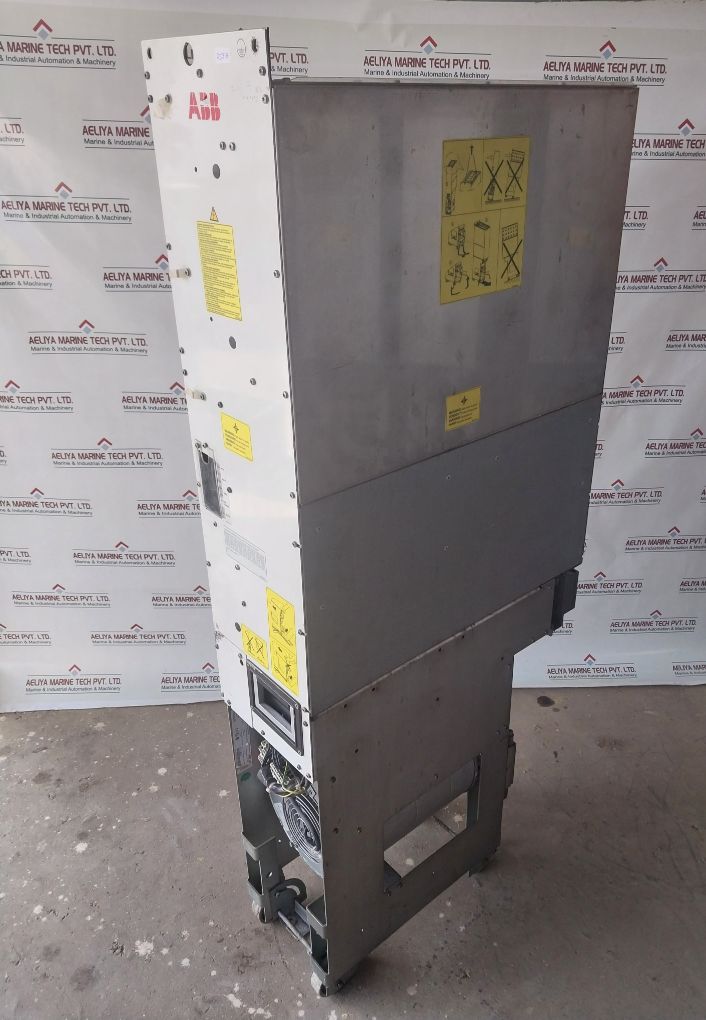

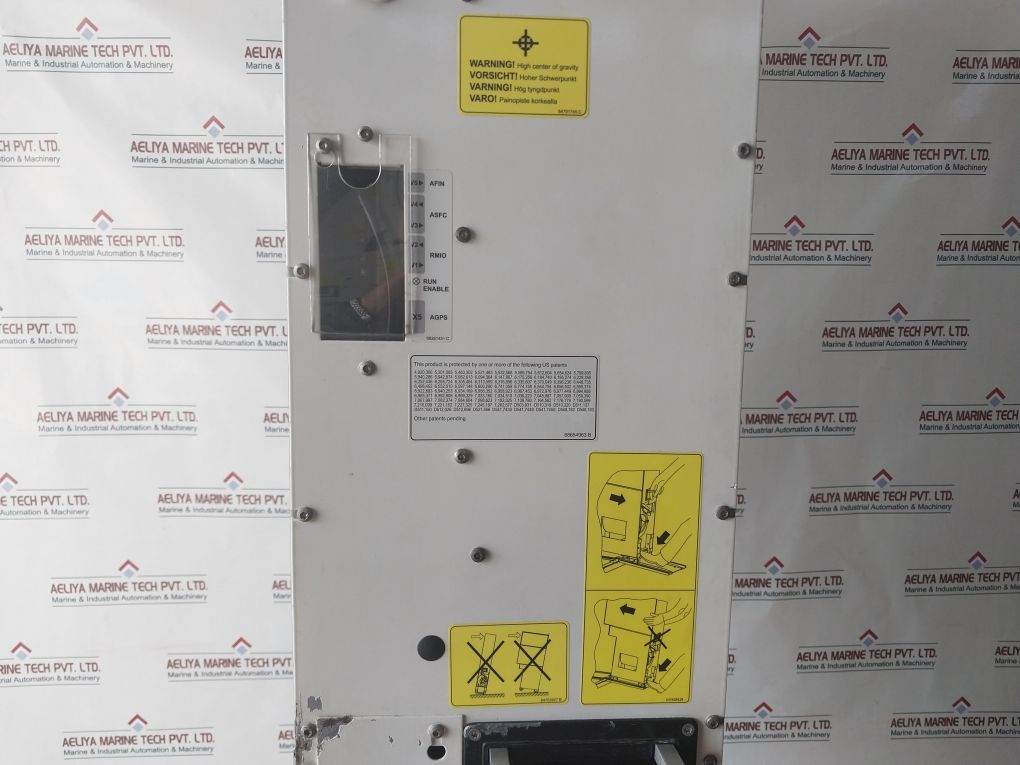

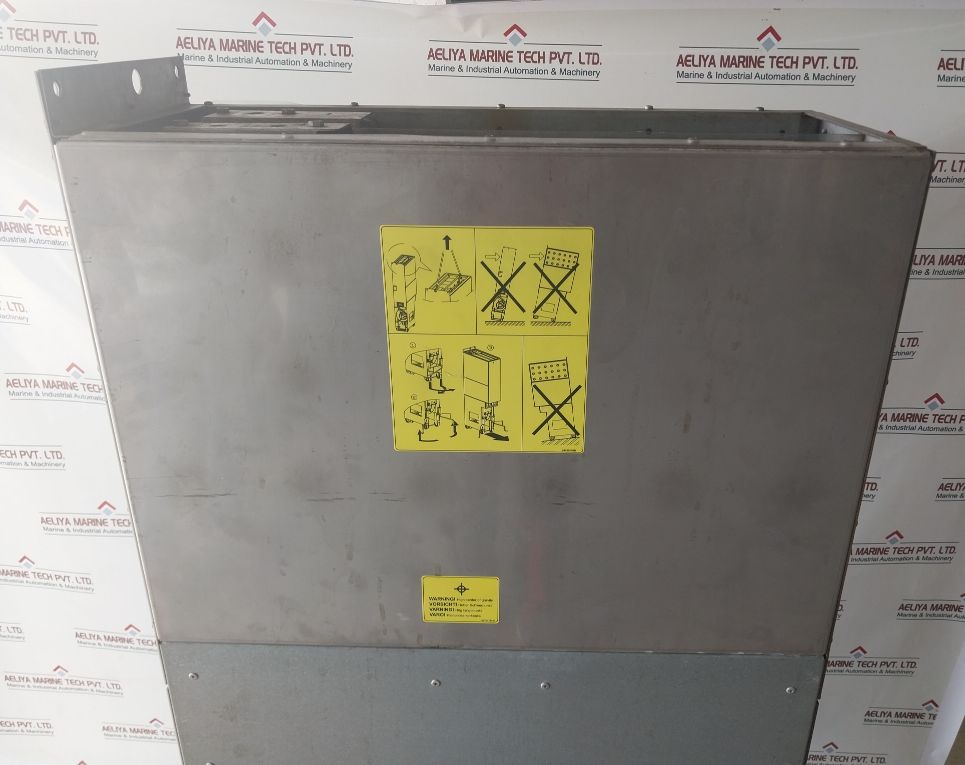

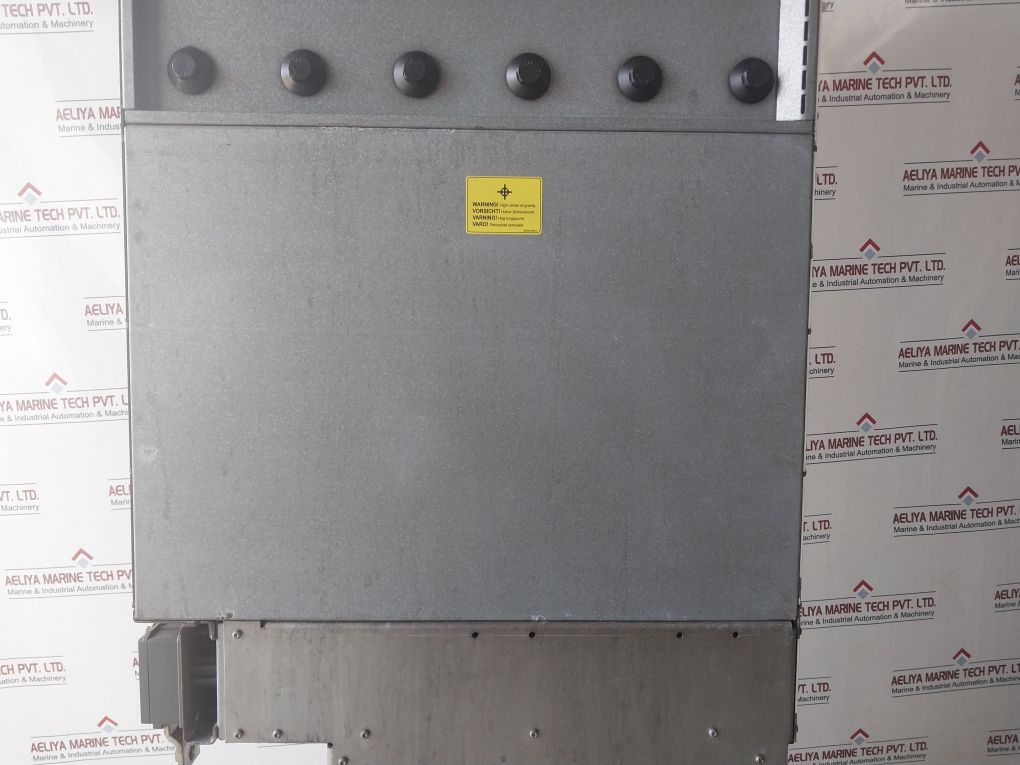

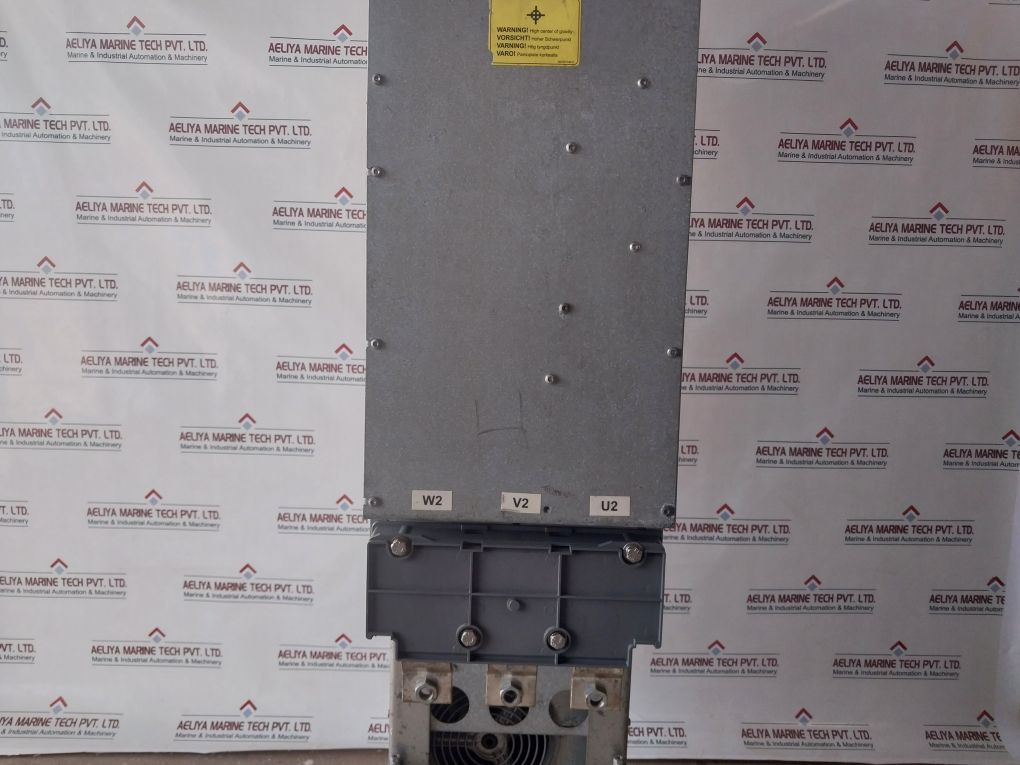

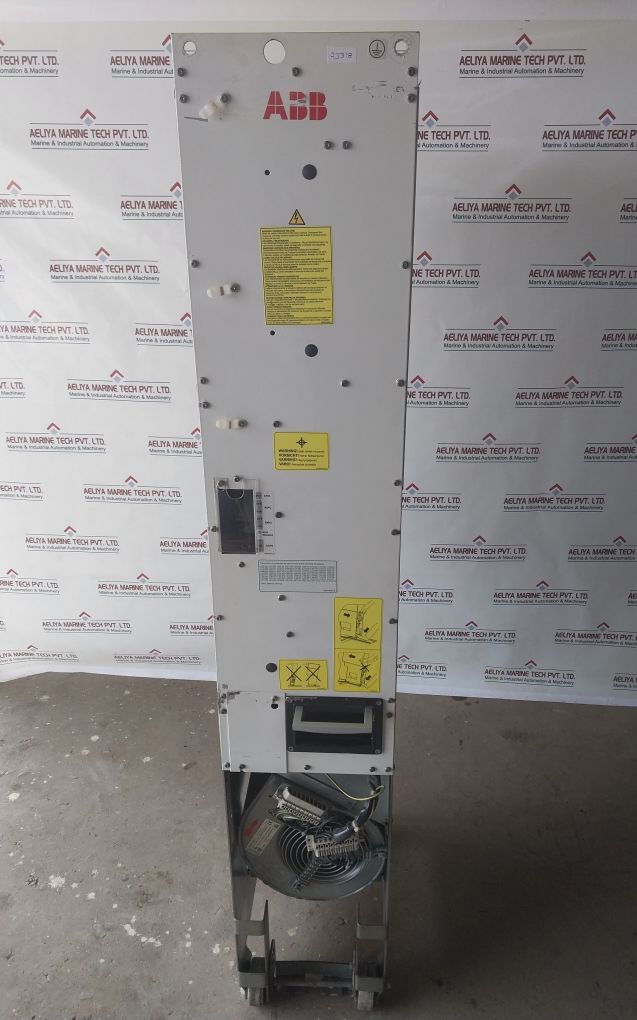

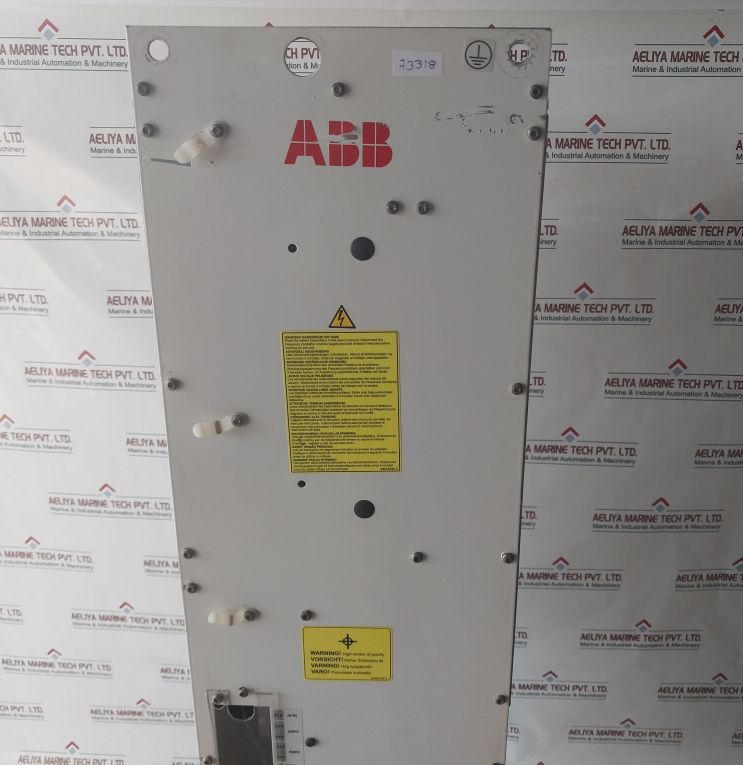

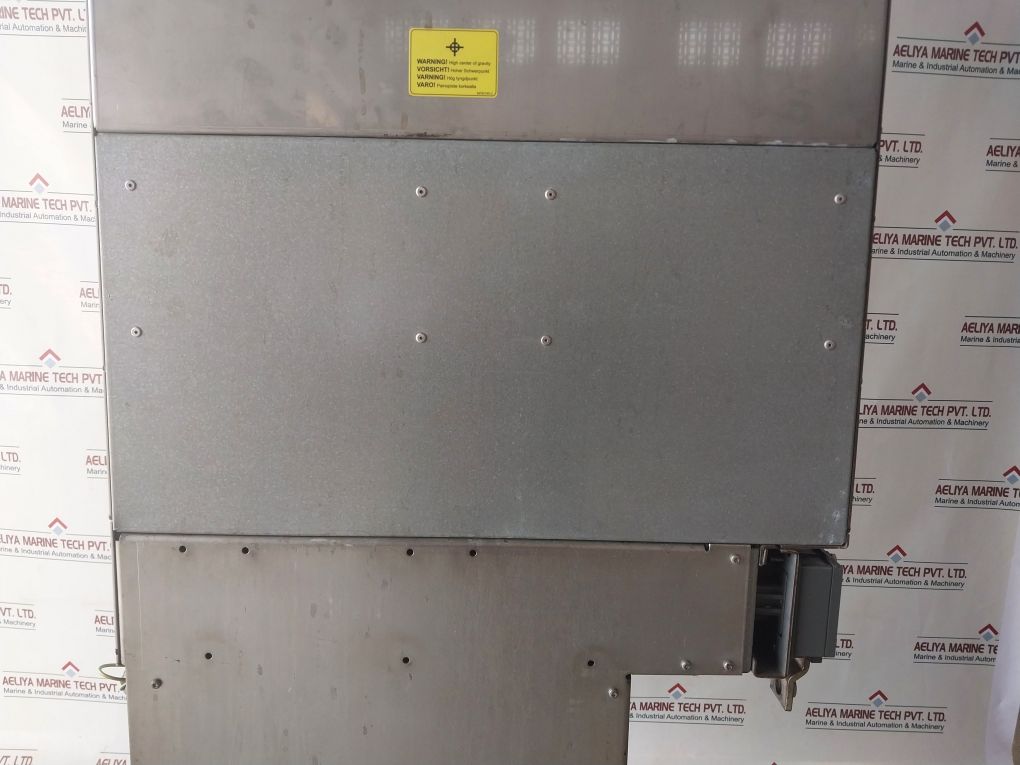

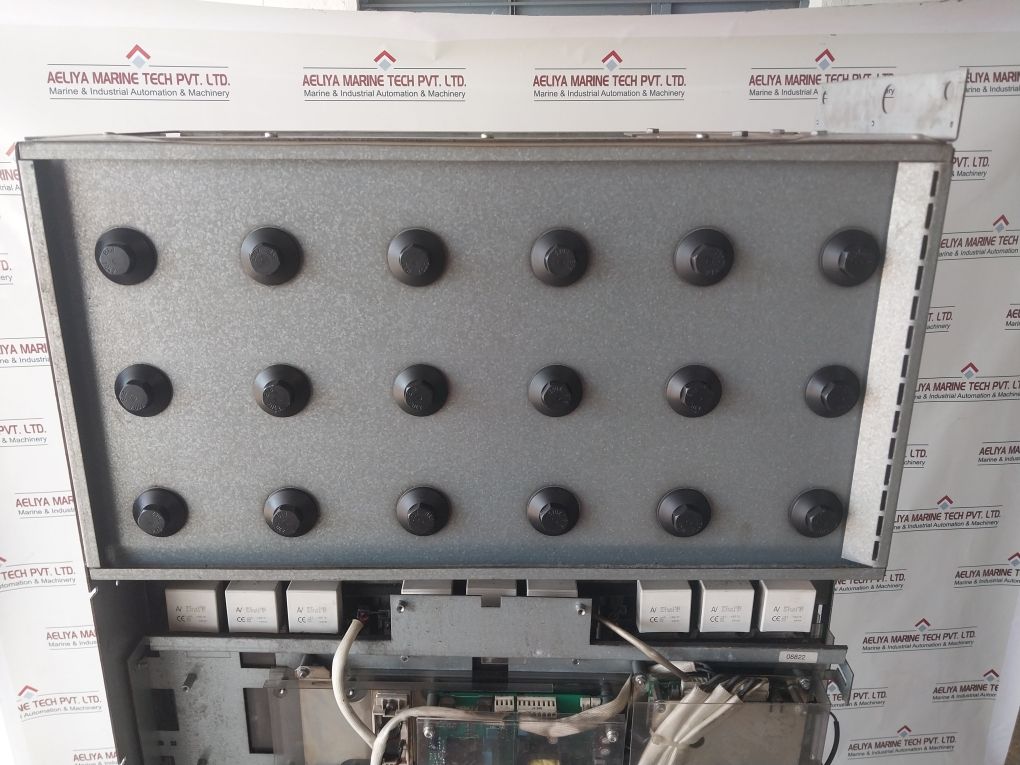

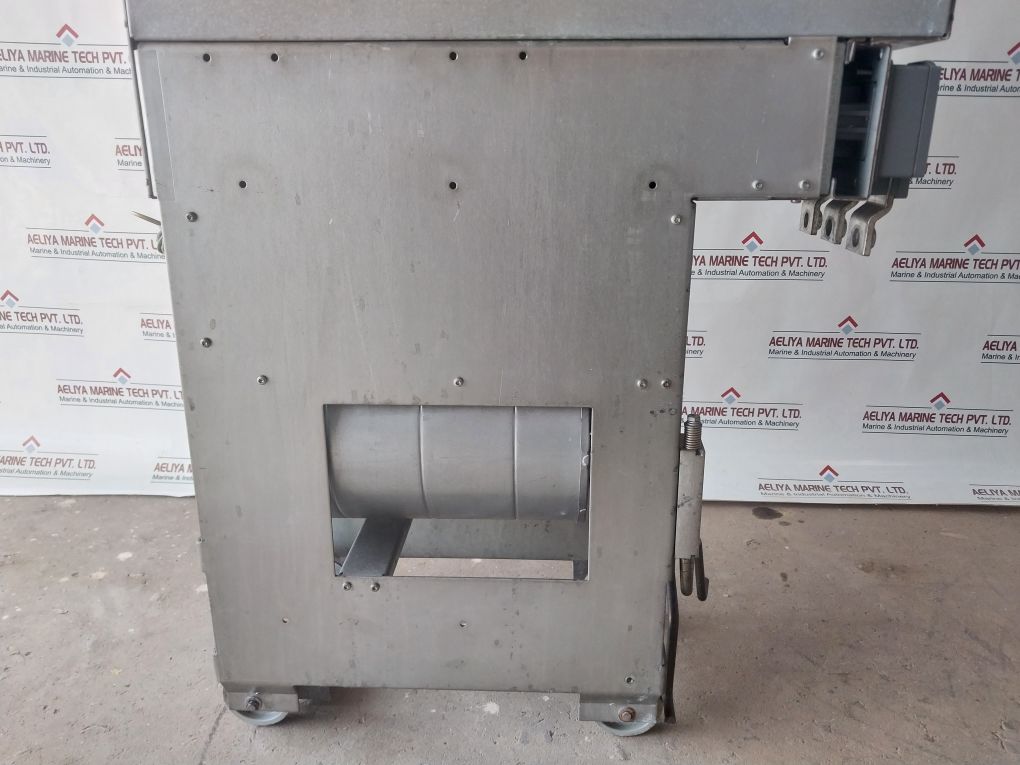

Abb Acs800-104-0580-7+c126+e205+v991 Inverter

Abb Acs800-104-0580-7+c126+e205+v991 Inverter
Abb Oy

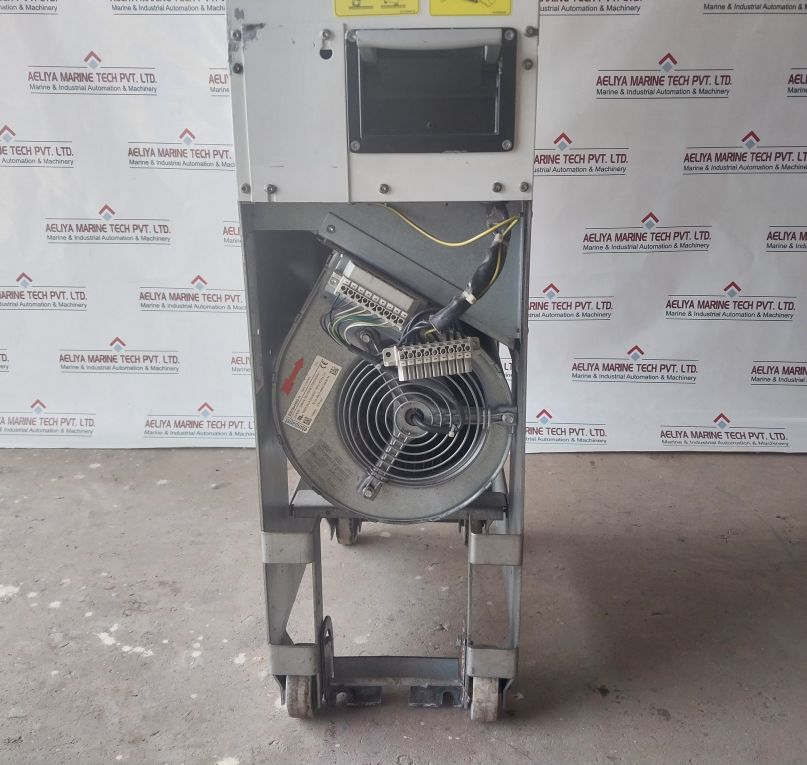

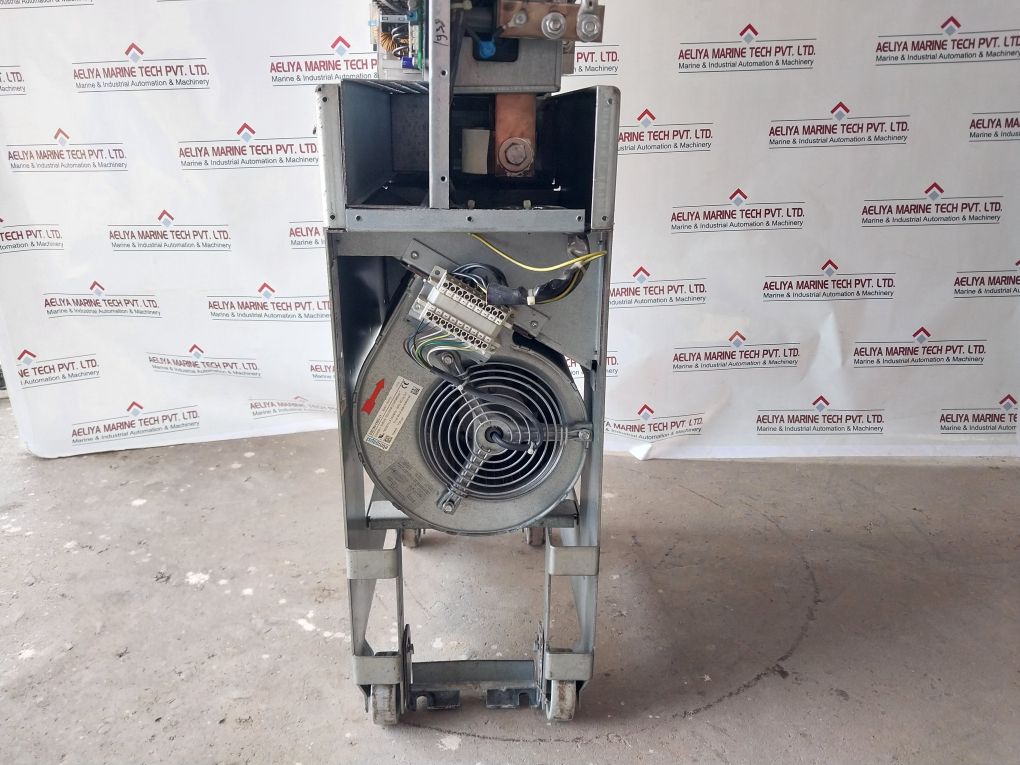

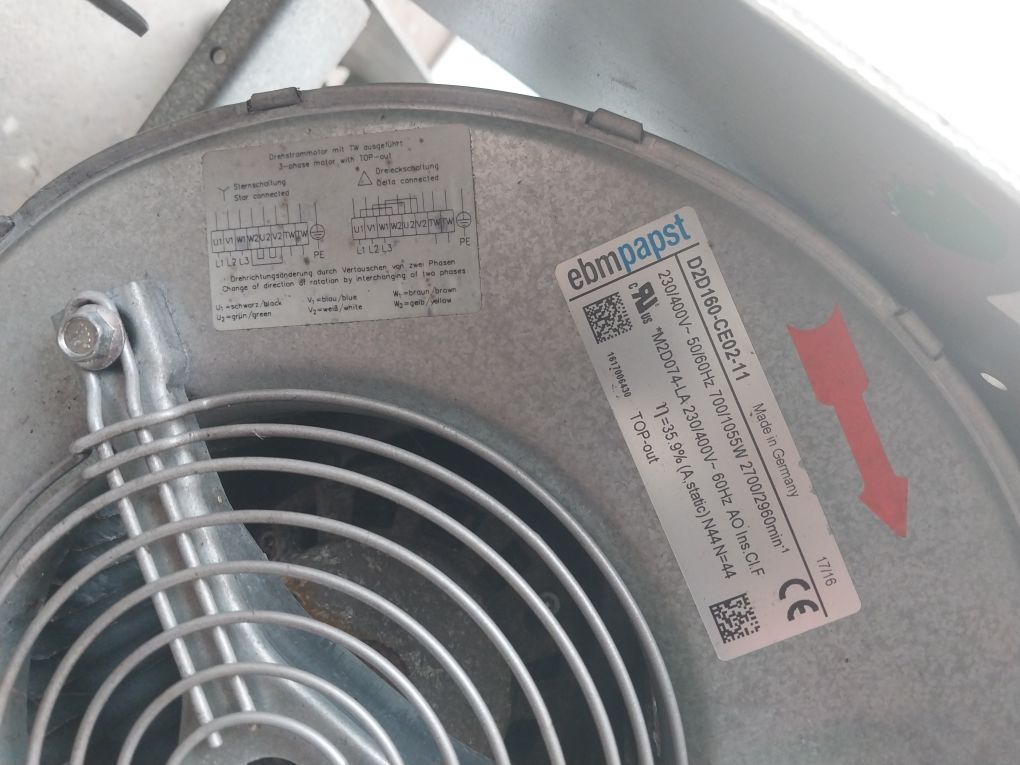

Ebmpapst
Trafotek Insulation System
D2d160-ce02-11
230/400v~ 50/60hz 700/1055w 2700/2960min-1
*m2d074-la 230/400v~ 60hz Ao Ins.cl.f
Ƞ=35.9% (A, Static) N44n=44
1617006430
Acs800-104-0580-7+c126+e205+v991
Code: 68685745

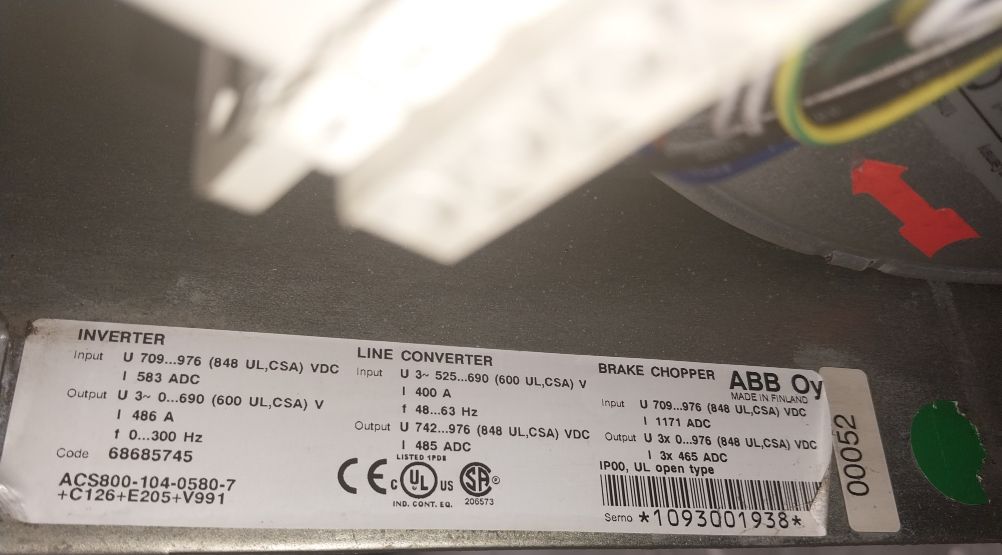

Inverter:
Input: U 709…976 (848 Ul, Csa) Vdc
I 583 Adc
Output: U 3~ 0…690 (600 Ul, Csa) V
I 486 A
F 0…300 Hz
Line Converter:
Input: U 3~ 525…690 (600 Ul, Csa) V
I 400 A
F 48…63 Hz
Output: U 742…976 (848 Ul, Csa) Vdc
I 485 Adc
Brake Chopper
Input: U 709…976 (848 Ul, Csa) Vdc
I 1171 Adc
Output: U 3x 0…976 (848 Ul, Csa) Vdc
I 3x 465 Adc
Ip00, Ul Open Type

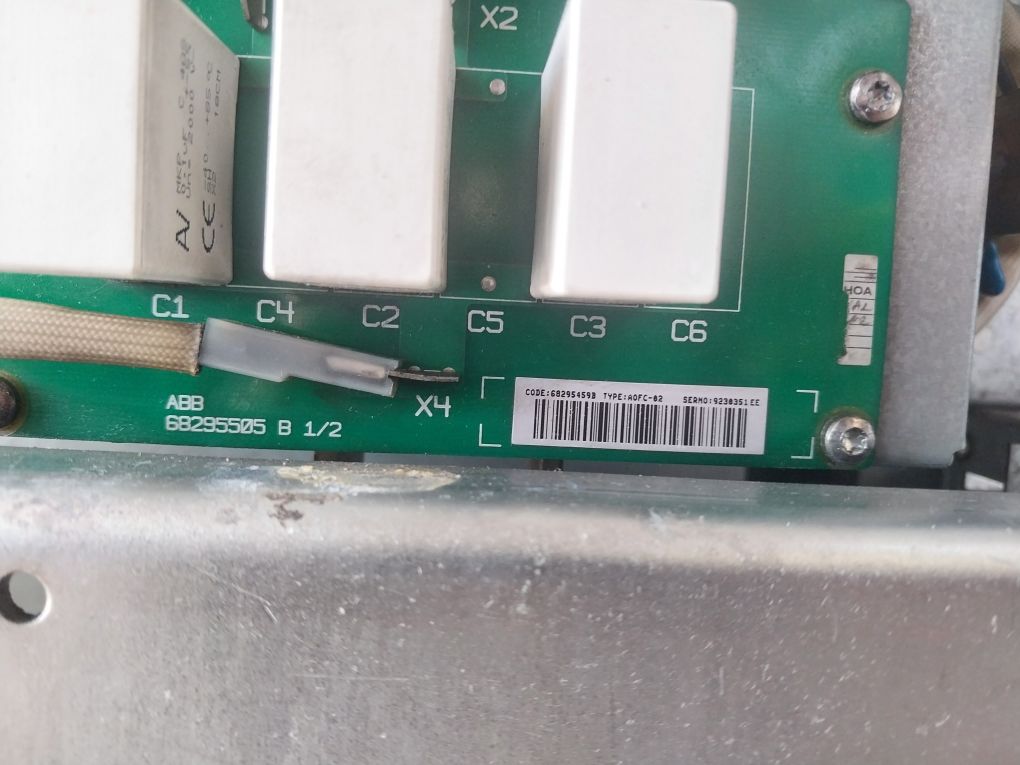

68295505 B 1/2
Code: 68295459b

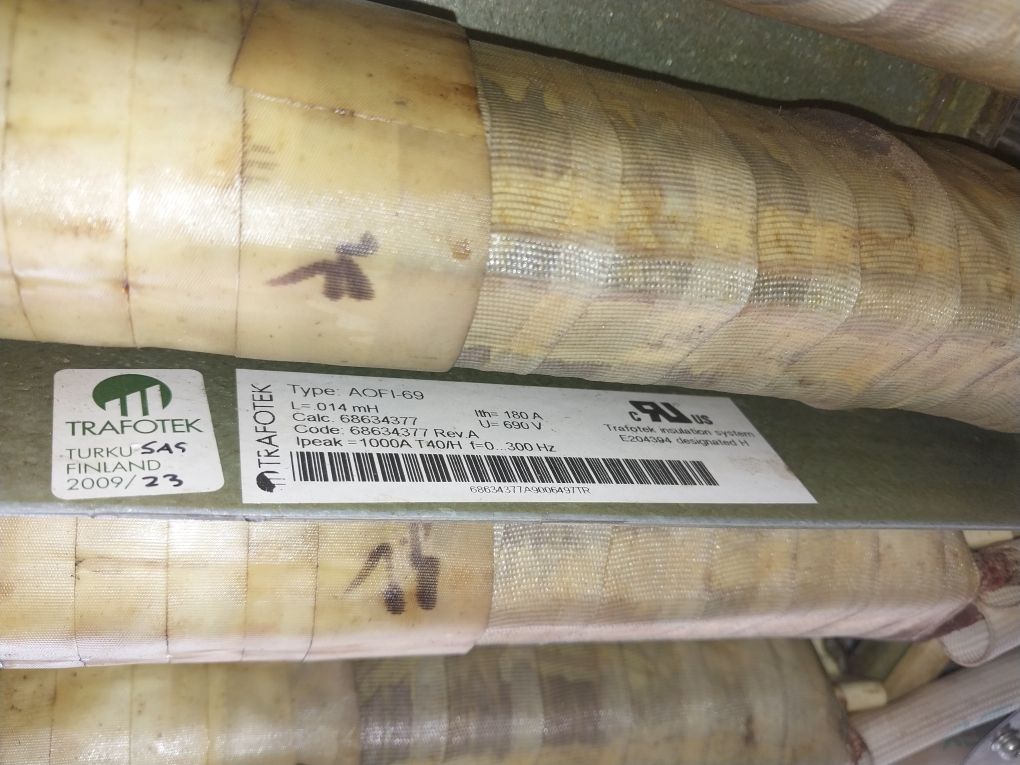

Type: Aofc-02

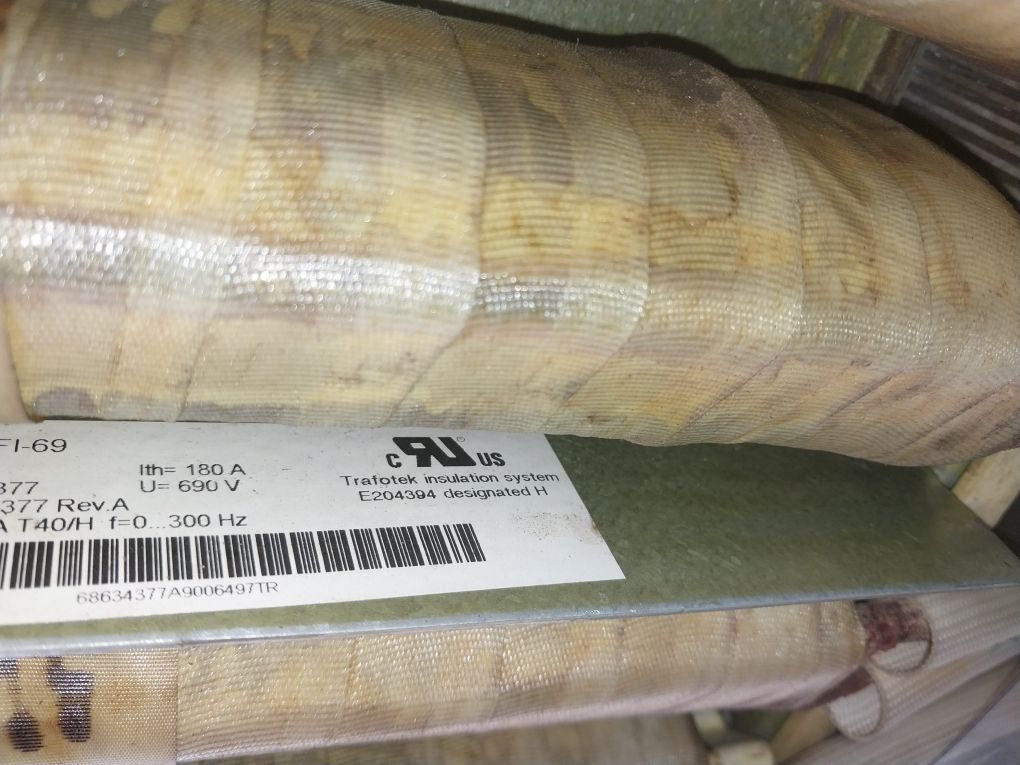

Type: Aofi-69
L= .014 Mh
Code/calc: 68634377
Rev. A
Ipeak=1000a T40/h F=0…300 Hz
Ith=180 A
U=690 V
E204394
68634377a9006497tr

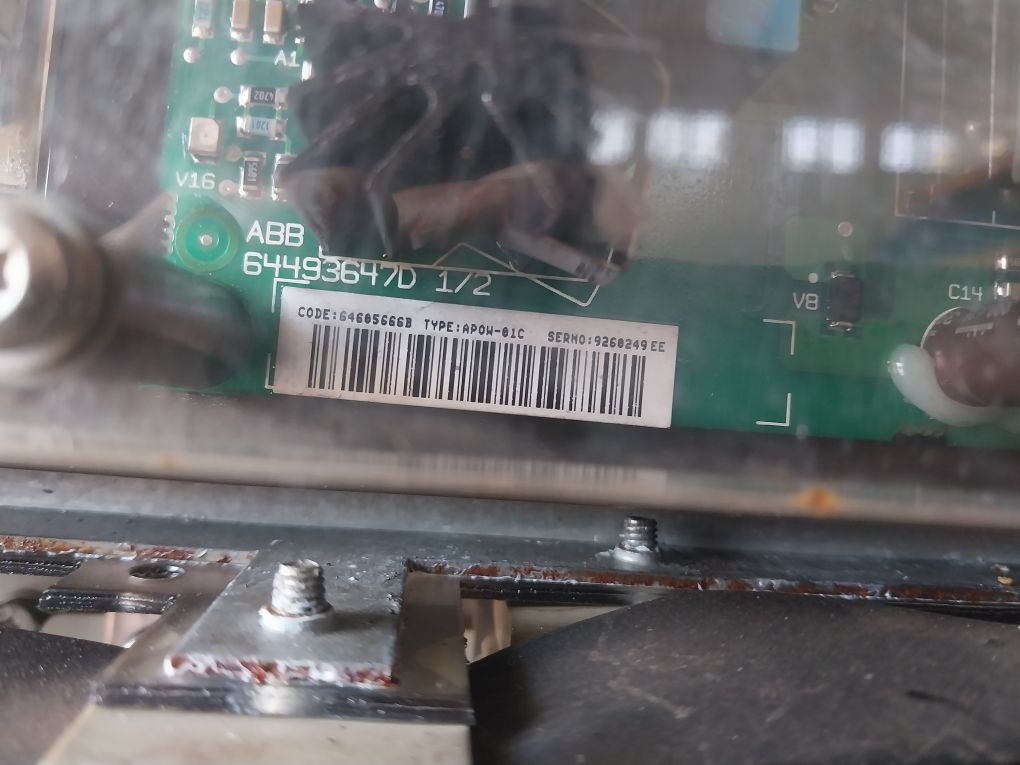

64493647d 1/2
Code: 64605666b
Type: Apow-01c

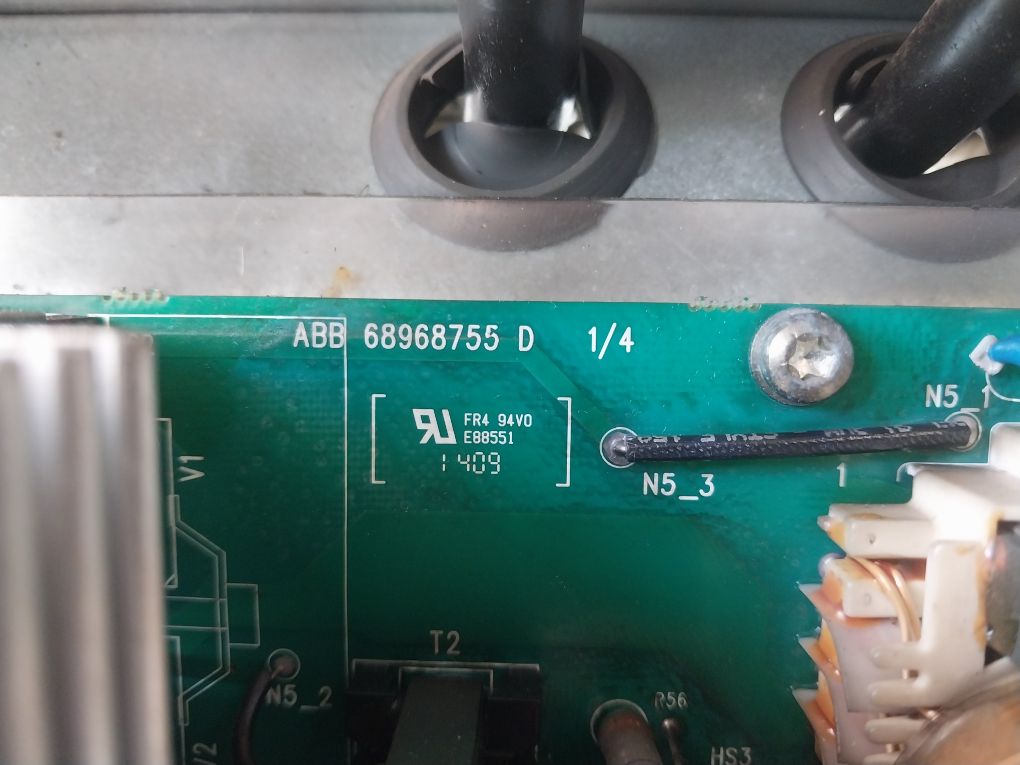

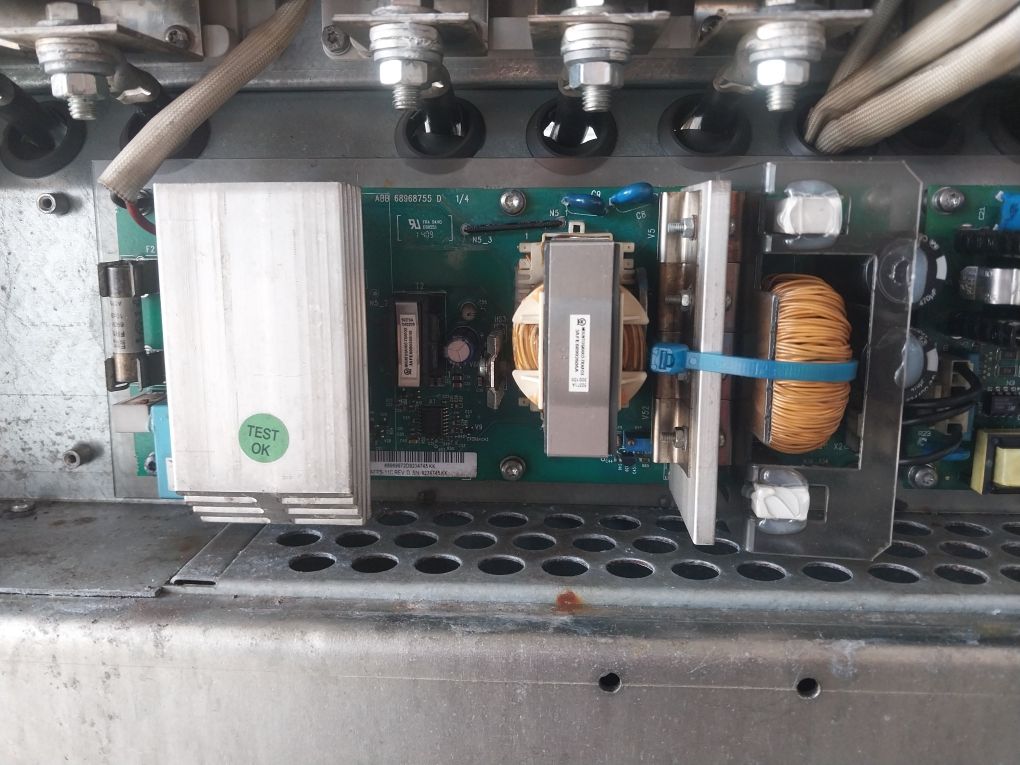

68968755 D 1/4
Fr4 94v0
E88551

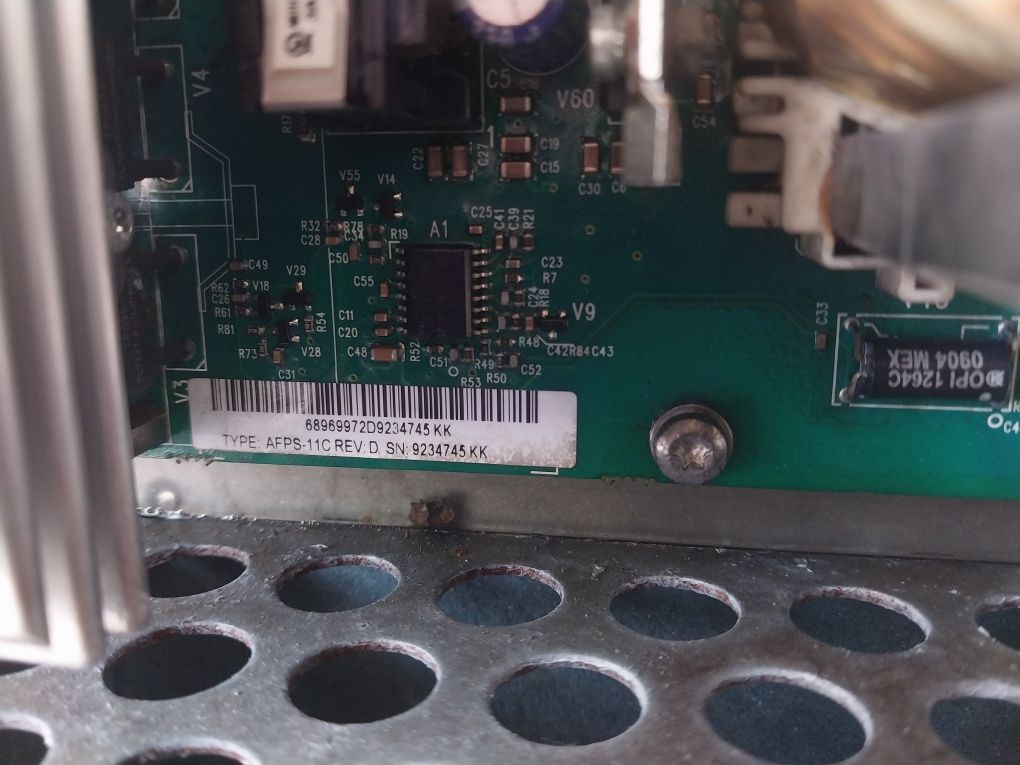

68969972d9234745 Kk
Type: Afps-11c
Rev: D

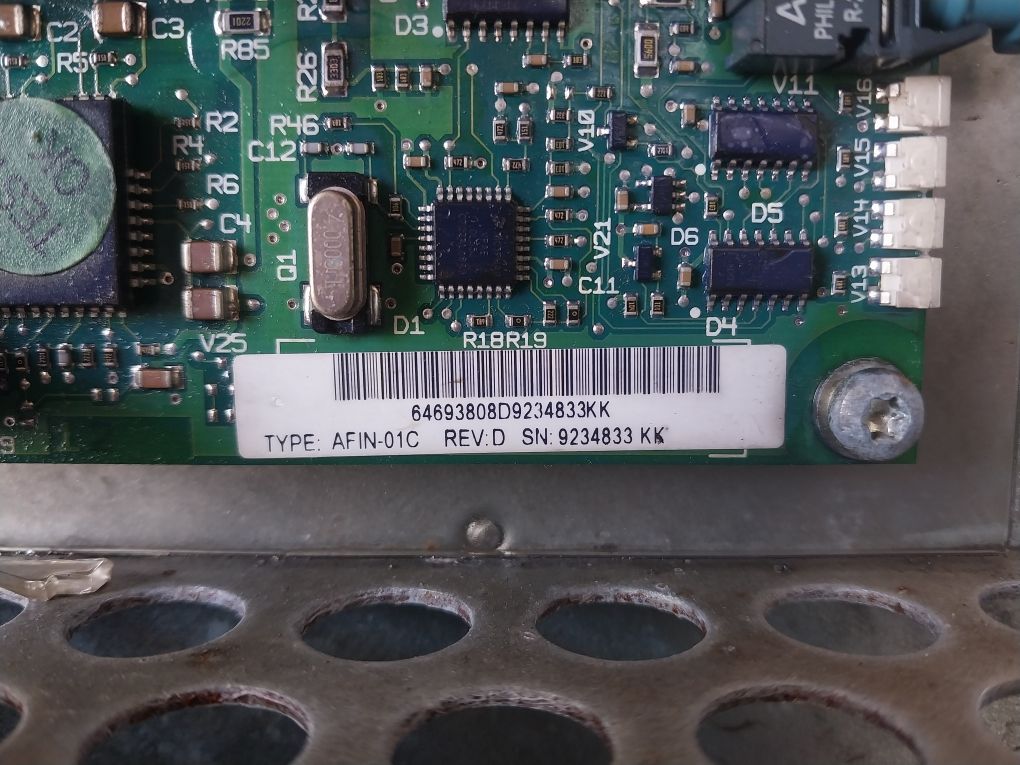

64693808d9234833kk
Type: Afin-01c

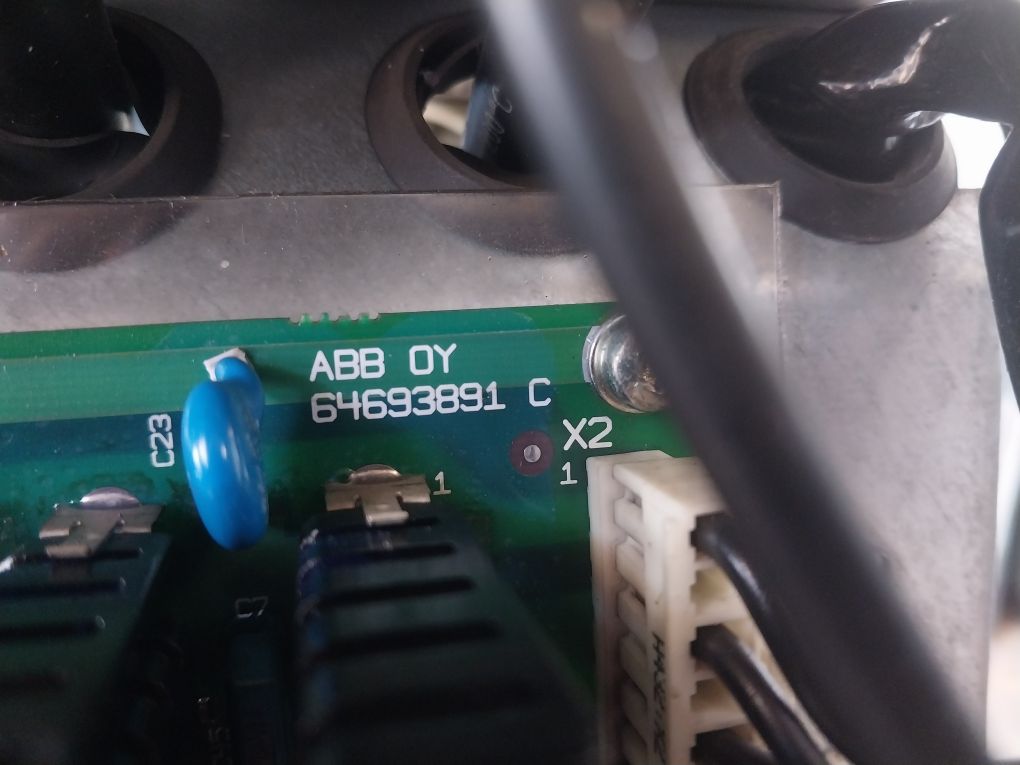

64693891 C

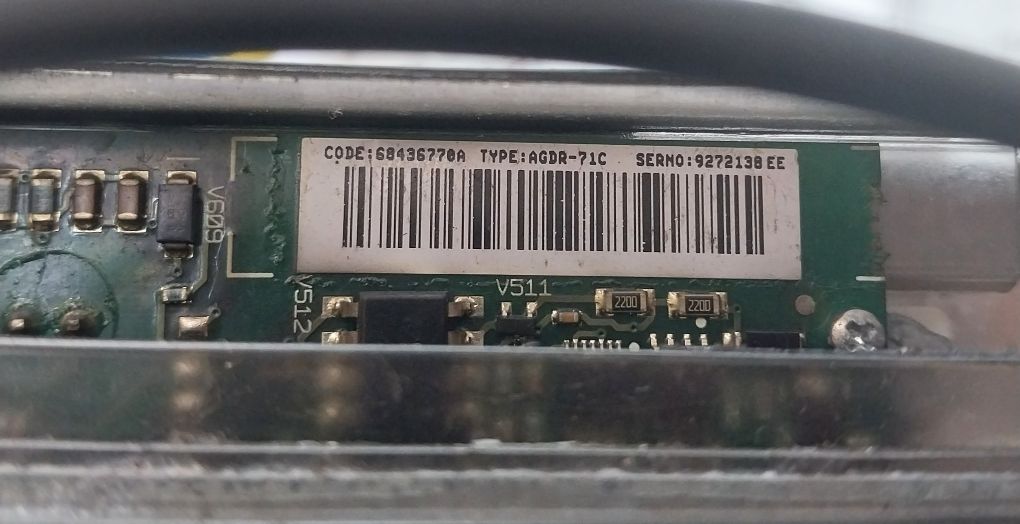

Code: 68436770a
Type: Agdr-71c

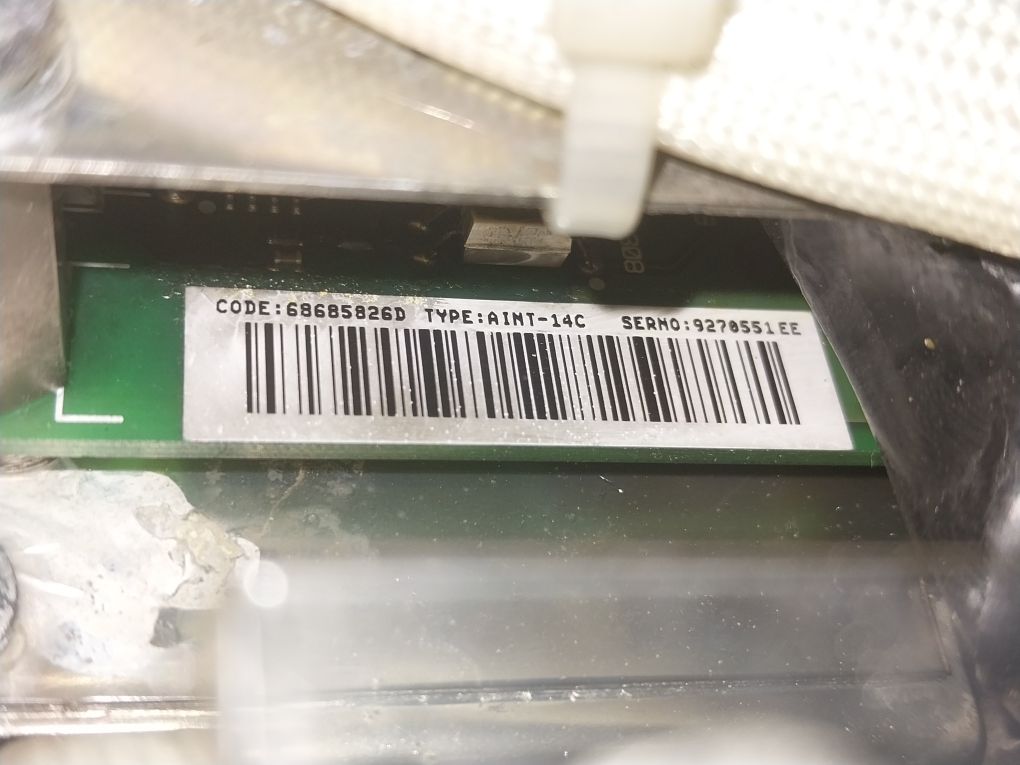

Code: 68685826d
Type: Aint-14c

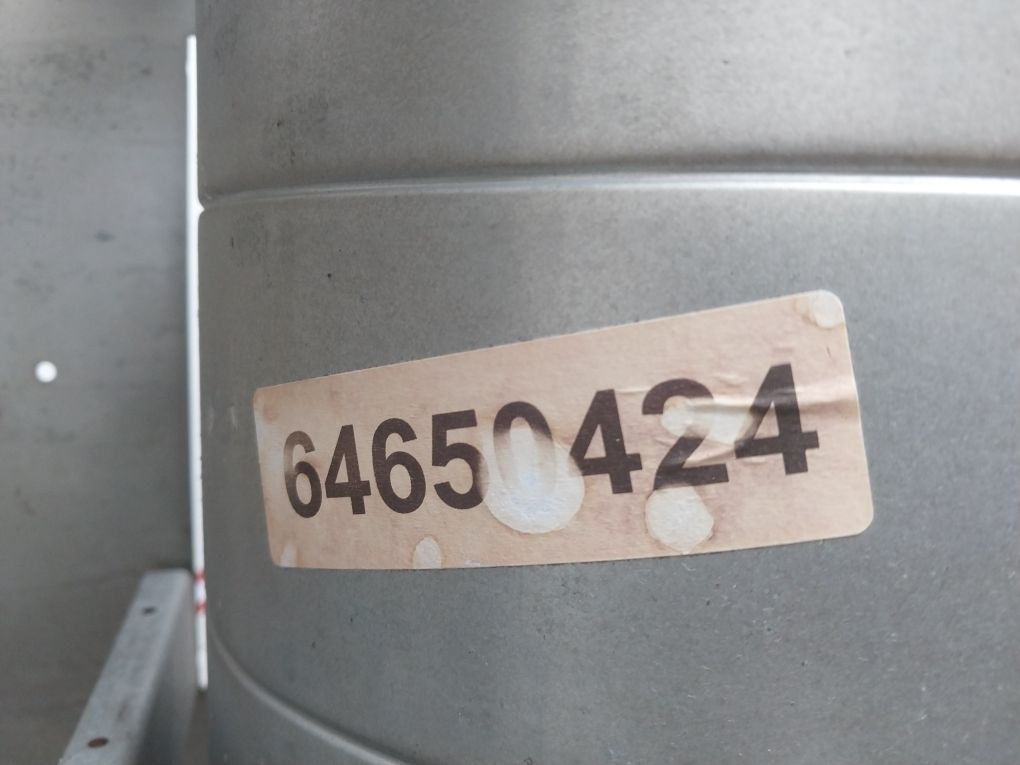

64650424
58978396 C

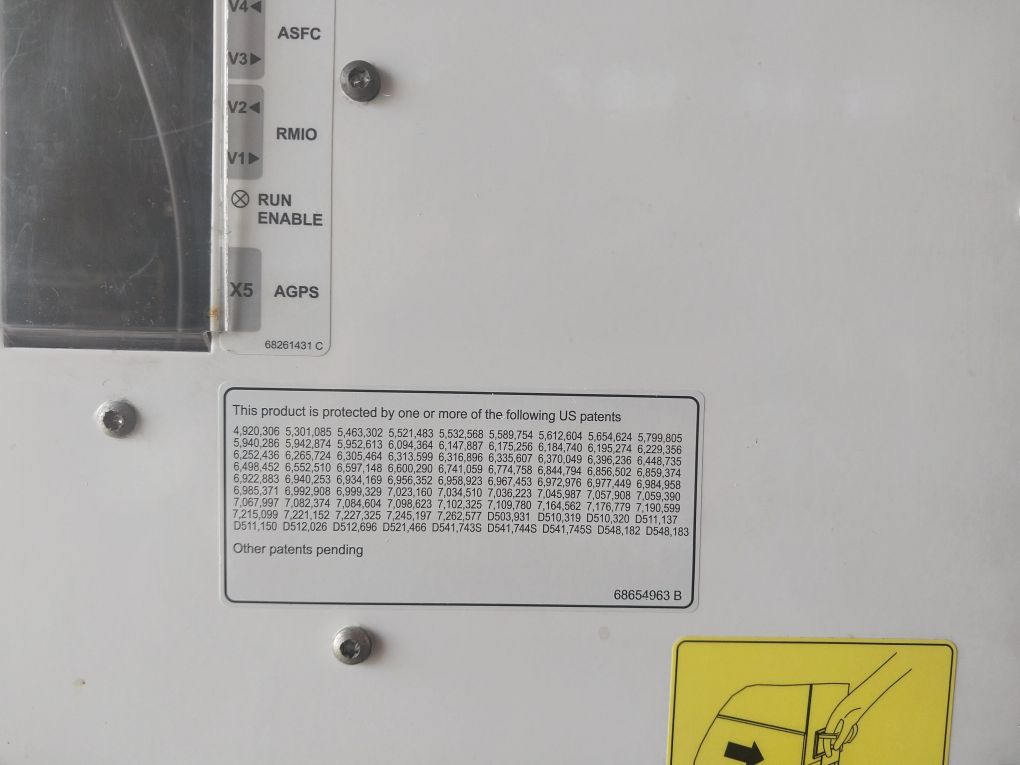

68654963 B
68261431 C

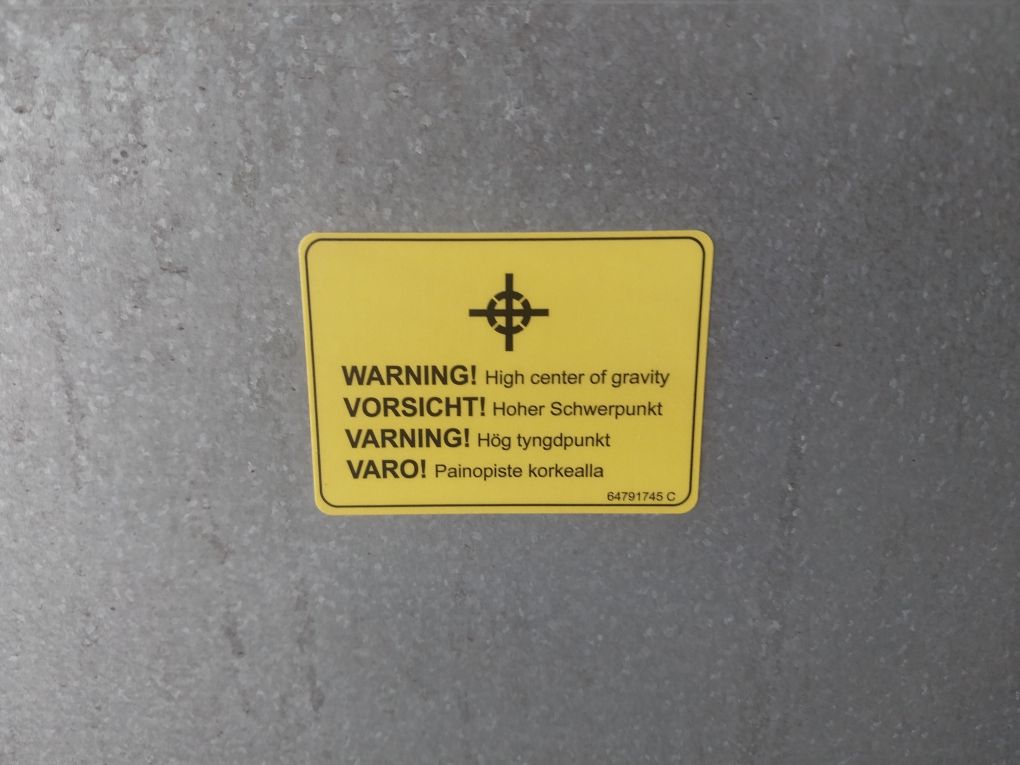

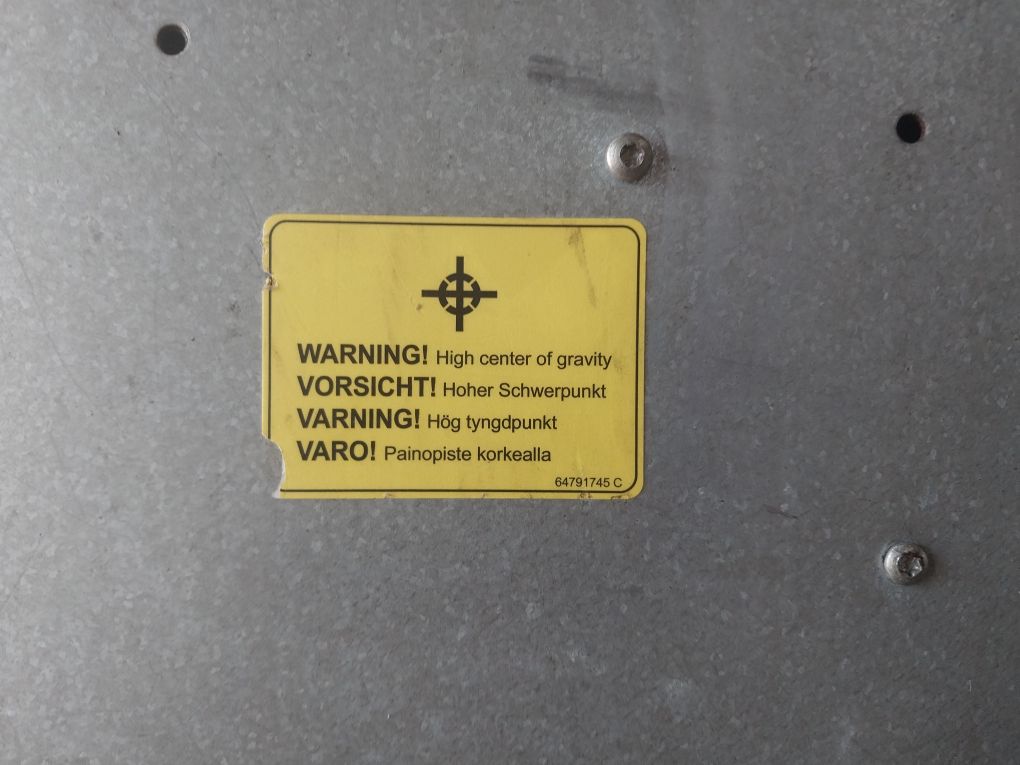

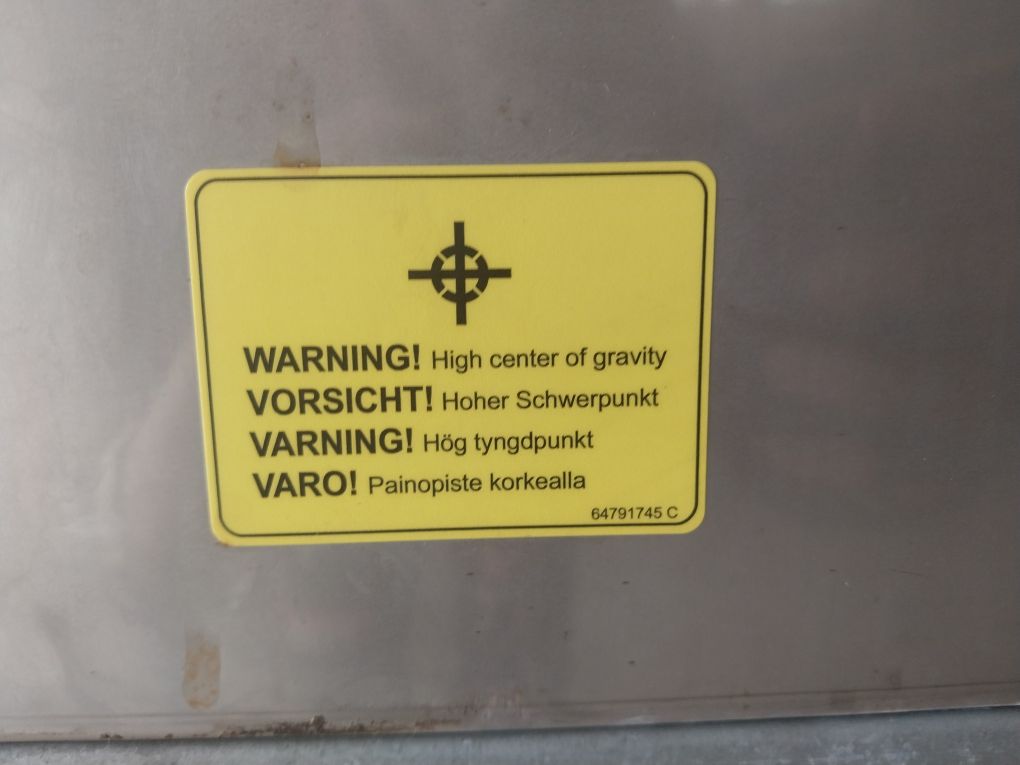

64791745 C
64810901b
Made In Finland
Made In Germany
Weight : 139 Kg
Ref No : 73318
