Abb Ach580-Pdr-077a-4+B056+E213 Ac Drive 480v

Abb Ach580-Pdr-077a-4+B056+E213 Ac Drive 480v
Abb Inc.
Abb Oy Drives
Hvac
Enclosed Industrial Control Panel
Product Name/Model Number: Ach580
Ach580-Pdr-077a-4+B056+E213
Product Type: Vfd

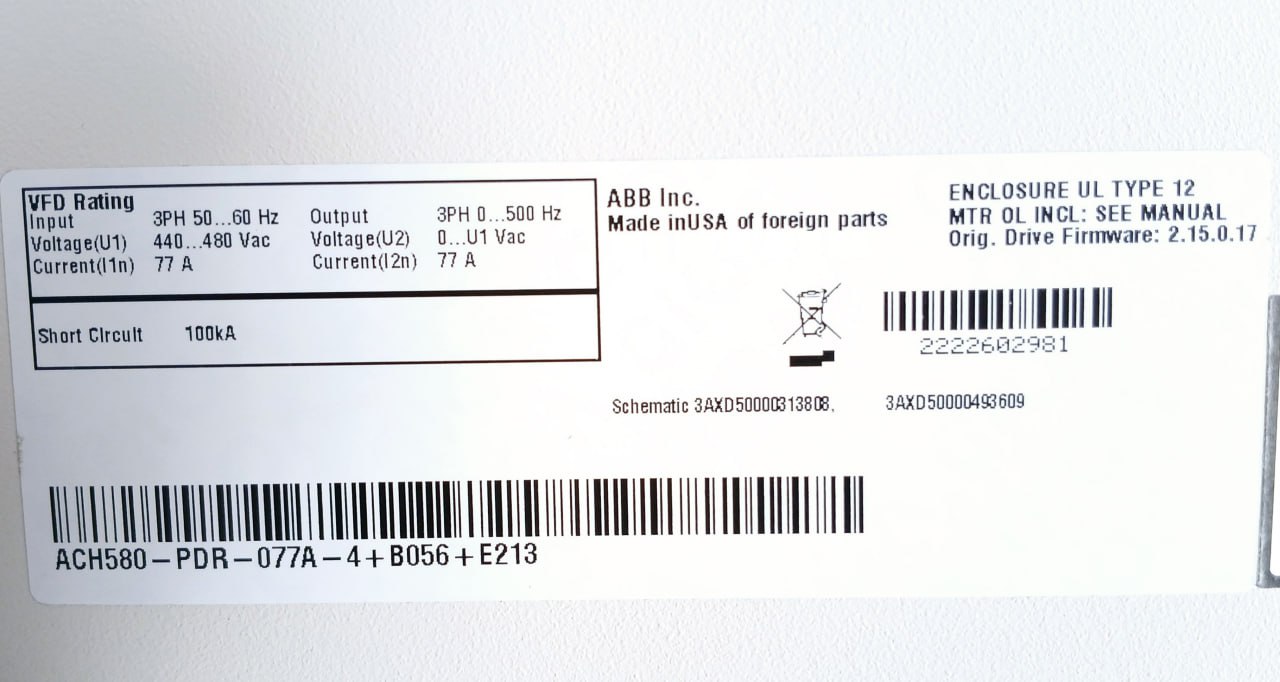

Vfd Rating:
Input:
3ph 50…60hz
Voltage (U1): 440…480vac
Output:
3ph 0…500hz
Voltage (U2): 0…U1 Vac
Current (I1n)/(I2n): 77 A
Short Circuit: 100ka
Enclosure Ul Type 12
Orig. Drive Firmware: 2.15.0.17
Schematic 3axd50000313808, 3axd50000493609
No: F 91750299
E101649
Acs-Ap-S
Code: 3aua0000064884
3aua0000064884k0275932sb
Sw: 5.95
3axd50000332274
Rev. B
3axd50000223015
Ot100f3
1s200b12213401425
Input Voltage: 440-480vac
Ach580-01-077a-4+P922
Sw: /N2000
Relays Max
250vac
30vdc
2a
Cdpi-01
Code: 3aua0000118614
3aua0000118614c2045095ws
3aua0000118152h2030940ws
E243951
Cp 5
94v-0
Cti 3
10000007806 D
222030078222(R6990)
Mov-480v
Code: 3aua0000008410
3aua0000008410j1530216tg
Made In China
Made In Usa
Weight : 63 Kg
Ref No : 171182
