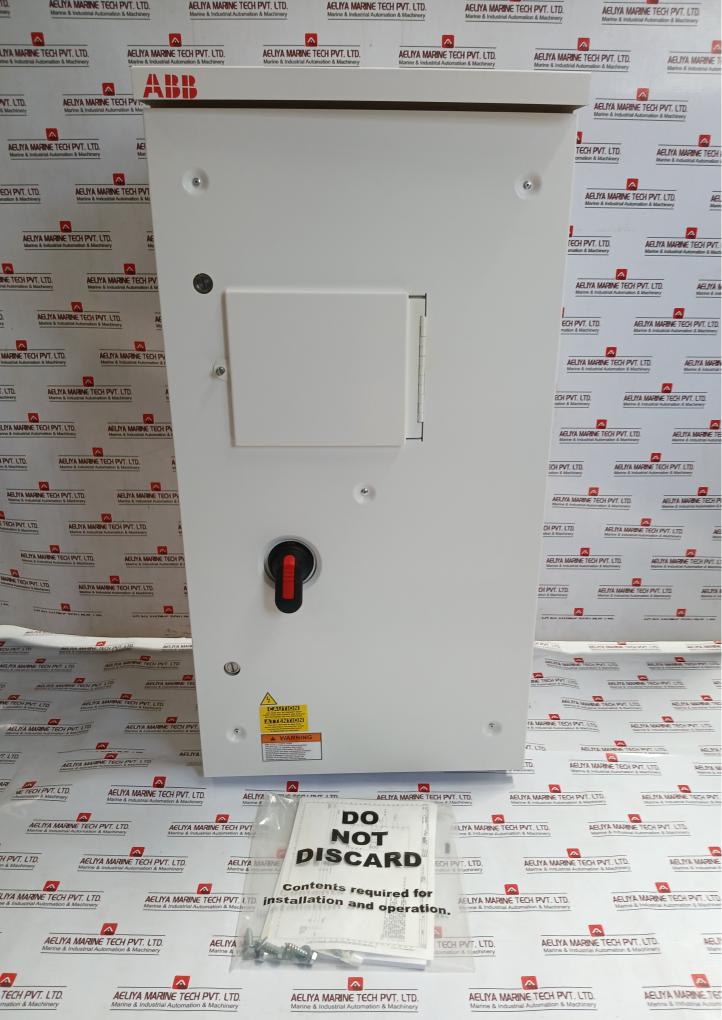

Abb Ach580-Pcr-034a-4+B058 Drives Hvac Enclosed Industrial Control Panel 480 V

Abb Ach580-Pcr-034a-4+B058 Drives Hvac Enclosed Industrial Control Panel 480 V
Abb Inc.
Abb Oy Drives
Hvac
Taiton
Enclosed Industrial Control Panel
Product Type: Vfd
Product Name/Model Number: Ach580
Ach580-Pcr (1…350 Hp, 0.75…250 Kw)
Ach580-Pcr-034a-4+B058

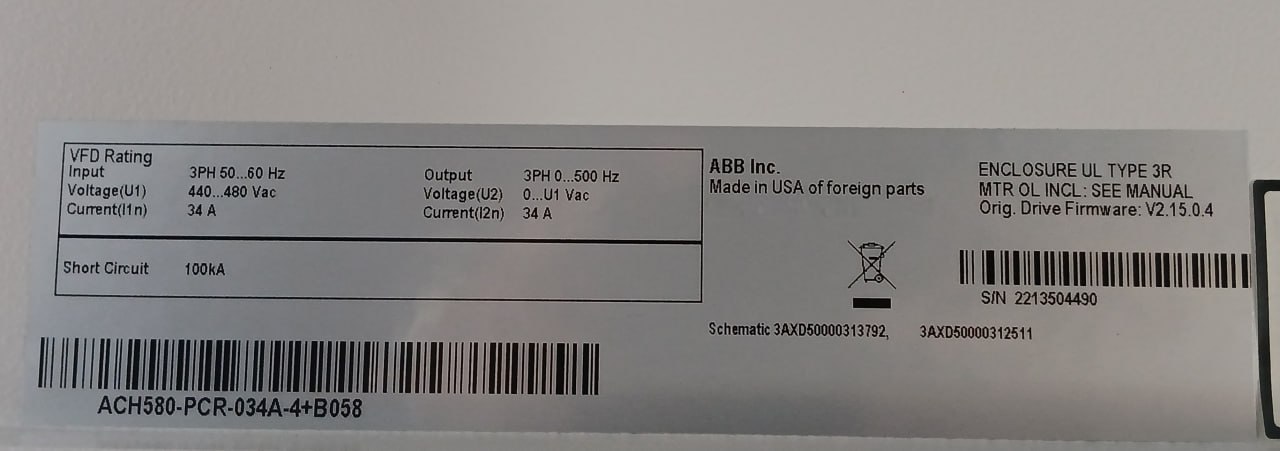

Vfd Rating:
Input: 3ph 50…60 Hz
Output: 3ph 0…500 Hz
Voltage (U1): 440…480 Vac
Voltage (U2): 0…U1 Vac
Current (I1n)/(I2n): 34 A
Short Circuit: 100ka
Enclosure Ul Type 3r
Orig. Drive Firmware/Sw: V2.15.0.4

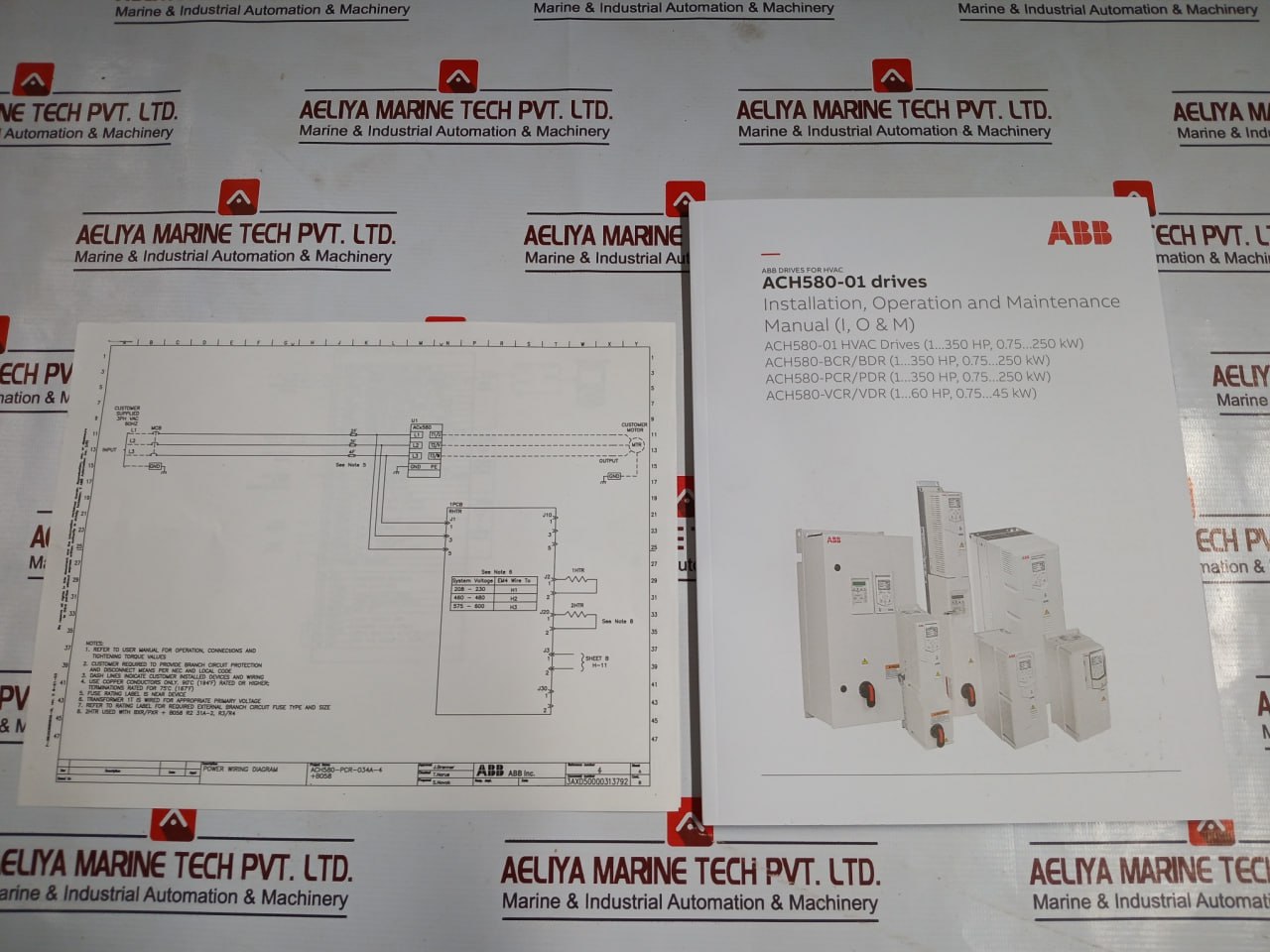

Schematic
3axd50000313792
3axd50000312511
No.: F 44724744
E101649
Ach-Ap-H
Code: 3aua0000064886
Sw: 5.95
3aua0000064886d1171084sb
3axd50000154241
Rev. B
3axd50000223015
Rhtr
Code: 3aua0000048833
3aua0000048833d1200194tg
Cdpi-01
Code: 3aua0000118614
3aua0000118614c1320500ws
10000007806 D 2/2
Copi-01/C0pi-01
3aua0000118152h1300029ws
E243951
Cp 5
Cti 3
221300022955(R6990)
Wl203
94v-0
E301369
Emc/Var Kit
Emc/Var Screws
3axd50000561261a
3aua0000114874
Rev: C
Made In Usa
Weight : 93 Kg
Ref No : 171007
