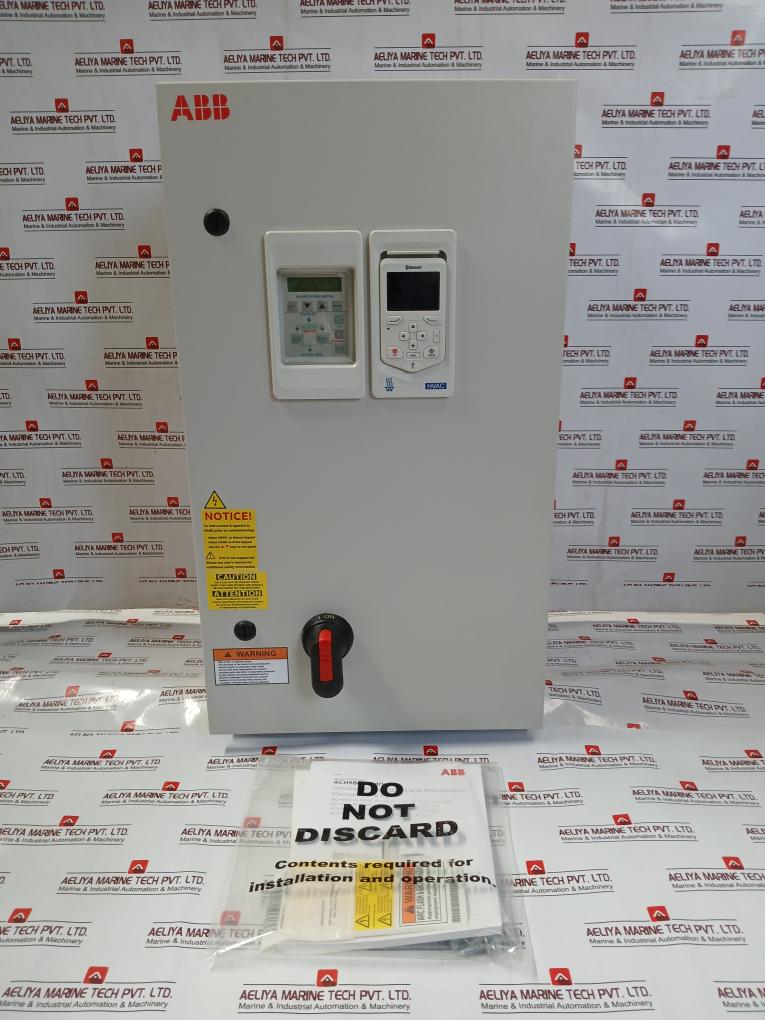

Abb Ach580-Bdr-02a7- Drives Hvac Enclosed Industrial Control Panel 600 V

Abb Ach580-Bdr-02a7- Drives Hvac Enclosed Industrial Control Panel 600 V
6+B056+E213+J429
Abb, Inc.
Abb Oy Drives
Hvac
Enclosed Industrial
Control Panel
Product Type: Vfd
Product Name/Model
Number: Ach580
Ach580-Bdr (1…350 Hp, 0.75…
250 Kw)
Ach580-Bdr-02a7-
6+B056+E213+J429

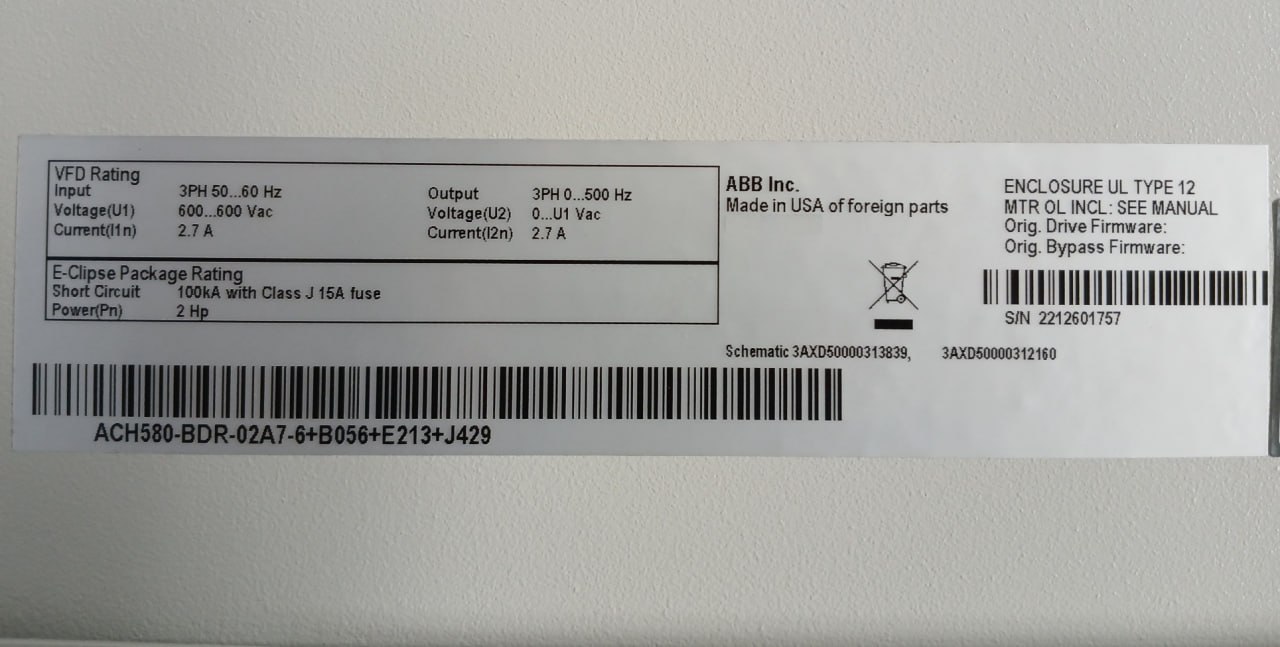

Vfd Rating:
Input: 3ph 50…60 Hz
Output: 3ph 0…500 Hz
Voltage (U1): 600…600 Vac
Voltage (U2): 0…U1 Vac
Current (I1n)/(I2n): 2.7 A
E-Clipse Package Rating
Short Circuit: 100ka With Class J 15a Fuse
Power (Pn): 2 Hp
Enclosure Ul Type 12

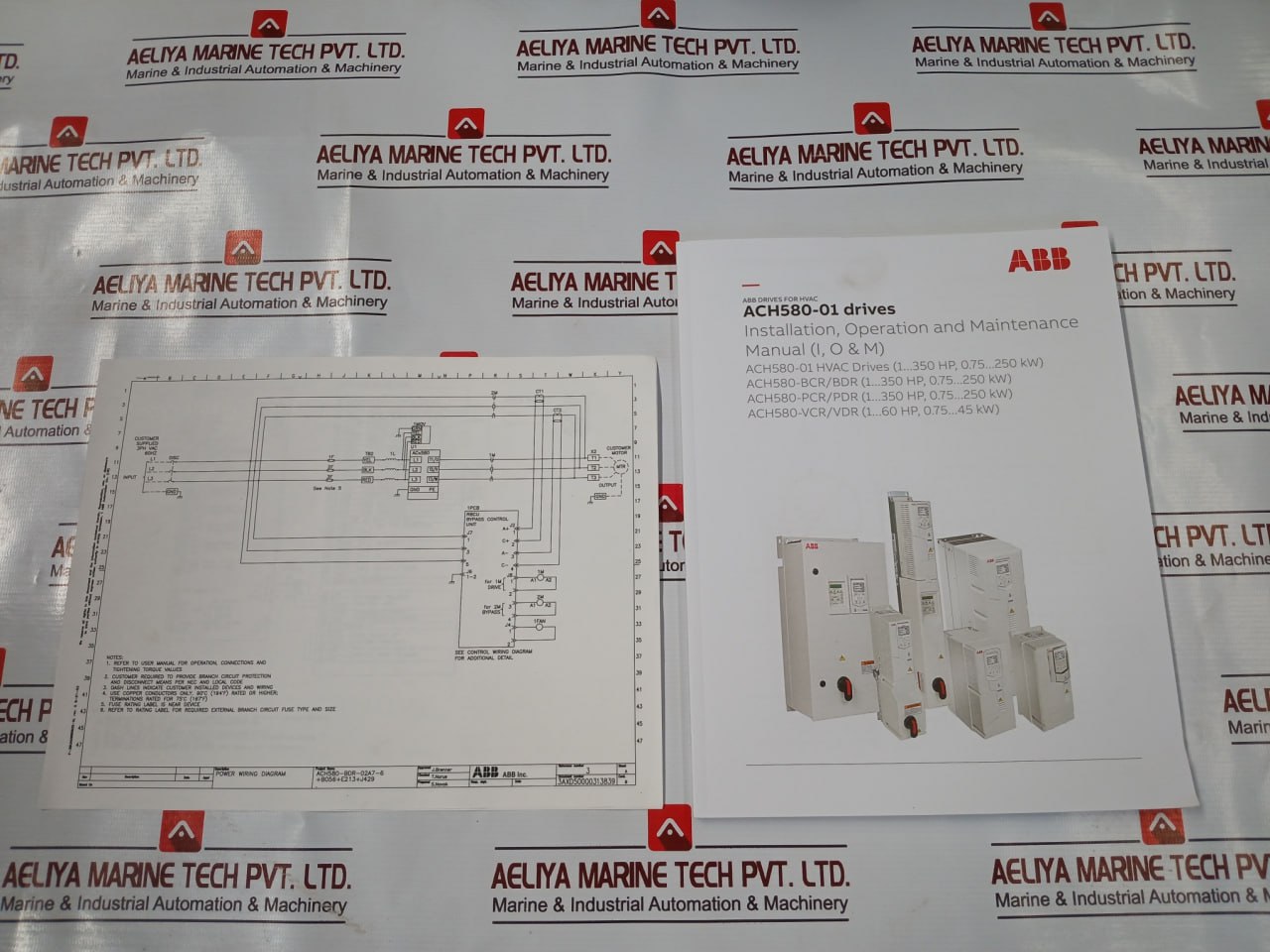

Schematic
3axd50000313839
3axd50000312160
No.: F-01595926
E101649
Type: Rbcu
Rev: F
3axd50000243624f21160757sb
E316774
Rbcu V2
Mov-600v
Code: 3aua0000008411
3aua0000008411g8150087tg
Cdpi-01
Code: 3aua0000118614
3aua0000118614c1042031ws
10000007806 D 2/2
Copi-01/C0pi-01
3aua0000118152h1031500ws
E243951
Cp 5
94v-0
Cti 3
221030054037(R6990)
Ach580-01-02a7-6
Sw: V2.12.0.4
Hcsa-1-1
Code: 3axd50000046151
3axd50000046151e0440051tg
M/N: Ach-Ap-W
Code: 3axd50000030360
Fcc Id: 2afngapwseries
Ic: 20555-Apwseries
Sw: V5.95
3axd50000030360b1097106co
3axd50000146383
Rev. A
3axd50000223015
Emc/Var Kit
Emc/Var Screws
3axd50000561261a
3aua0000114874
Rev: C
Made In Thailand
Made In China
Made In Usa
Weight : 58 Kg
Ref No : 171005
