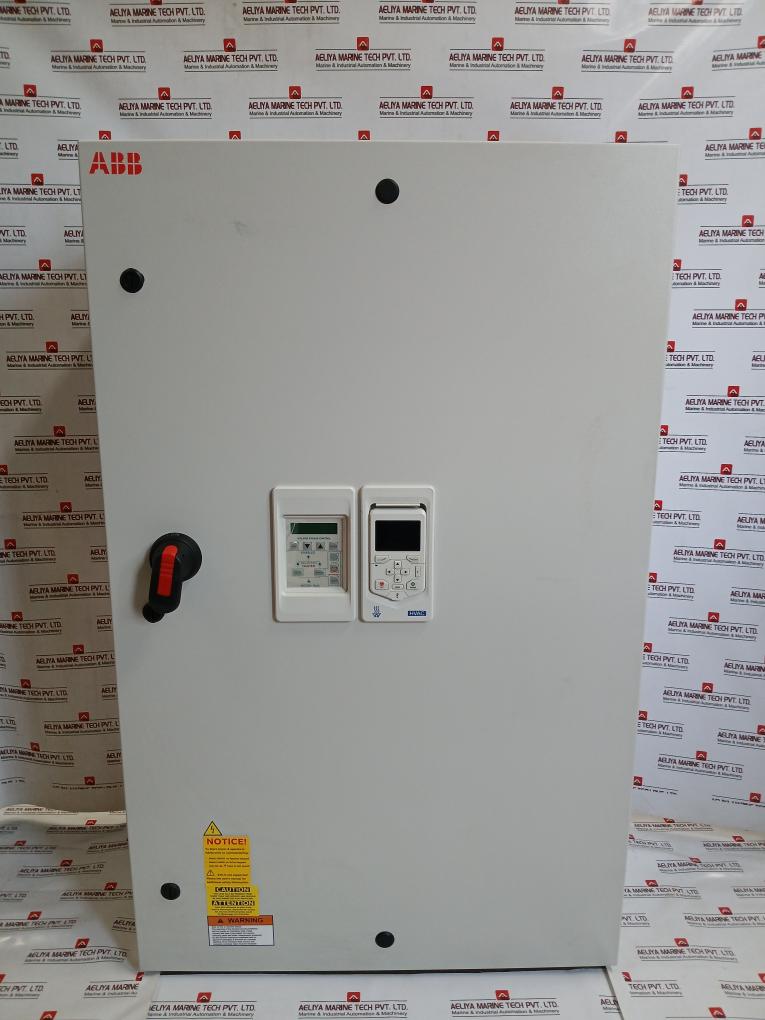

Abb Ach580-Bcr-124a-4+F267 HVAC Enclosed Industrial Control Panel 480 V

Abb Ach580-Bcr-124a-4+F267 HVAC Enclosed Industrial Control Panel 480 V
Abb, Inc.
Abb Oy
Abb Drives
Hvac
Product Name/Model Number: Ach580
Product Type: Vfd
Ach580-Bcr-124a-4+F267

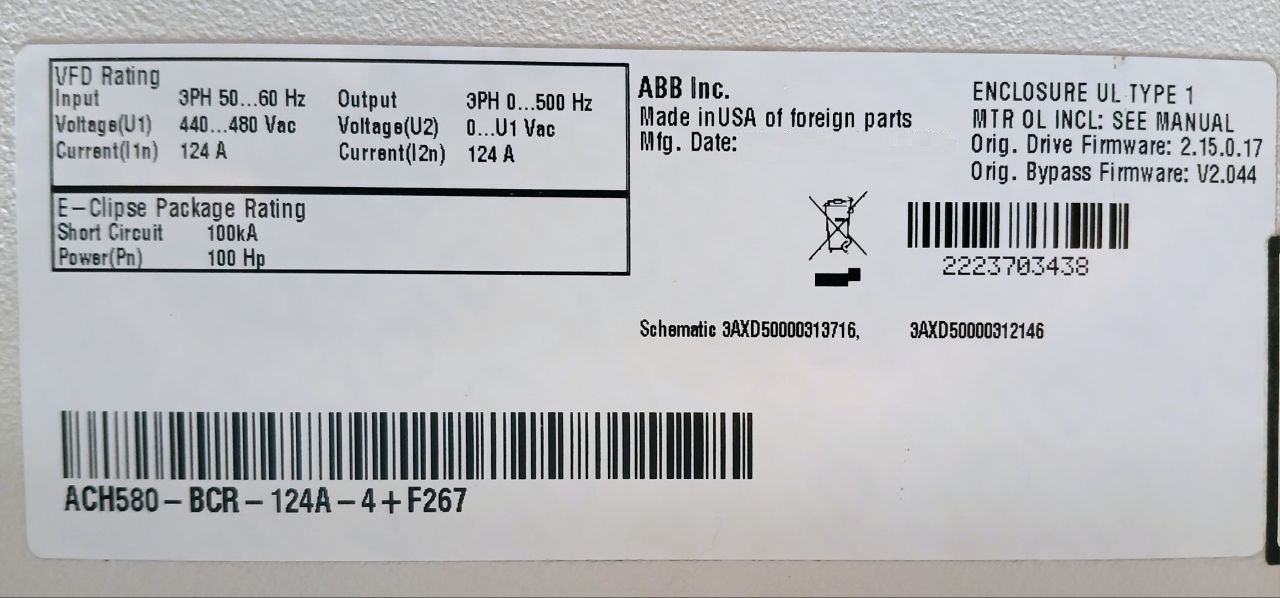

Vfd Rating:
Input: 3ph 50…60 Hz
Output: 3ph 0…500 Hz
Voltage (U1)/Input Voltage: 440…480 Vac
Voltage (U2): 0…U1 Vac
Current (I1n)/(I2n): 124 A
E-Clipse Package Rating
Short Circuit: 100ka
Power (Pn): 100 Hp
Enclosure Ul Type 1
Orig.Drive Firmware: 2.15.0.17
Orig.Bypass Firmware: V2.044
Schematic 3axd50000313716,
3axd50000312146

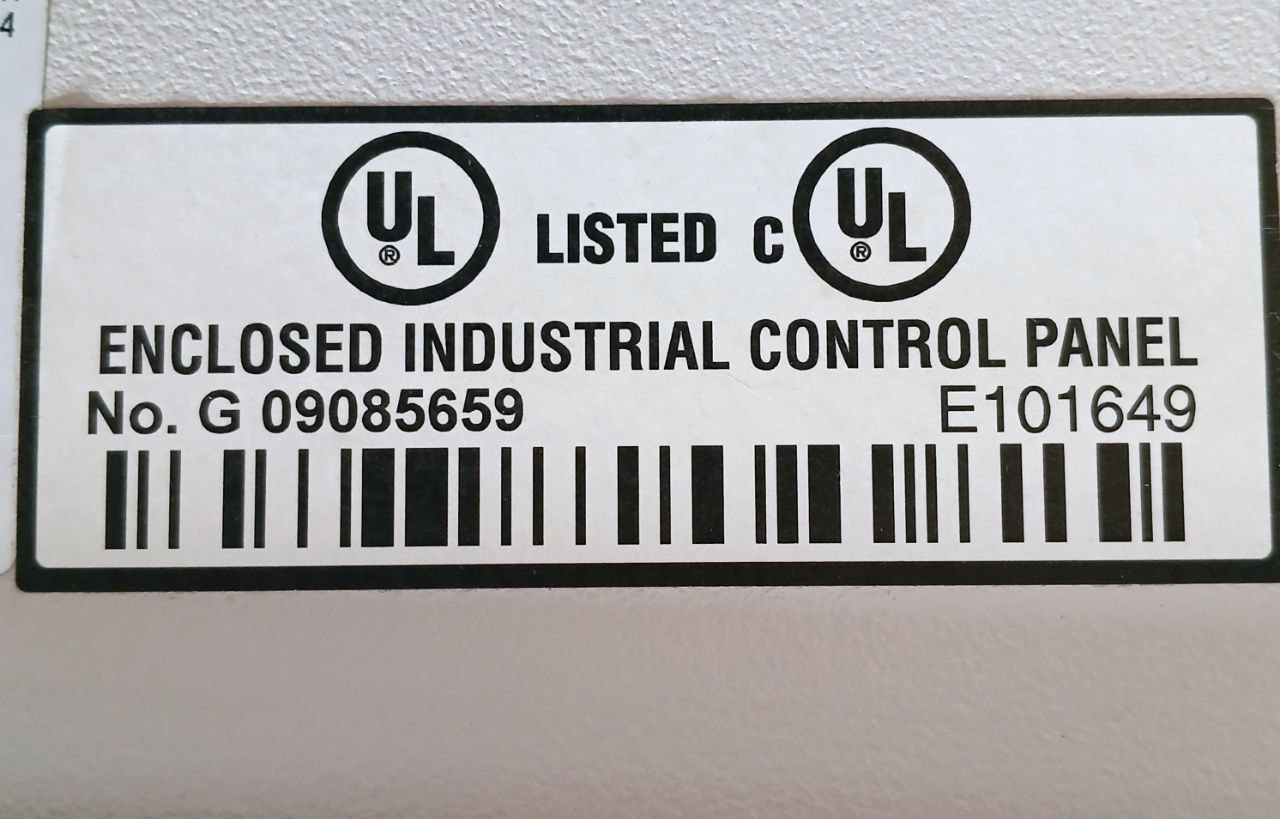

Enclosed Industrial Control Panel
No: G 09085659
E101649
M/N: Ach-Ap-H
Code: 3aua0000064886
3aua0000064886d2194421sb
Sw: V5.95
E-Clipse Bypass Control
3axd50000220410
Rev: C
3axd50000223015
3axd50000139330
3aua476001b24d215361802
Type: Rbio-01
Rev: D
Wl203
94v-0
E301369
Ach580-01-124a-4+P922
Sw /N2000
Relay Output:
Umax: 250vac/30vdc
Imax: 2a
3axd50000243624k22170944sb
Type: Rbcu
Rev: K
Svi
V2
E136774
Made In Thailand
Made In Usa
Made In India
Weight : 168 Kg
Ref No(S) : 171003
