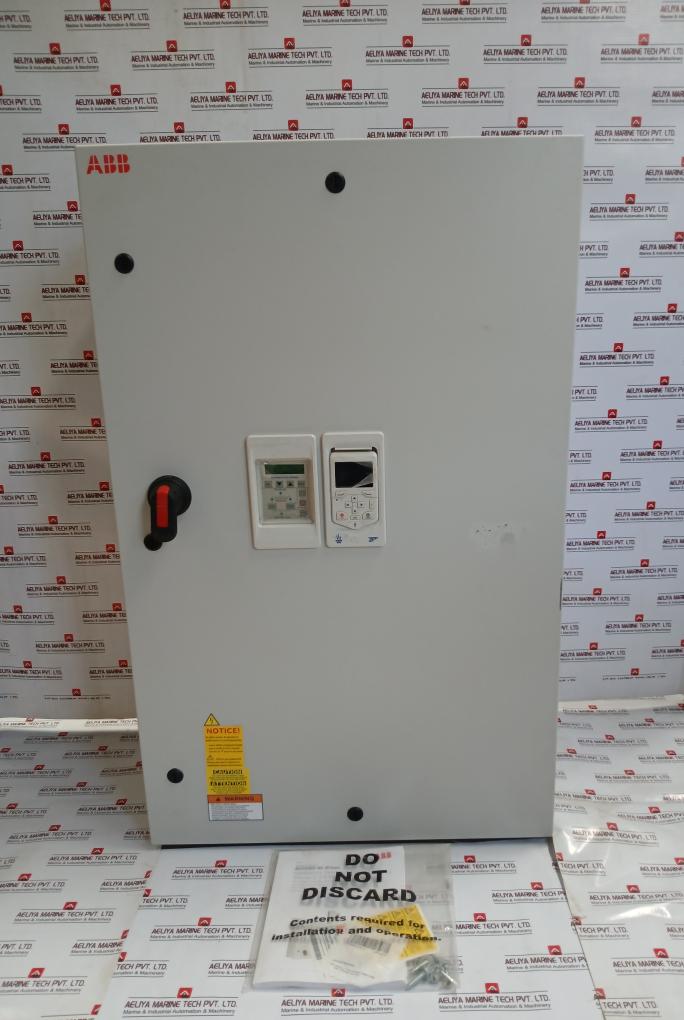

Abb Ach580-Bcr-124a-4+B056+F267 Drives For Hvac Enclosed Industrial Control Panel 480v

Abb Ach580-Bcr-124a-4+B056+F267 Drives For Hvac Enclosed Industrial Control Panel 480v
Abb, Inc.
Abb Drives
Abb Oy
Abb Drives For Hvac
Enclosed Industrial Control Panel
Product Type: Vfd
Product Name/Model Number: Ach580
Ach580-Bcr/Bdr (1…350hp, 0.75…250kw)
Ach580-Bcr-124a-4+B056+F267

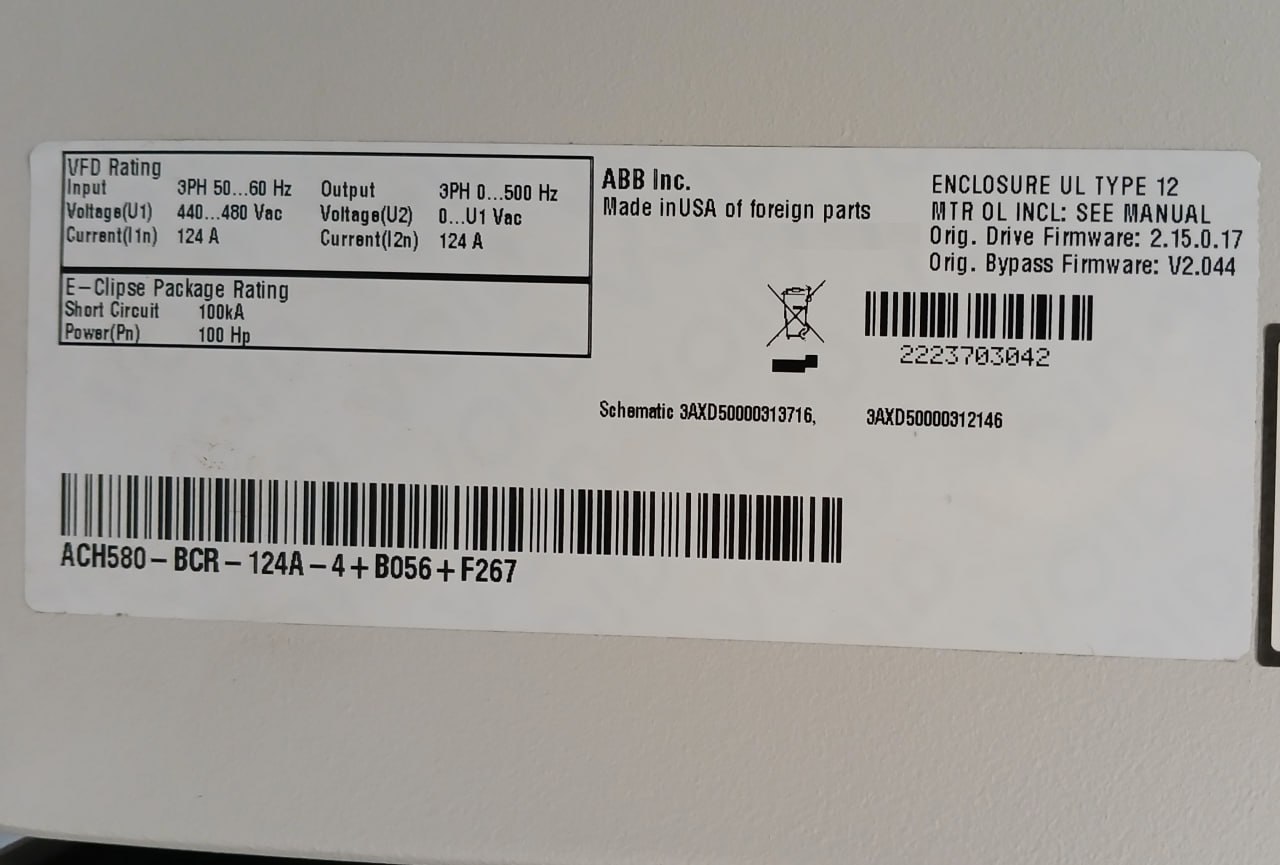

Vfd Rating:
Input: 3ph 50…60hz
Output: 3ph 0…500hz
Voltage(U1): 440-480vac
Voltage(U2): 0…U1vac
Current(I1n)/(I2n): 124a
E-Clipse Package Rating:
Short Circuit: 100ka
Power(Pn): 100hp
Enclosure Ul Type 12
Orig. Drive Firmware: 2.15.0.17
Orig. Bypass Firmware: V2.044

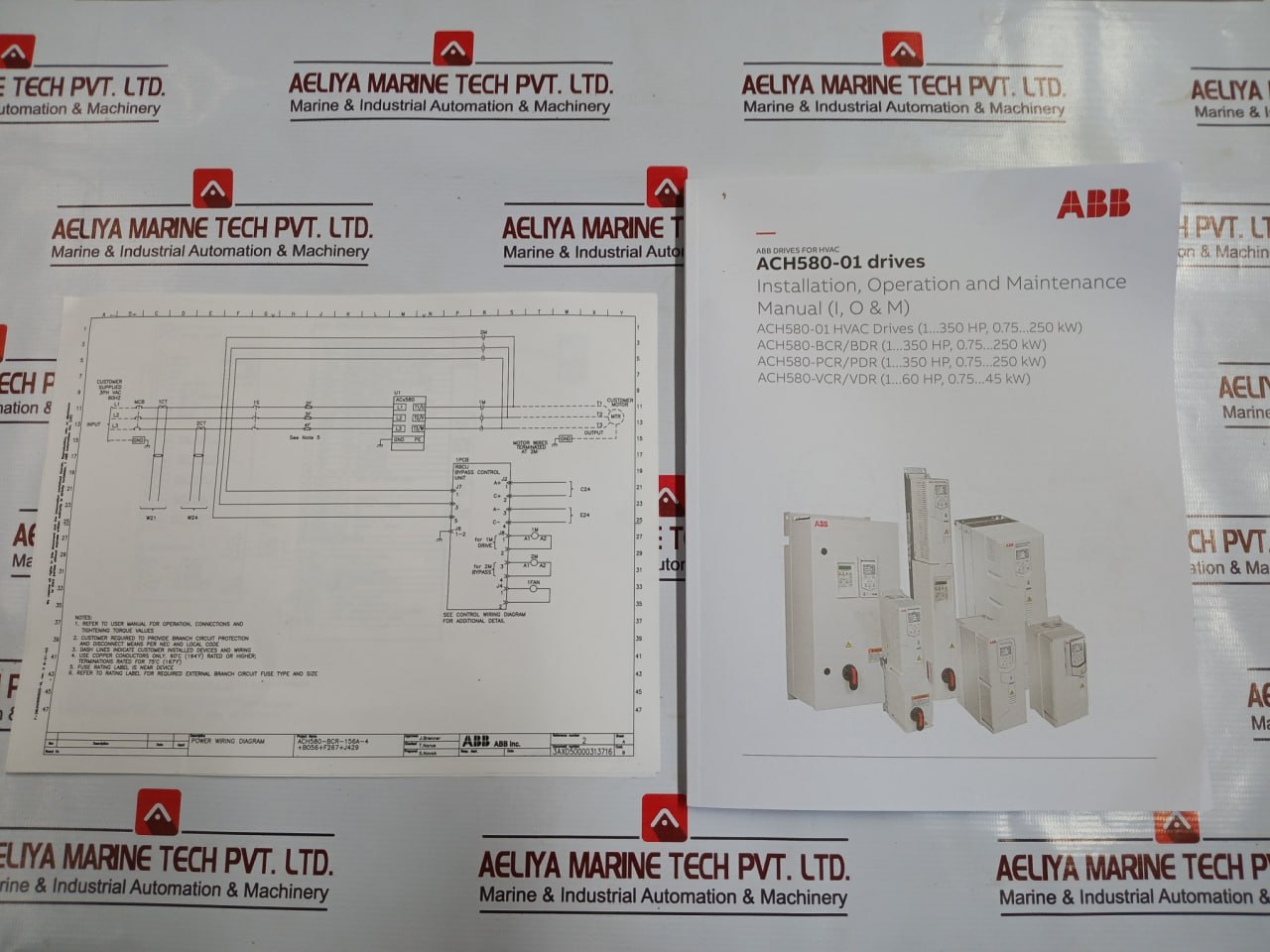

Schematic 3axd50000313716
3axd50000312146
2223703042
No.: G 09085655
E101649
Ach580-01-124a-4+P922
U1: 3ph 400/480vac
I2: 124a
Relay Output:
Umax: 250vac/30vdc
Imax: 2a
Sw: /N2000
Type: Rbcu
Rev: K
3axd50000243624k22170257sb
E316774
Rbcu V2
3axd50000139330
Type: Rbio-01
Rev: D
3aua476001b24d215361788
Wl203
94v-0
E301369
3axd50000223015
3axd50000220410
Rev: C
M/N: Ach-Ap-H
Code: 3axd50000759651
Sw: V6.02
3axd50000759651b2251456sb
3axd50000561261a
Emc/Var Kit
Emc/Var Screws
3aua0000114874
3axd50000313716
Ach580-Bcr-156a-4+B056+F267+J429
Rma 60433044
Made In India
Made In Thailand
Made In Usa
Weight : 169 Kg
Ref No : 171002
