Abb Ach580-Bcr-077a-4+B058+F267 Hvac Variable Frequency Drive 480 V

Abb Ach580-Bcr-077a-4+B058+F267 Hvac Variable Frequency Drive 480 V
Abb Inc.
Abb Oy Drives
Hvac
Buss-Bussmann
Limitron
Nmb
Taiton Rhtr
Sace Tmax
Enclosed Industrial Control Panel
Product Name/Model Number: Ach580
Product Type: Vfd
Ach580-Bcr-077a-4+B058+F267
Vfd Rating:
Input: 3ph 50…60 Hz
Output: 3ph 0…500 Hz
Voltage (U1): 440…480 Vac
Voltage (U2): 0…U1 Vac
Current (I1n)/(I2n): 77 A
E-Clipse Package Rating
Short Circuit: 100ka
Power (Pn): 60 Hp
Enclosure Ul Type 3r
Schematic
3axd50000332175, 3axd50000312160
No.: D-78548774
E101649
Tt2007726
Jjs-100 Amp
Ot100f3
1s200b12028200981
16204-3
175a-600v
Hcsa-4-1
Code: 3axd50000218653
3axd50000218653b0390223tg
Input Voltage: 440-480 Vac
0xp 10×225

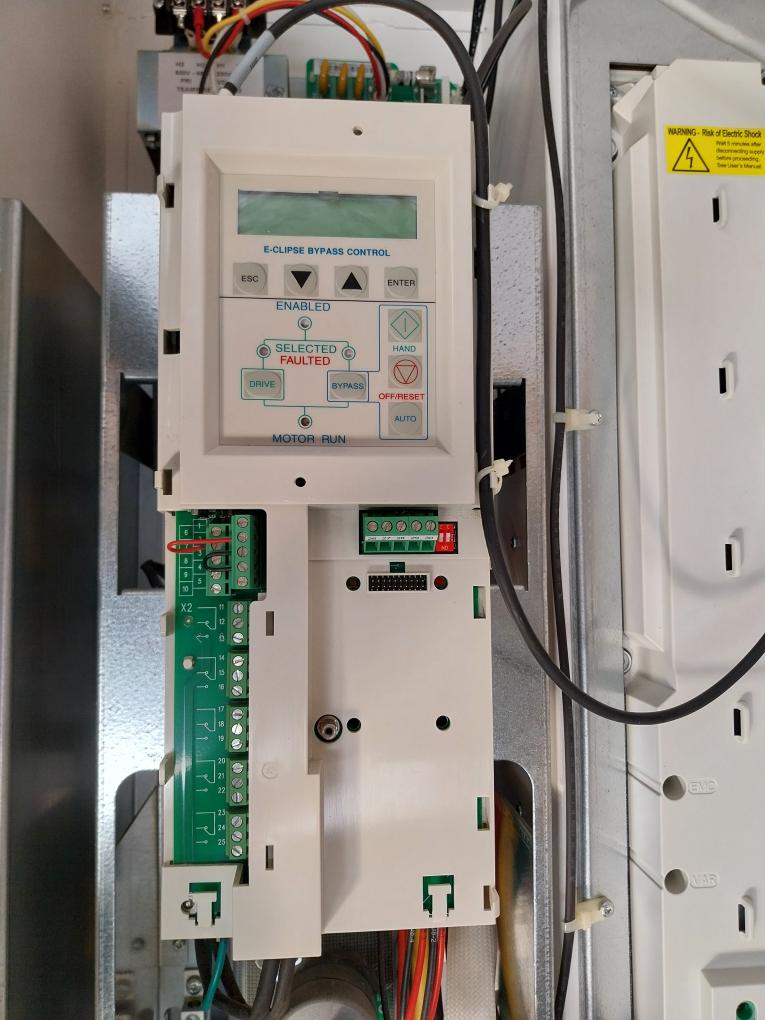

E-Clipse Bypass Control
Code: 3aua0000048833
3aua0000048833d0370461tg
Wl203
94v-0
E301369
Ach580-01-077a-4
Sw V2.12.0.4
Cdpi-01
Code: 3aua0000118614
3aua0000118614c0400824ws
C0pi-01/Copi-01
3aua0000118152h0391211ws
E243951
Cp 5
Cti 3
220390067247 (R6990)
10000007806 D 2/2
Model: 2410ml-05w-B79
3axd50000146246
Rev.: A
3axd50000223015
Ccu-23-H
Code: 3axd50000018707
3axd50000018707a0352460sb
Type: Rbcu
Rev: F
3axd50000243624f20210963sb
E316774
V2
Ax80-30
Ach-Ap-H
Code: 3aua0000064886
3aua0000064886d0463865sb
Sw: 5.95
Ach580-Bcr-077a-4+B058+F267
Made In Thailand
Made In China
Weight : 76 Kg
Ref No : 189364
