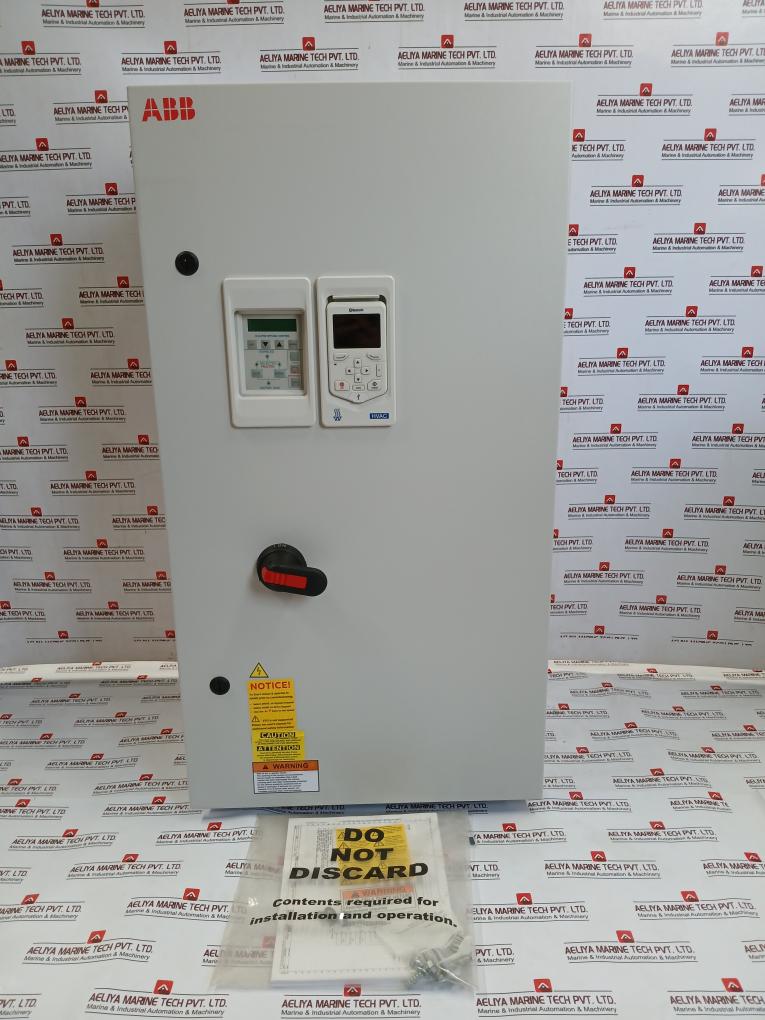

Abb Ach580-Bcr-034a-4+J429 Drives Hvac Enclosed Industrial Control Panel 480 V

Abb Ach580-Bcr-034a-4+J429 Drives Hvac Enclosed Industrial Control Panel 480 V
Abb, Inc.
Abb Oy Drives
Hvac
Enclosed Industrial Control Panel
Product Type: Vfd
Product Name/Model Number: Ach580
Ach580-Bcr (1…350 Hp, 0.75…250 Kw)
Ach580-Bcr-034a-4+J429

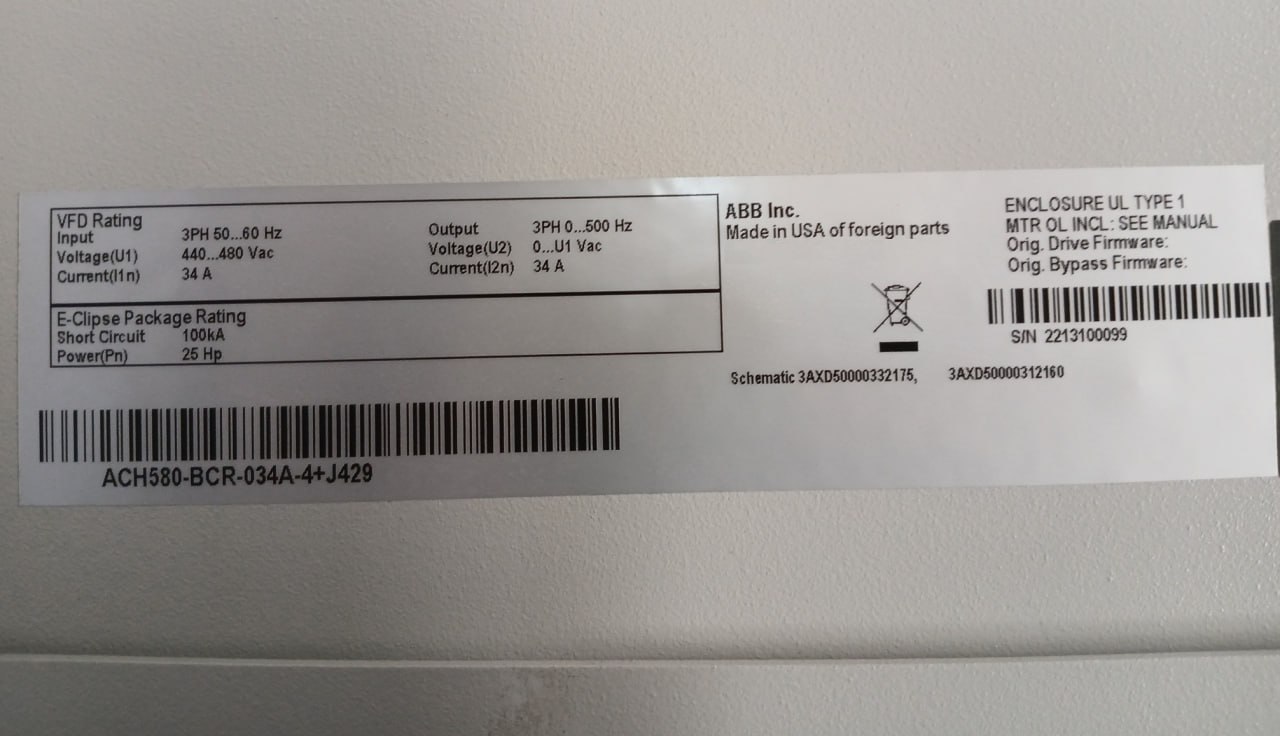

Vfd Rating:
Input: 3ph 50…60 Hz
Output: 3ph 0…500 Hz
Voltage (U1): 440…480 Vac
Voltage (U2): 0…U1 Vac
Current (I1n)/(I2n): 34 A
E-Clipse Package Rating
Short Circuit: 100ka
Power (Pn): 25 Hp
Enclosure Ul Type 1

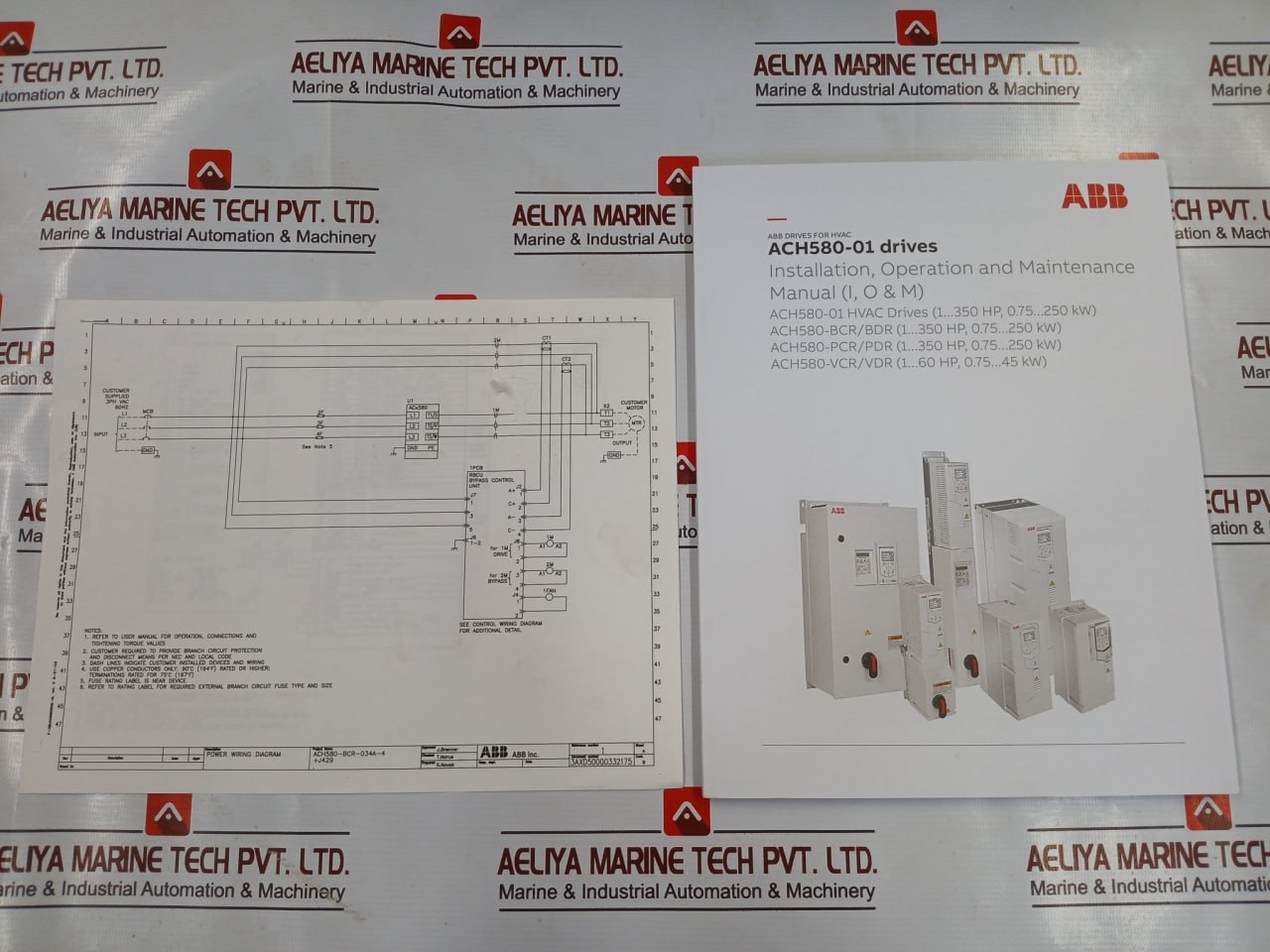

Schematic
3axd50000332175
3axd50000312160
No.: F-01604237
E101649
Type: Rbcu
Rev: F
3axd50000243624f21160557sb
E316774
Rbcu V2
Cdpi-01
Code: 3aua0000118614
3aua0000118614c1041009ws
10000007806 D 2/2
Copi-01/C0pi-01
3aua0000118152h1032111ws
E243951
Cp 5
94v-0
Cti 3
221030052324(R6990)
Ach580-01-034a-4
Sw: V2.15.0.4
M/N: Ach-Ap-W
Code: 3axd50000030360
Fcc Id: 2afngapwseries
Ic: 20555-Apwseries
Sw: V5.95
3axd50000030360b1165796co
3axd50000146406
Rev. B
3axd50000223015
Emc/Var Kit
Emc/Var Screws
3axd50000561261a
3aua0000114874
Rev: C
Made In Thailand
Made In Usa
Weight : 77 Kg
Ref No : 171006
