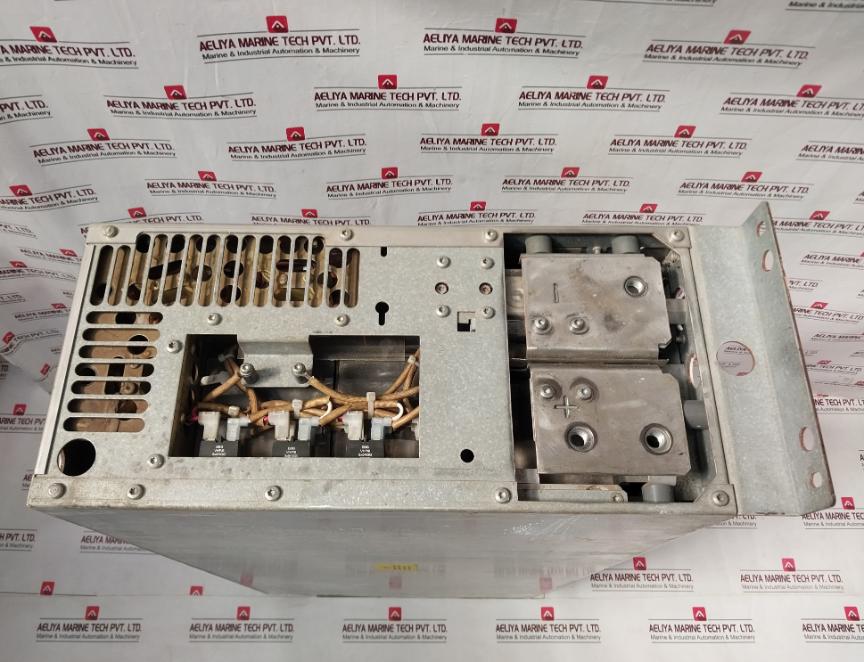

Abb 68606039 Inverter Drive Module 230v

Abb 68606039 Inverter Drive Module 230v
Abb Oy
Murrelektronik Power Oy
Raal
Acs800-104lc-0700-7+E205+Q950
Code: 68606039
Inverter:
Input:
U: 709…976 (848 Ul, Csa) Vdc
I: 700 Adc
Output:
U: 3~ 0…690 (600 Ul, Csa) V
I: 583 A
F: 0…300 Hz
Line Converter:
Input:
U: 3~ 525…690 (600 Ul, Csa) V
I: 480 A
F: 48…63 Hz
Output:
U: 742…976 (848 Ul, Csa) Vdc
I: 582 Adc
Brake Chopper:
Input:
U: 709…1110 (965 Ul, Csa) Vdc
I: 1171 Adc
Output:
U: 3x 0…1110 (965 Ul, Csa) Vdc
I: 3x 465 Adc
68614112 B
64493647d 1/2
Code: 64605666b
Type: Apow-01c
Code: 68685826d
Type: Aint-14c
Type: Agps21c
Code: 64668064a7060040
Agps-21, Art. No. 857822
Input: L/N/Pe, 50/60hz
115v/0,77a (X3 On)
230v/0,44a (X4 On)
Output: 24v/1.7a
Surr. Air Temp: 50°C
E222272
68615976a6330823
Type: Aofc-03 Rev: A
58978396 C
64791745 C
6865 2162 B
68654963 A
64791745
68628113d
Code: 68548683
68548683b7470271rb
Made In Finland
Weight : 108 Kg
Ref No : 190512
