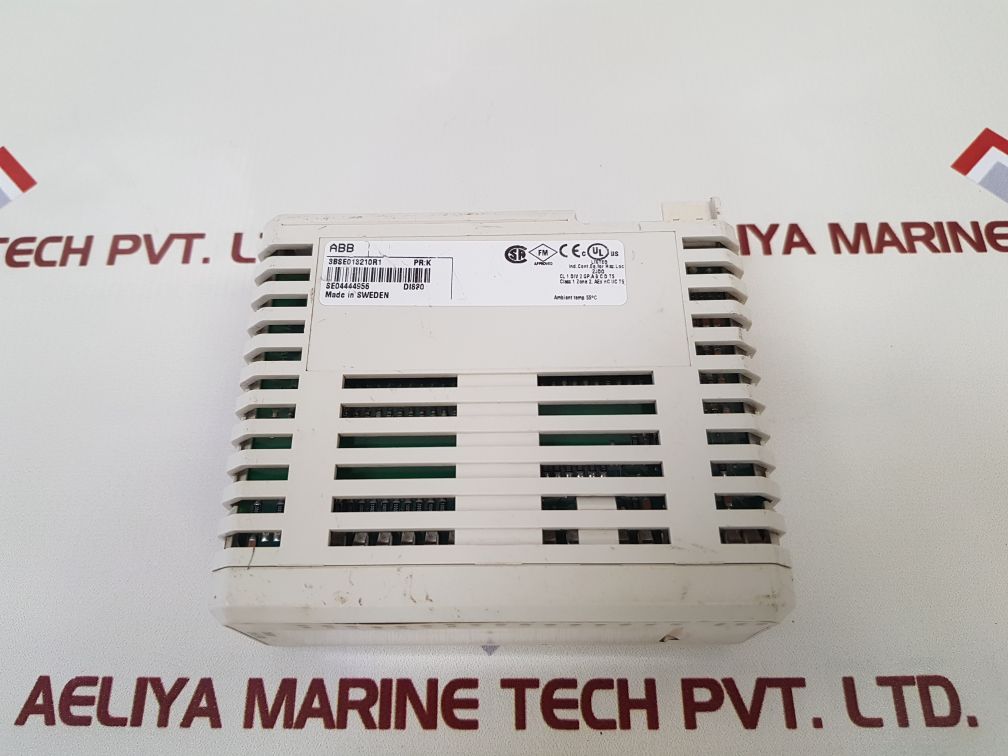

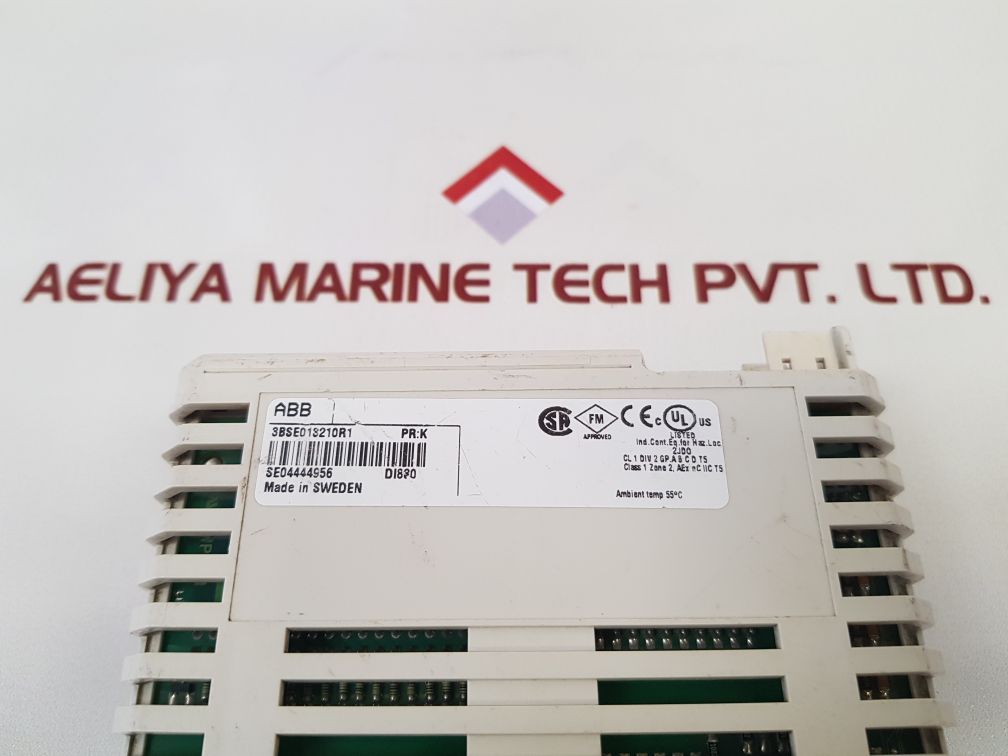

| Attribute | Value |
|---|---|
| Brand | ABB |
| Part Number | 3BSE013210R1 |
| Product Revision | PR: K |
| Serial Number | SE04444956 |
| Model | DI830 |
| Input Voltage | 24V, SOE |
| Hazardous Area Rating | CL. 1 DIV 2 GP. A B C D T5 |
| Zone Classification | Class 1 Zone 2, AEx nC IIC T5 |
| Ambient Temperature | 55°C |
| Catalog Reference | 3BSC 930 119R |
| Country of Origin | Made in Sweden |
| Weight | 190 gm |

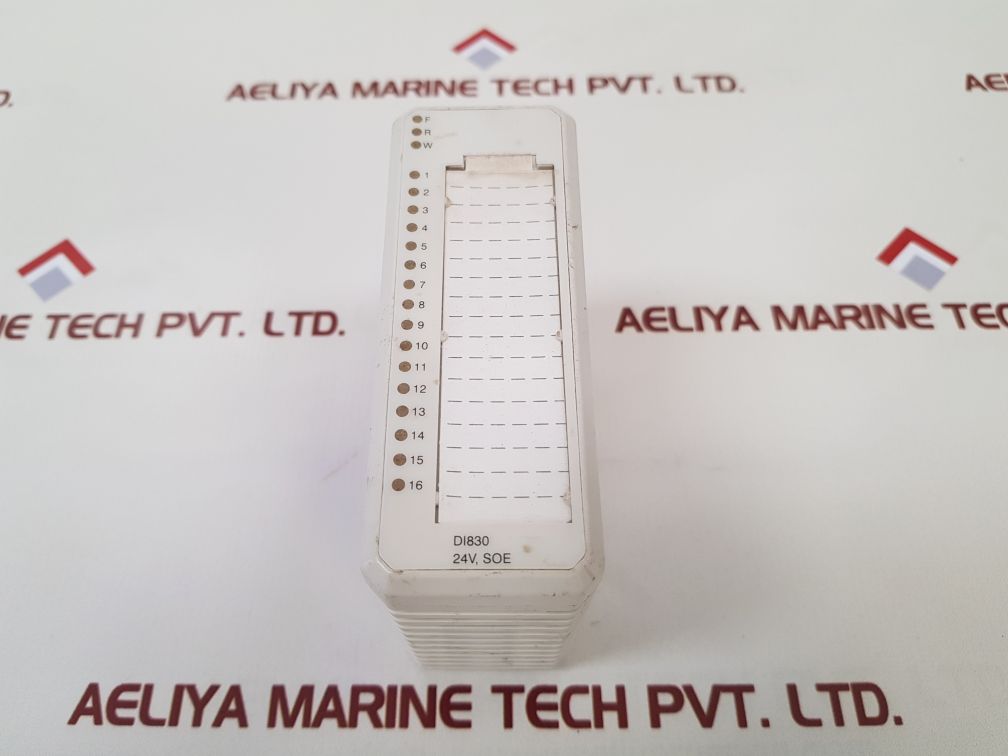

What is ABB DI830 Digital Input Module?
The DI830 is a 16-channel 24 V DC digital input module that was designed by ABB for integration within AC 800M controllers. It is an important component of ABB’s industrial automation solutions and is highly regarded for its compatibility and seamless integration with control systems.
Part number 3BSE013210R1 is the designation for this model, and it guarantees that customers receive exactly what they require for high-performance applications.
Important Features
The following are some of the most important features that make the DI830 module a favorite among users:
16 Channels: The module accommodates 16 digital input channels, making possible high-density signal integration.
24V DC Input: It is optimized for industrial standard 24V DC signal levels.
Group-Wise Galvanic Isolation: Offers safe electrical isolation among input groups.
Module Diagnostics: Integrated diagnostics make it easier to troubleshoot and maintain.
Hot-Swappable Design: Allows replacement without system shutdown.
Compact Form Factor: Occupies less space in dense control cabinets.
Applications of ABB DI830 in Industrial Automation
The DI830 finds application in a broad spectrum of industries where accurate digital signal input is essential. Some of the applications are:
1. Factory Automation
The module is also essential for reading input signals from sensors, switches, and other equipment employed in automated production lines.
2. Power Plants
In power generation and transmission plants, the DI830 provides precise signal monitoring from control systems.
3. Oil & Gas Industry
Its rugged design makes the module ideal for remote monitoring and control of hazardous applications.
4. Water Treatment Plants
It assists in capturing level sensor, pump, and valve signal feedback to ensure glitchless operation.
Advantages of Employing the DI830 Module
Enhanced Reliability: Its solid construction and high-performance components ensure long-term operating stability.
Simple Maintenance: Diagnostic functions and hot-swapping reduce system downtime.
Versatile Integration: Suits easily into pre-existing ABB automation systems with minimal setup needed.
Increased Safety: Galvanic isolation between input groups safeguards against electrical faults.
Why Select ABB’s 3BSE013210R1 DI830 Module?
ABB is a trusted name in industrial automation, and the DI830 module is a prime example of their engineering excellence. Whether you’re upgrading an existing system or building a new control cabinet, this digital input module offers the reliability, efficiency, and performance needed for modern industrial applications.
