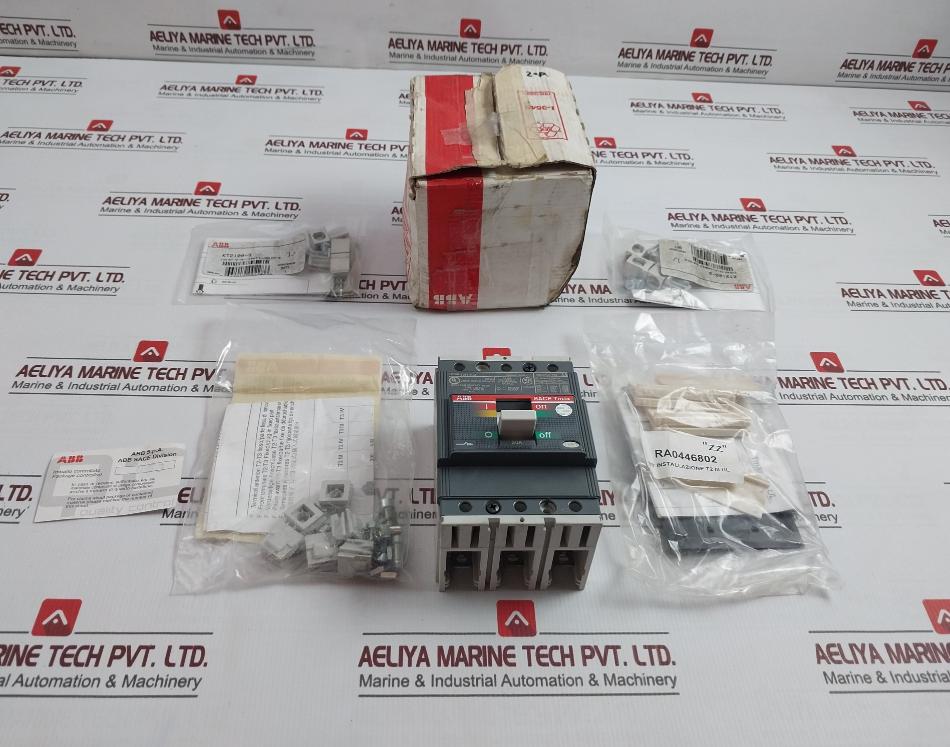

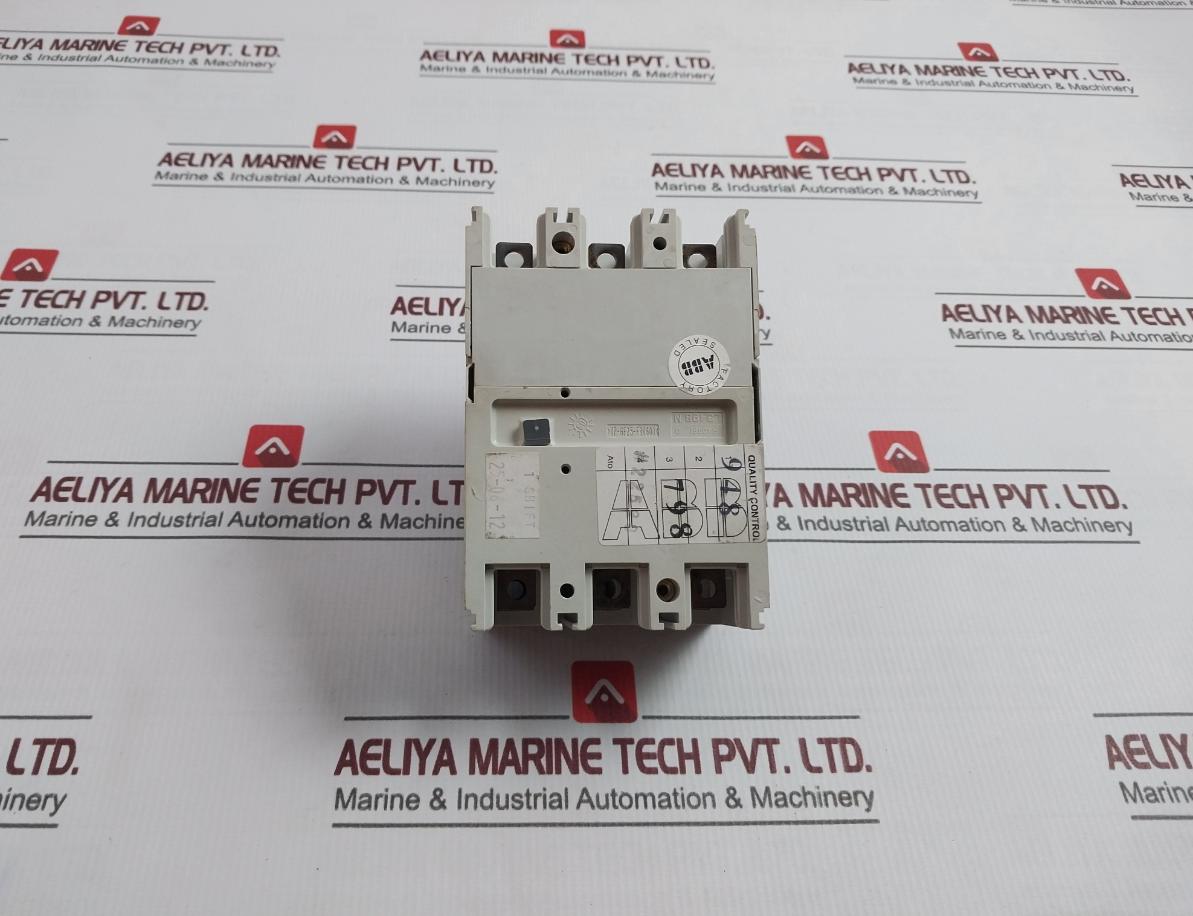

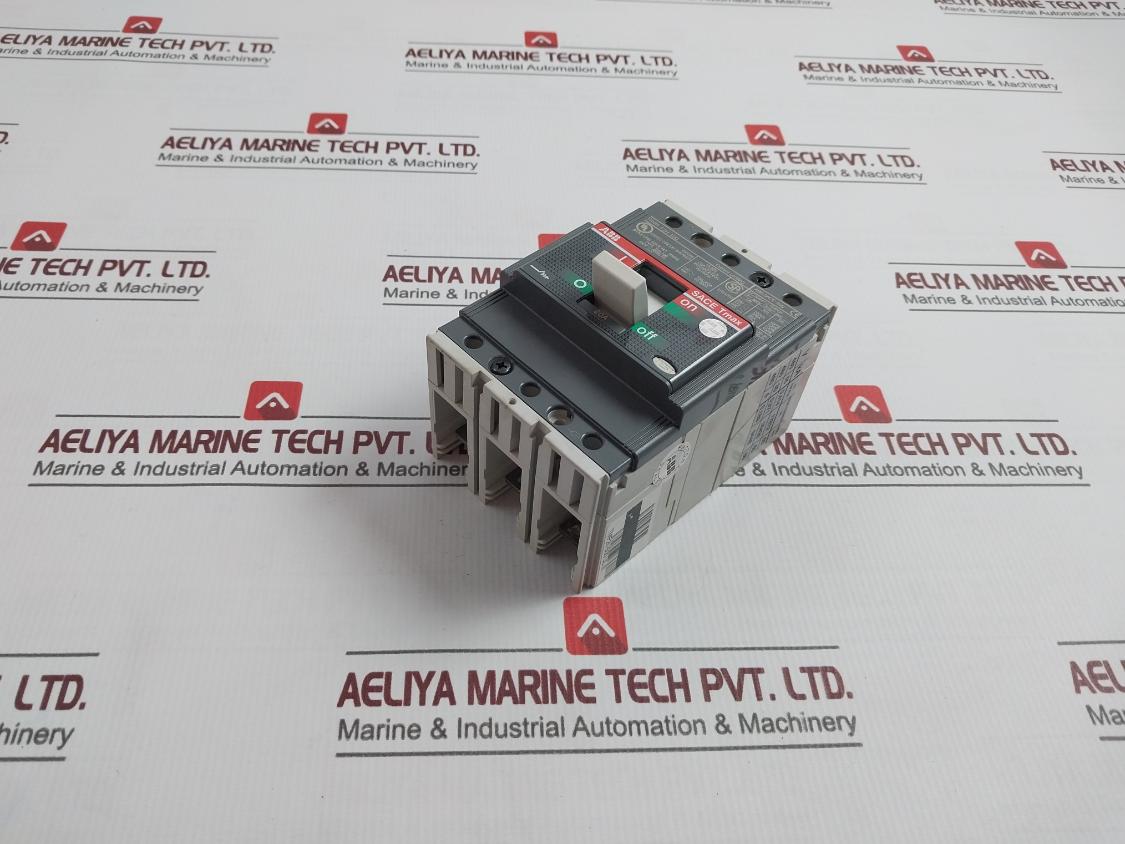

Abb 1sda053954r1 3 Pole Circuit Breaker 480v

Abb 1sda053954r1 3 Pole Circuit Breaker 480v
Designed By Abb Sace Division
Abb Inc.
Sace
Part Name: Circuit Breaker
Tmax T2h 100
Current Limiting
Type: T2h 100
Cat. No.: 1sda053954r1
3 Pole Unit
480v~ 50/60 Hz
40˚C
E93565
Termination Values Cu/Al 75˚C Only
Ha Cr Type
Ul489
Csa C22.2-5
Interrupting Ratings:
240v~ 150,000a
480v~ 65,000a
Iec 60947-2 Ratings
Ui= 800v
Uimp= 8kv
Wire: 1/0-3awg
4-6awg
8awg
14-10awg
Torque: 50lb-In
45lb-In
40lb-In
35lb-In
Nr. Bc71132765
Code: 1sda053917r1
A.B.: 1120178518 000100
Fb.Nr.: Bc71132765
8 015644 549626
Ec71132765c
28545
Assembly No.: 1298581
Part No.: 1818856
0800066981
Ra0381 D
L3498 M
Tmf20-500 Ul/Tmf20-500 Ul Iii
Lug Kit T2 1/0-14awg 3 Lugs D3718
Kt2100-3
000007398282
6 62018 00228 6
Tmax Ul
Doc. N.˚ Rh0012.810- L0716
Terminals For Cables
Kit Installazione T2 Iii Ul
Ra0446802
“Zz”
Front Terminals T2-T3 Fixed/Plug-In Fixed Part
Made In Italy
Weight : 1.340 Kg
Ref No : 189893
