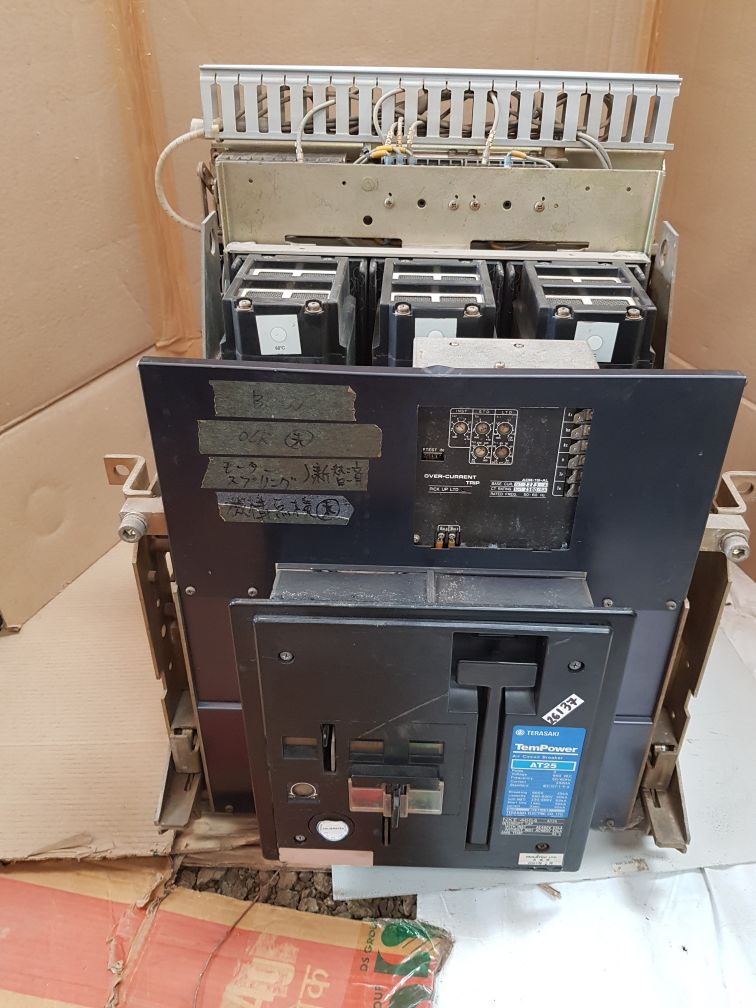

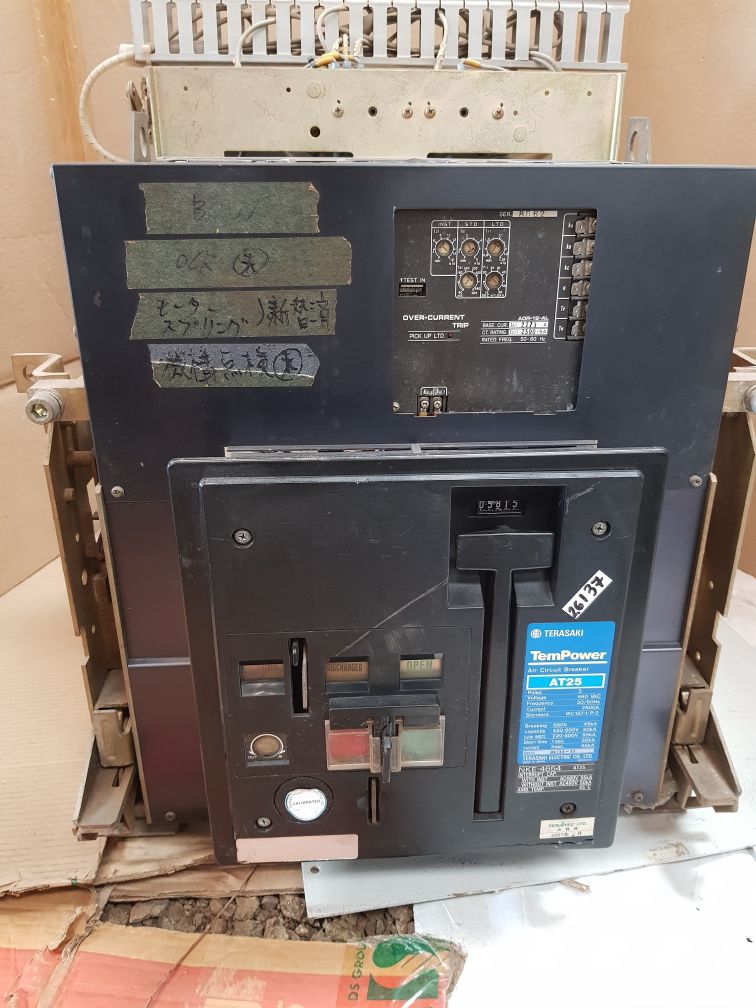

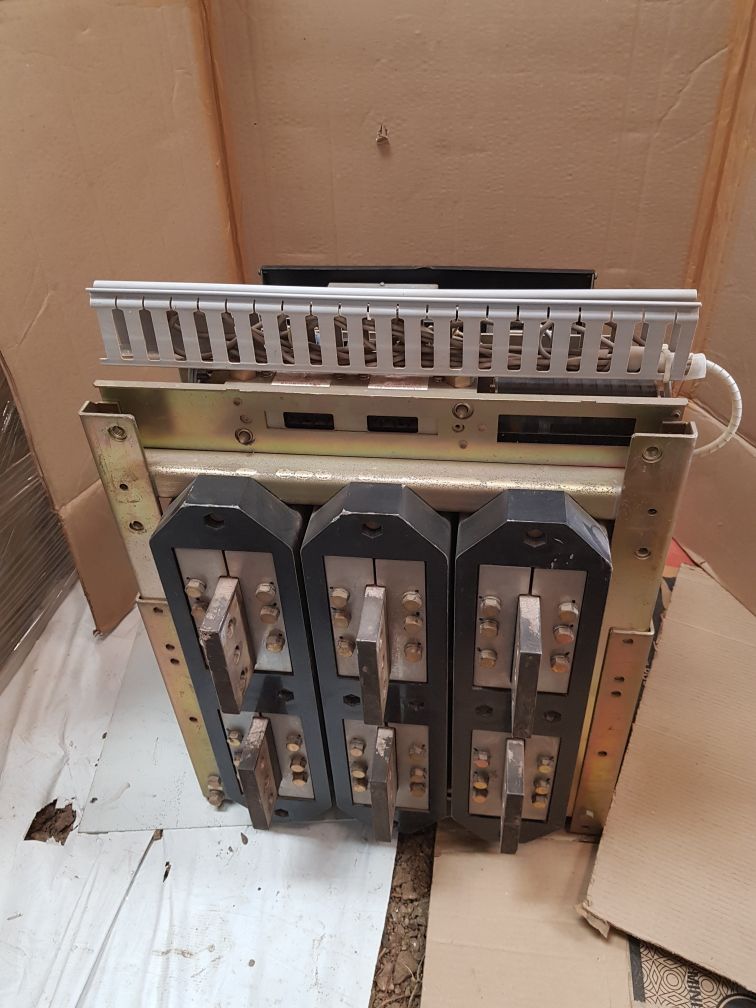

TERASAKI AT25 3 POLE AIR CIRCUIT BREAKER 2273A

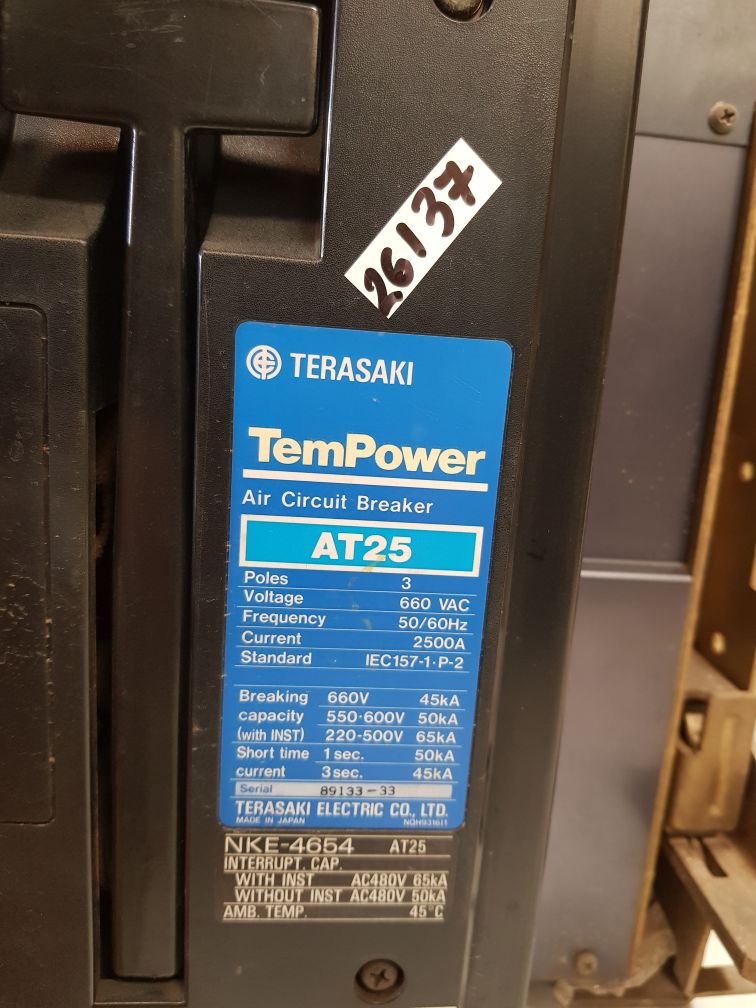

TERASAKI ELECTRIC CO., LTD.
TEMPOWER
AIR CIRCUIT BREAKER
AT25
POLES: 3
VOLTAGE: 660 VAC
FREQUENCY: 50/60HZ
CURRENT: 2500A
STANDARD: IEC157-1.P-2
BREAKING 660V 45KA
CAPACITY 550-600V 50KA
(WITH INST) 220-500V 65KA
SHORT TIME 1SEC. 50KA
CURRENT 3SEC. 45KA
NOH931611
NKE-4654 AT25
INTERRUPT. CAP.
WITH INST AC480V 65KA
WITHOUT INST AC480V 50KA
AMB. TEMP. 45°C

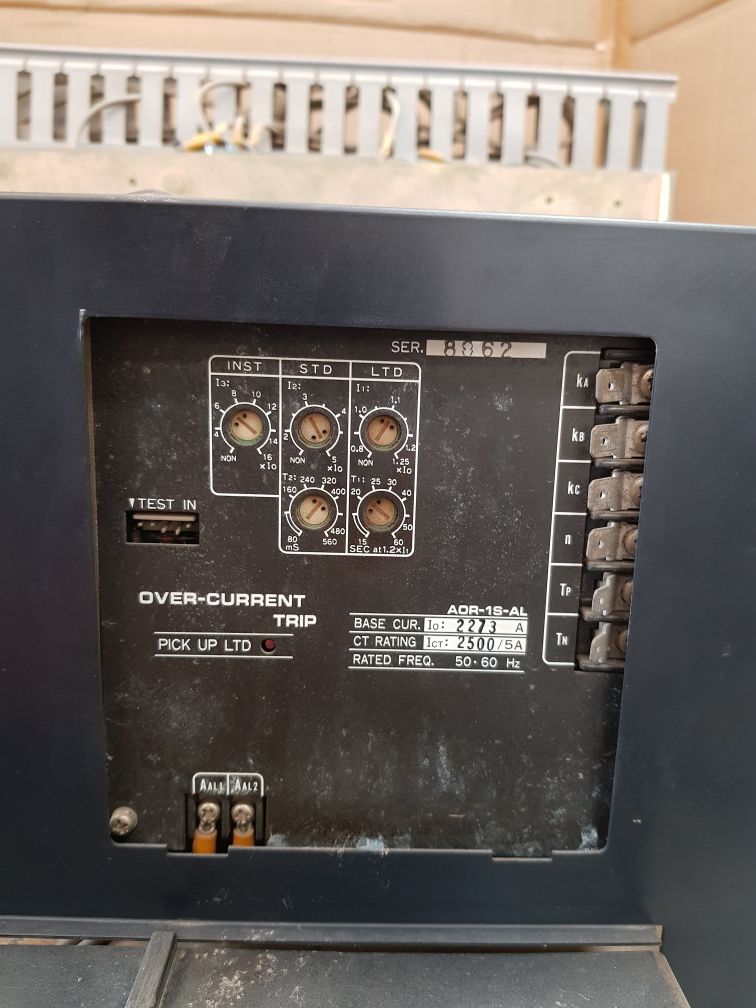

OVER-CURRENT TRIP
AOR-1S-AL
BASE CUR. IO: 2273 A
CT RATING ICT: 2500/5A
RATED FREQ.: 50-60 HZ
MADE IN JAPAN
REF NO(S) : 26137
